Jenn-Air
Gas Cooktop

Model # GO106 Official Jenn-Air gas cooktop

Here are the diagrams and repair parts for Official Jenn-Air GO106 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Range Surface Element Control Switch 703650
#11

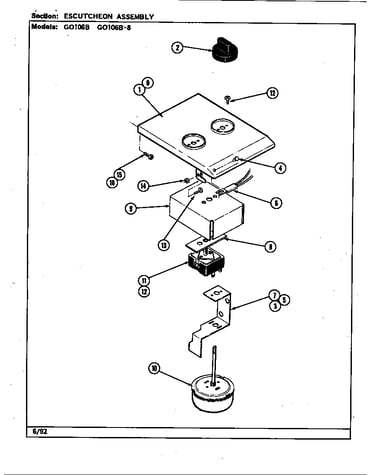

Escutcheon assembly diagram

Range surface element control switch

Part #703650

Replaced by #W11120791

?
Manufacturer substitution
This part replaces 703650. Substitute parts can look different from the original.
BEST SELLER
$72.09 |
9% OFF MSRP : $79.00
In Stock
Clip 700834
#29

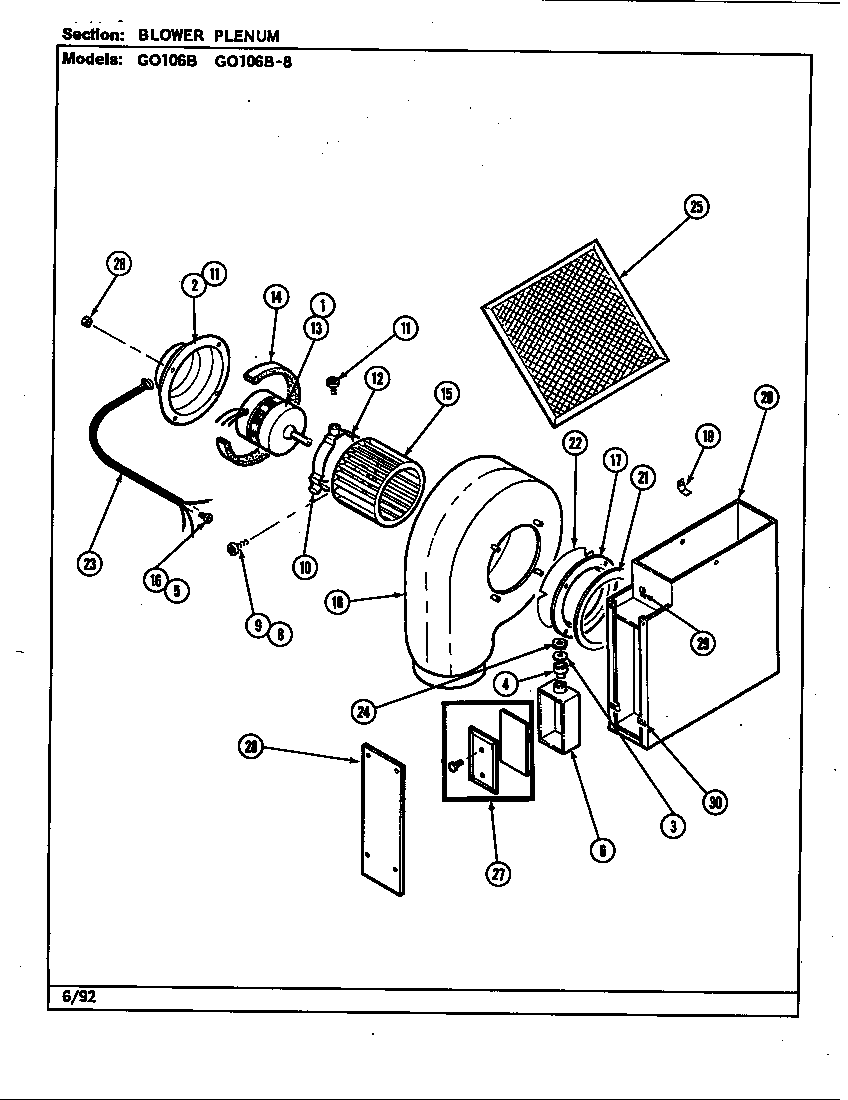

Blower plenum diagram

Clip

Part #700834

Replaced by #WP74008014

?
Manufacturer substitution
This part replaces 700834. Substitute parts can look different from the original.
BEST SELLER
$73.18 |
10% OFF MSRP : $81.00
In Stock
Screw 707347
#10

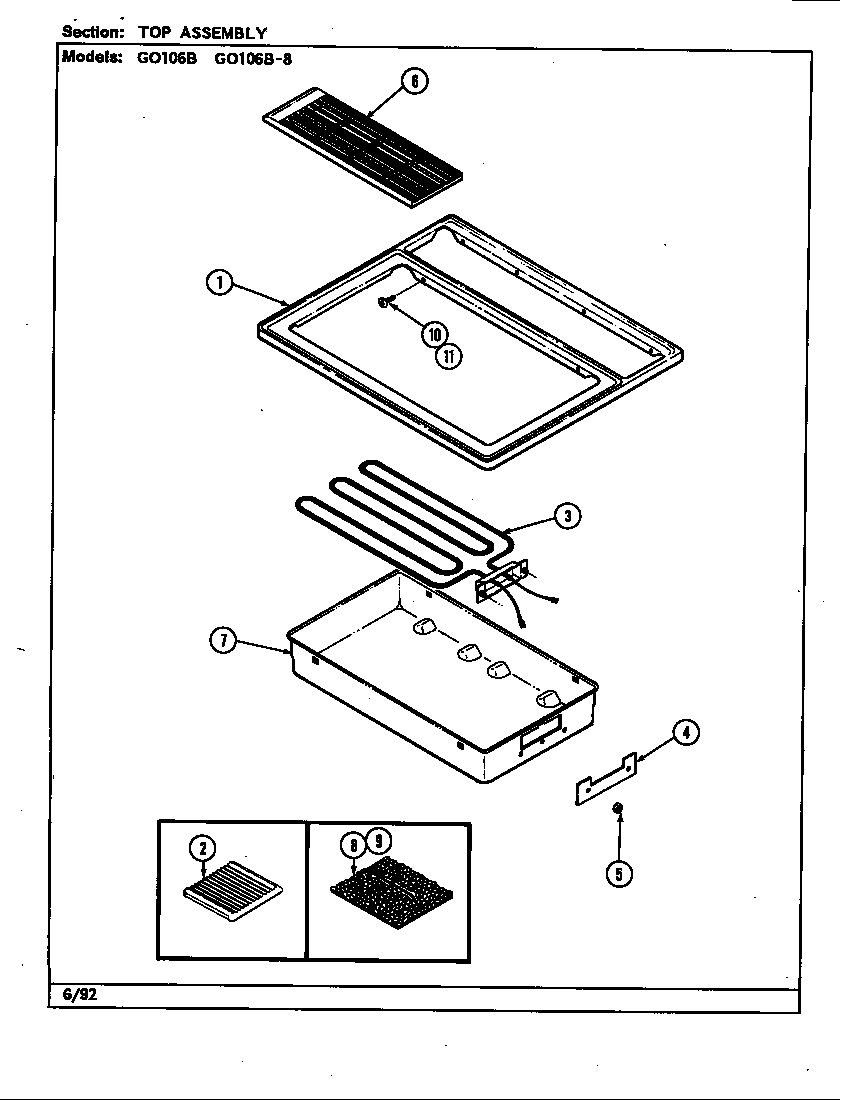

Top assembly diagram

Screw

Part #707347

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 707347. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 705007
#15

Escutcheon assembly diagram

Screw

Part #705007

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 705007. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Element, 6-in 715927
#14

Blower plenum diagram

Element, 6-in

Part #715927

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel 707985
#15

Blower plenum diagram

Blower wheel

Part #707985

Replaced by #WPY707985

?
Manufacturer substitution
This part replaces 707985. Substitute parts can look different from the original.
$71.68 |
7% OFF Phone Price : $76.68
In Stock
Griddle Element 705213
#3A

Top assembly diagram

Griddle element

Part #705213

Replaced by #WP7406P229-60

?
Manufacturer substitution
This part replaces 705213. Substitute parts can look different from the original.
$162.08 |
23% OFF MSRP : $210.00
In Stock
Jar Drain 707869
#9

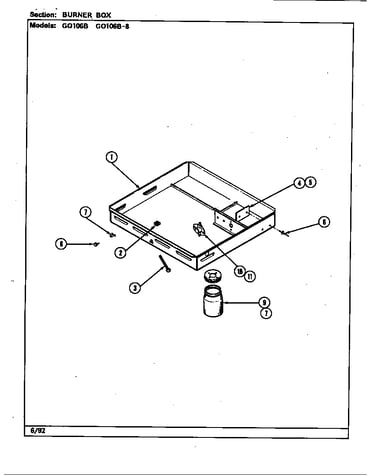

Burner box diagram

Jar drain

Part #707869

Replaced by #WPY707869

?
Manufacturer substitution
This part replaces 707869. Substitute parts can look different from the original.
$36.29 |
12% OFF Phone Price : $41.29
In Stock
Screw 707172
#28C

Blower plenum diagram

Screw

Part #707172

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707172. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Washer 702592
#11

Top assembly diagram

Washer

Part #702592

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 702592. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
