Model #SWT621WD Speed Queen washer

Here are the diagrams and repair parts for Speed Queen SWT621WD washer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

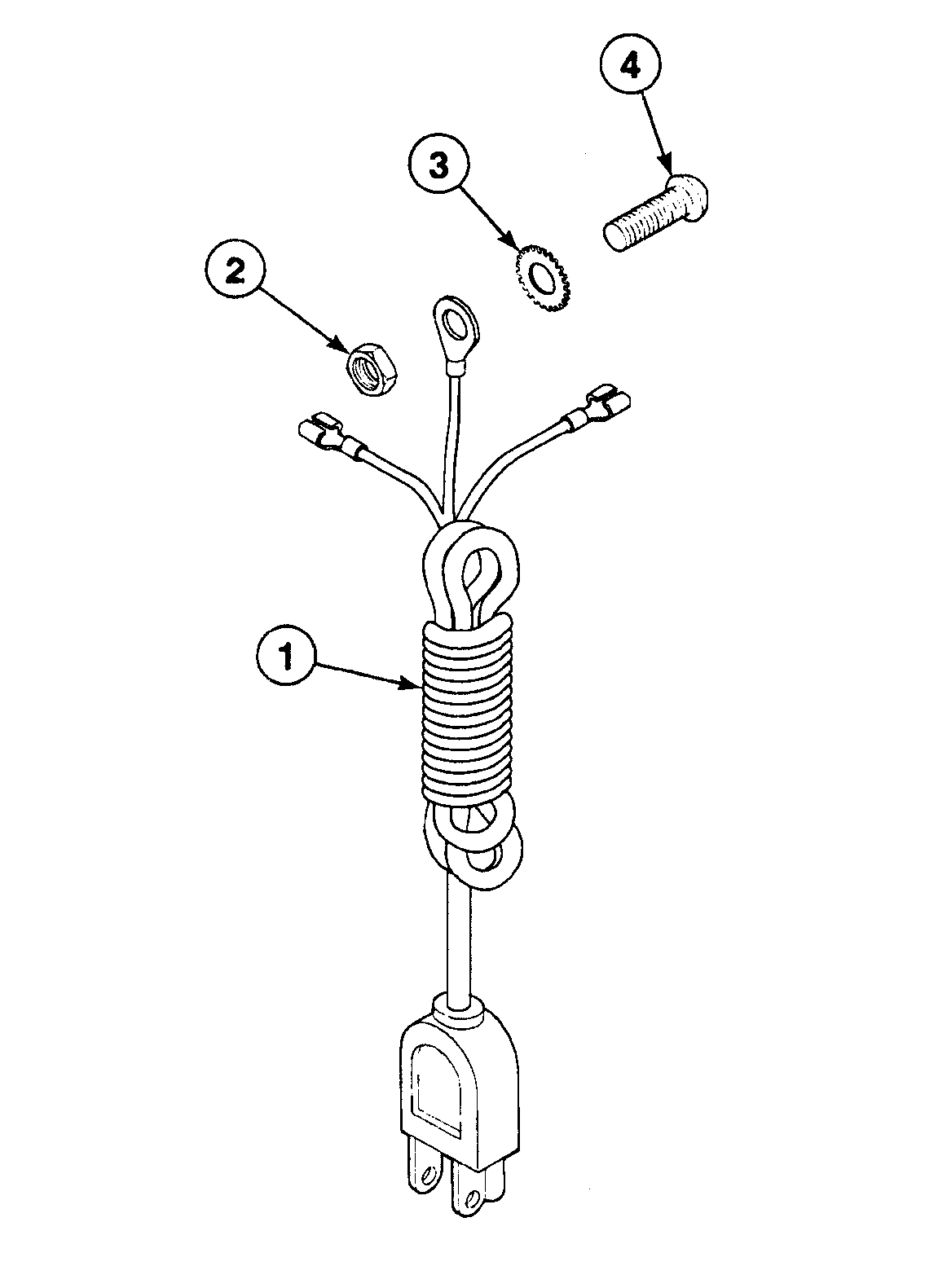

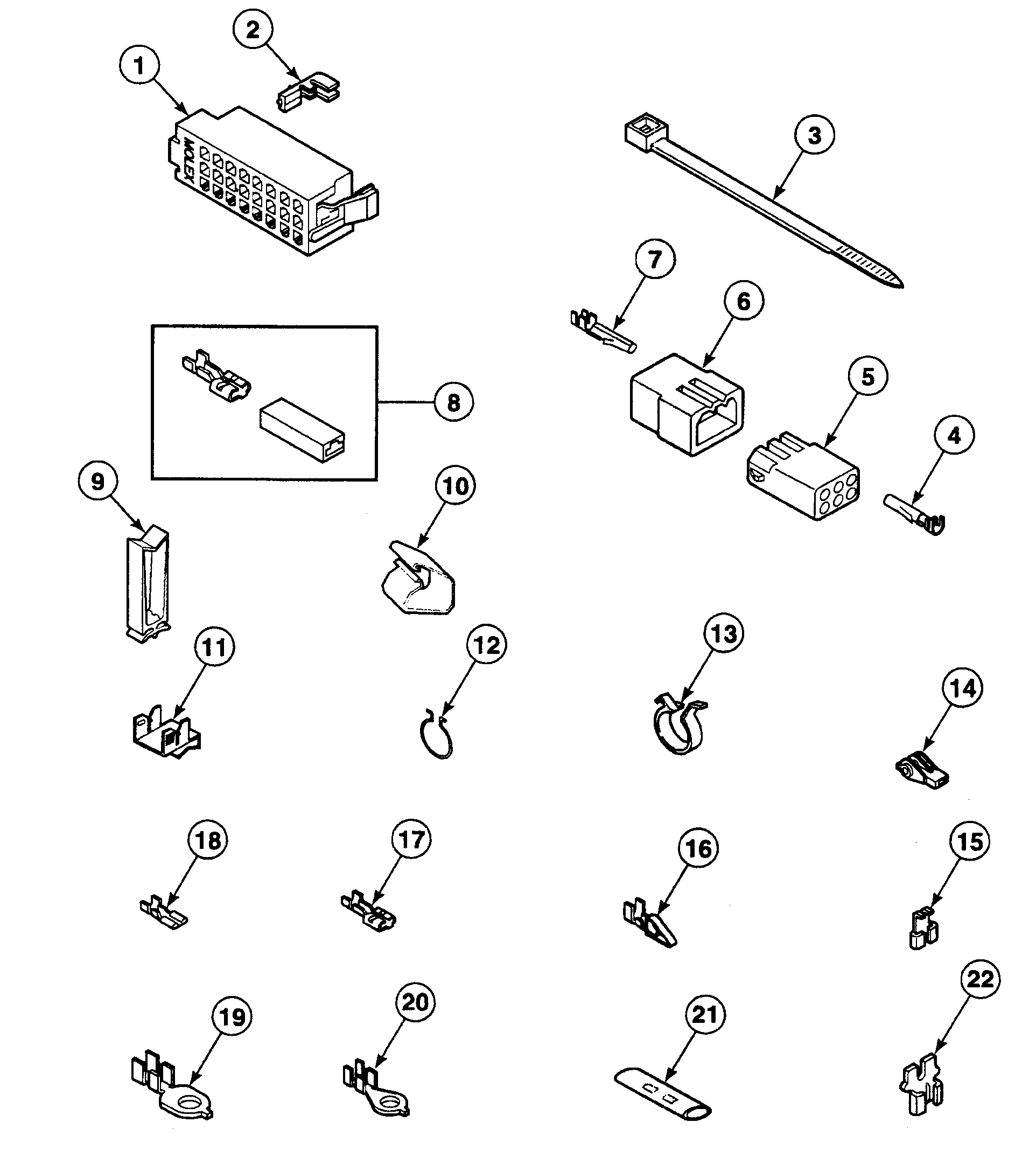

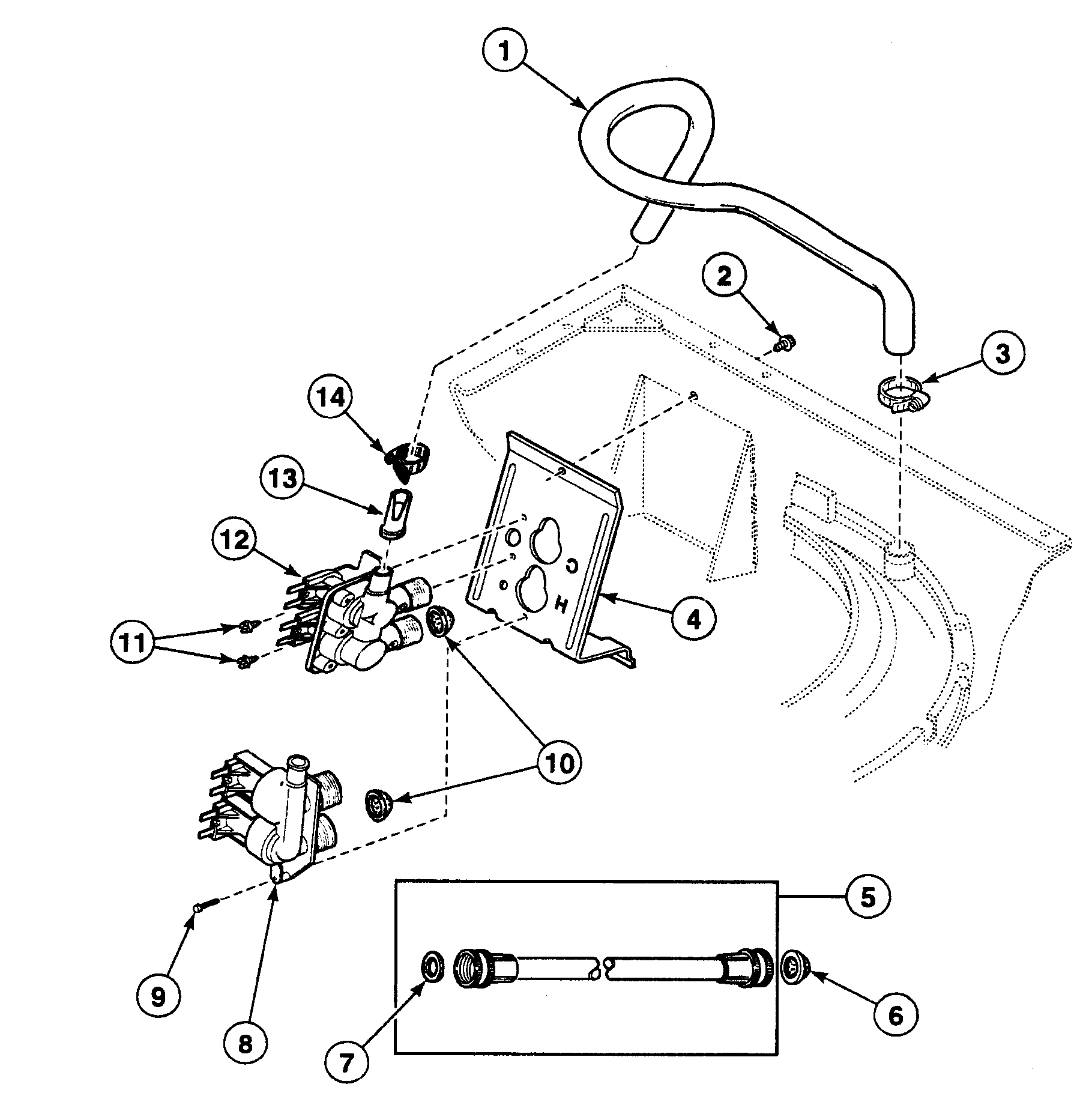

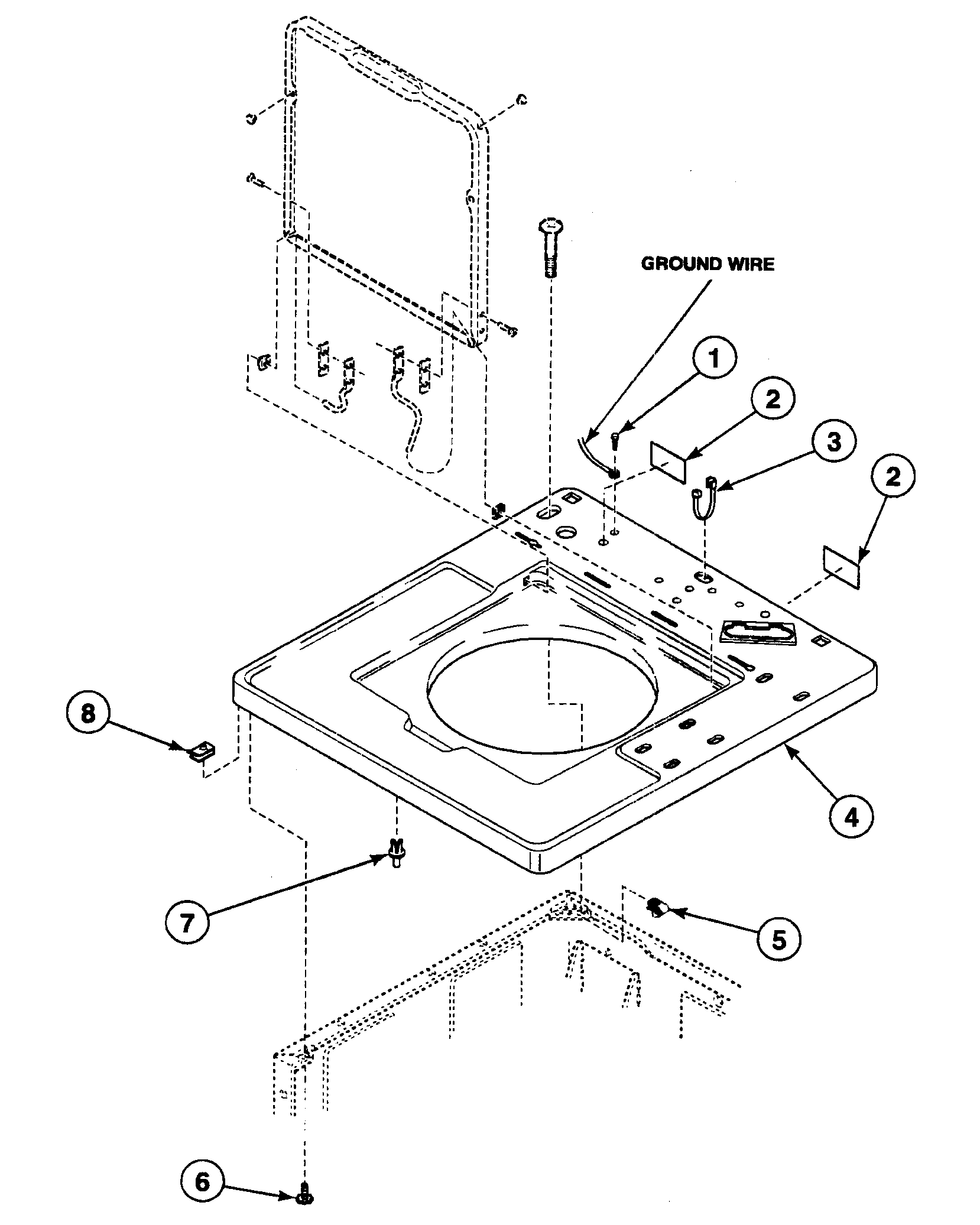

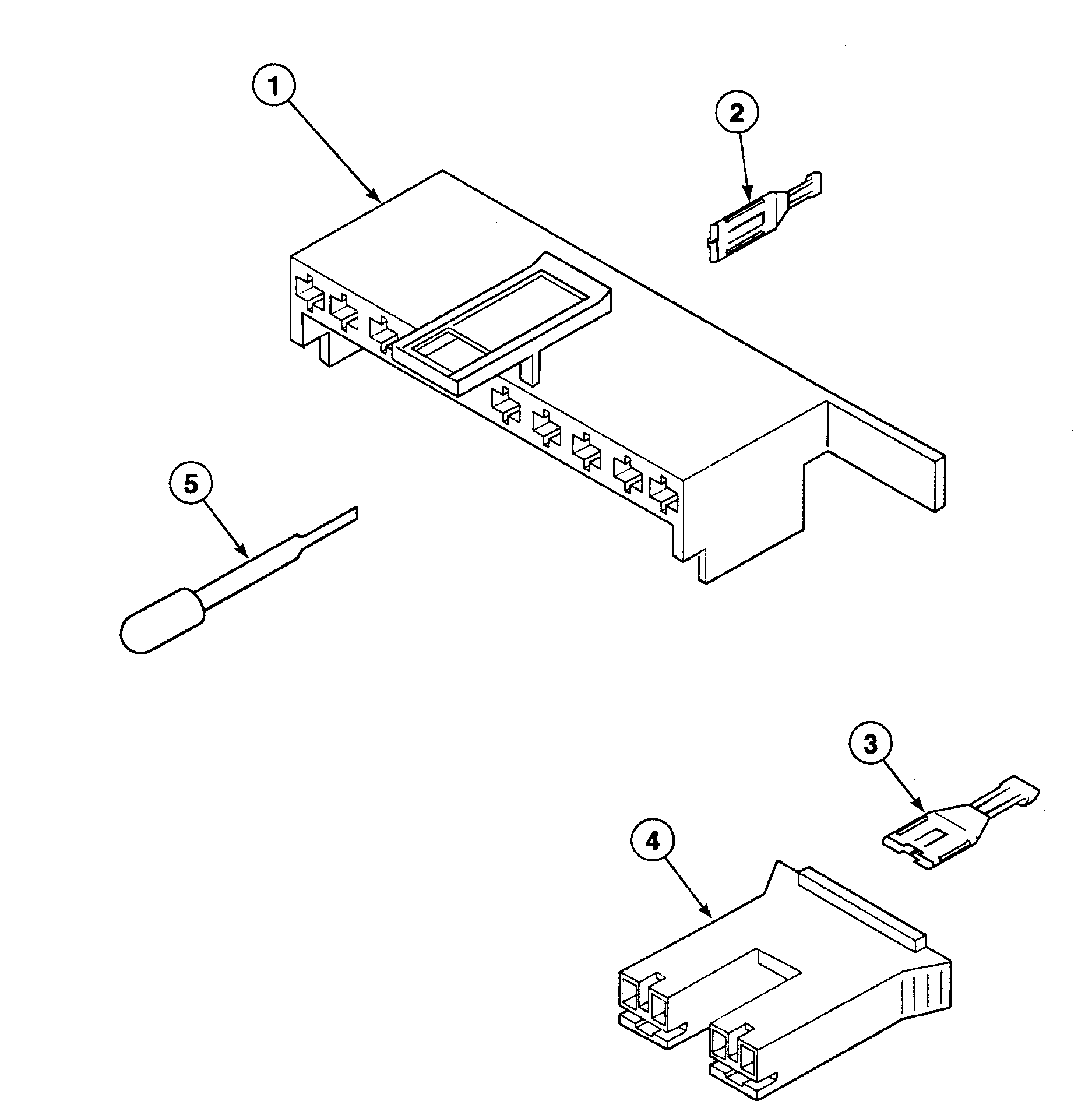

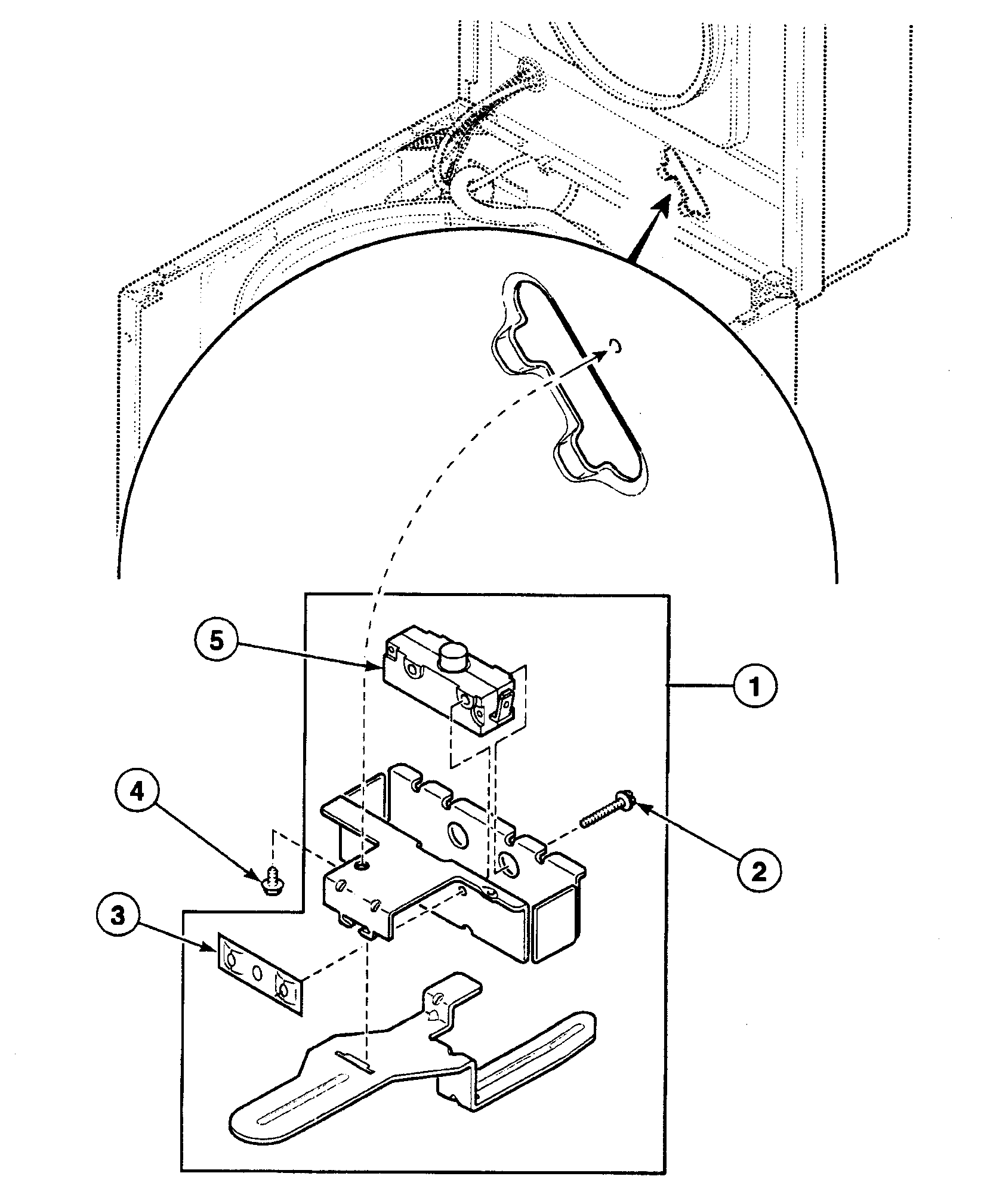

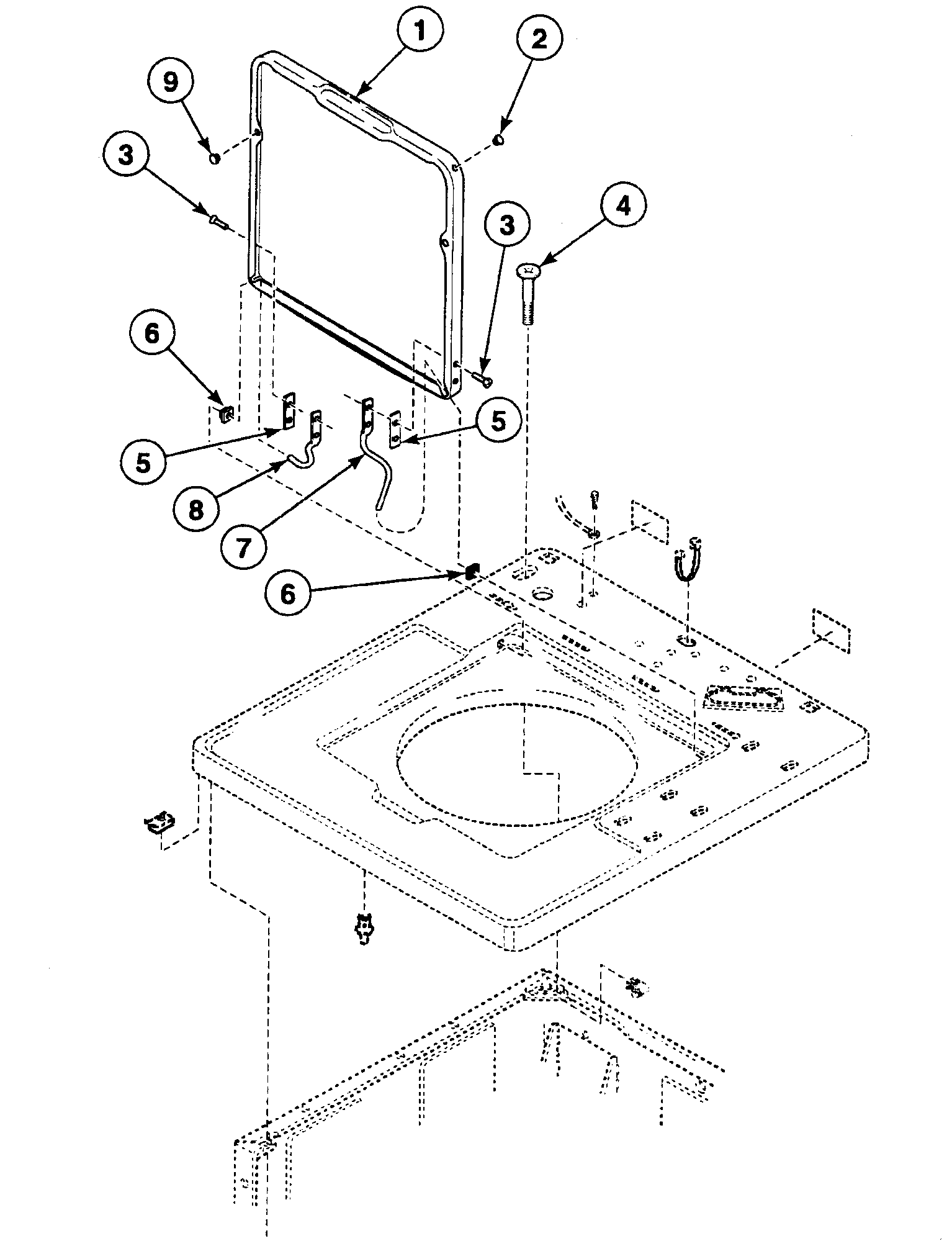

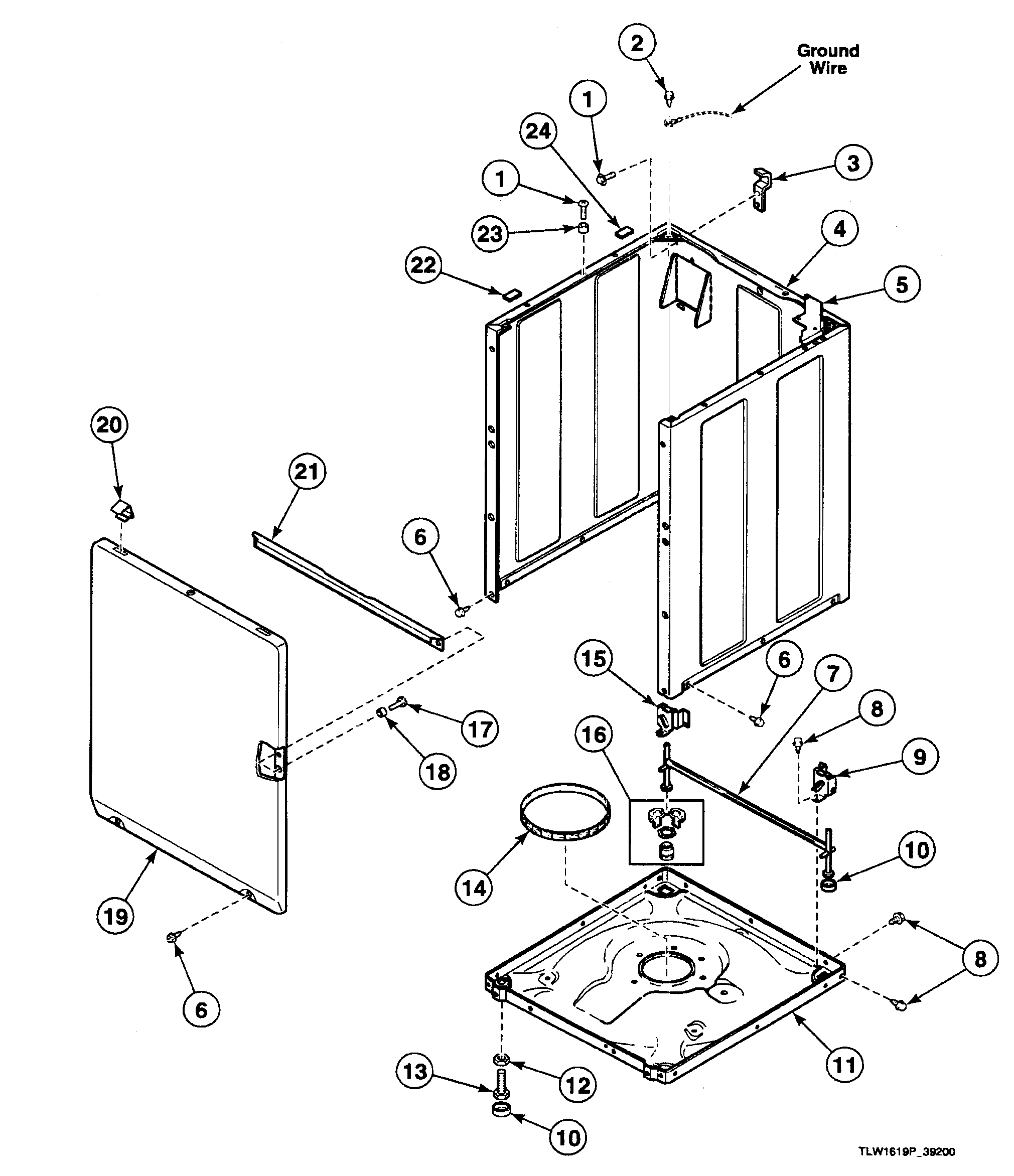

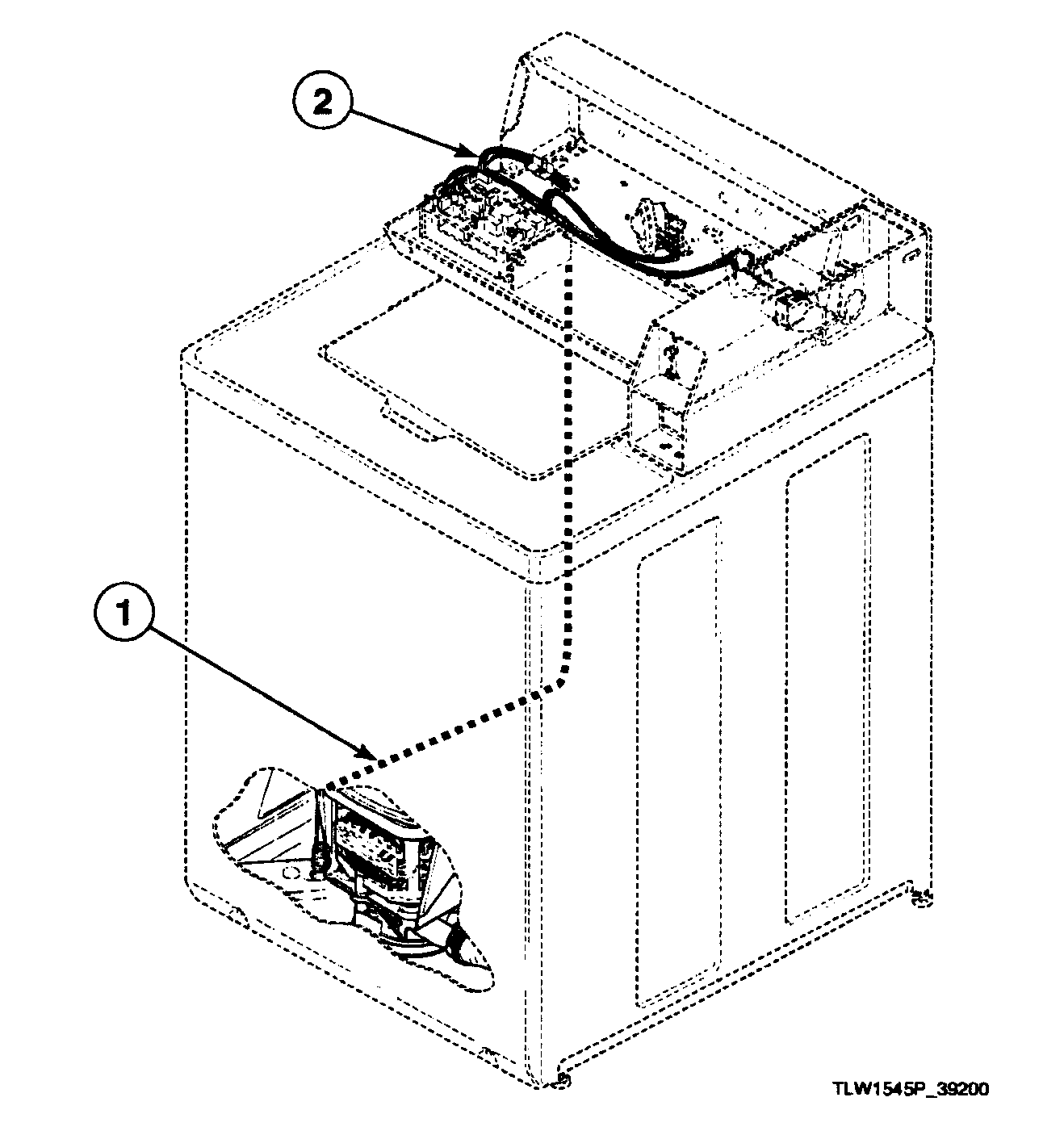

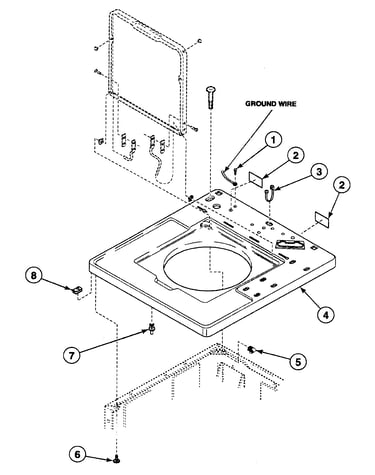

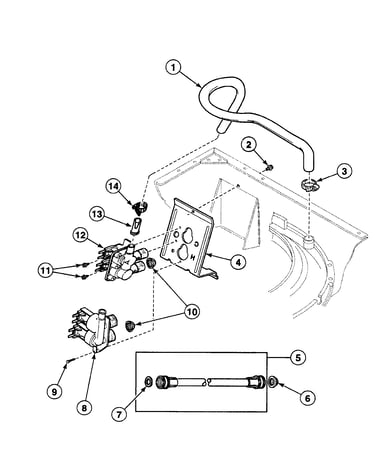

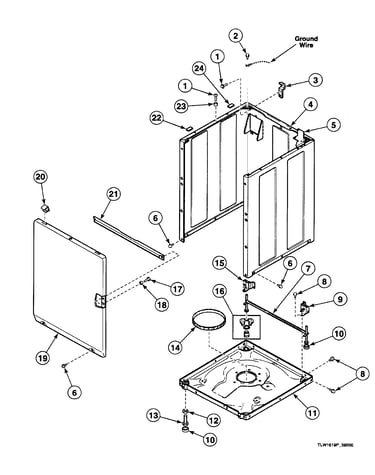

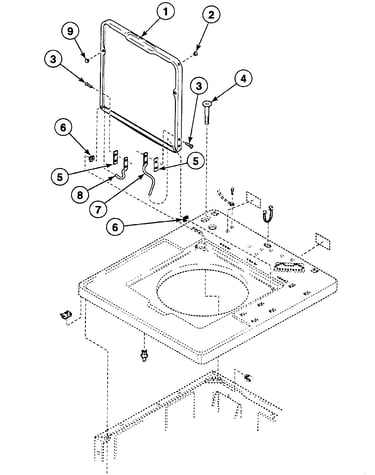

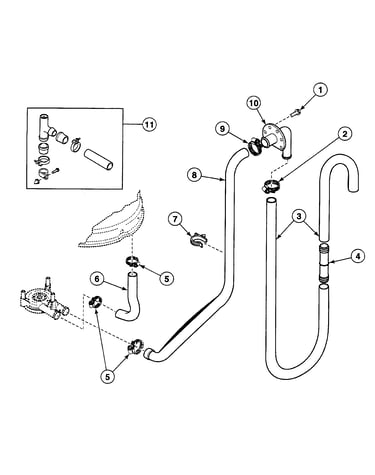

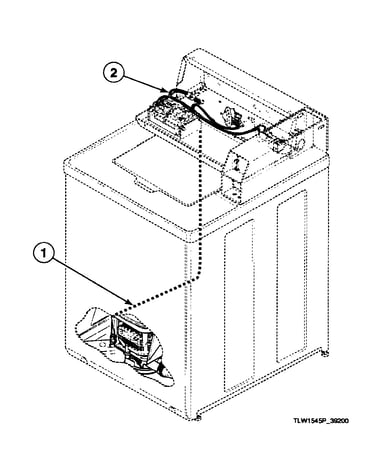

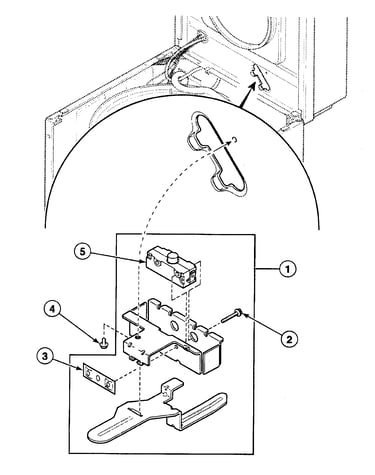

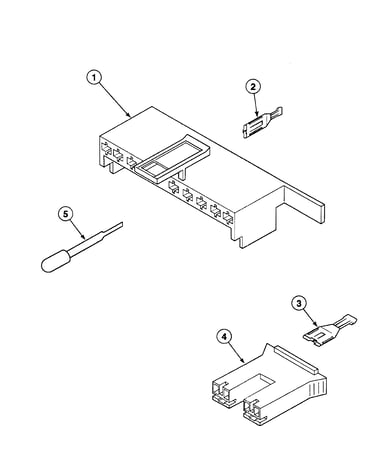

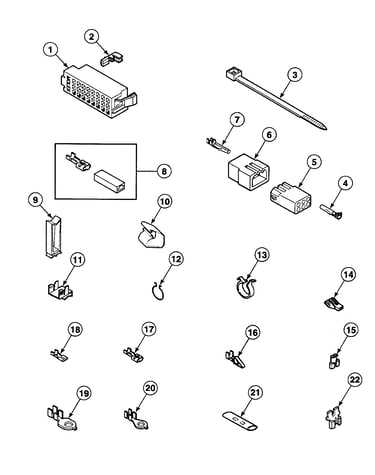

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 254 parts

    Washer Spanner Nut Wrench

    #4

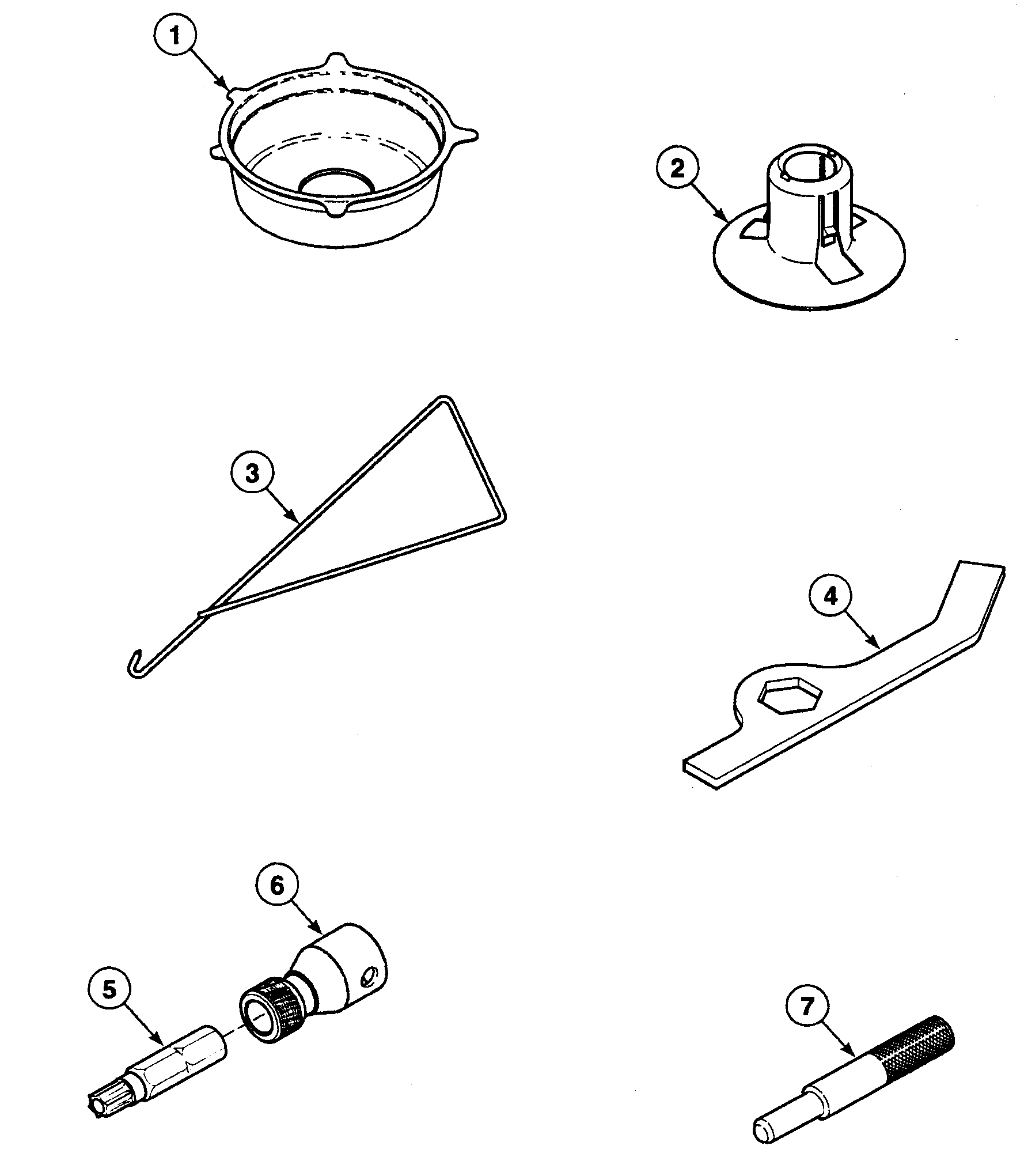

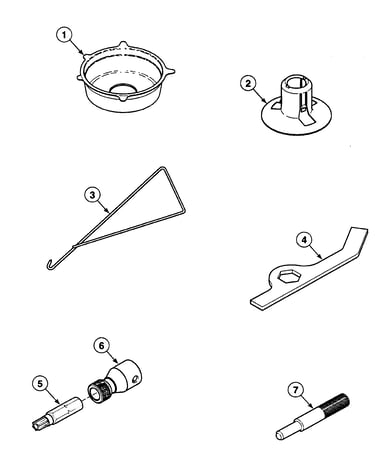

    Tools 1 Diagram

    Washer spanner nut wrench

    Part #306P4

    The manufacturer no longer makes this part, and there's no substitute part

    Helix

    #10

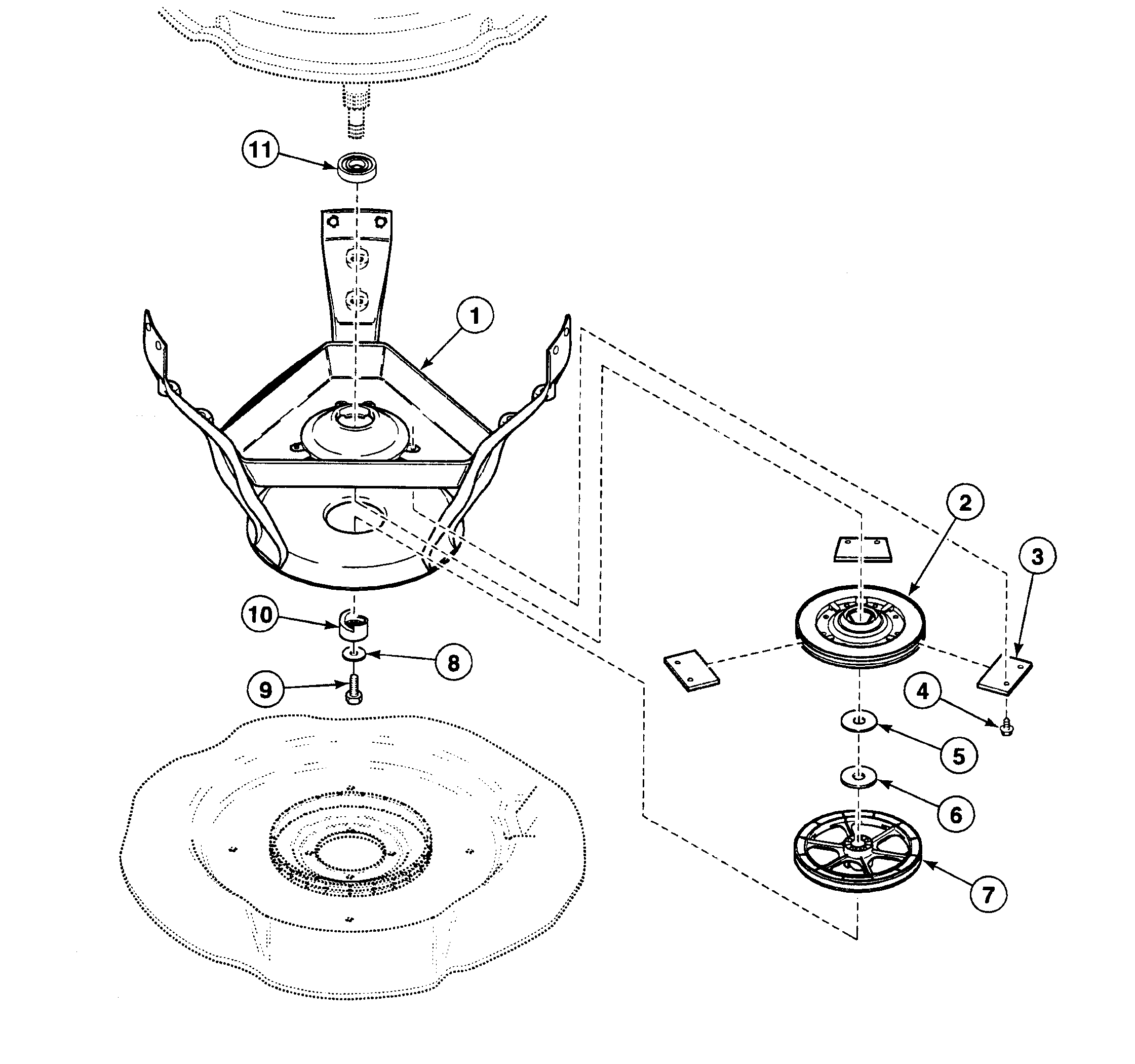

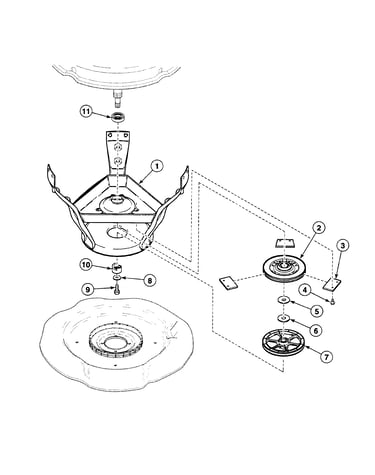

    Brake assy Diagram

    Helix

    Part #38008

    The manufacturer no longer makes this part, and there's no substitute part

    Washer Nut

    #8

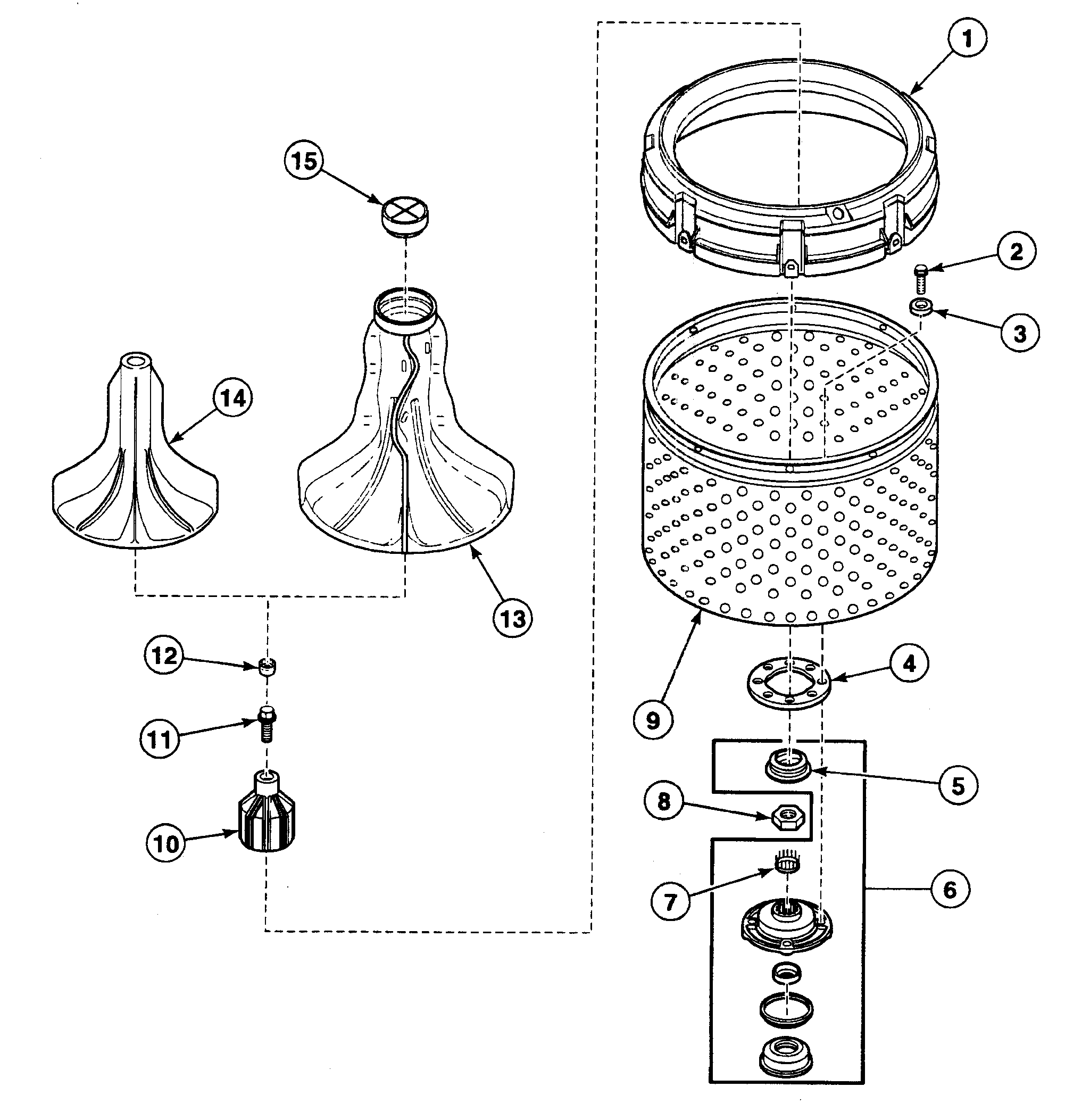

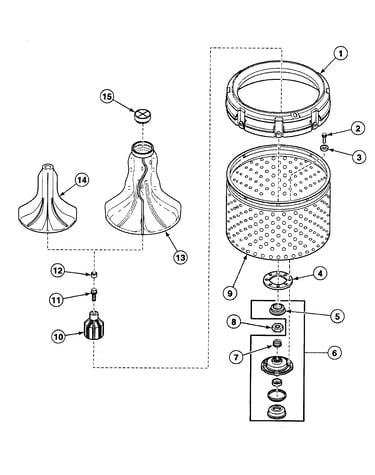

    Agitator assy Diagram

    Washer nut

    Part #29220

    The manufacturer no longer makes this part, and there's no substitute part

    Washer Drain Pump

    #17

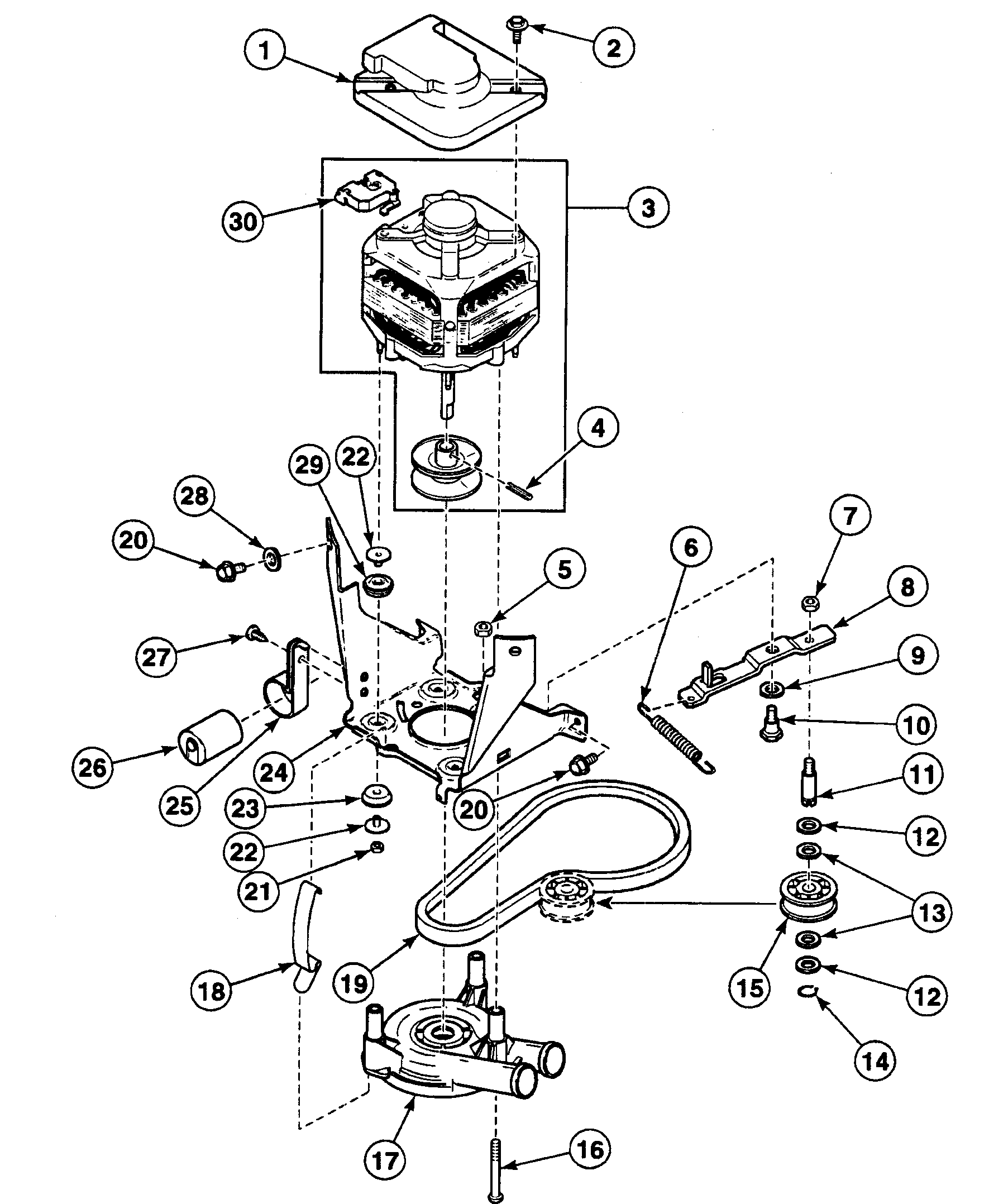

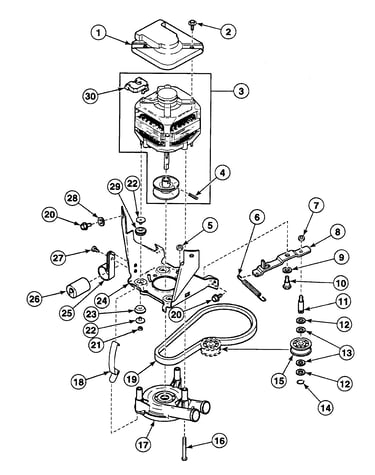

    Motor assy Diagram

    Washer drain pump

    Part #201566P

    The manufacturer no longer makes this part, and there's no substitute part

    Washer Pump

    #17A

    Motor assy Diagram

    Washer pump

    Part #201442P

    The manufacturer no longer makes this part, and there's no substitute part

    Trans.oil

    #3

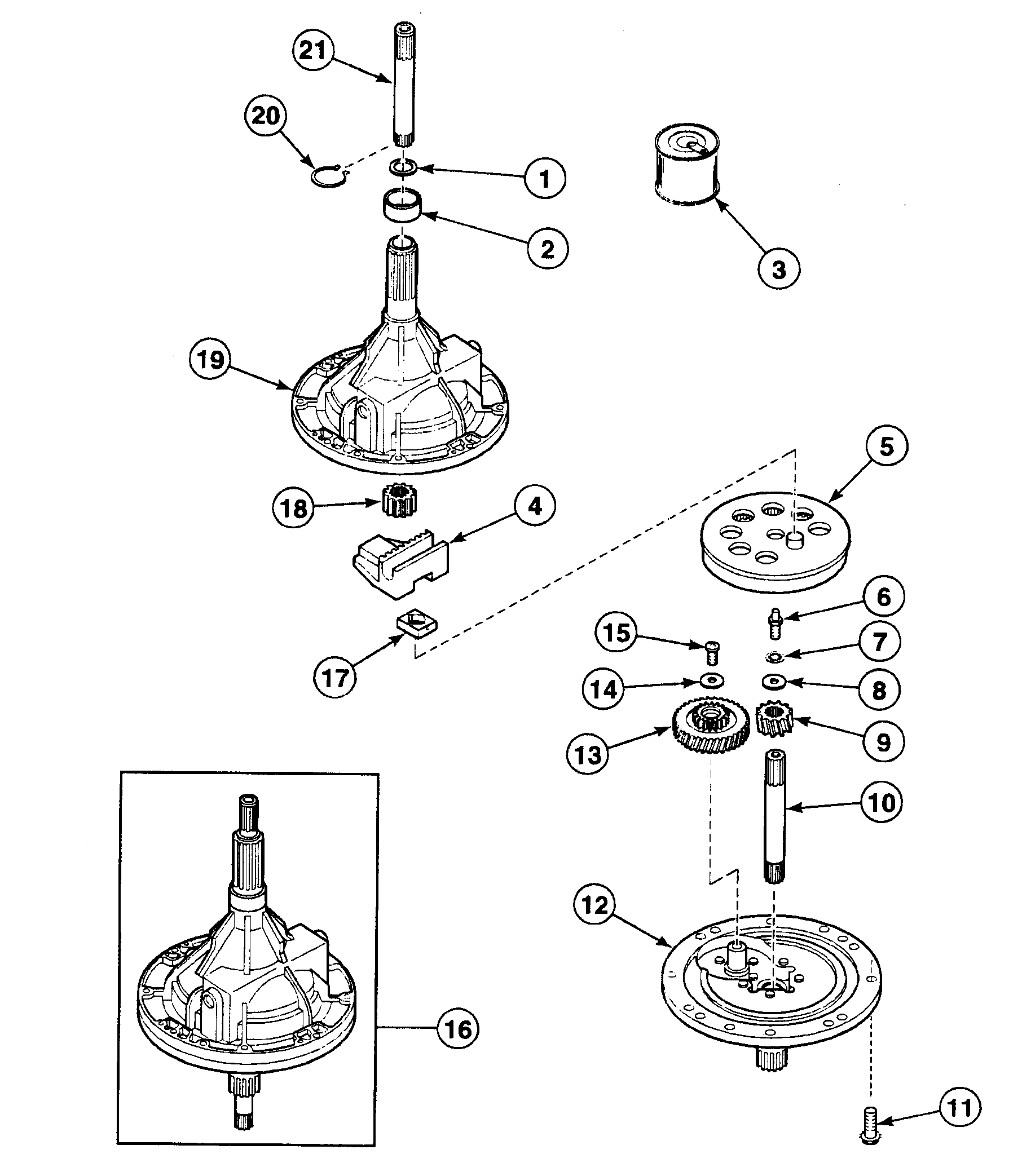

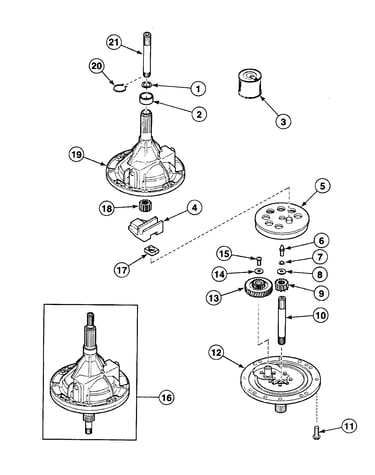

    Transmission Diagram

    Trans.oil

    Part #27243P

    The manufacturer no longer makes this part, and there's no substitute part

    Grommet

    #15

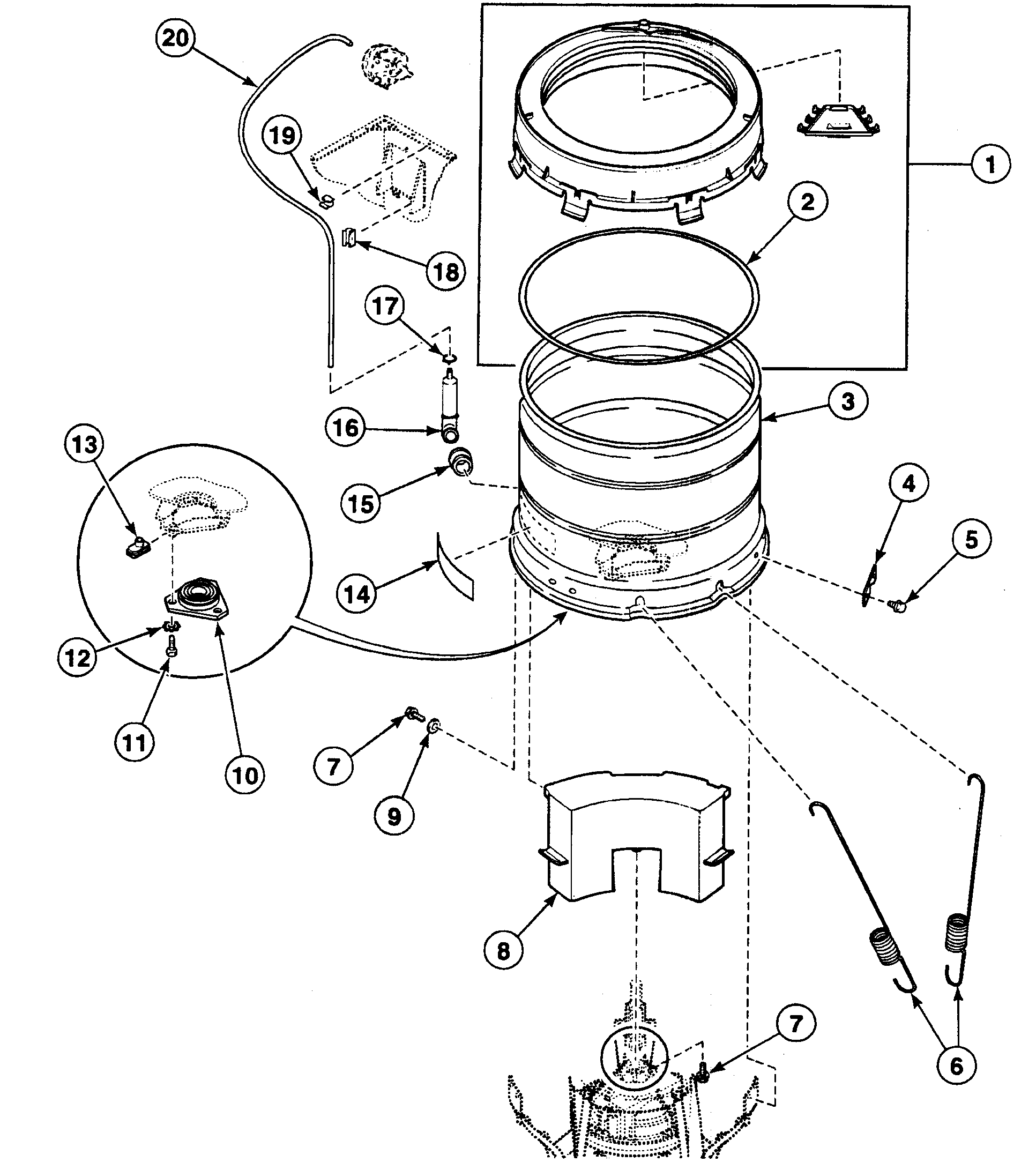

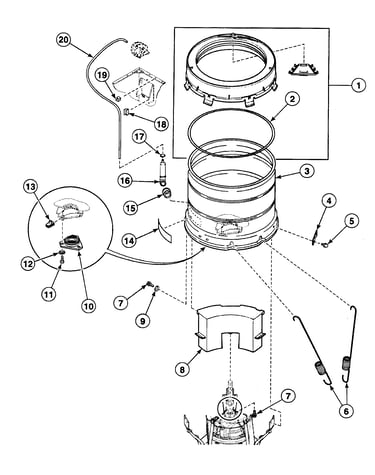

    Tub assy Diagram

    Grommet

    Part #29175

    The manufacturer no longer makes this part, and there's no substitute part

    Nut

    #6

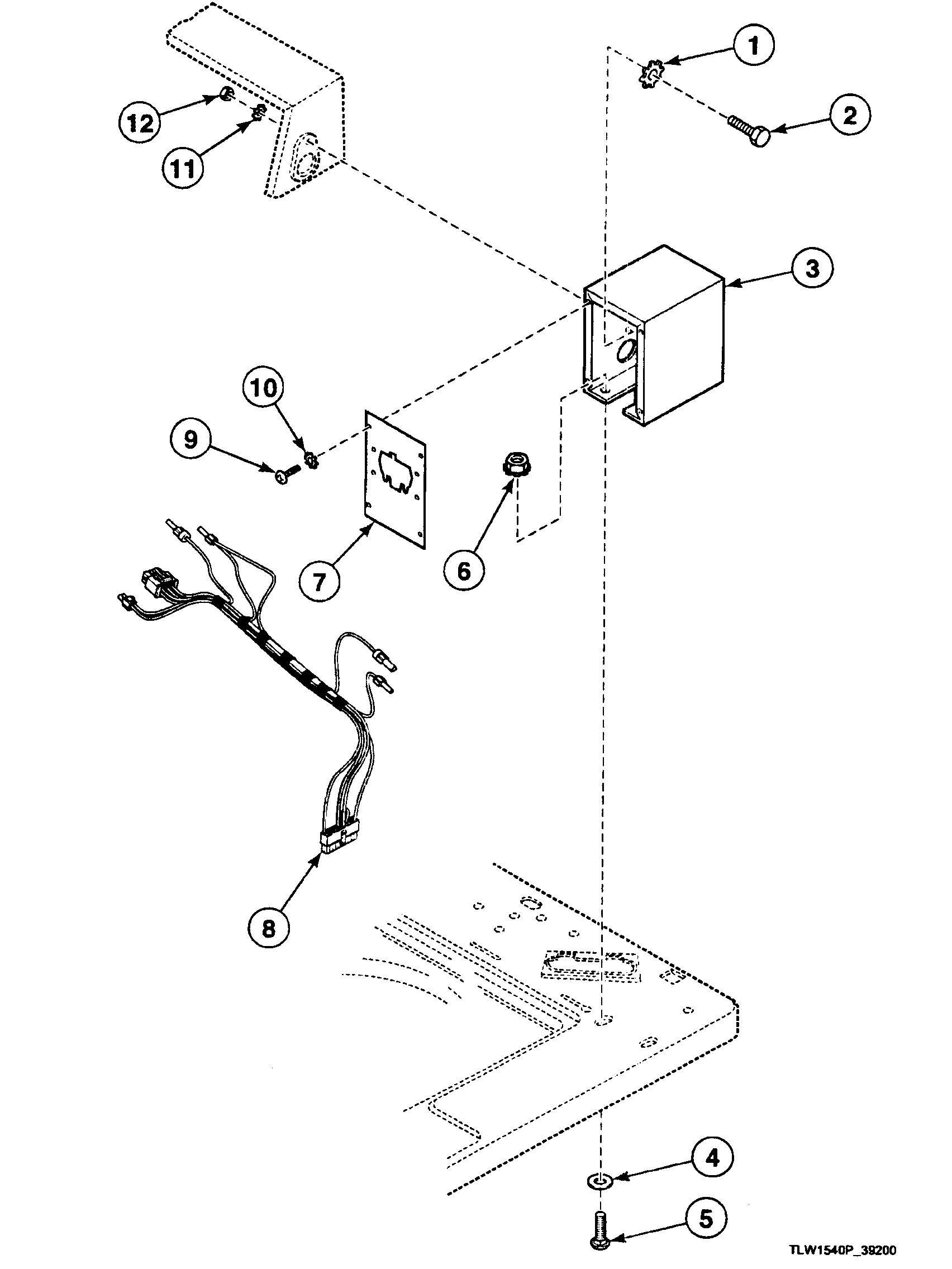

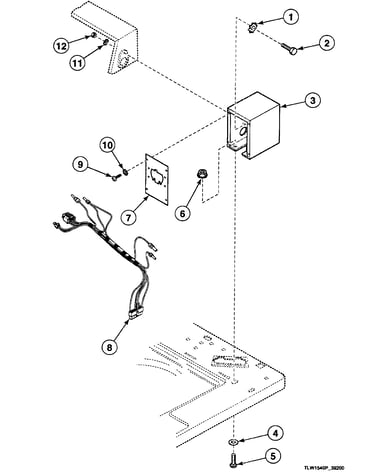

    Timer case Diagram

    Nut

    Part #29786

    The manufacturer no longer makes this part, and there's no substitute part

    Commercial Laundry Appliance Coin Box Ratchet Tool

    #5

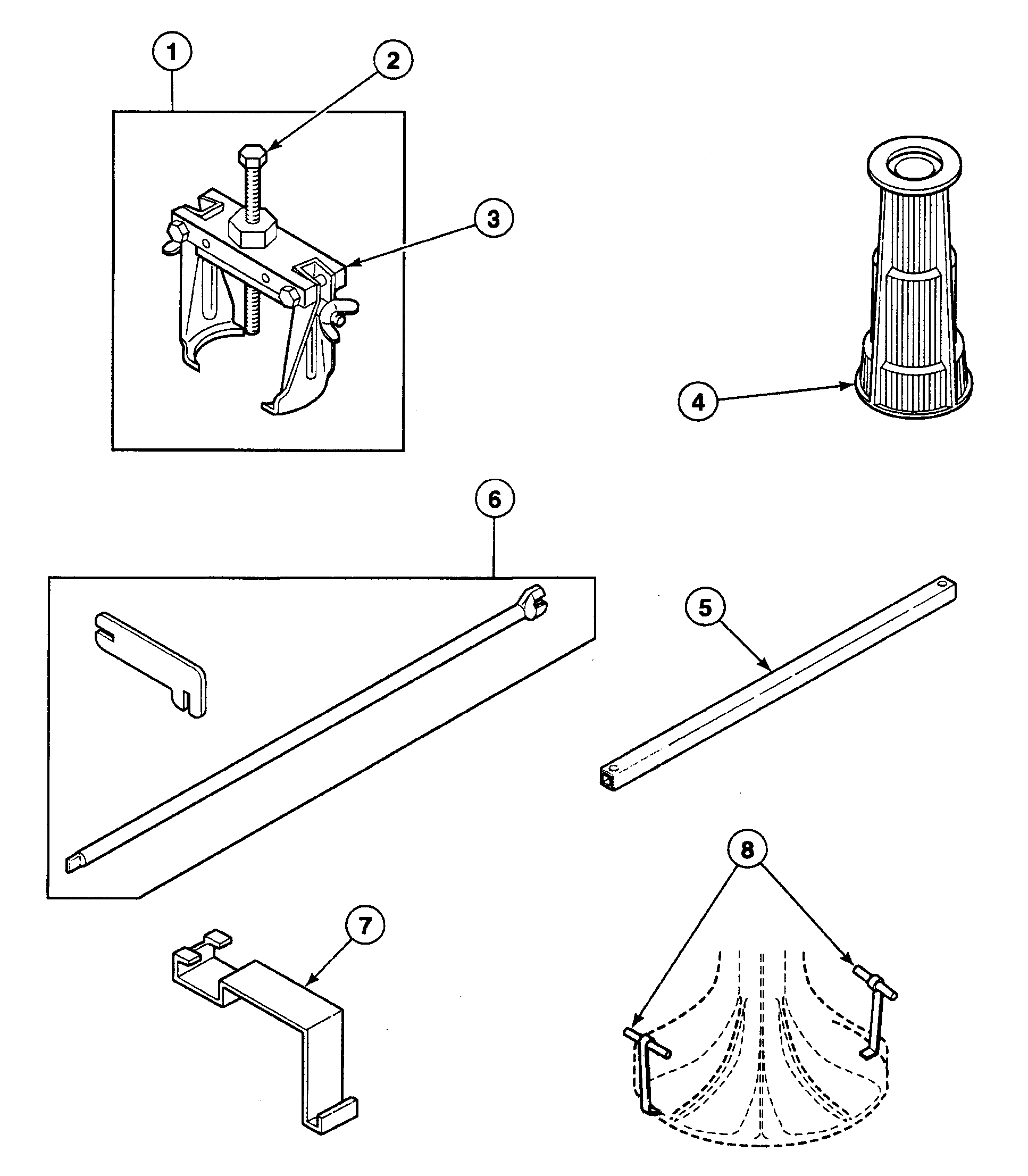

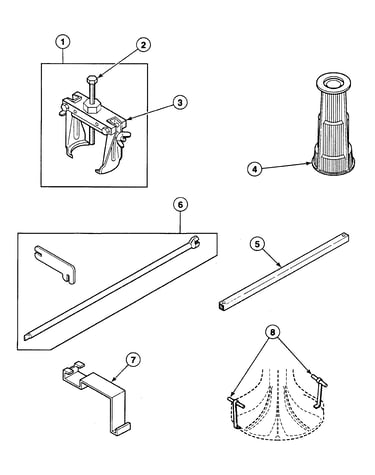

    Tools 2 Diagram

    Commercial laundry appliance coin box ratchet tool

    Part #310P4

    The manufacturer no longer makes this part, and there's no substitute part

    Bumper

    #14

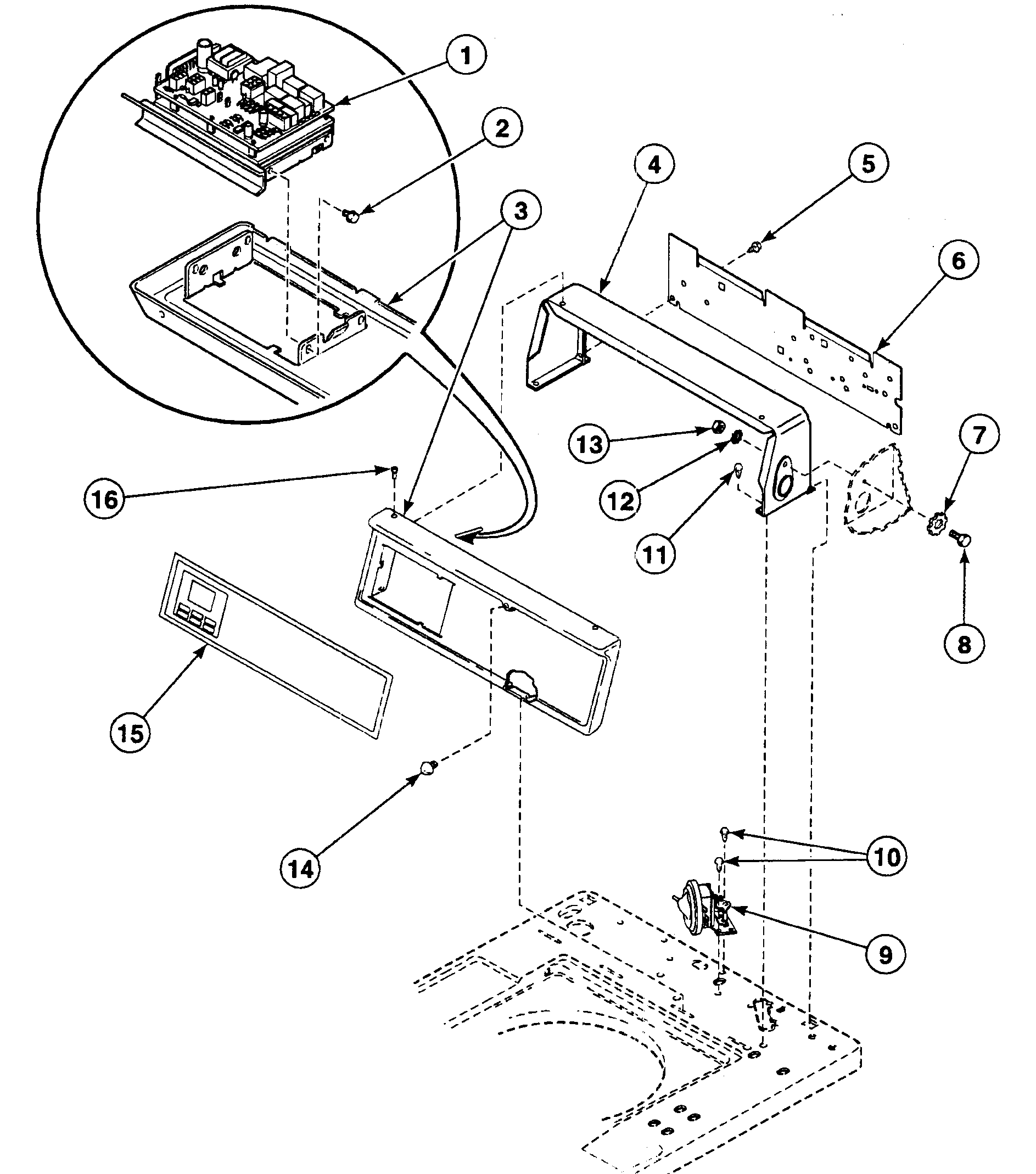

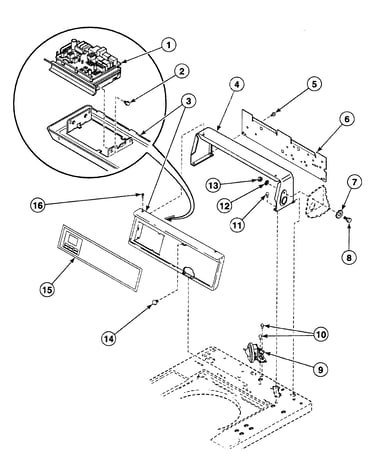

    Control panel Diagram

    Bumper

    Part #32648

    The manufacturer no longer makes this part, and there's no substitute part

    Symptoms common to all washers

    Choose a symptom to see related washer repairs.

    Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
    Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
    Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
    Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
    Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
    Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
    Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
    Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
    Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
