Model #TEB15K00SPA ICP 230-v packaged terminal air conditioner

Here are the diagrams and repair parts for ICP TEB15K00SPA 230-v packaged terminal air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 52 parts

    Cover

    #19

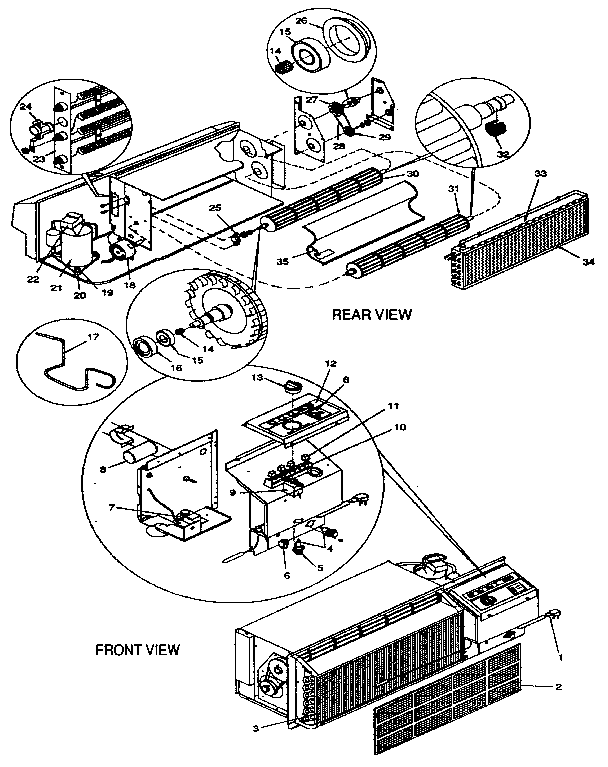

    Non functional Diagram

    Cover

    Part #1062326
    $29.49

    In Stock

    Clamp Capaci

    #2

    Non functional Diagram

    Clamp capaci

    Part #1095021
    ?
    Manufacturer substitution
    This part replaces 709185. Substitute parts can look different from the original.
    This part replaces 709185
    This item is not returnable
    $2.71

    In Stock

    Drive Belt

    #28

    Functional Diagram

    Drive belt

    Part #1064013
    ?
    Manufacturer substitution
    This part replaces 1063373. Substitute parts can look different from the original.
    This part replaces 1063373
    $48.31

    In Stock

    Comp Rke

    #21

    Functional Diagram

    Comp rke

    Part #1091573
    ?
    Manufacturer substitution
    This part replaces 1090142. Substitute parts can look different from the original.
    This part replaces 1090142
    $990.52

    In Stock

    Grommet Tech

    #20

    Functional Diagram

    Grommet tech

    Part #1090019

    The manufacturer no longer makes this part, and there's no substitute part

    Wall Divider

    #3

    Non functional Diagram

    Wall divider

    Part #1062002

    The manufacturer no longer makes this part, and there's no substitute part

    Plate Ctl Bo

    #4

    Non functional Diagram

    Plate ctl bo

    Part #1058427

    The manufacturer no longer makes this part, and there's no substitute part

    Scroll Blwr

    #21

    Non functional Diagram

    Scroll blwr

    Part #1059150

    The manufacturer no longer makes this part, and there's no substitute part

    Lever Vent

    #1

    Non functional Diagram

    Lever vent

    Part #1058822

    The manufacturer no longer makes this part, and there's no substitute part

    Cntl Bx Asy

    #5

    Non functional Diagram

    Cntl bx asy

    Part #1058436

    The manufacturer no longer makes this part, and there's no substitute part
