GE
Countertop Microwave

Model # PEM31DM2WW Official GE microwave

Here are the diagrams and repair parts for Official GE PEM31DM2WW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Microwave High-voltage Capacitor (replaces Wb27x585) WB27X10011
#25

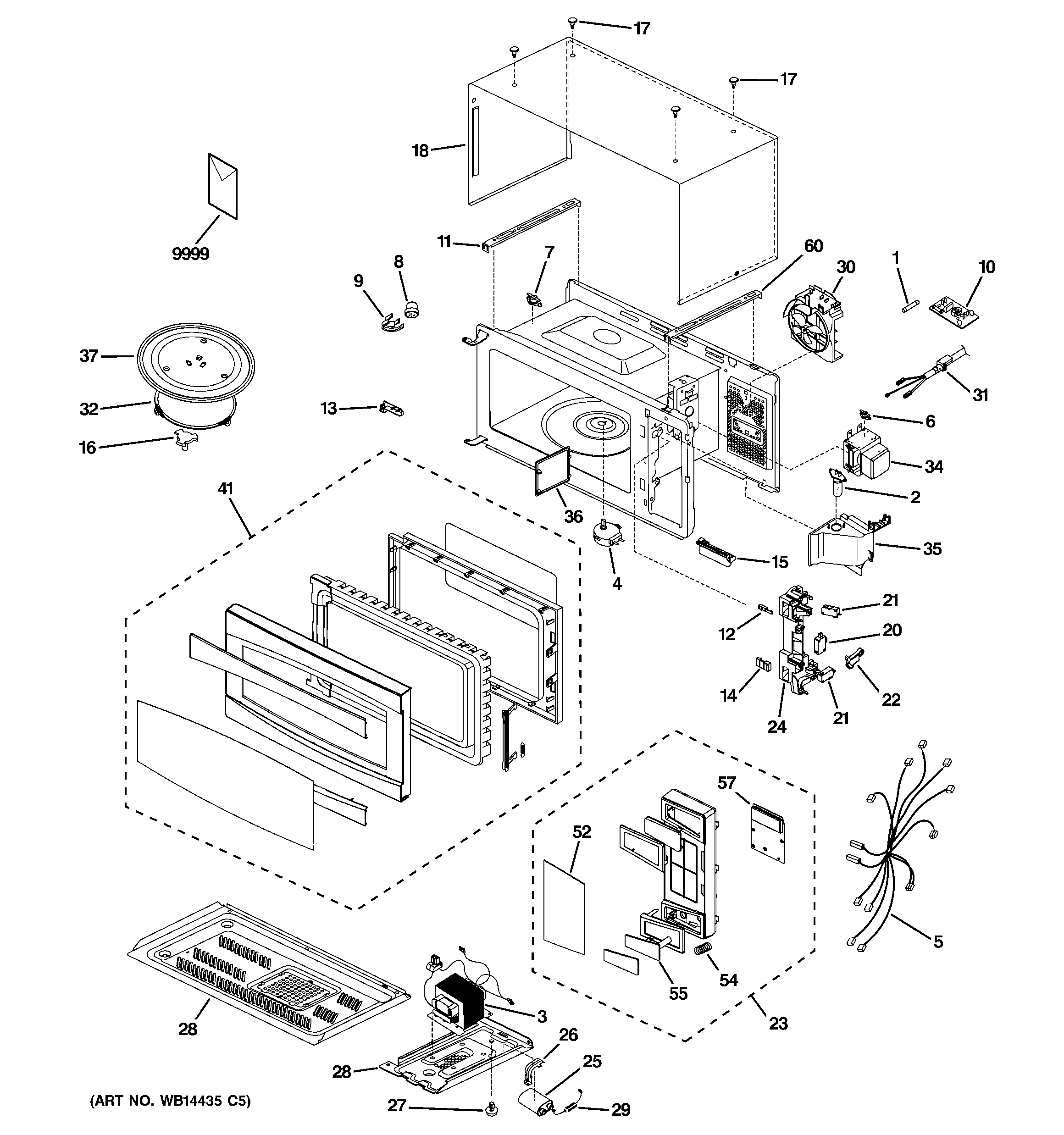

Microwave diagram

Microwave high-voltage capacitor (replaces wb27x585)

Part #WB27X10011

BEST SELLER
$46.74
10% OFF Phone Price : $51.74
In Stock
Micro-switch WB24X10075
#20

Microwave diagram

Micro-switch

Part #WB24X10075

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
$27.94
15% OFF Phone Price : $32.94
In Stock
Microwave Glass Turntable Tray WB49X10097
#37

Microwave diagram

Microwave glass turntable tray

Part #WB49X10097

$76.69
6% OFF Phone Price : $81.69
In Stock
Gas Sensor WB24X0799
#8

Microwave diagram

Gas sensor

Part #WB24X0799

Replaced by #WB24X799

?
Manufacturer substitution
This part replaces WB24X0799. Substitute parts can look different from the original.
$157.35
6% OFF Phone Price : $167.35
In Stock
Foot WB06X10194
#27

Microwave diagram

Foot

Part #WB06X10194

This item is not returnable
In Stock
Transformer WB27X11024
#3

Microwave diagram

Transformer

Part #WB27X11024

In Stock
High-voltage Capacitor Bracket WB02X10748
#26

Microwave diagram

High-voltage capacitor bracket

Part #WB02X10748

This item is not returnable
In Stock
Outer Case WB56X10322
#18

Microwave diagram

Outer case

Part #WB56X10322

In Stock
Magnetron Cover WB06X10741
#36

Microwave diagram

Magnetron cover

Part #WB06X10741

This item is not returnable
In Stock
Outer Case WB56X10326
#18

Microwave diagram

Outer case

Part #WB56X10326

In Stock
