Model # U5114950 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5114950 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Rod 38458057
#9

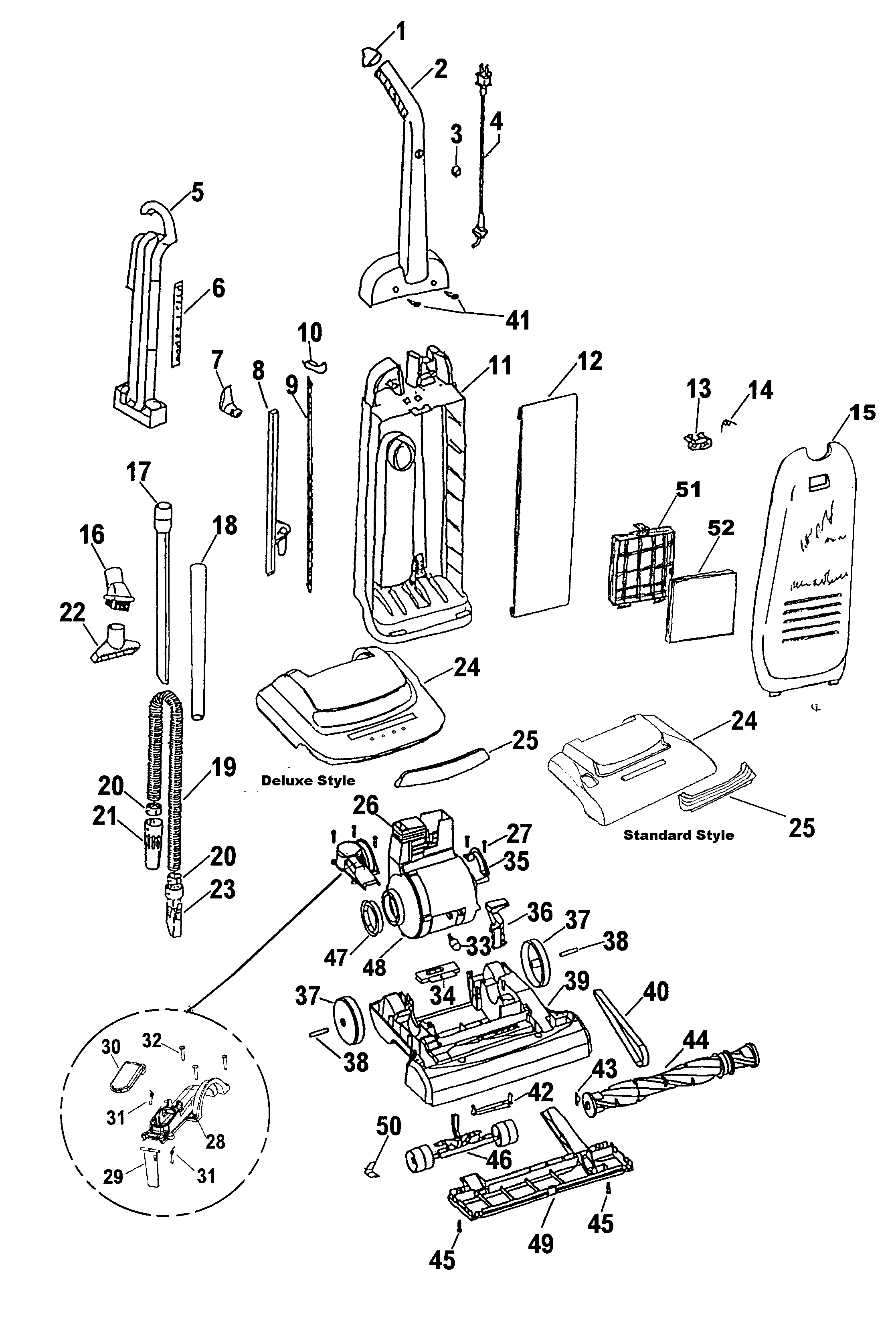

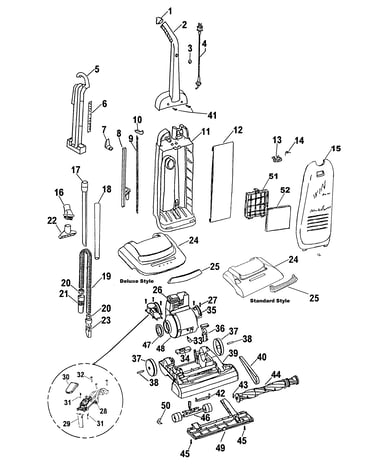

Mainbody, handle, outerbag diagram

Rod

Part #38458057

The manufacturer no longer makes this part, and there's no substitute part

Handle 39466041
#2

Mainbody, handle, outerbag diagram

Handle

Part #39466041

The manufacturer no longer makes this part, and there's no substitute part

Seal 38784016
#47

Mainbody, handle, outerbag diagram

Seal

Part #38784016

The manufacturer no longer makes this part, and there's no substitute part

Lens 39383056
#25A

Mainbody, handle, outerbag diagram

Lens

Part #39383056

The manufacturer no longer makes this part, and there's no substitute part

Dust Bag Door Housing 37254150
#15D

Mainbody, handle, outerbag diagram

Dust bag door housing

Part #37254150

The manufacturer no longer makes this part, and there's no substitute part

Main Body 37241157
#39

Mainbody, handle, outerbag diagram

Main body

Part #37241157

The manufacturer no longer makes this part, and there's no substitute part

Spring 38355009
#14

Mainbody, handle, outerbag diagram

Spring

Part #38355009

The manufacturer no longer makes this part, and there's no substitute part

Door 37254186
#15I

Mainbody, handle, outerbag diagram

Door

Part #37254186

The manufacturer no longer makes this part, and there's no substitute part

Door 37254121
#15C

Mainbody, handle, outerbag diagram

Door

Part #37254121

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Spring 34572002
#50

Mainbody, handle, outerbag diagram

Vacuum spring

Part #34572002

The manufacturer no longer makes this part, and there's no substitute part
