Snapper SFH13320KW lawn mower Parts
Here are the diagrams and repair parts for Snapper SFH13320KW lawn mower, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part
SELECT DIAGRAM

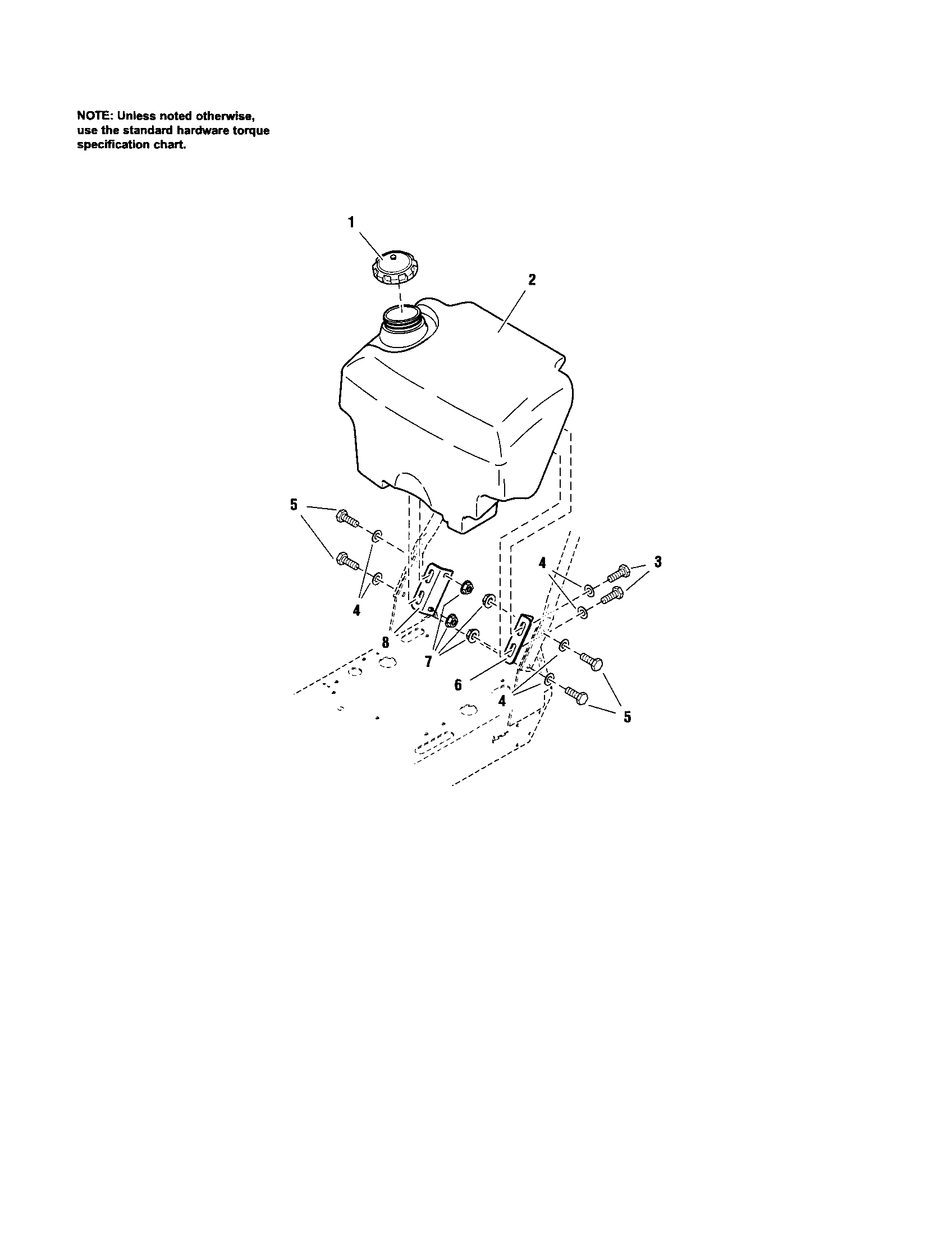

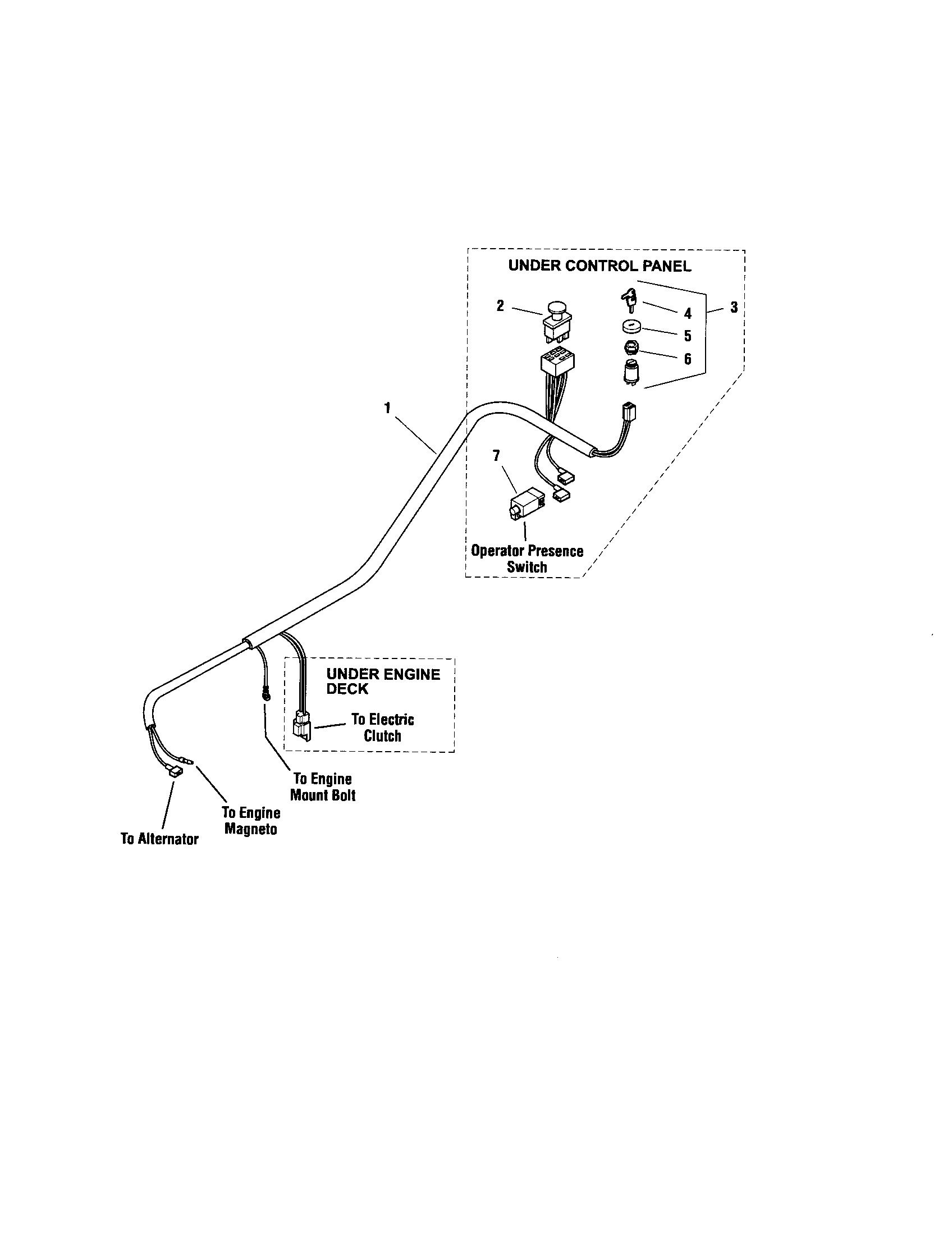

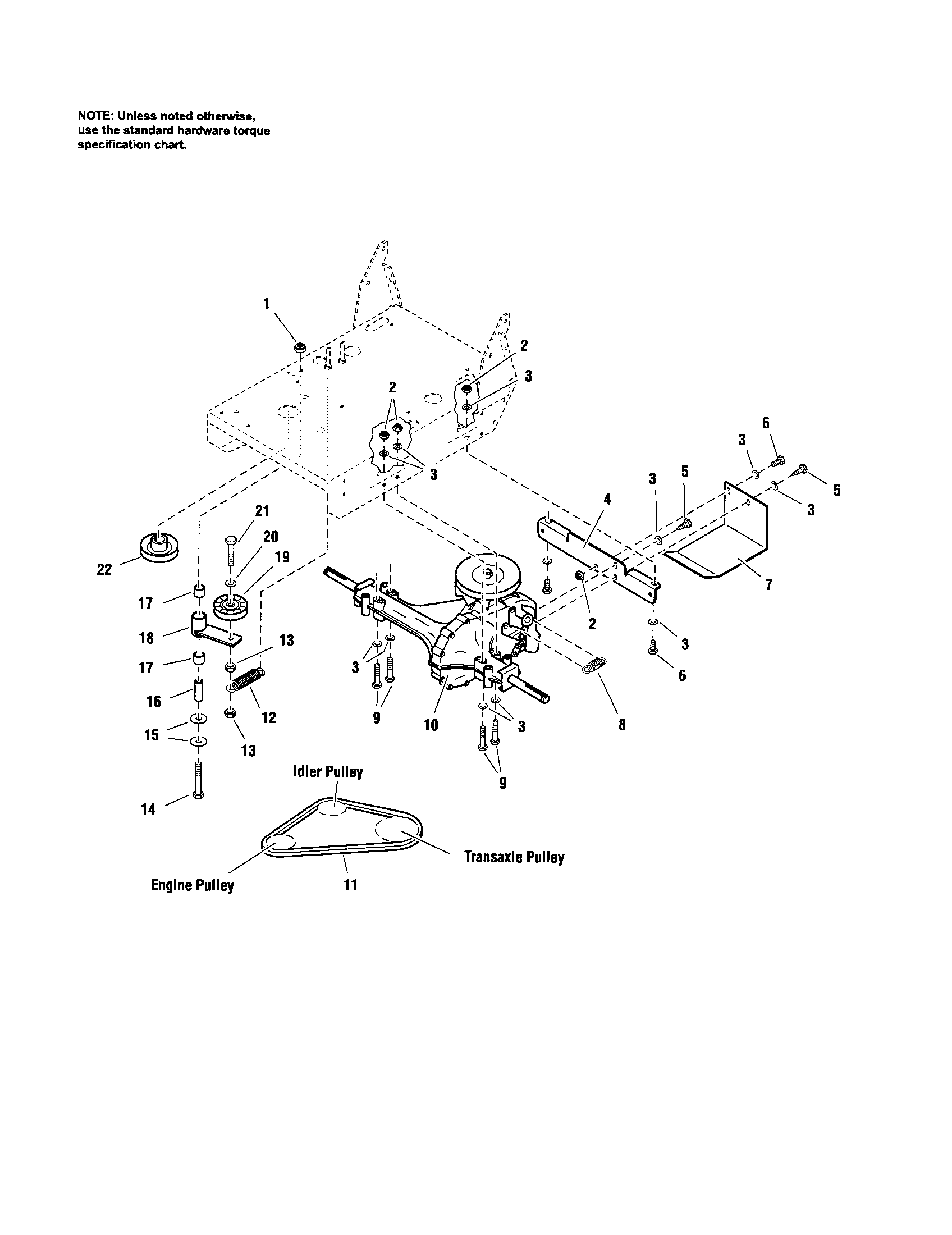

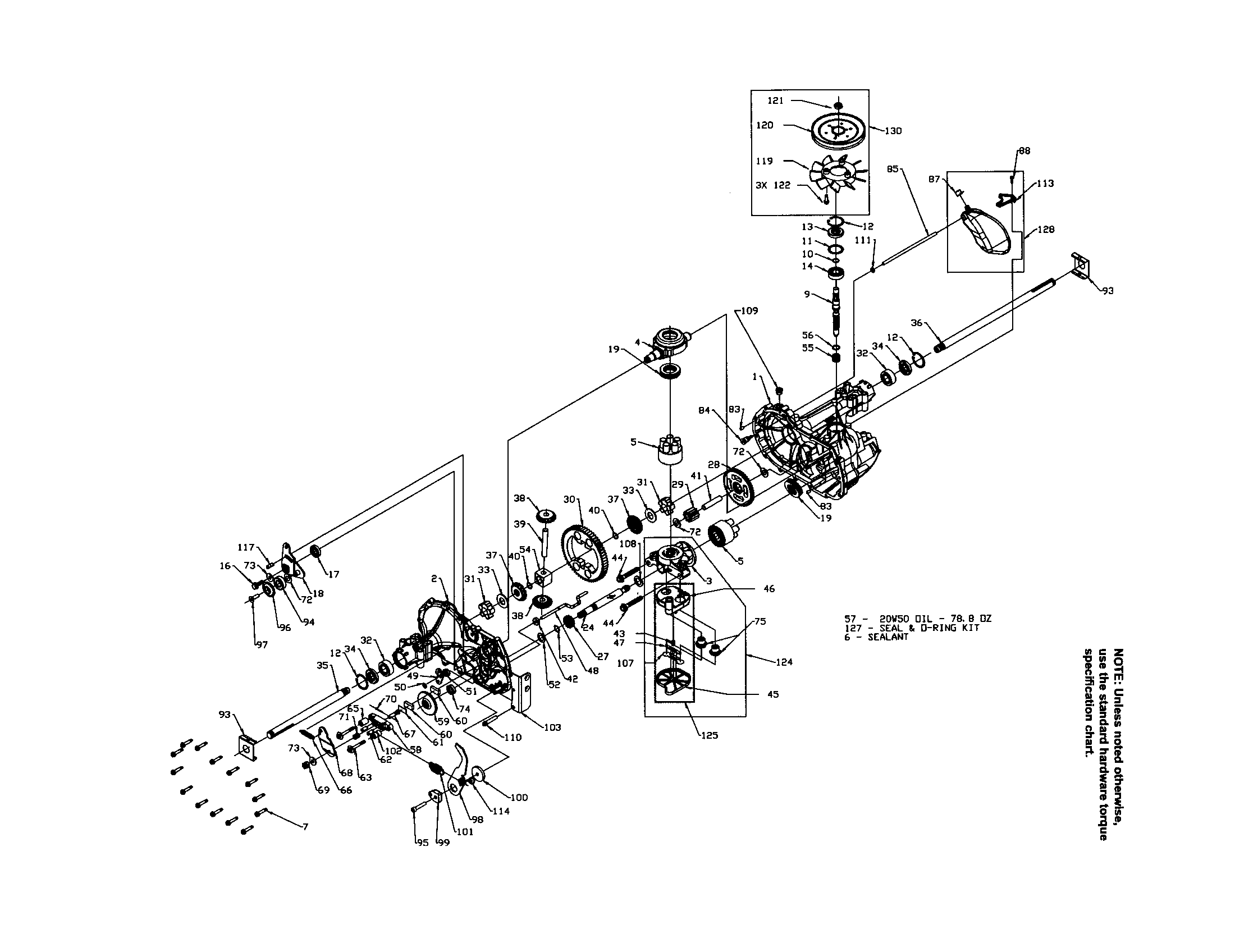

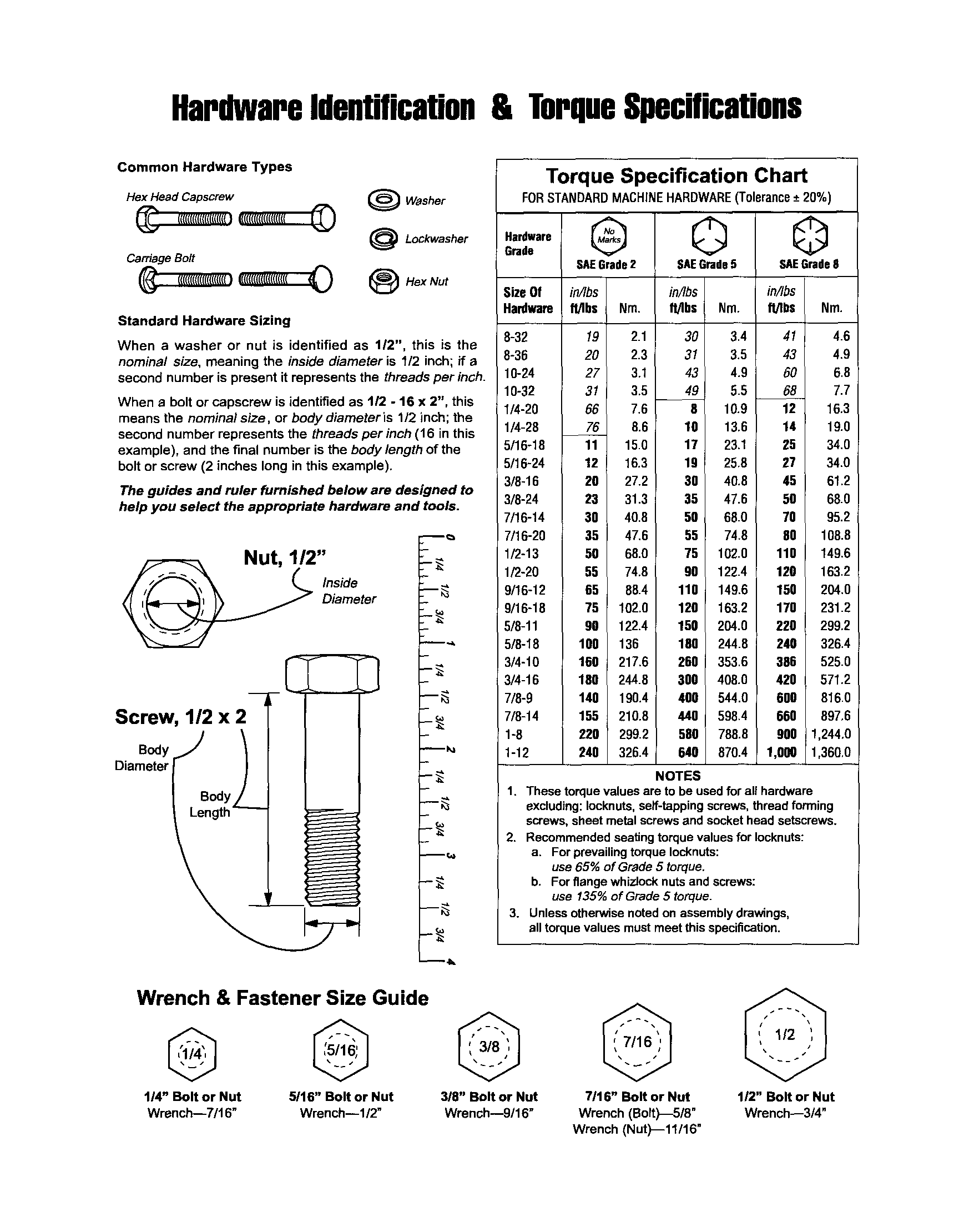

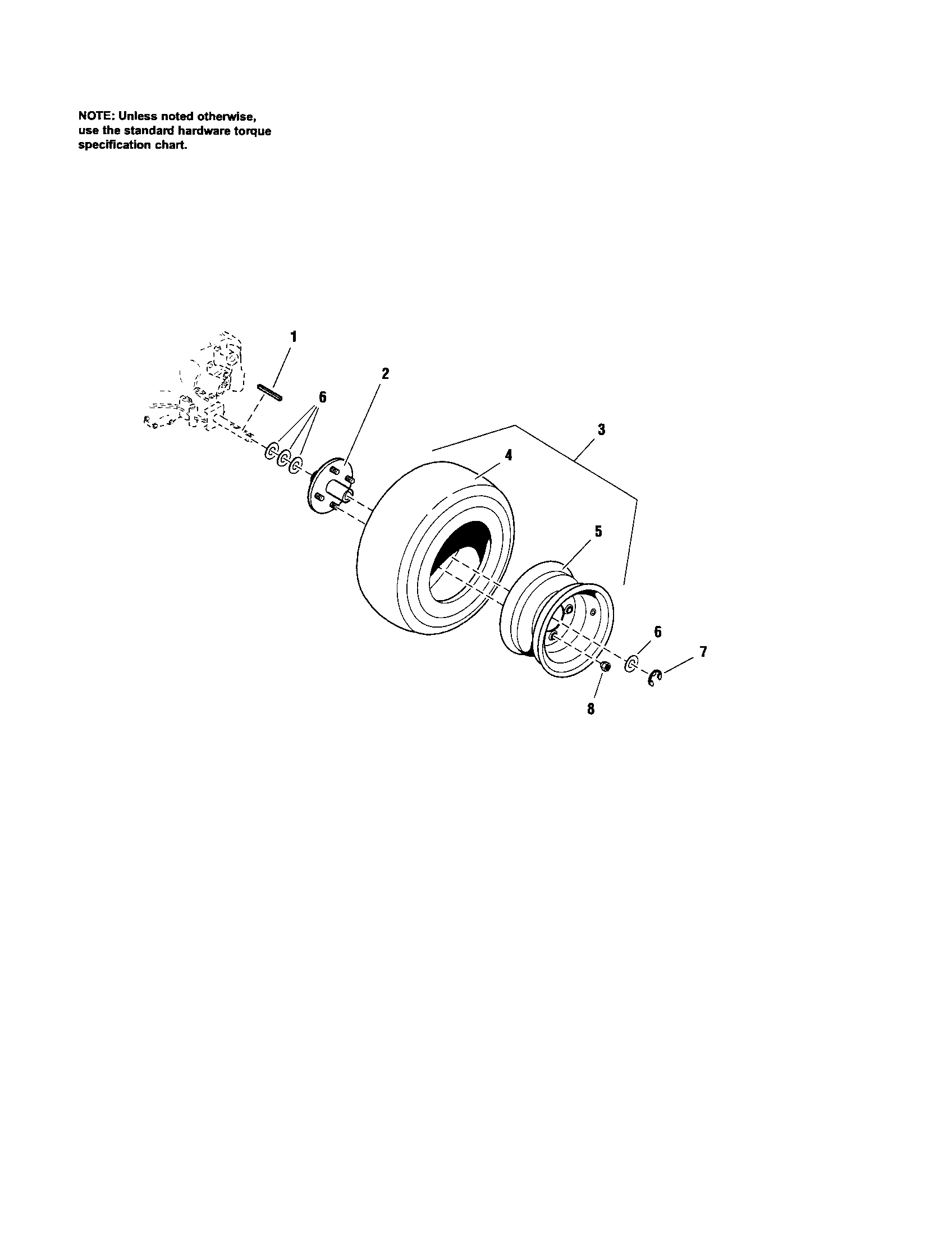

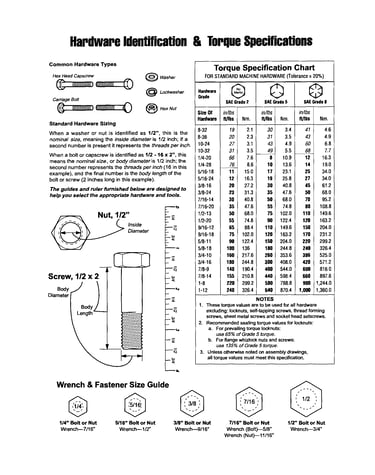

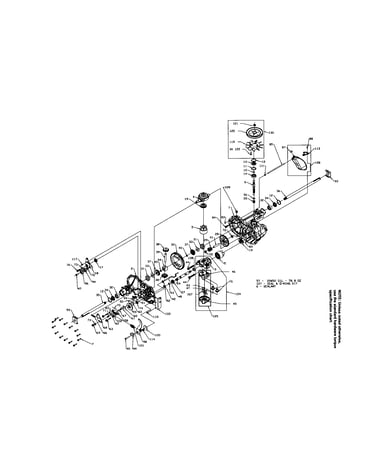

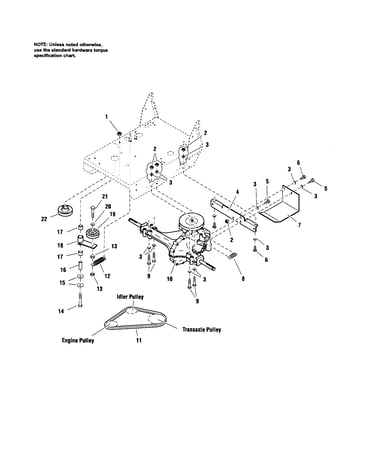

Browse Parts for SFH13320KW Walk-Behind Mowers

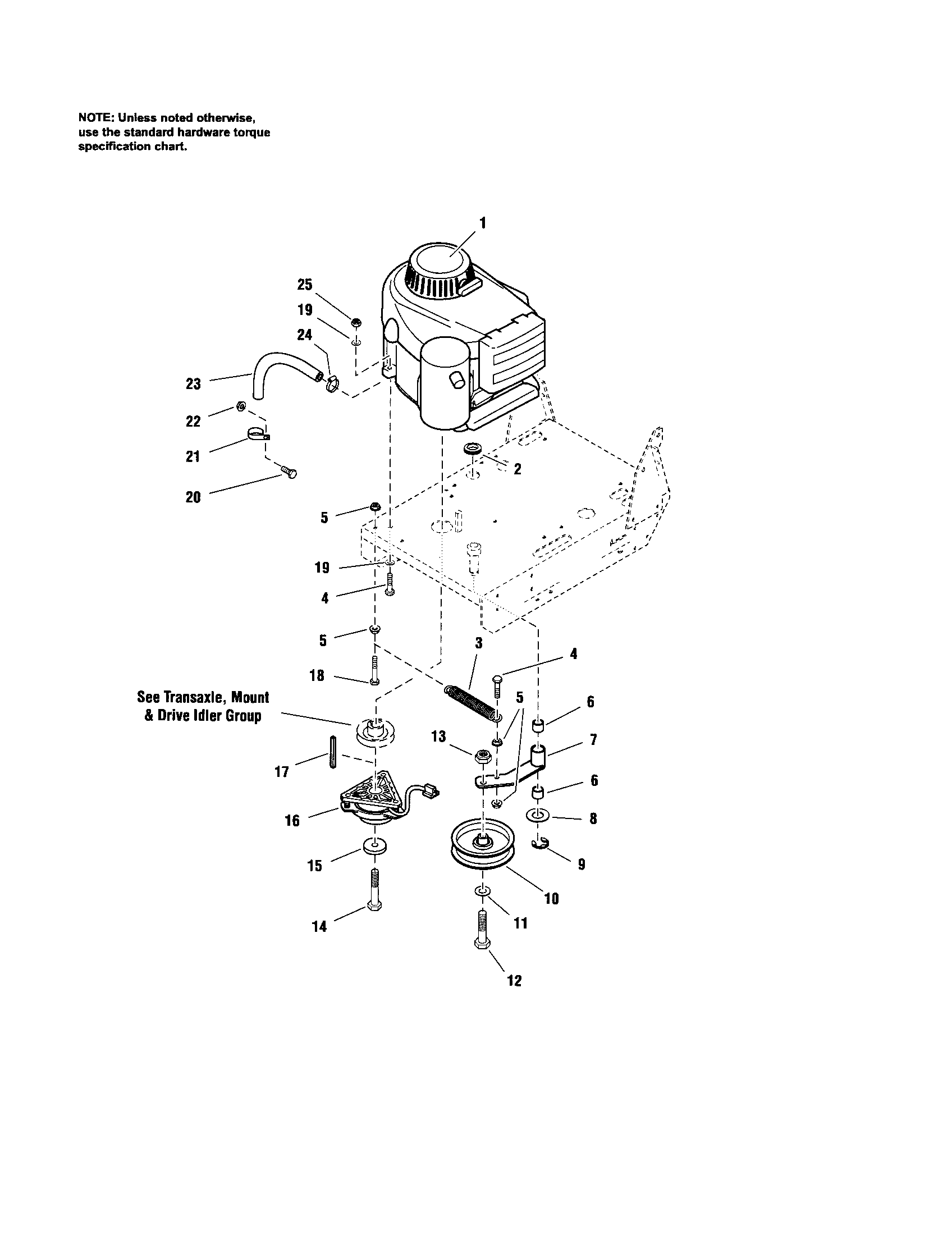

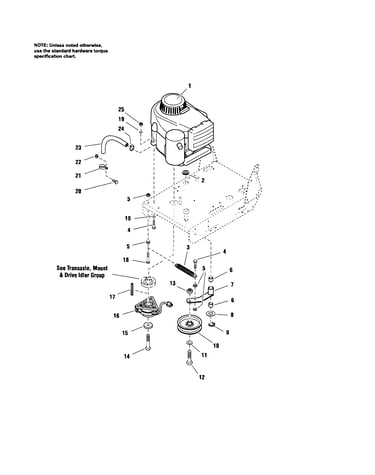

Engine/pto/deck drive idler diagram
Snapper Spacer
Part #5042132Replaced by #5102965YP
Manufacturer substitutionThis part replaces 5042132. Substitute parts can look different from the original.In Stock$36.27
Qty
Snapper Nut
Part #5025126Replaced by #703233
Manufacturer substitutionThis part replaces 5025126. Substitute parts can look different from the original.In Stock$31.15QtySnapper Bushing
Part #5020876BReplaced by #5020876BSM

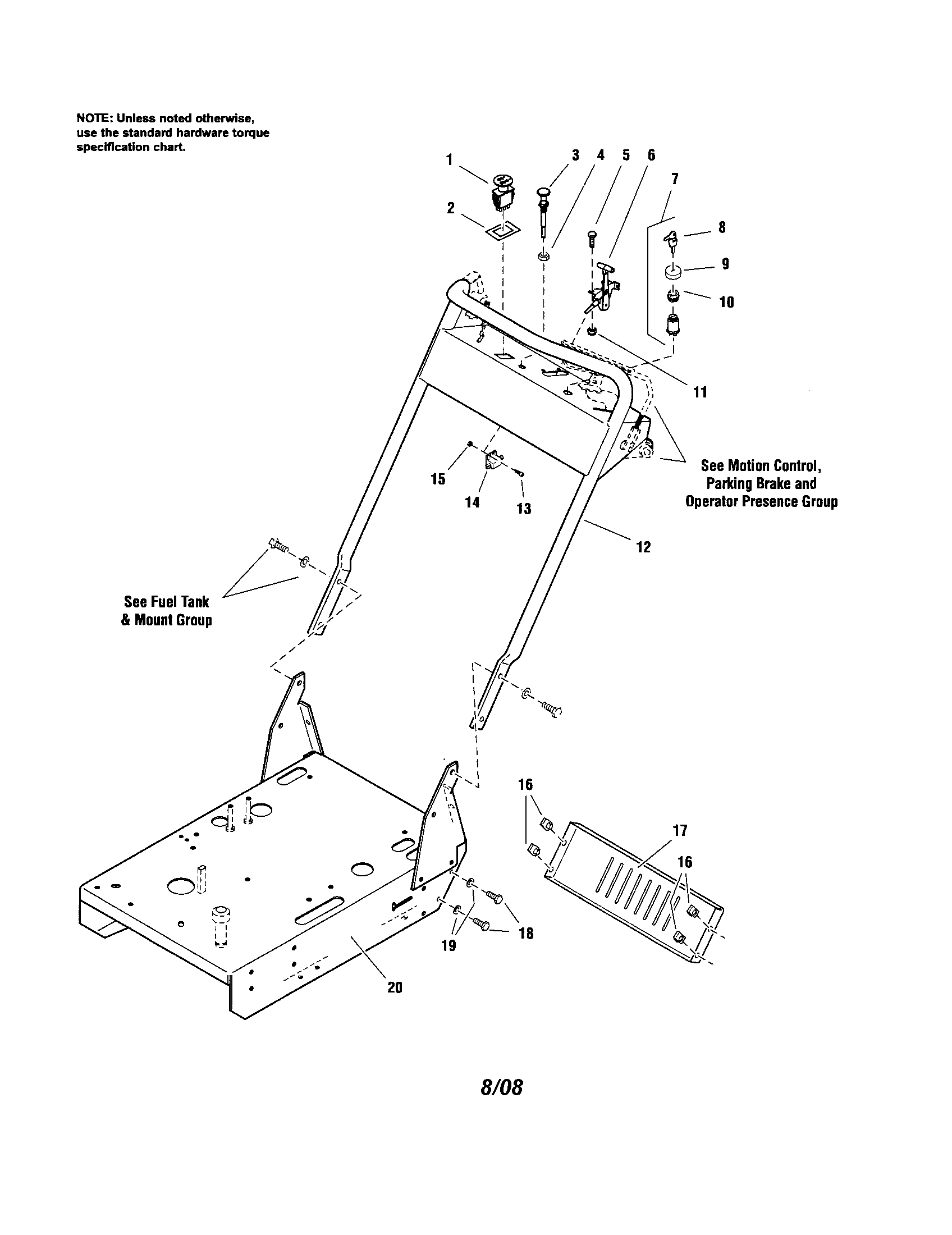

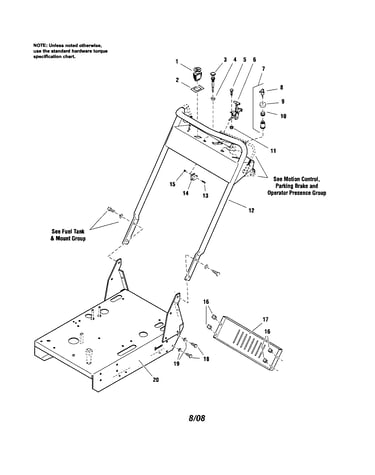

Manufacturer substitutionThis part replaces 5020876B. Substitute parts can look different from the original.In Stock$22.74QtyEngine deck/handle bars diagram
Snapper Lawn Mower Cable
Part #5047629Replaced by #5047629SM

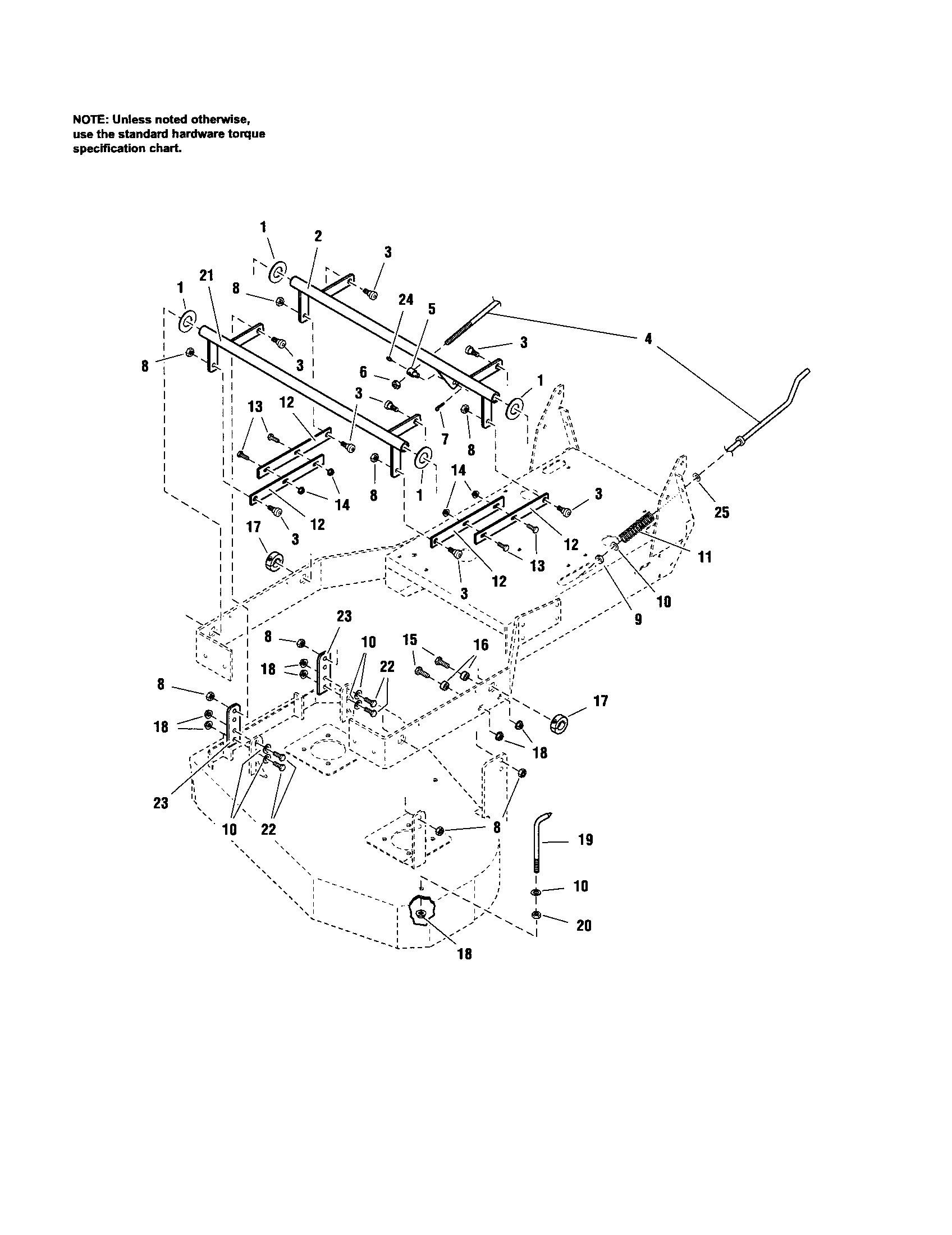

Manufacturer substitutionThis part replaces 5047629. Substitute parts can look different from the original.In Stock$94.40Qty32" mower deck-height adjustment diagram

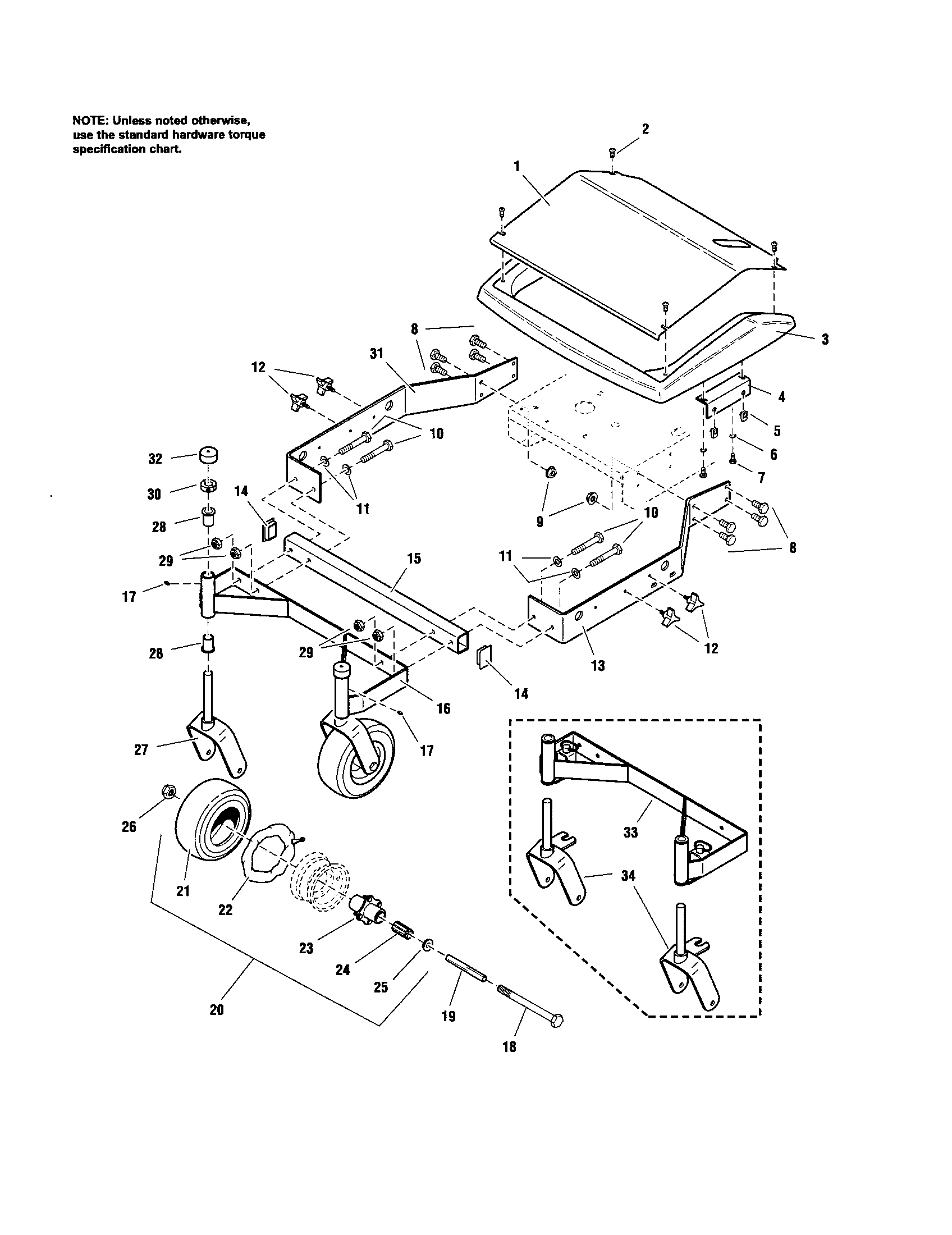

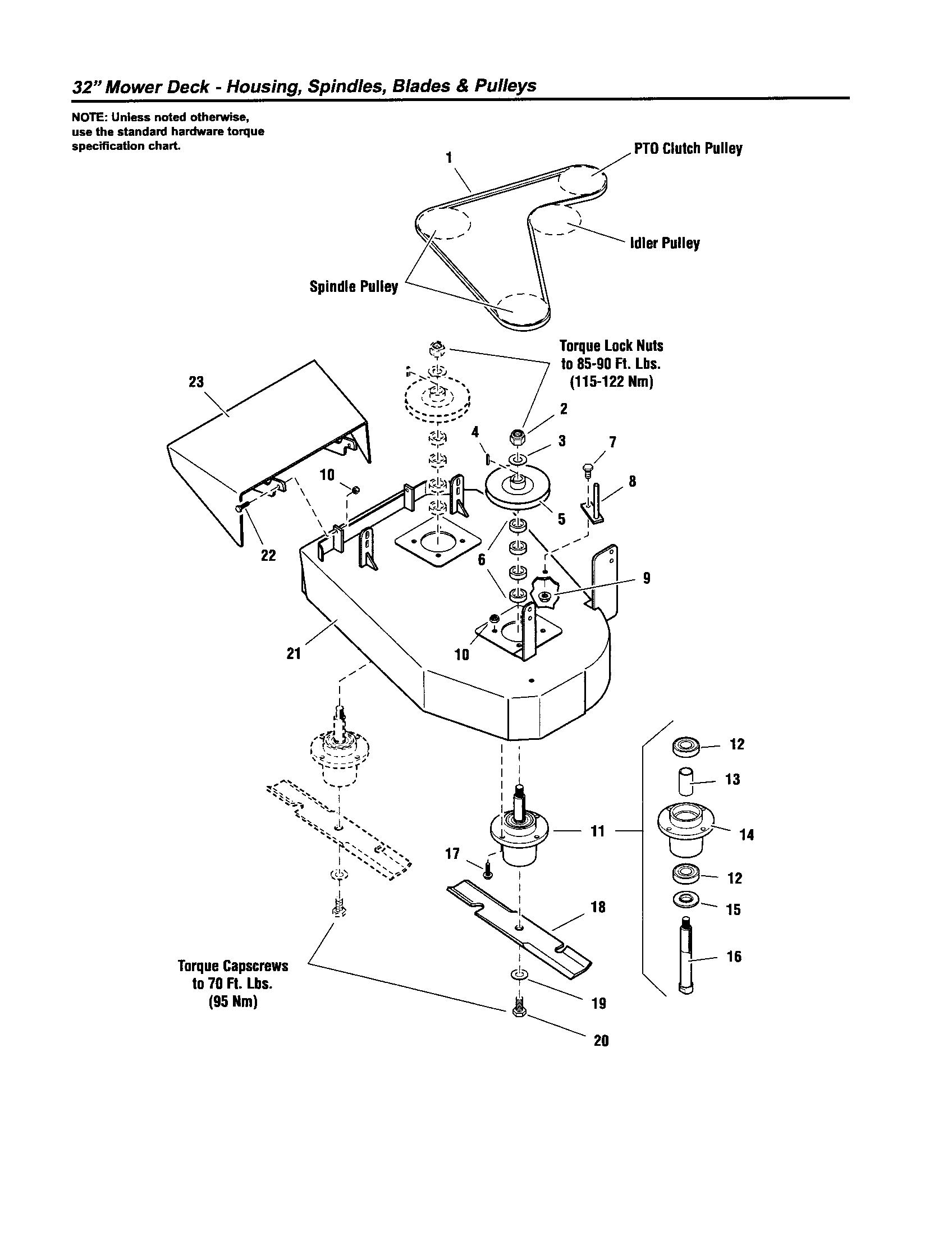

Snapper Hanger Deck
Part #504848439Replaced by #5048439DYP
Manufacturer substitutionThis part replaces 504848439. Substitute parts can look different from the original.In Stock$25.11QtySnapper Bolt
Part #5025013-6Replaced by #5025013X6SM

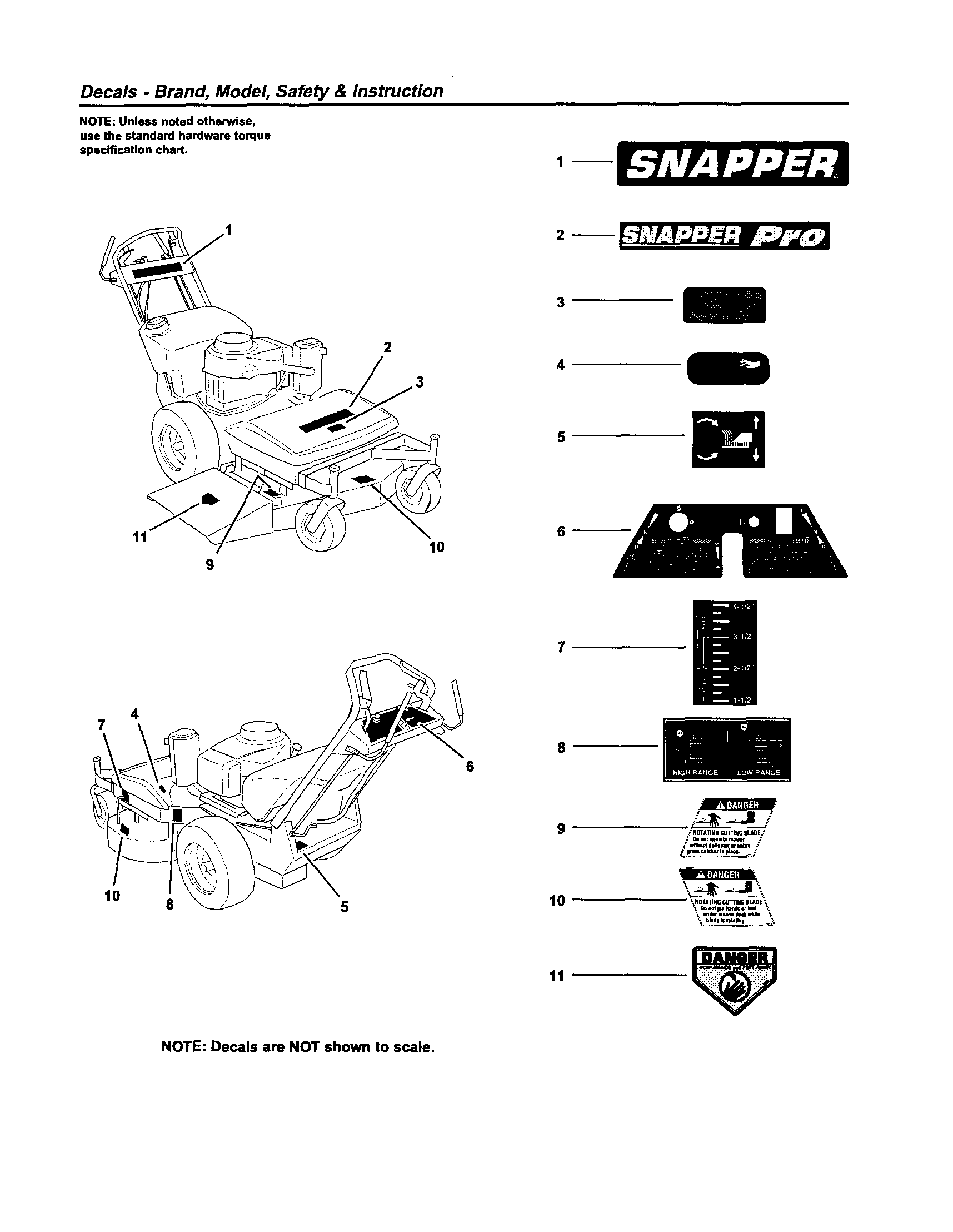

Manufacturer substitutionThis part replaces 5025013-6. Substitute parts can look different from the original.This item is not returnableIn Stock$6.89QtyDecals diagram

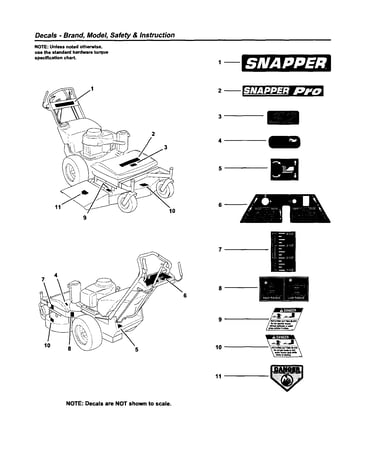

Snapper Decal
Part #1704277Replaced by #7101665YP

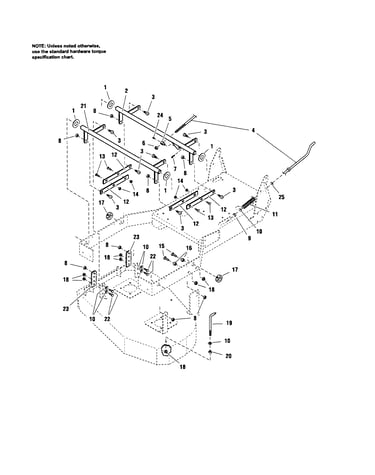

Manufacturer substitutionThis part replaces 1704277. Substitute parts can look different from the original.In Stock$46.40Qty32" mower deck-height adjustment diagram
Snapper Nut
Part #5025046Replaced by #5025046SM

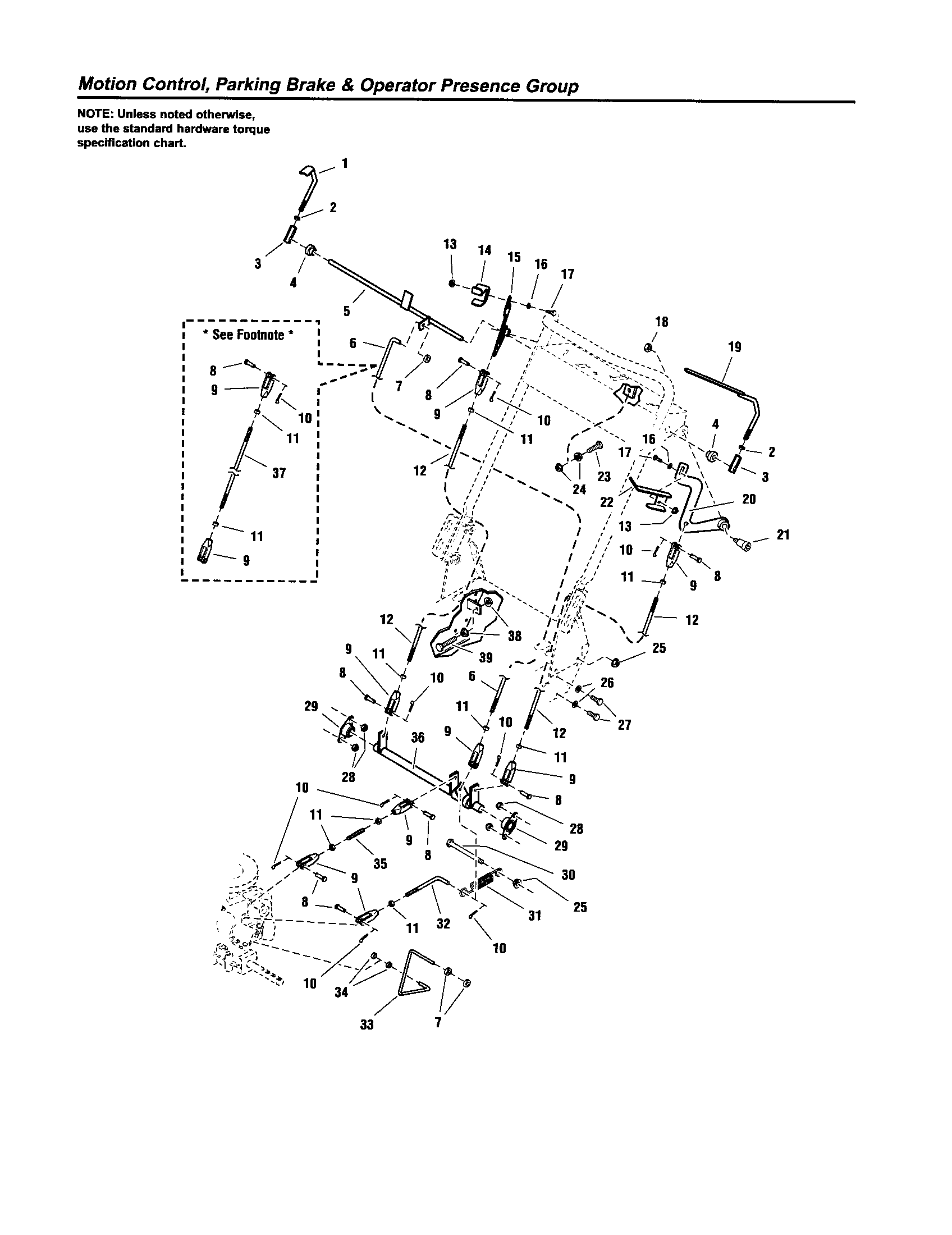

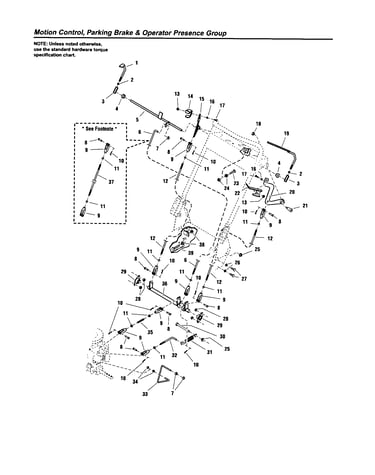

Manufacturer substitutionThis part replaces 5025046. Substitute parts can look different from the original.This item is not returnableIn Stock$6.23QtyMotion control/parking brake diagram
Snapper Spring
Part #5049352Replaced by #5049352SM
Manufacturer substitutionThis part replaces 5049352. Substitute parts can look different from the original.In Stock$22.43QtyMotion control/parking brake diagram
Snapper Nut
Part #5025033Replaced by #703331
Manufacturer substitutionThis part replaces 5025033. Substitute parts can look different from the original.In Stock$30.79Qty
Most common symptoms to help you fix your walk-behind mowers
Choose a symptom to see related walk-behind mower repairs.
Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up…
Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent…
Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel…
Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, ba…
Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key…
Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade…
