Countertop Microwave

Model # LTM9000ST-01 Official LG microwave

Here are the diagrams and repair parts for Official LG LTM9000ST-01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

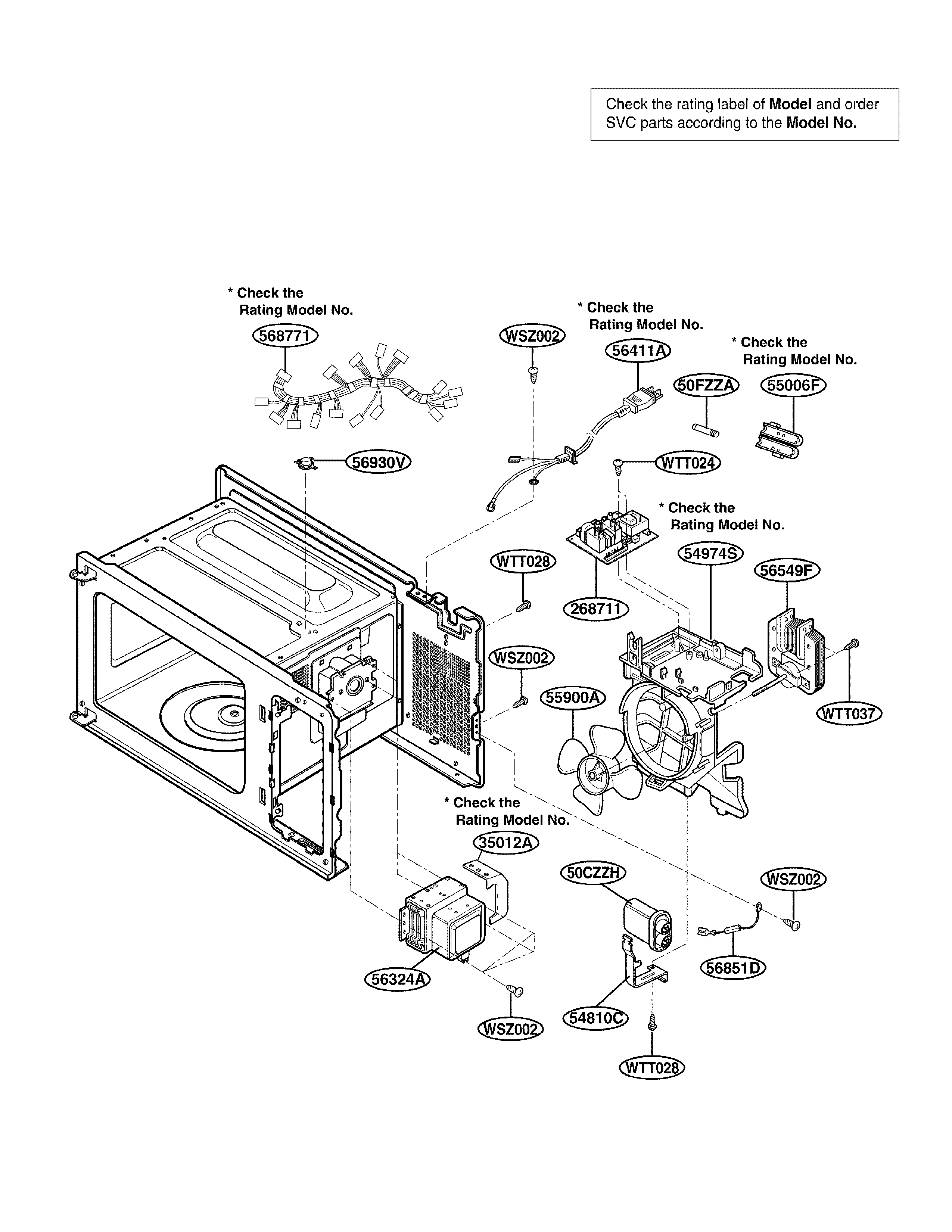

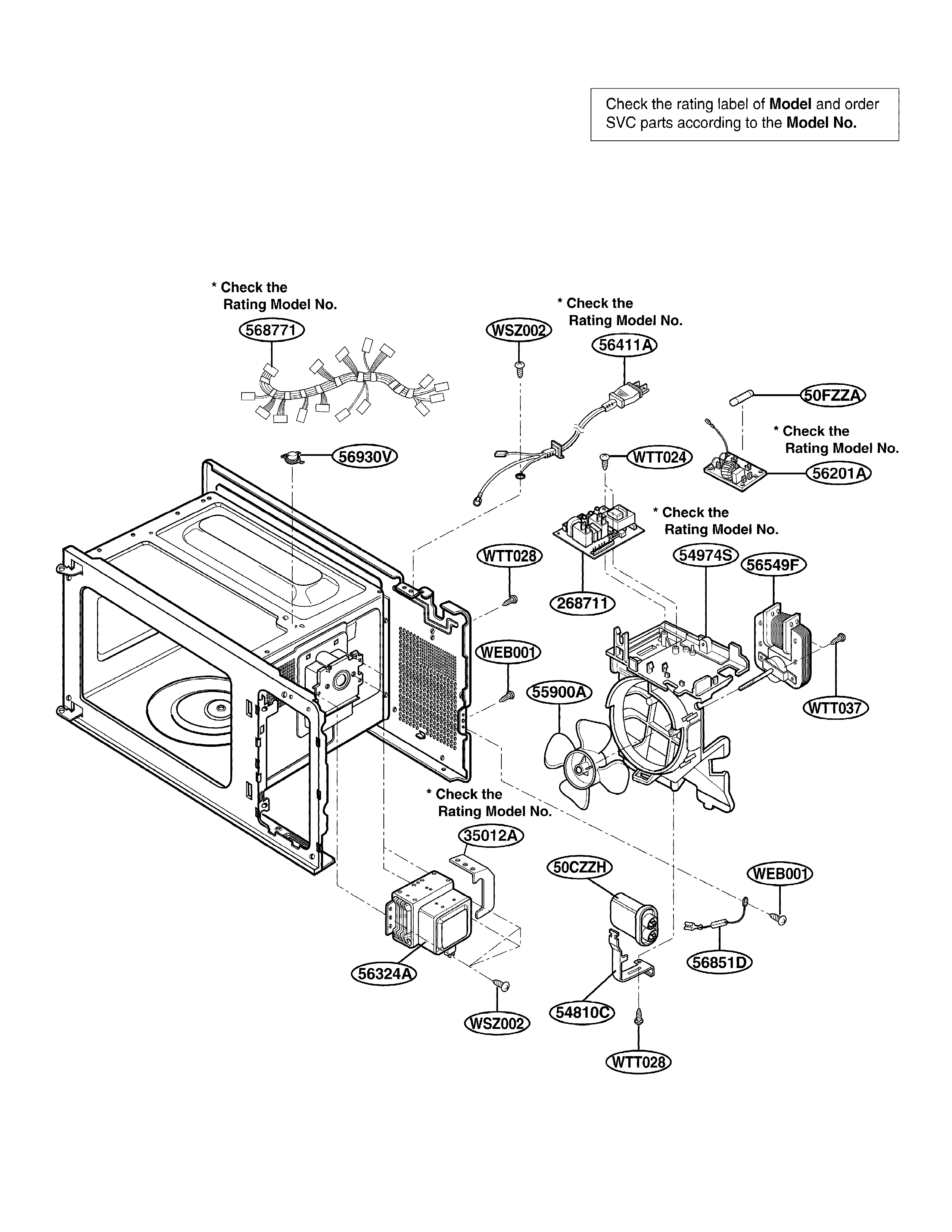

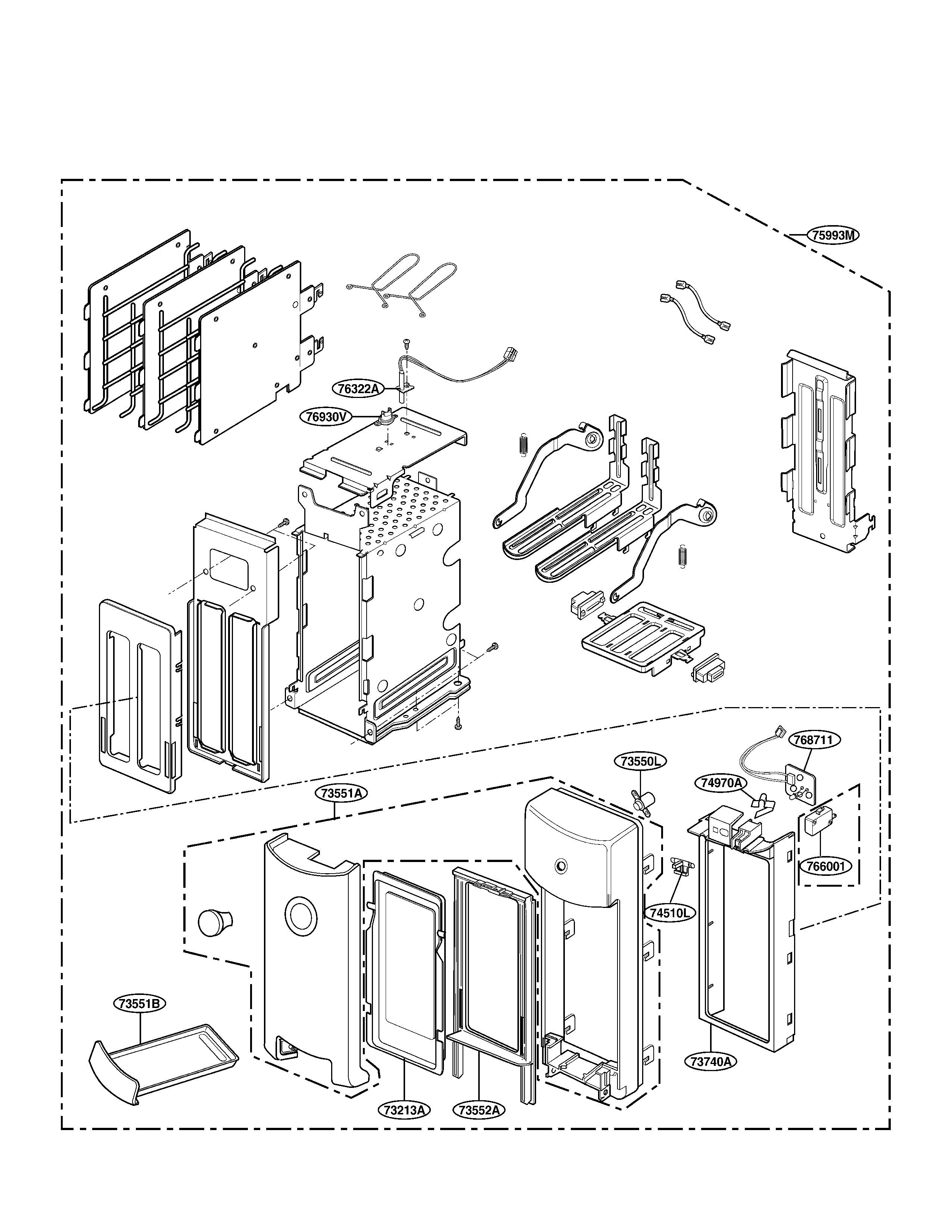

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4660

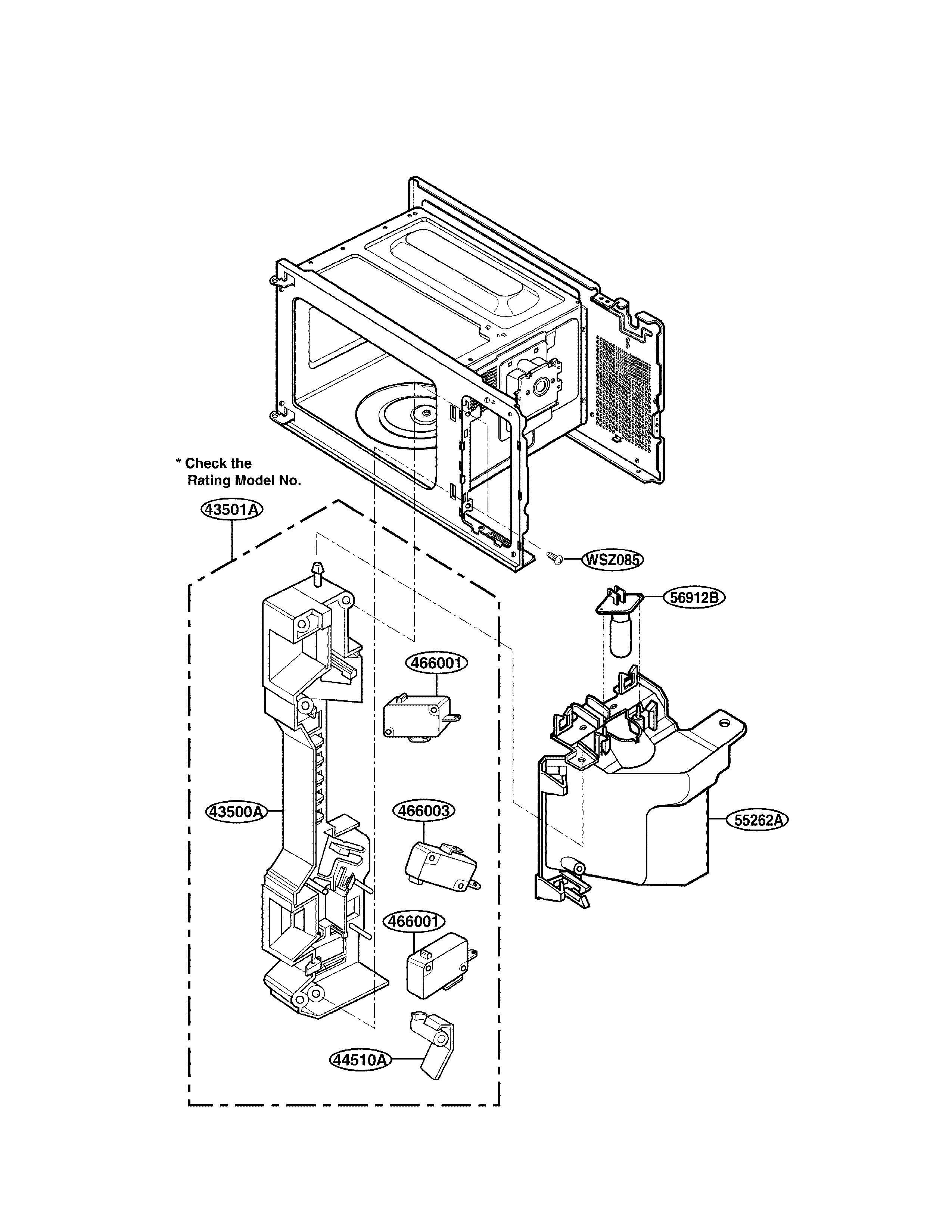

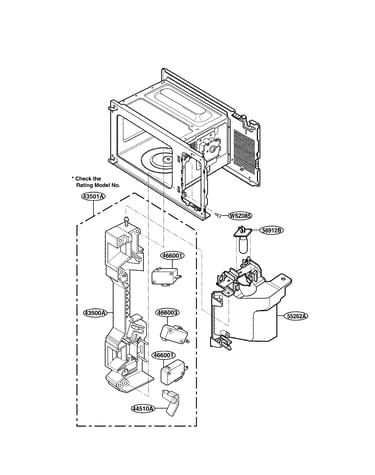

Latch board parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave Door Latch 4026W2A019A
#1402

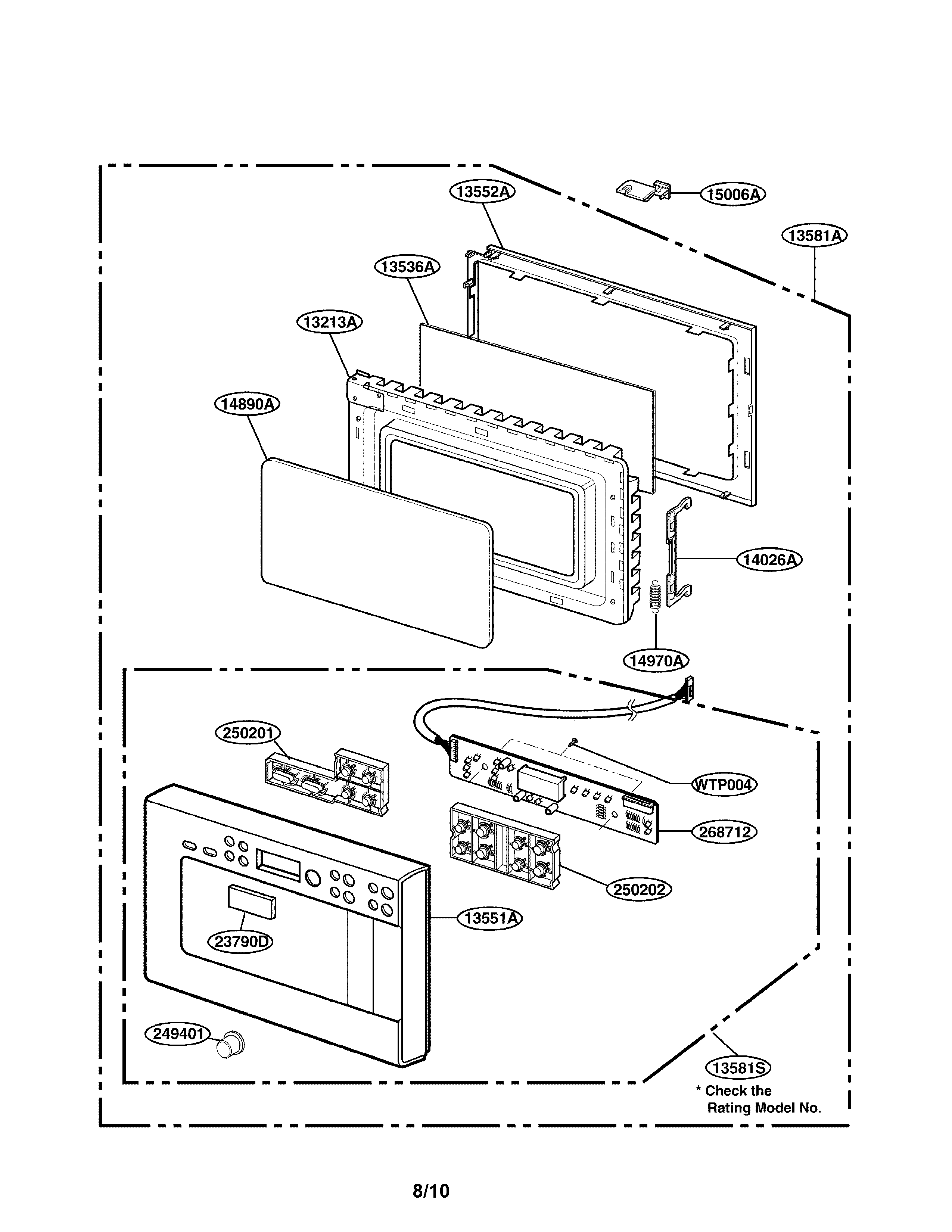

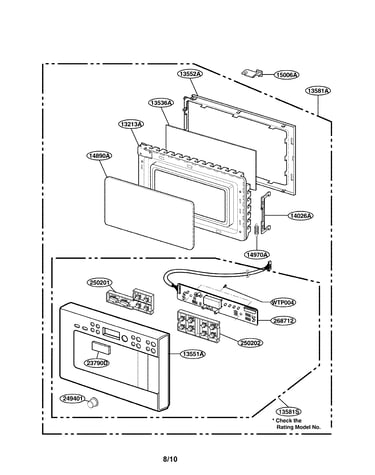

Door parts diagram

Microwave door latch

Part #4026W2A019A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A019A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.48 |
15% OFF Phone Price : $6.48
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h004l) 0CZZW1H004K
Microwave high-voltage capacitor (replaces 0czzw1h004l)

Part #0CZZW1H004K

BEST SELLER
$29.52 |
14% OFF Phone Price : $34.52
In Stock
Microwave Thermostat 6930W1A003B
Microwave thermostat

Part #6930W1A003B

This item is not returnable
$5.52 |
15% OFF Phone Price : $6.52
In Stock
Microwave Screw 4B70188C
#WSZ0

Latch board parts diagram

Microwave screw

Part #4B70188C

This item is not returnable
$6.06 |
14% OFF Phone Price : $7.06
In Stock
Microwave Waveguide Cover 3052W2A021A
#3305

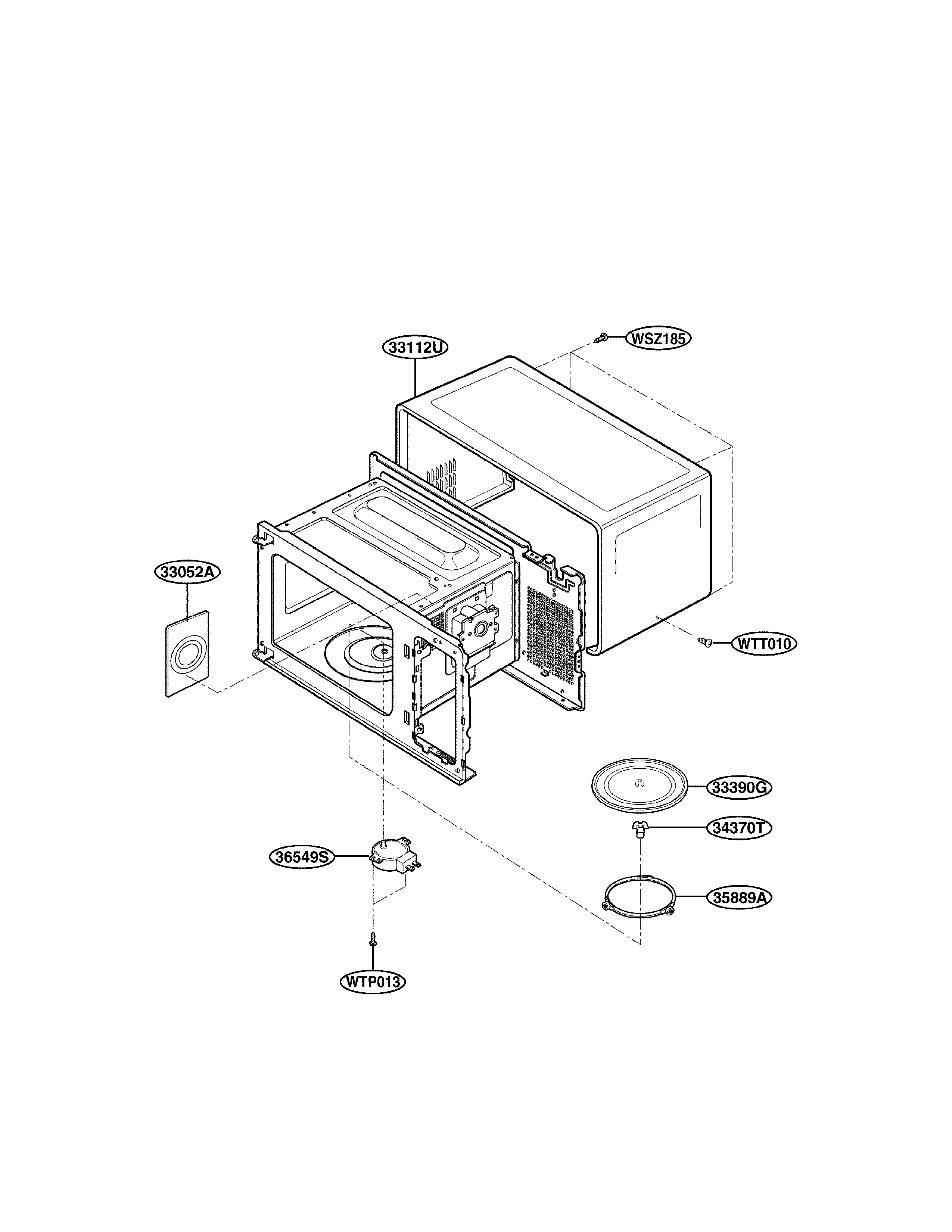

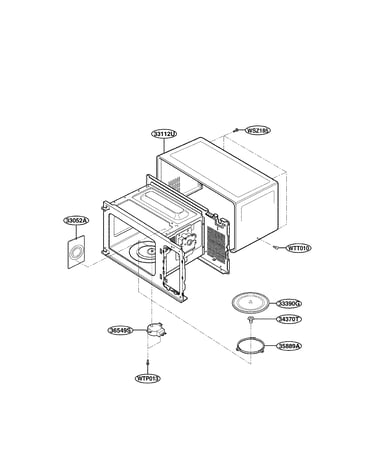

Oven cavity parts diagram

Microwave waveguide cover

Part #3052W2A021A

Replaced by #3052W1M006A

?
Manufacturer substitution
This part replaces 3052W2A021A. Substitute parts can look different from the original.
$7.89
In Stock
Microwave Screw 1TTG0402422
#WTT0

Oven cavity parts diagram

Microwave screw

Part #1TTG0402422

This item is not returnable
$6.06 |
14% OFF Phone Price : $7.06
In Stock
Microwave Door Latch Lever 4510W3A012B
#4451

Latch board parts diagram

Microwave door latch lever

Part #4510W3A012B

This item is not returnable
$5.52 |
15% OFF Phone Price : $6.52
In Stock
Circulating Motor 6549W1S007G
#3654

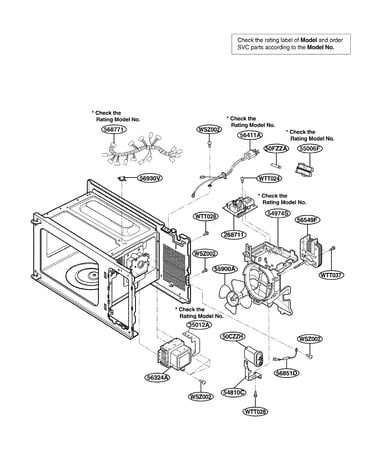

Oven cavity parts diagram

Circulating motor

Part #6549W1S007G

Replaced by #6549W1S013A

?
Manufacturer substitution
This part replaces 6549W1S007G. Substitute parts can look different from the original.
$29.52 |
14% OFF Phone Price : $34.52
In Stock
