Mechanical Sewing Machine

Model # EP7100 Official Euro-Pro sewing machine

Here are the diagrams and repair parts for Official Euro-Pro EP7100 sewing machine, as well as links to manuals and error code tables, if available.

By Schematic

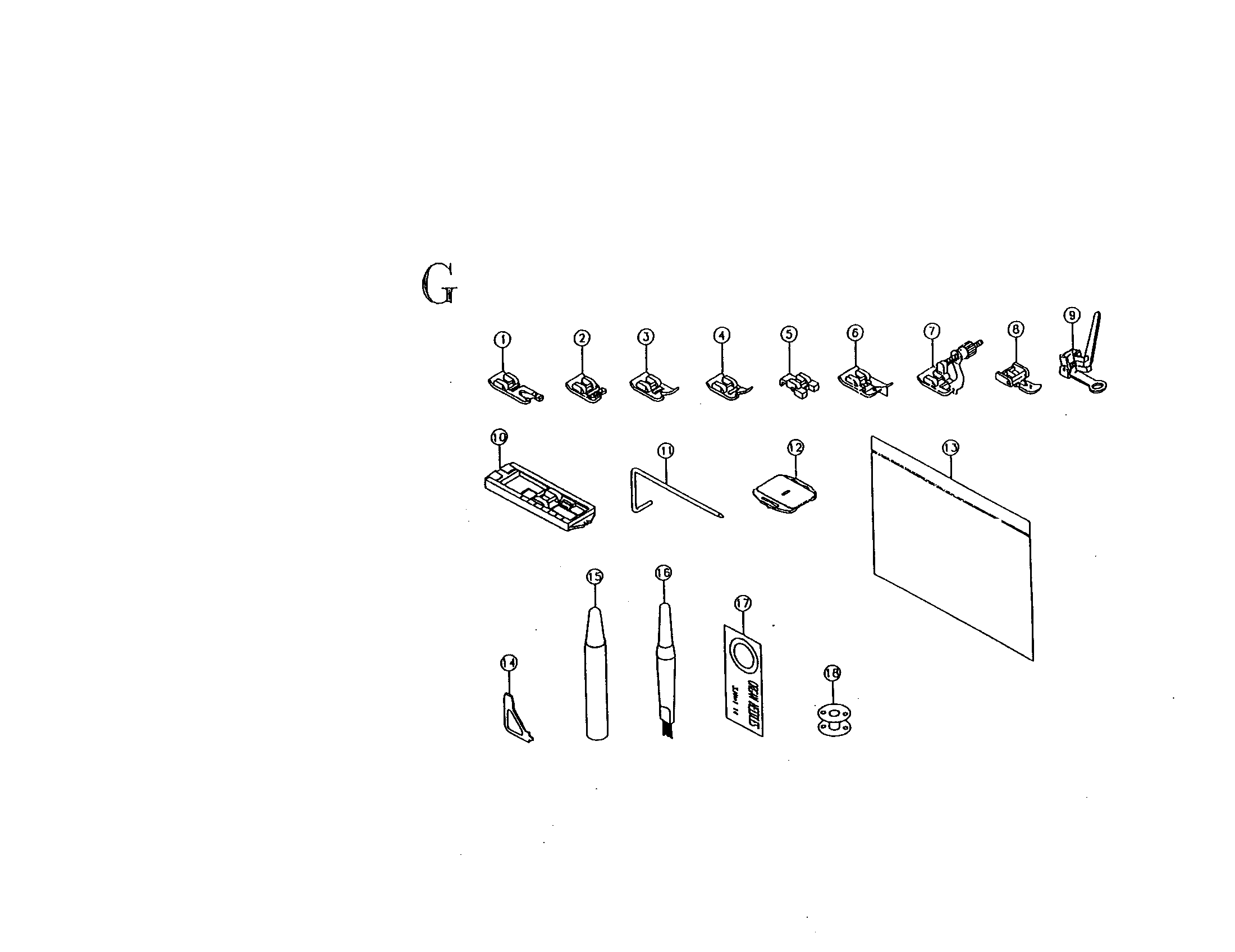

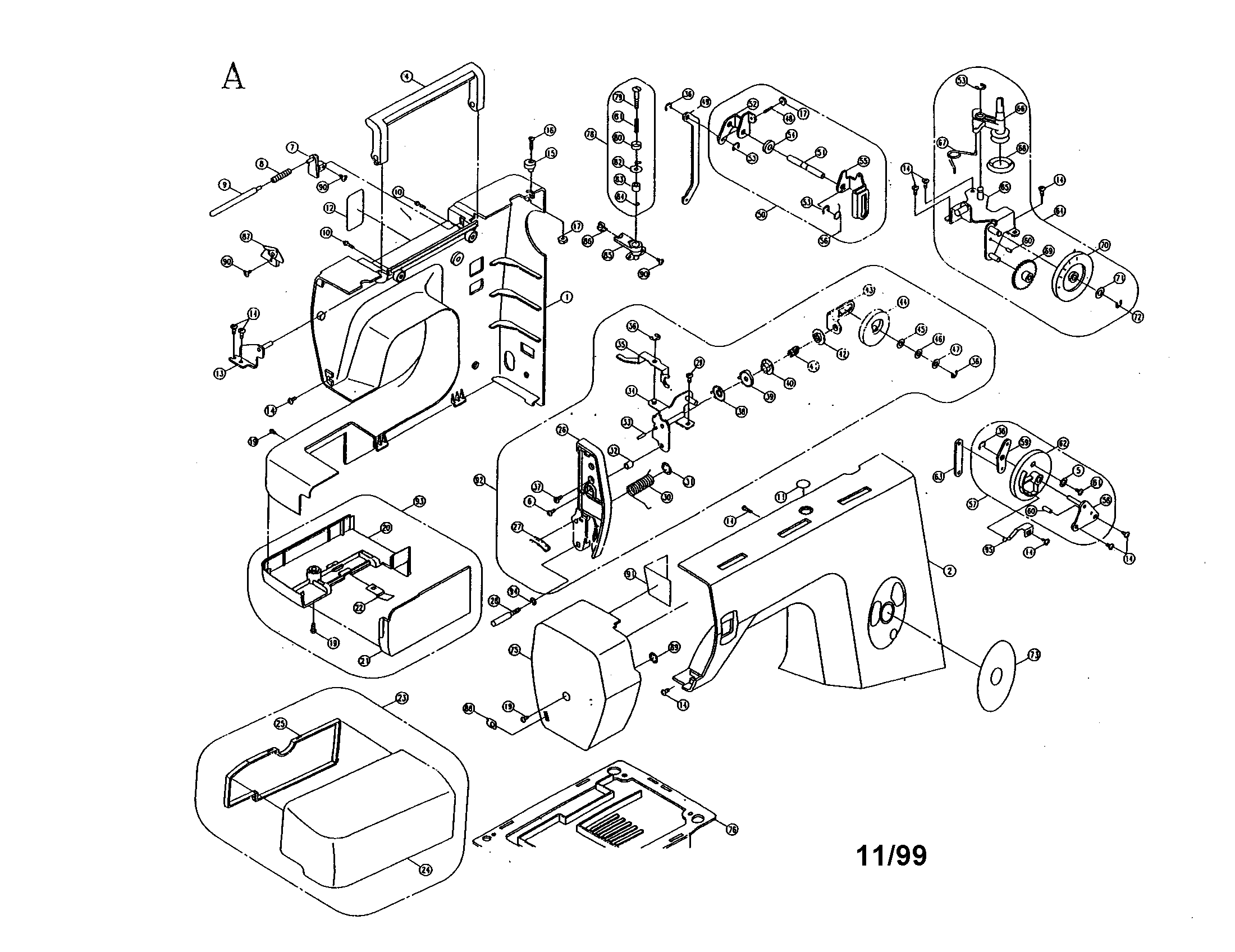

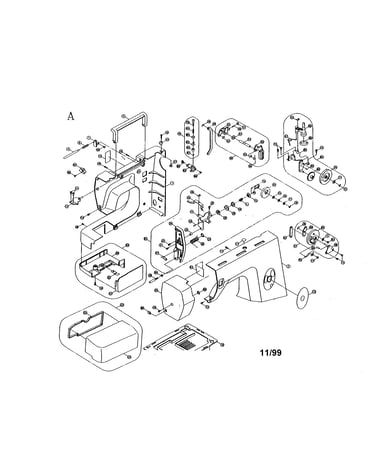

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
EP7100 Sewing Machines
Set Screw 004240746
#42

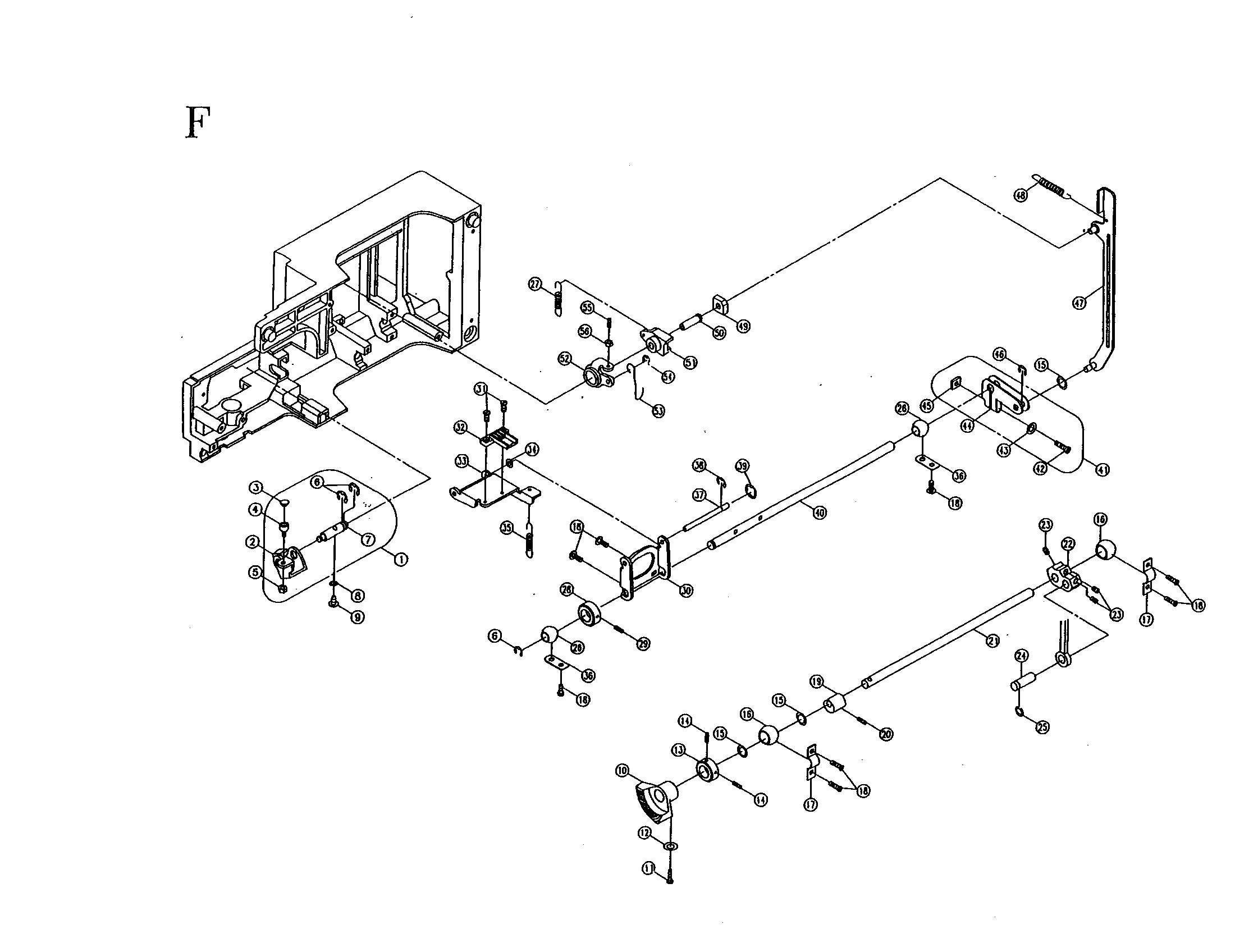

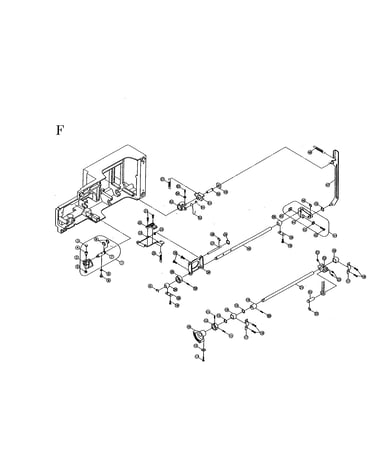

Lower shaft gear diagram

Set screw

Part #004240746

The manufacturer no longer makes this part, and there's no substitute part

Shaft V61843002
#59

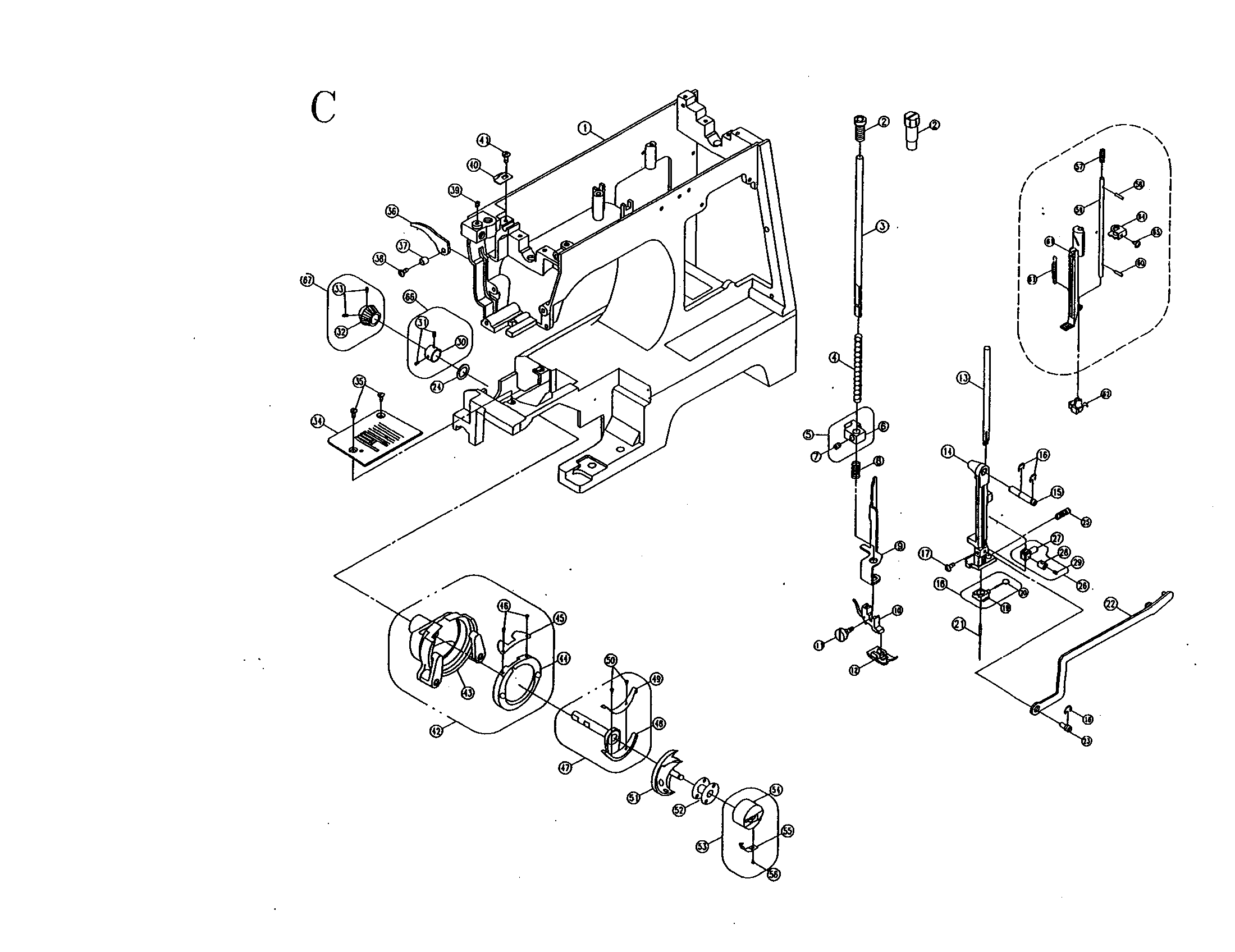

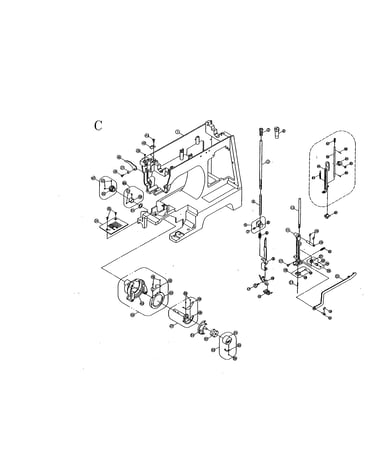

Needle bar diagram

Shaft

Part #V61843002

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin 003042512
#52

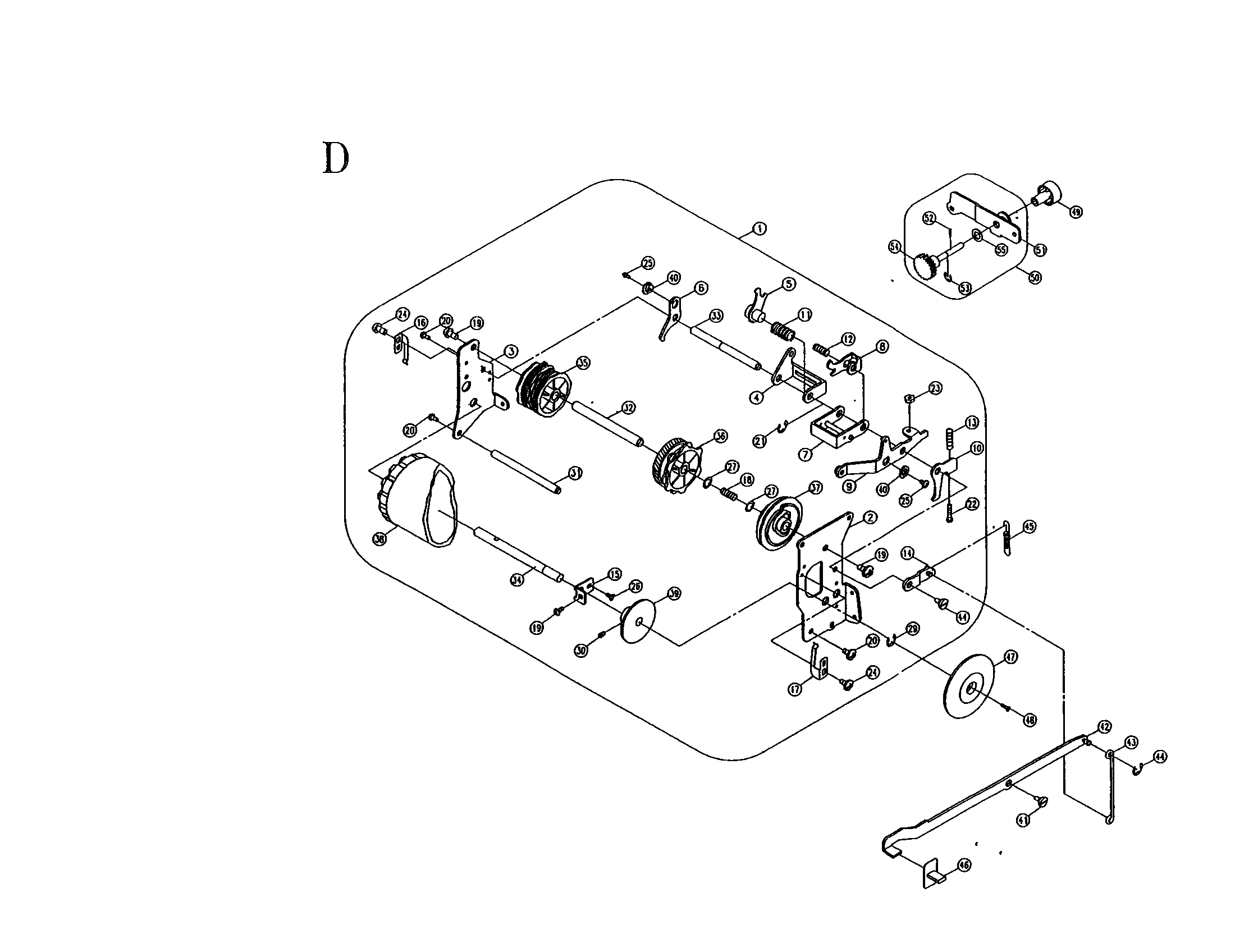

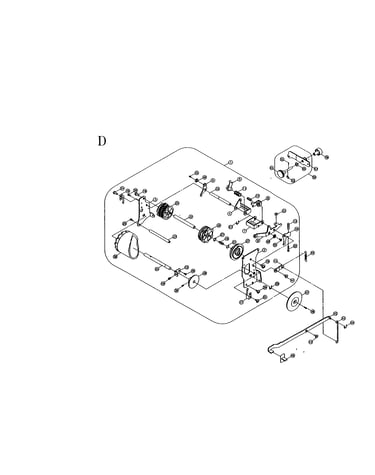

Feed regular crank diagram

Spring pin

Part #003042512

The manufacturer no longer makes this part, and there's no substitute part

Pin 003043524
#29

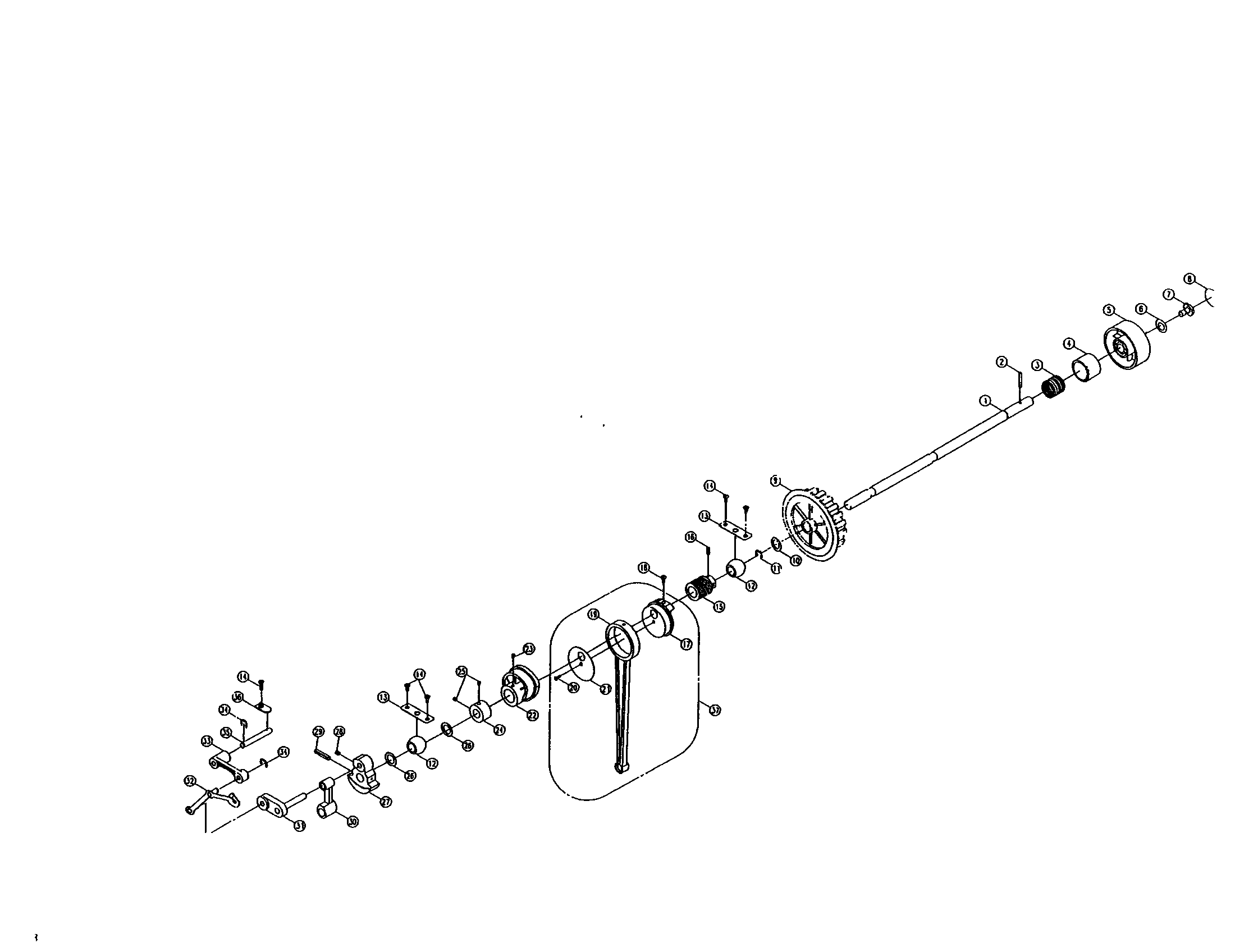

Crank connecting rod cam diagram

Pin

Part #003043524

The manufacturer no longer makes this part, and there's no substitute part

Washer 004600296
#15

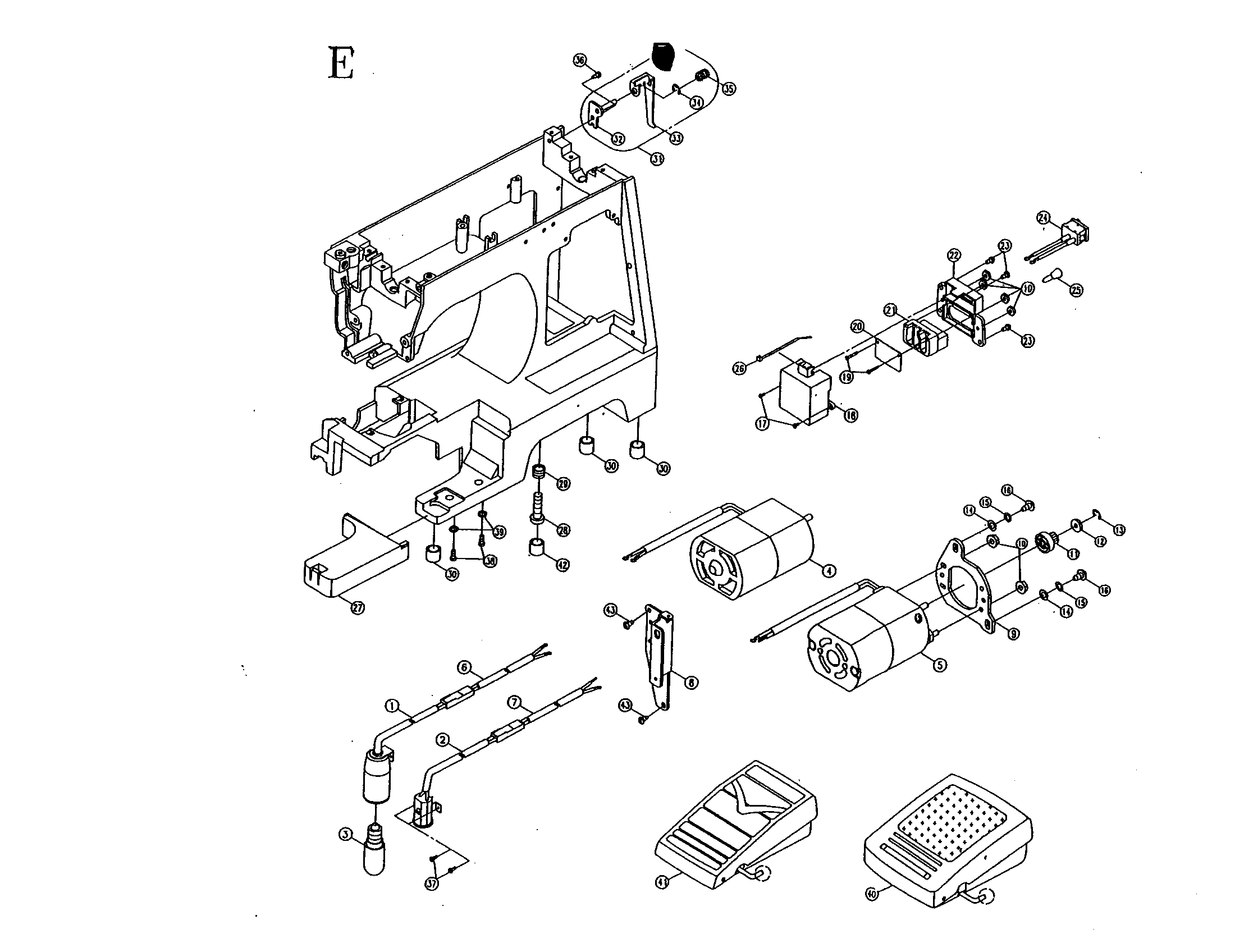

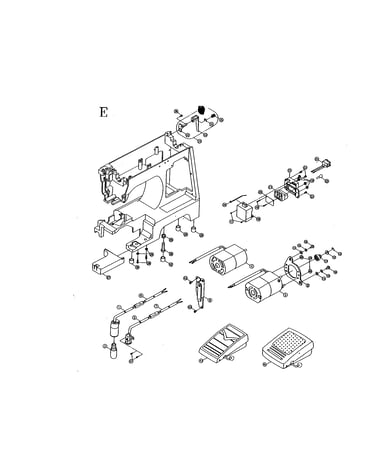

Motor bracket diagram

Washer

Part #004600296

The manufacturer no longer makes this part, and there's no substitute part

Feed Dog V620053000
#32

Lower shaft gear diagram

Feed dog

Part #V620053000

The manufacturer no longer makes this part, and there's no substitute part

Plate V60393000
#52

Lower shaft gear diagram

Plate

Part #V60393000

The manufacturer no longer makes this part, and there's no substitute part

Nut V60733000
#40

Feed regular crank diagram

Nut

Part #V60733000

The manufacturer no longer makes this part, and there's no substitute part

Cam V60653000
#35

Feed regular crank diagram

Cam

Part #V60653000

The manufacturer no longer makes this part, and there's no substitute part

Bobbin Case H71185000
#53

Needle bar diagram

Bobbin case

Part #H71185000

The manufacturer no longer makes this part, and there's no substitute part
