GE JKP80G*05 electric oven

GE JKP80G*05 electric oven Parts

Here are the diagrams and repair parts for GE JKP80G*05 electric oven, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for JKP80G*05 Ranges

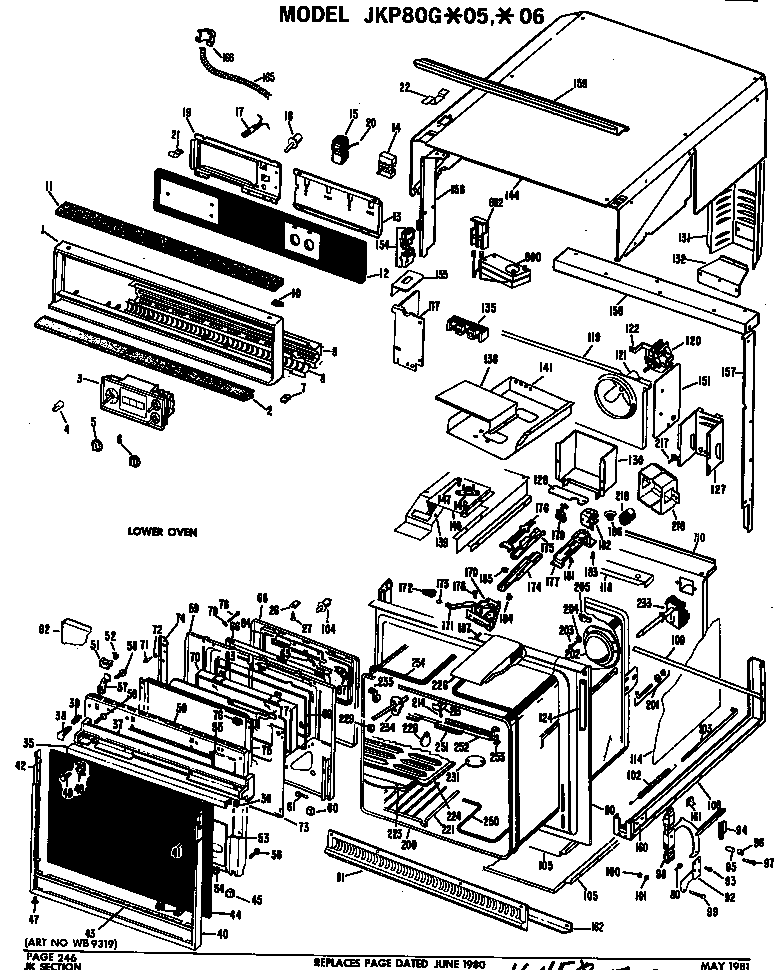

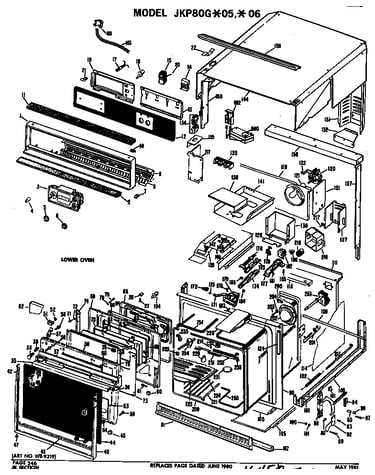

Lower oven diagram
Broil Unit
Part #WB44X185
Replaced by #WB44X173
Manufacturer substitution
This part replaces WB44X185. Substitute parts can look different from the original.
In Stock
$36.19
14% OFF Phone Price : $42.19
Qty
Lower oven diagram
Refrigerator Fan Blade
Part #WR2X3198
Replaced by #WR60X114
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
In Stock
$23.44
20% OFF Phone Price : $29.44
Qty
Lower oven diagram
Timer
Part #WB19X5231
Replaced by #WB19X10006
Manufacturer substitution
This part replaces WB19X5231. Substitute parts can look different from the original.
In Stock
$384.21
$12.00 OFF Phone Price : $396.21
Qty

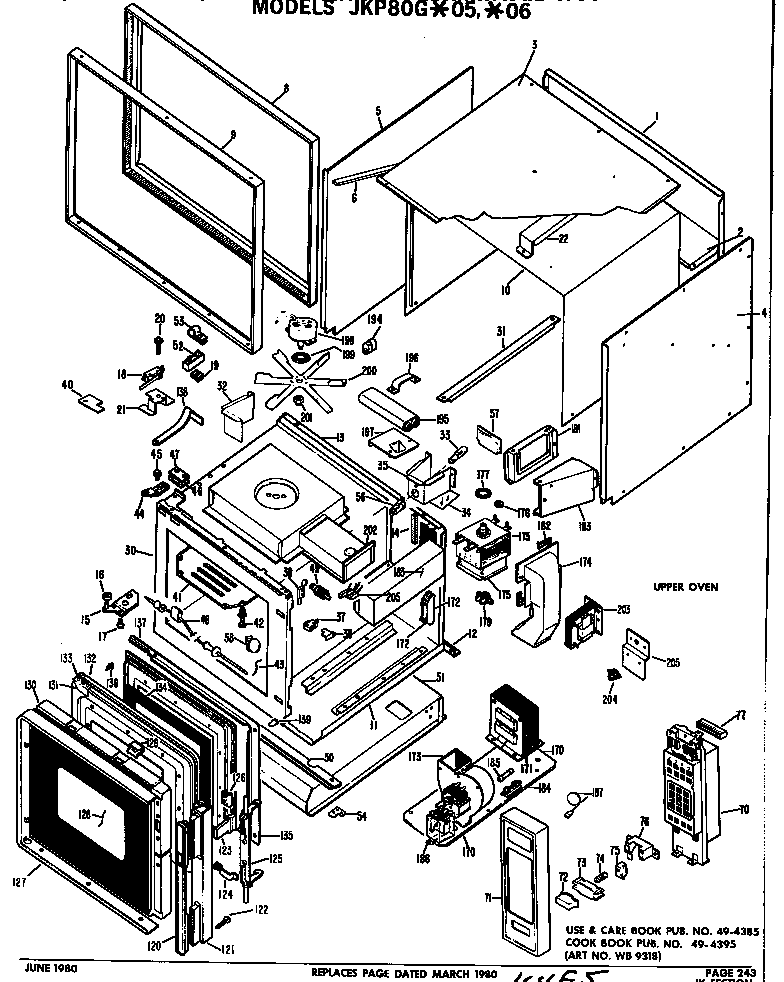

Upper oven diagram
Plunger B
Part #WB2X6717
This item is not returnable
In Stock
$4.49
Qty
Lower oven diagram
Washer
Part #WB1X119
Replaced by #WB1X119D
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
In Stock
$24.60
20% OFF Phone Price : $30.60
Qty
Lower oven diagram
Washer, 12-pack
Part #WB2X1847
Replaced by #WB1X119D
Manufacturer substitution
This part replaces WB2X1847. Substitute parts can look different from the original.
This item is not returnable
In Stock
$24.60
20% OFF Phone Price : $30.60
Qty
Upper oven diagram
Screw
Part #WB1X5347
This item is not returnable
In Stock
$2.49
Qty
Lower oven diagram
Screw
Part #WB1X524
In Stock
$43.98
Qty
Upper oven diagram
Vegetable Pan Frame Trim
Part #WB56X5760
In Stock
$87.99
Qty
Upper oven diagram
Outer Door Gasket
Part #WB2X6700
In Stock
$147.44
Qty
