Model # SM916 Official StairMaster stepper

Here are the diagrams and repair parts for Official StairMaster SM916 stepper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

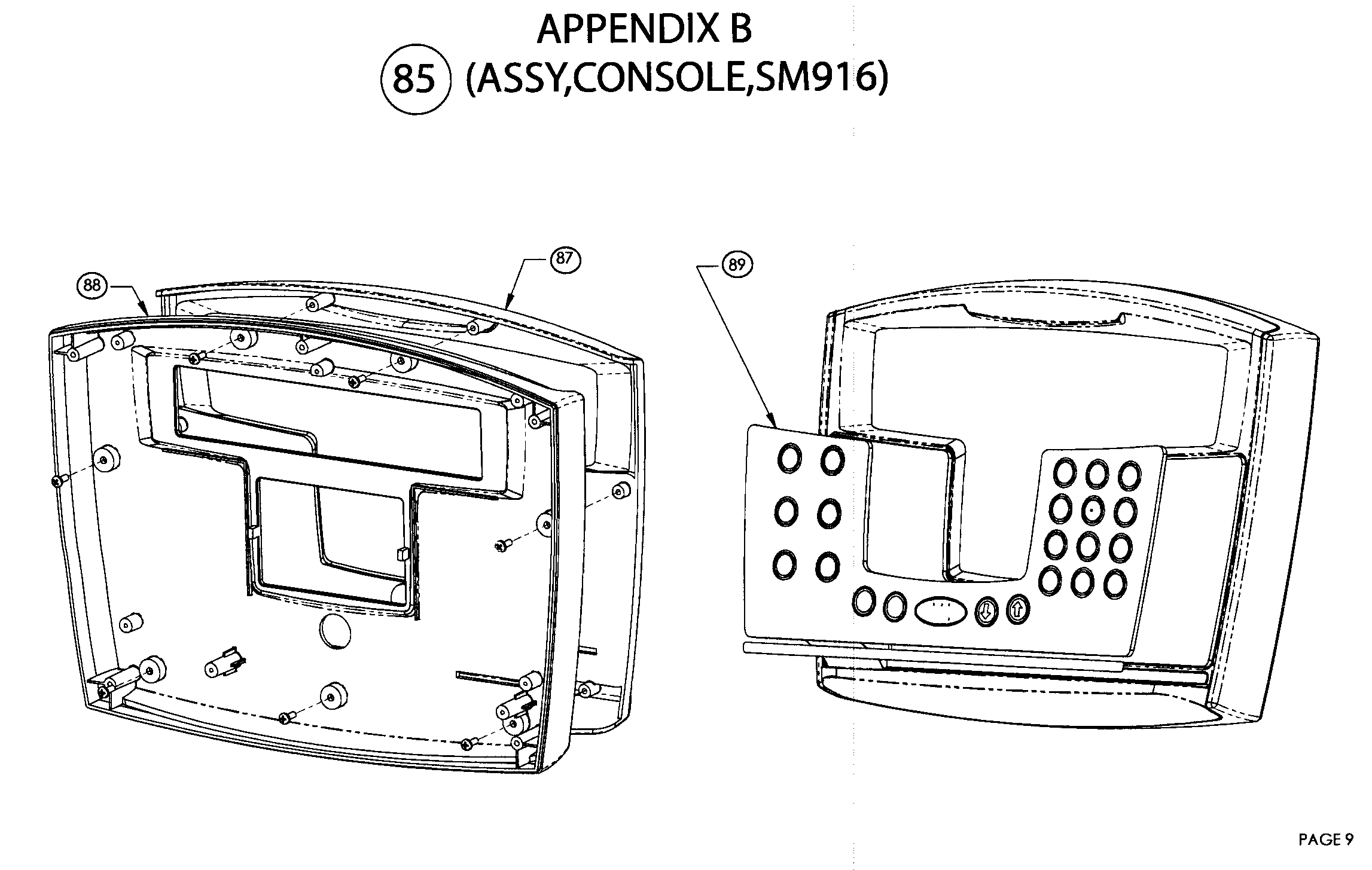

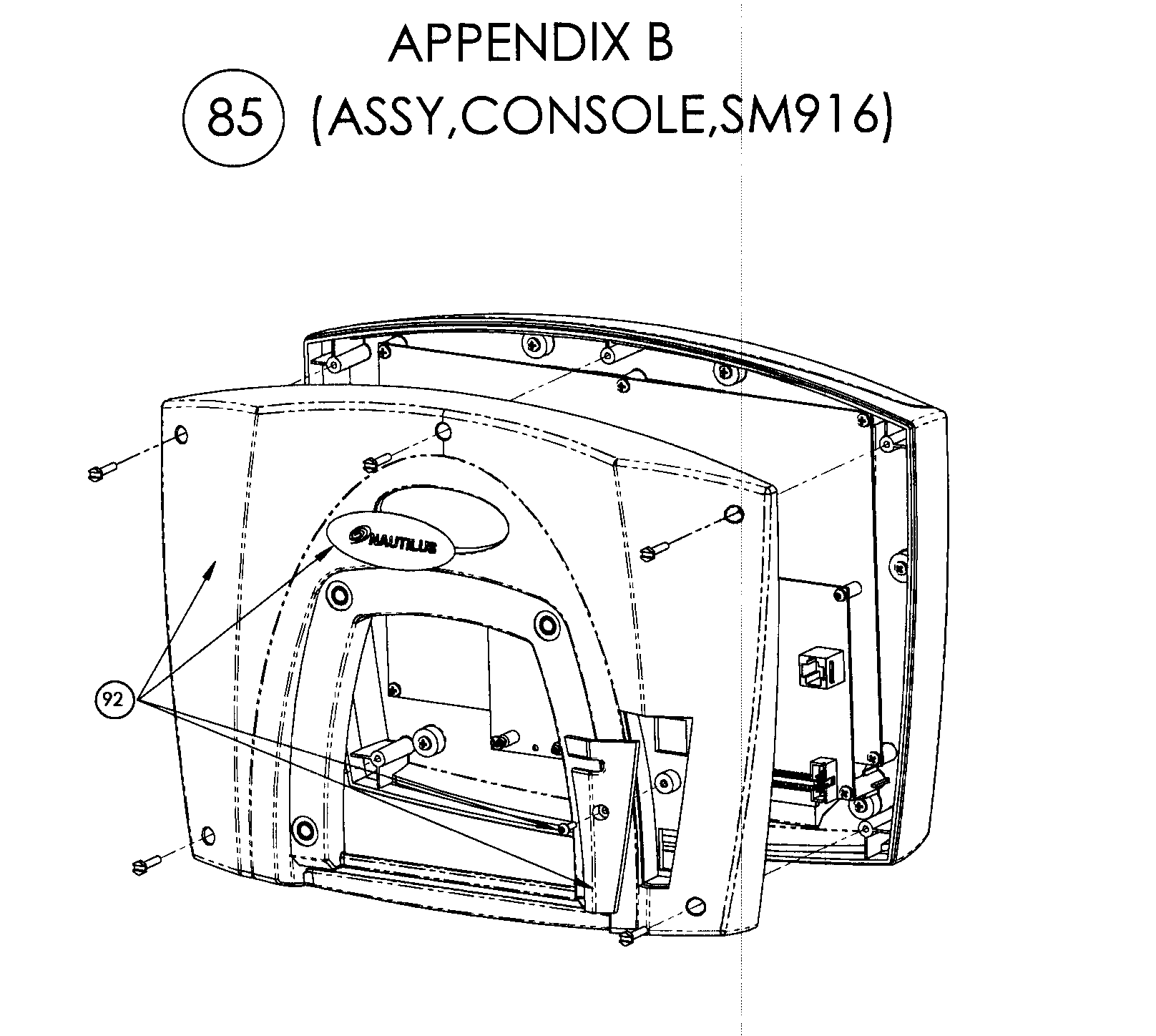

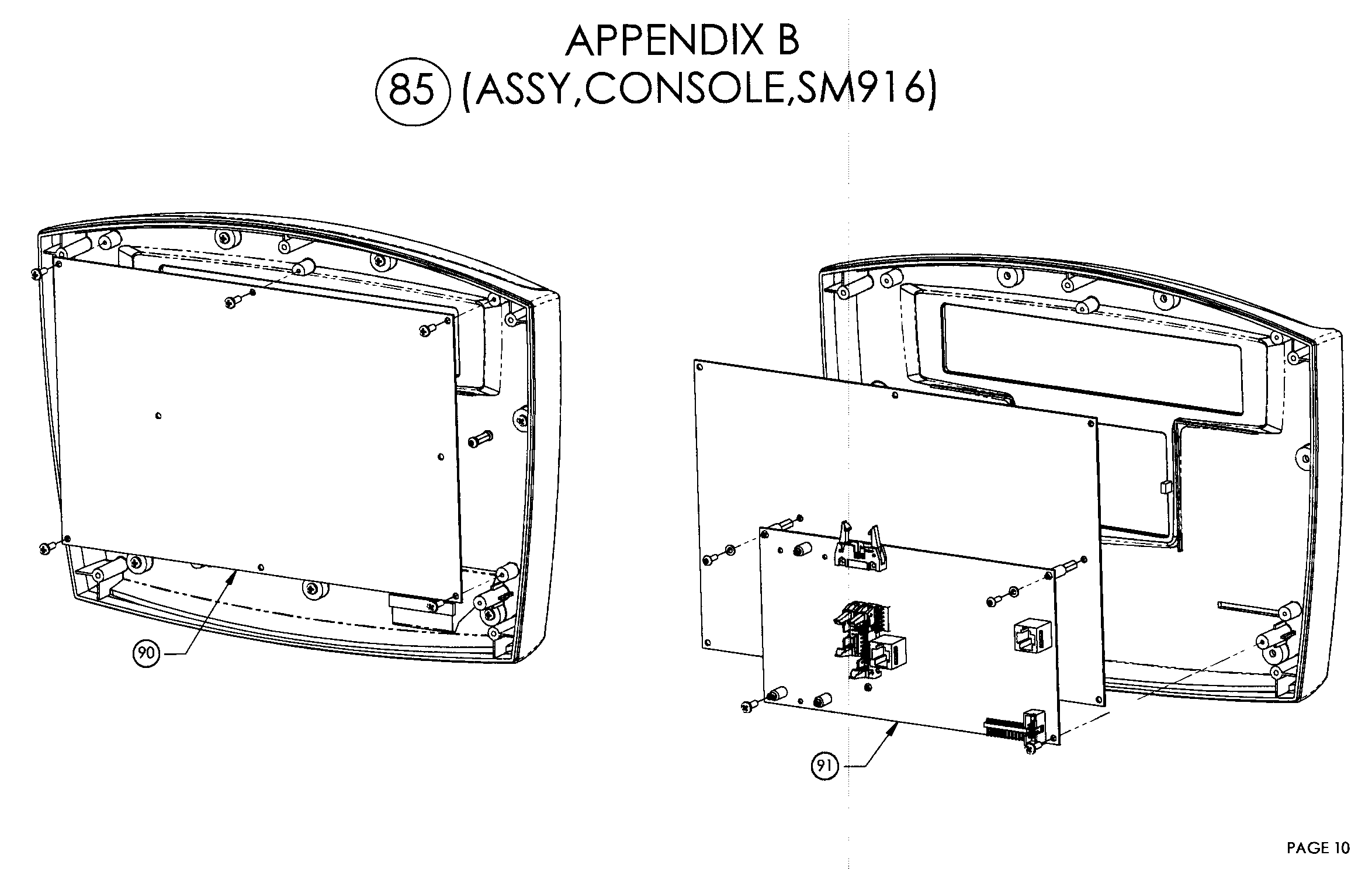

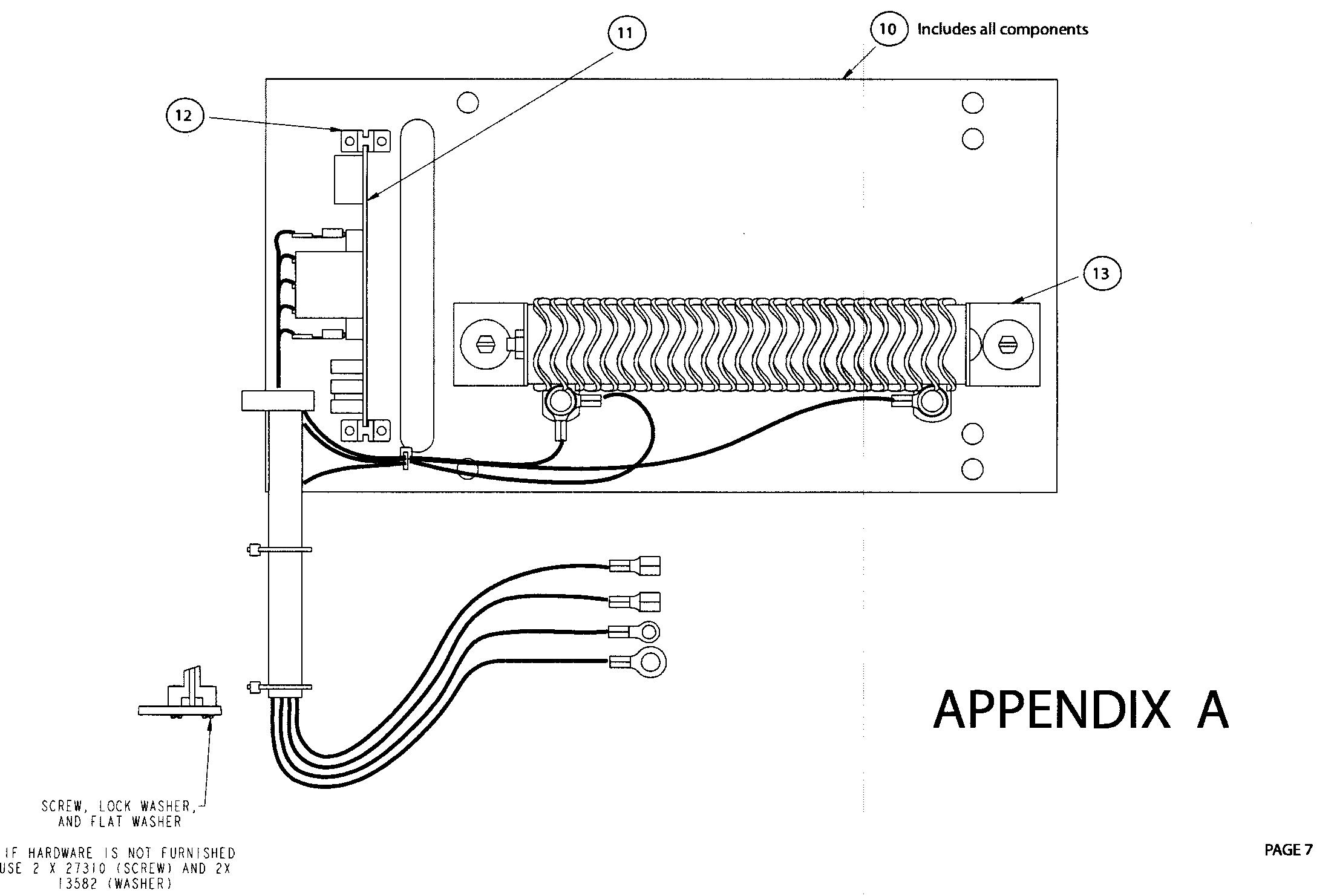

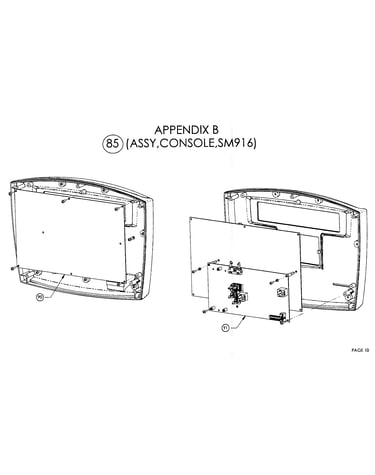

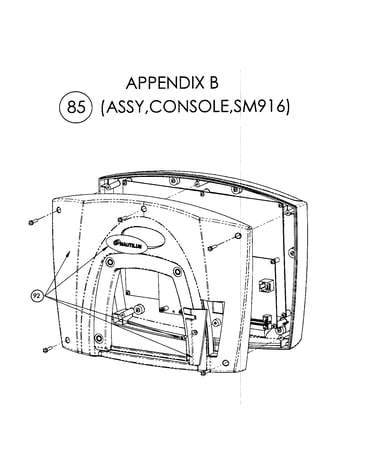

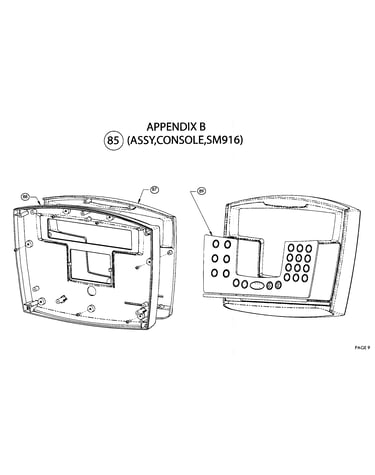

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Poly V Belt SM20202
#39

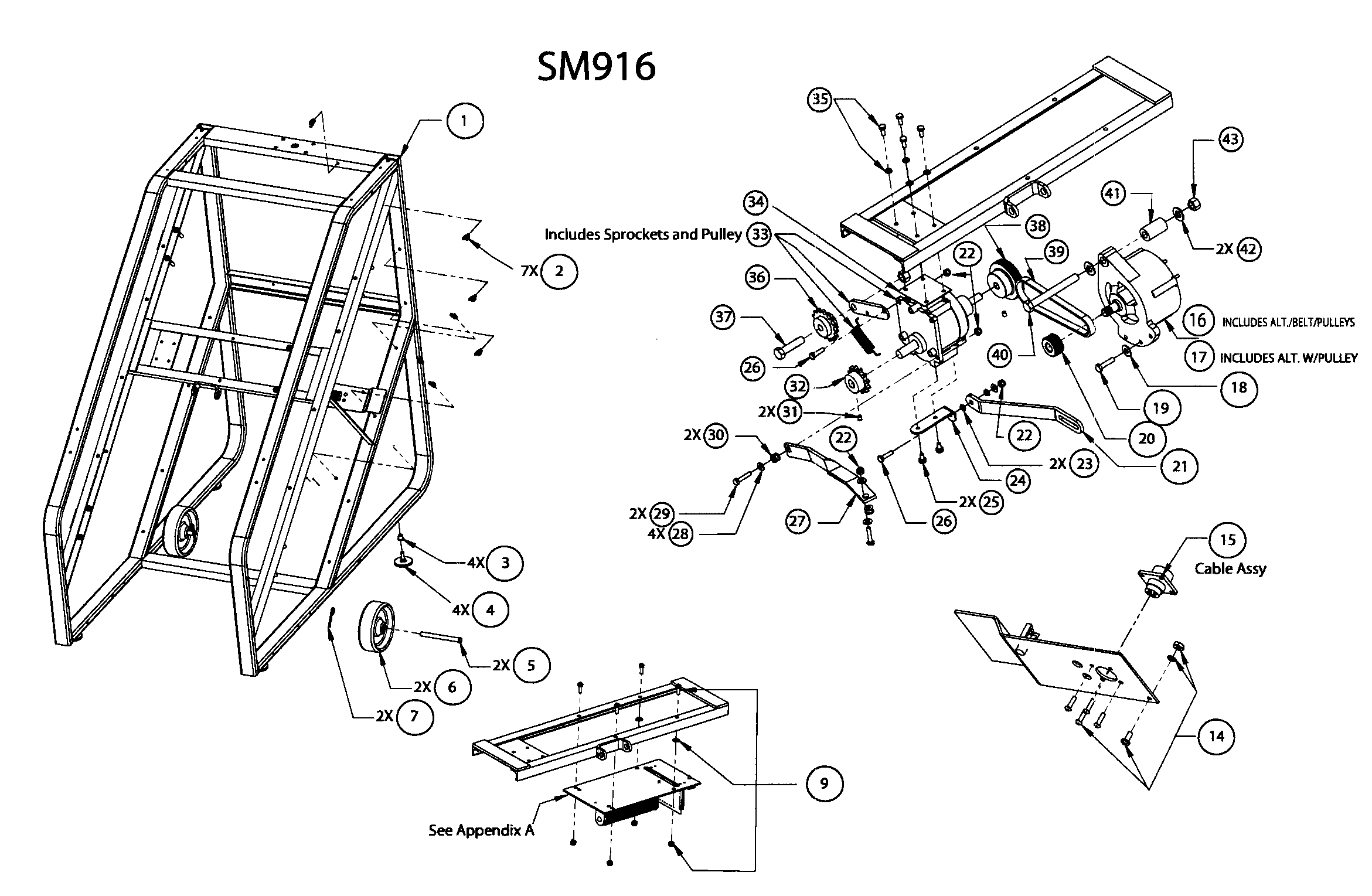

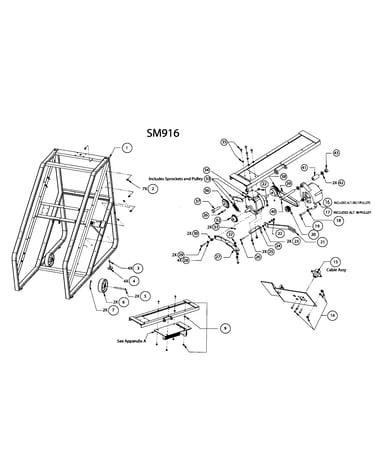

Frame assy diagram

Poly v belt

Part #SM20202

The manufacturer no longer makes this part, and there's no substitute part

Main Panel Asy-lh 003-3484
#78

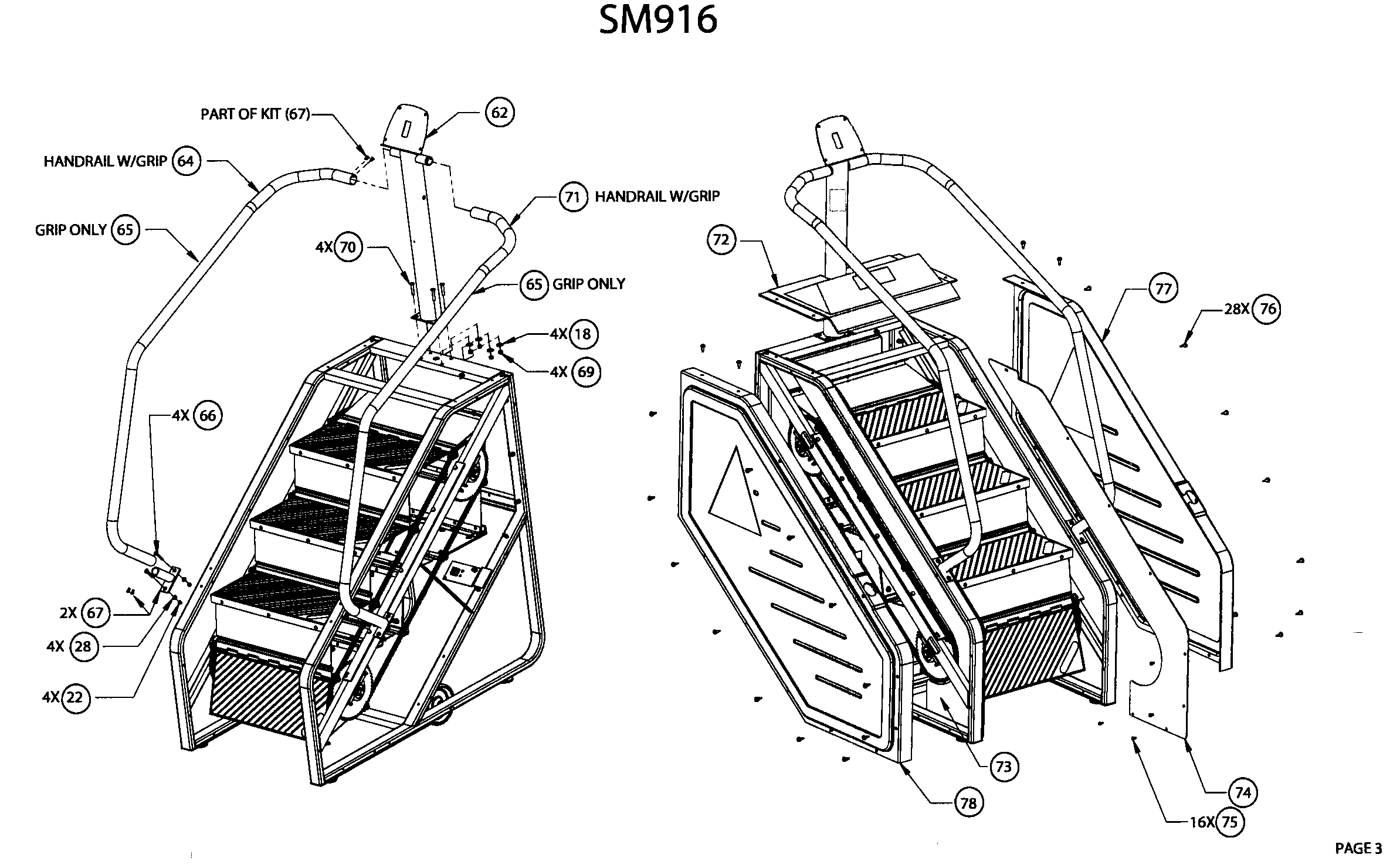

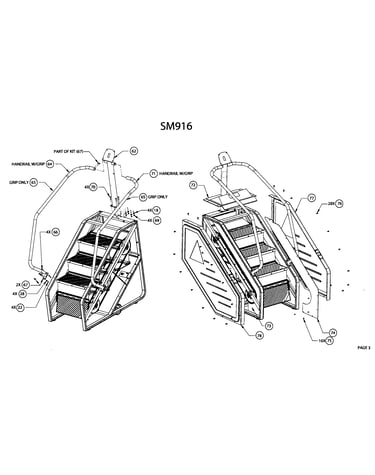

Handrail assy diagram

Main panel asy-lh

Part #003-3484

The manufacturer no longer makes this part, and there's no substitute part

Handrail,lh 002-0793
#64

Handrail assy diagram

Handrail,lh

Part #002-0793

The manufacturer no longer makes this part, and there's no substitute part

Screw 0.312-18x1.25 SM22146
#19

Frame assy diagram

Screw 0.312-18x1.25

Part #SM22146

The manufacturer no longer makes this part, and there's no substitute part

Bottle Holder 003-3489
#81

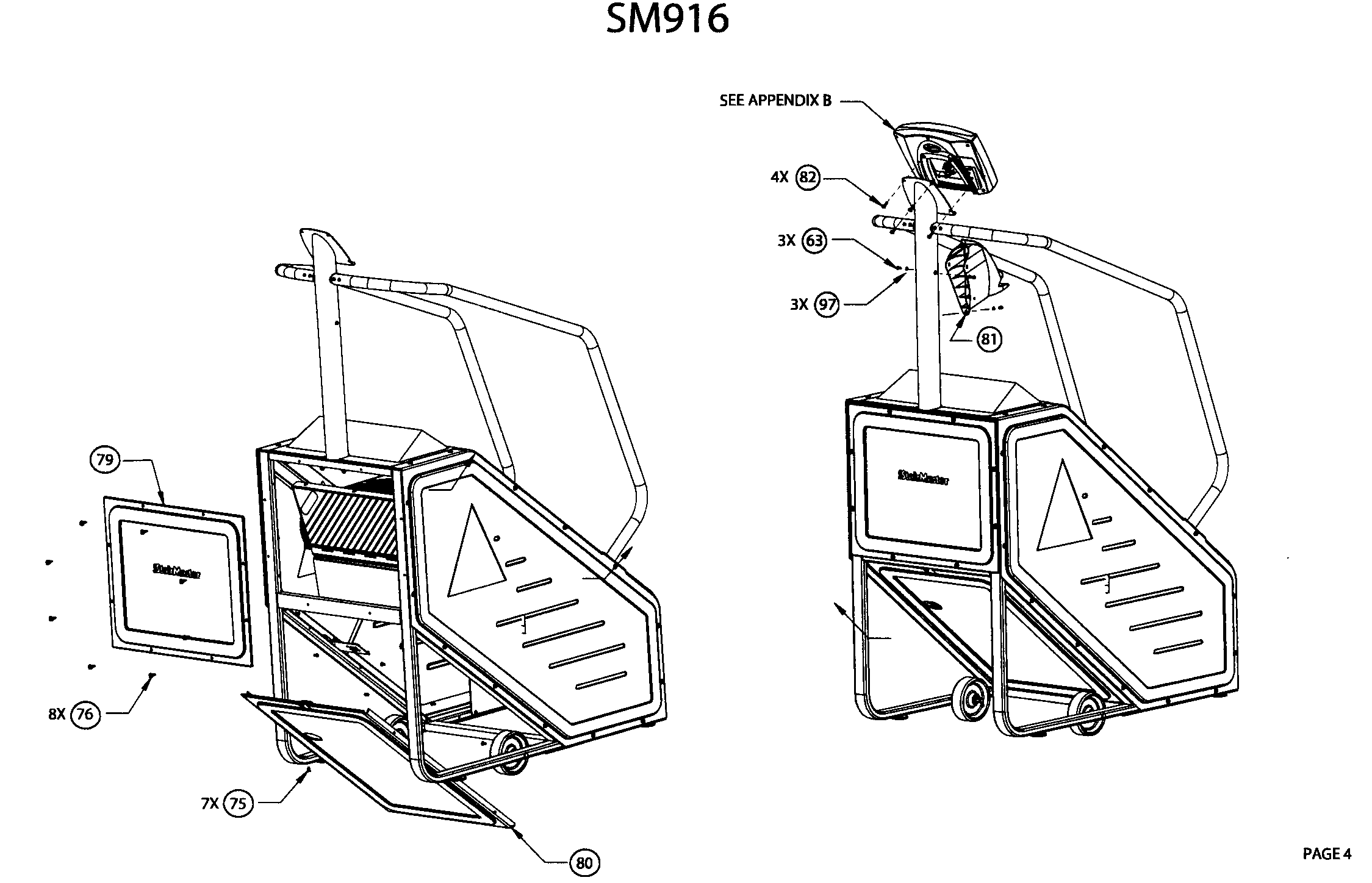

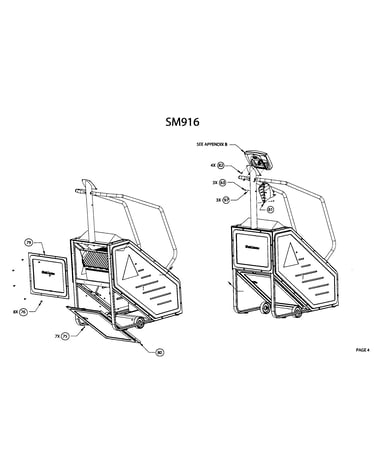

Covers assy diagram

Bottle holder

Part #003-3489

The manufacturer no longer makes this part, and there's no substitute part

Upr Mast,w/decal Asy 003-3748
#62

Handrail assy diagram

Upr mast,w/decal asy

Part #003-3748

The manufacturer no longer makes this part, and there's no substitute part

Push Nut Fastener SM20508
#58

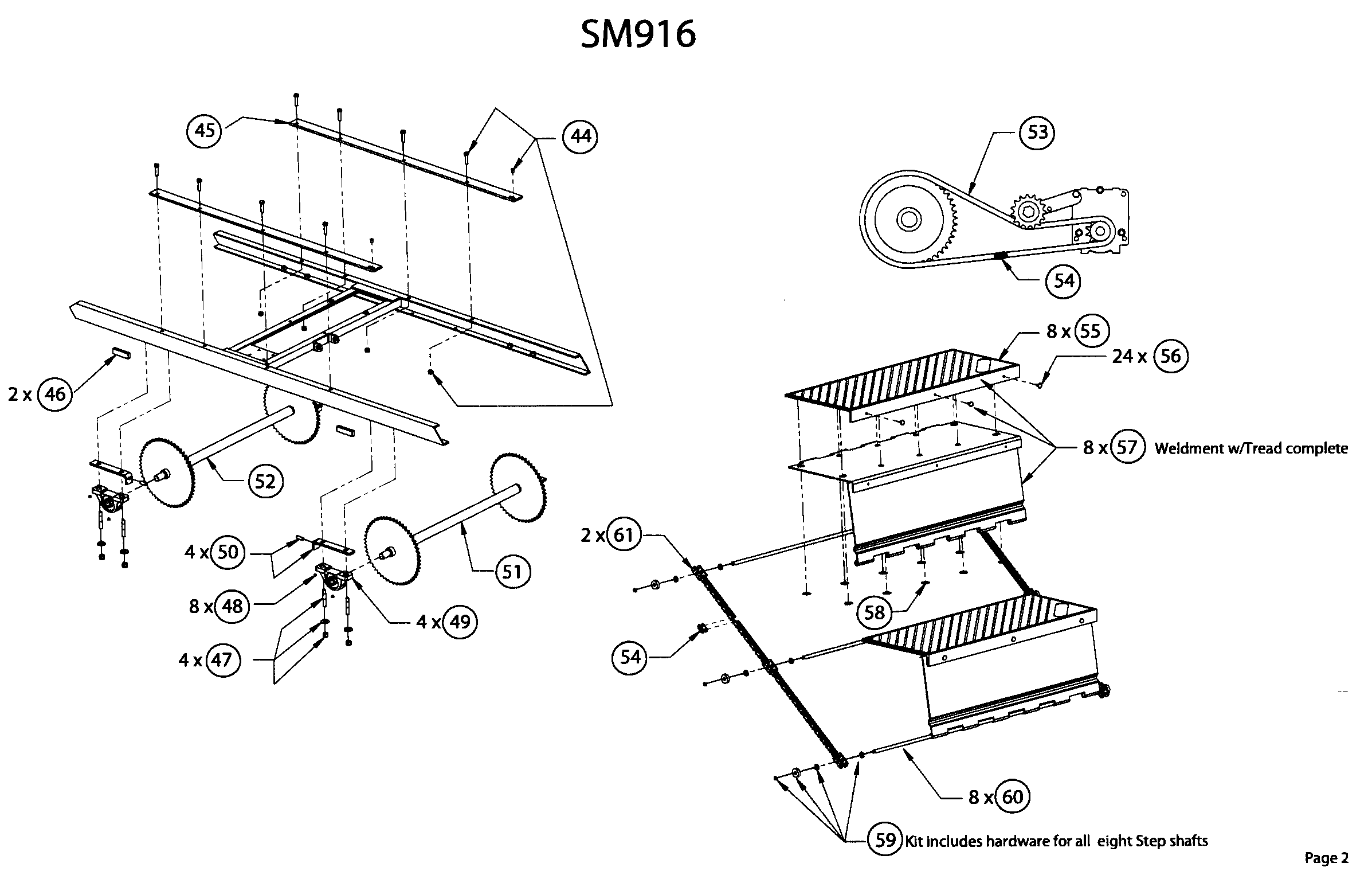

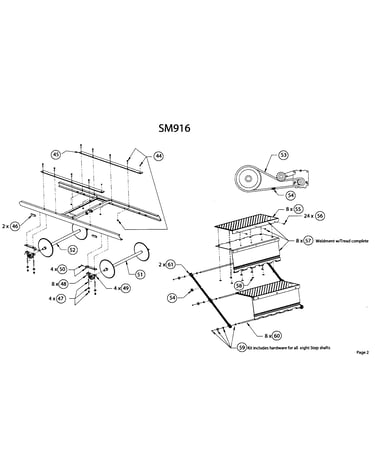

Steps assy diagram

Push nut fastener

Part #SM20508

The manufacturer no longer makes this part, and there's no substitute part

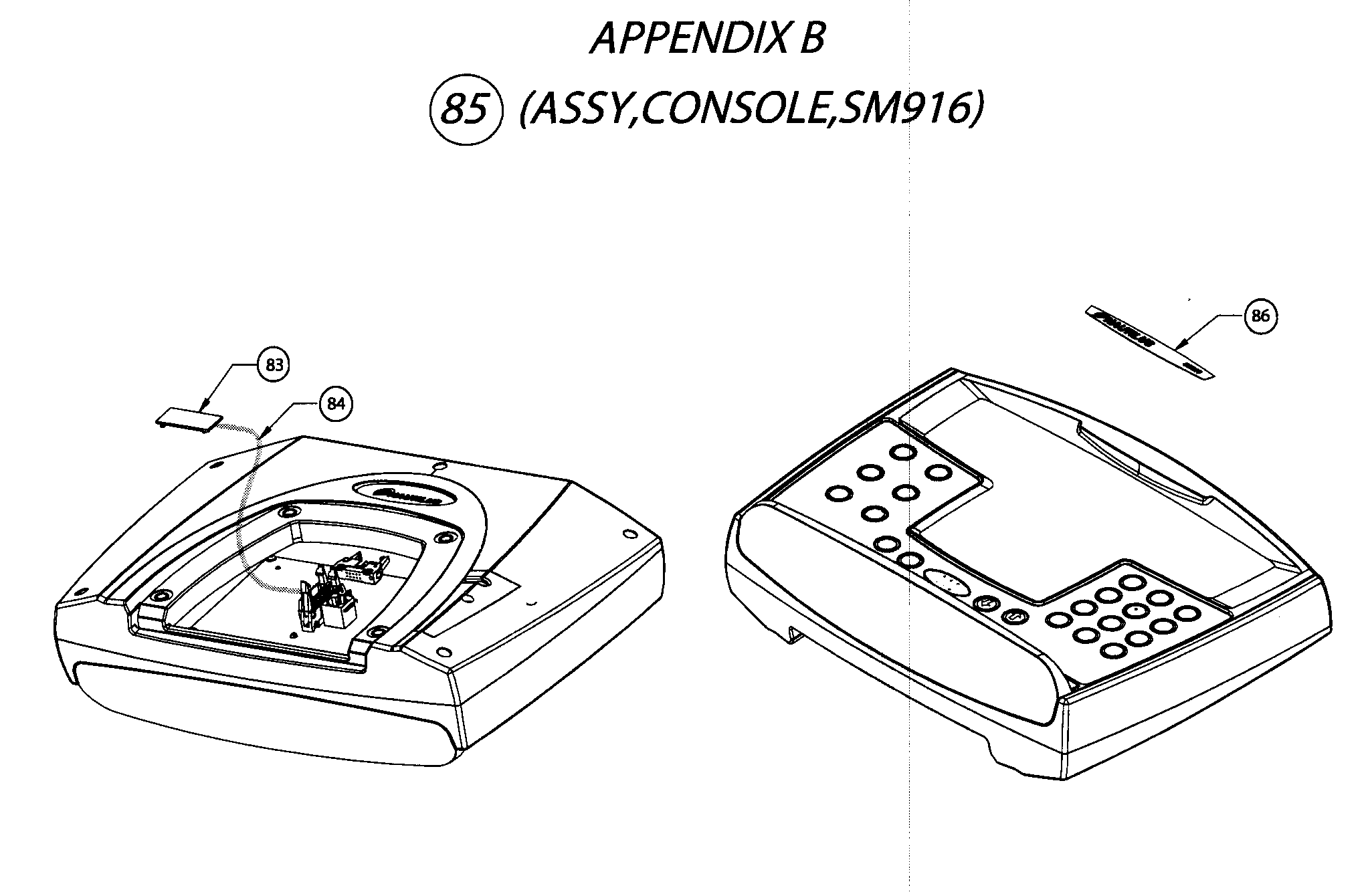

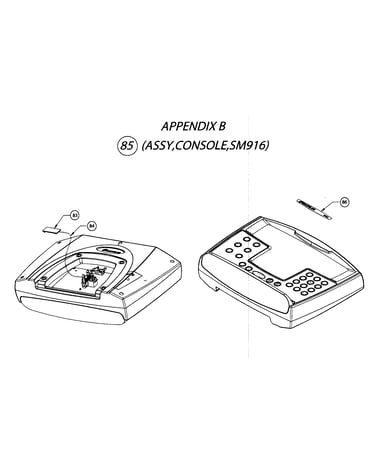

Cable,tele Heart Rate Asy SM41702
#84

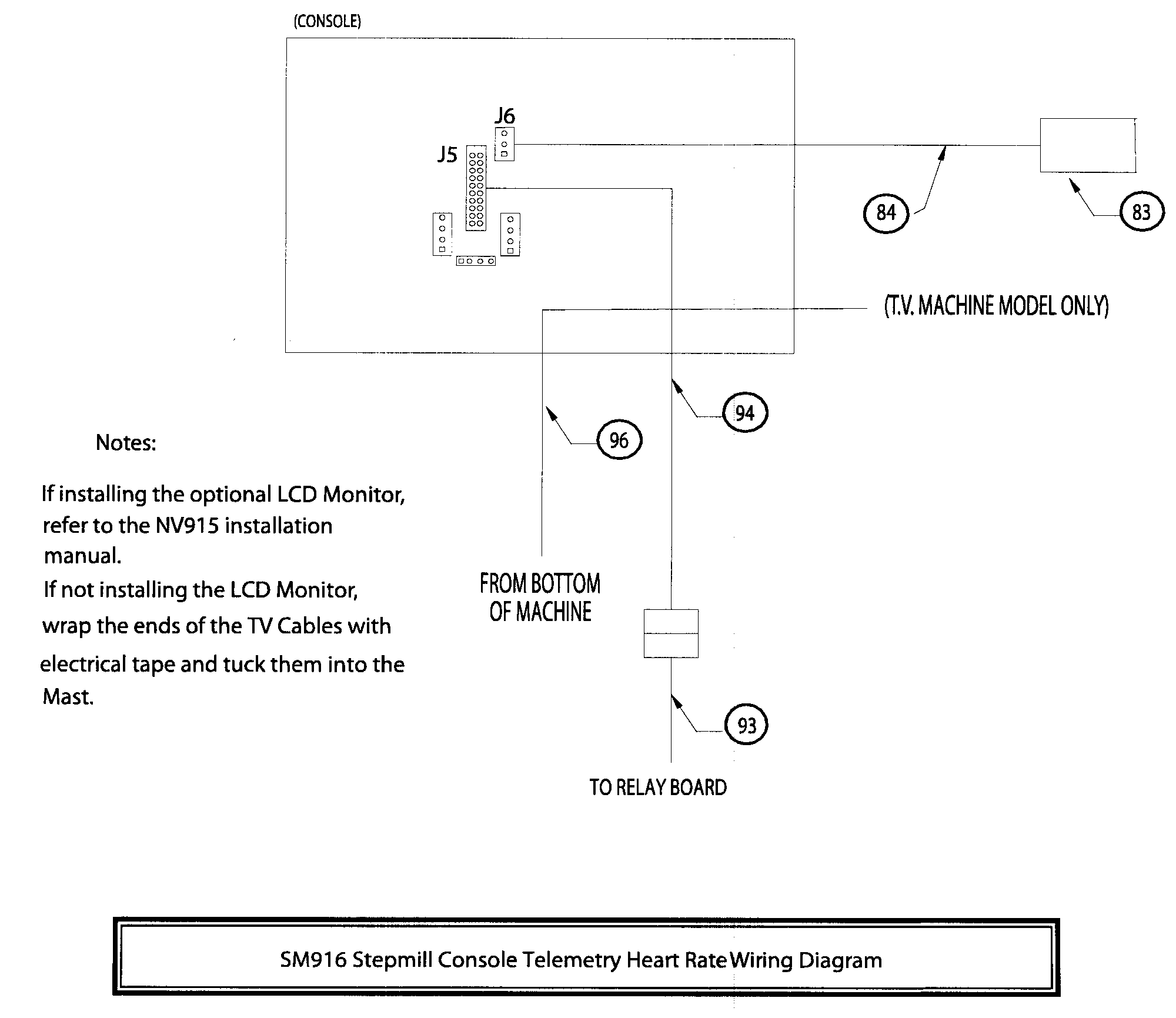

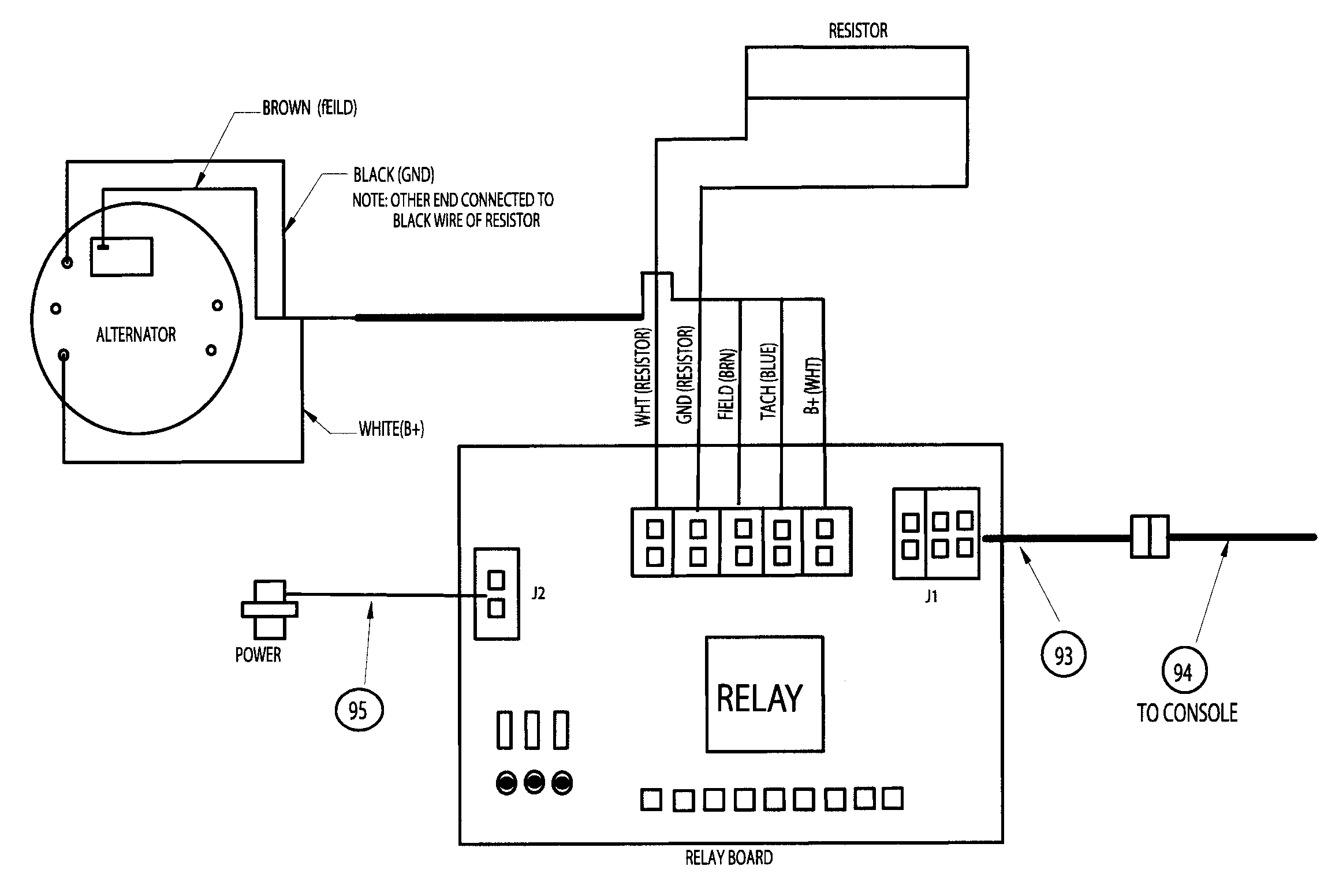

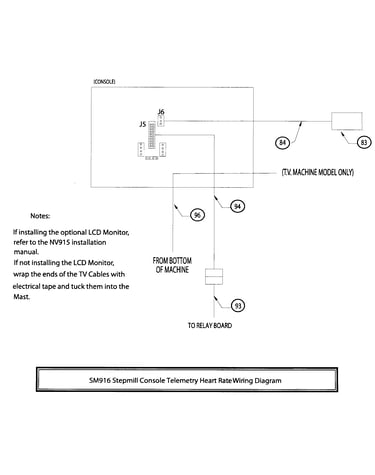

Sensoe wiring diagram

Cable,tele heart rate asy

Part #SM41702

The manufacturer no longer makes this part, and there's no substitute part

Bearing,pillow Block SM20012
#49

Steps assy diagram

Bearing,pillow block

Part #SM20012

The manufacturer no longer makes this part, and there's no substitute part

Leg Leveler SM20017
#4

Frame assy diagram

Leg leveler

Part #SM20017

The manufacturer no longer makes this part, and there's no substitute part
