Model # 247795940 Official Craftsman 5-hp chipper/shredder

Here are the diagrams and repair parts for Official Craftsman 247795940 5-hp chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Blade 742-0571
#1

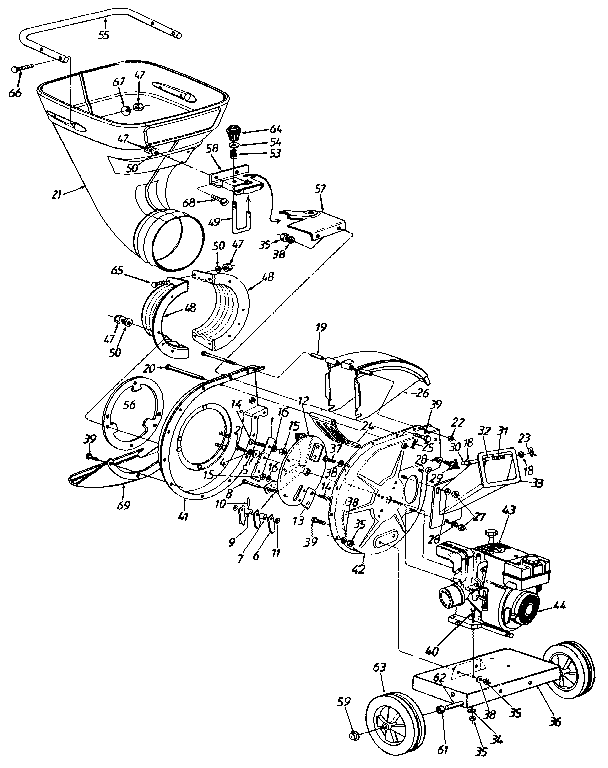

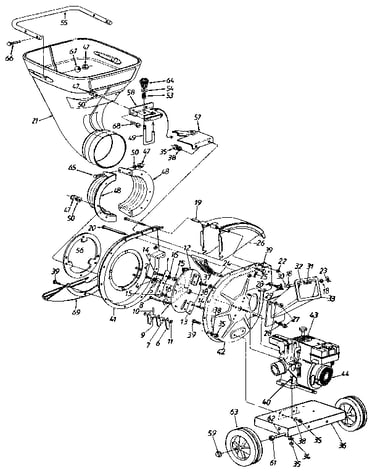

Replacement parts diagram

Blade

Part #742-0571

Replaced by #942-0571

?
Manufacturer substitution
This part replaces 742-0571. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$37.78 |
12% OFF Phone Price : $42.78
In Stock
Lawn & Garden Equipment Screw 710-1054
#14

Replacement parts diagram

Lawn & garden equipment screw

Part #710-1054

Replaced by #710-1054

?
Manufacturer substitution
This part replaces 710-1054. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Screen 781-0457
#24

Replacement parts diagram

Screen

Part #781-0457

Replaced by #781-0457-0637

?
Manufacturer substitution
This part replaces 781-0457. Substitute parts can look different from the original.
$52.74 |
9% OFF Phone Price : $57.74
In Stock
Clevis Pin 711-0833A
#8

Replacement parts diagram

Clevis pin

Part #711-0833A

Replaced by #711-0833B

?
Manufacturer substitution
This part replaces 711-0833A. Substitute parts can look different from the original.
This item is not returnable
$2.59 |
28% OFF Phone Price : $3.59
In Stock
Lawn Tractor Seat Adjuster Knob (replaces 920-0170) 720-0170
#29

Replacement parts diagram

Lawn tractor seat adjuster knob (replaces 920-0170)

Part #720-0170

This item is not returnable
$17.33 |
10% OFF Phone Price : $19.33
In Stock
Lawn Tractor Hex Bolt 710-3008
#39

Replacement parts diagram

Lawn tractor hex bolt

Part #710-3008

This item is not returnable
$4.31 |
22% OFF MSRP : $5.50
In Stock
Clvis Pin 711-0835
#20

Replacement parts diagram

Clvis pin

Part #711-0835

Replaced by #911-0835

?
Manufacturer substitution
This part replaces 711-0835. Substitute parts can look different from the original.
This item is not returnable
$19.49 |
9% OFF Phone Price : $21.49
In Stock
Flail 11459B
#6

Replacement parts diagram

Flail

Part #11459B

Replaced by #91459B

?
Manufacturer substitution
This part replaces 11459B. Substitute parts can look different from the original.
$27.79 |
15% OFF Phone Price : $32.79
In Stock
Lawn & Garden Equipment Bolt 710-1254
#2

Replacement parts diagram

Lawn & garden equipment bolt

Part #710-1254

This item is not returnable
$11.68 |
15% OFF Phone Price : $13.68
In Stock
Chipper/shredder Wheel Assembly 734-1600
#63

Replacement parts diagram

Chipper/shredder wheel assembly

Part #734-1600

$106.24
In Stock
