Kenmore 9119189181 electric range Parts
Here are the diagrams and repair parts for Kenmore 9119189181 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

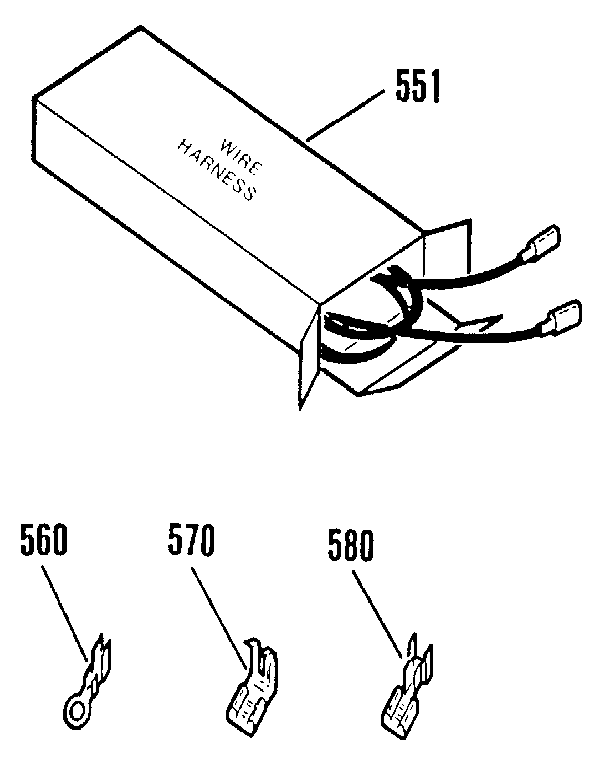

Browse Parts for9119189181 Ranges

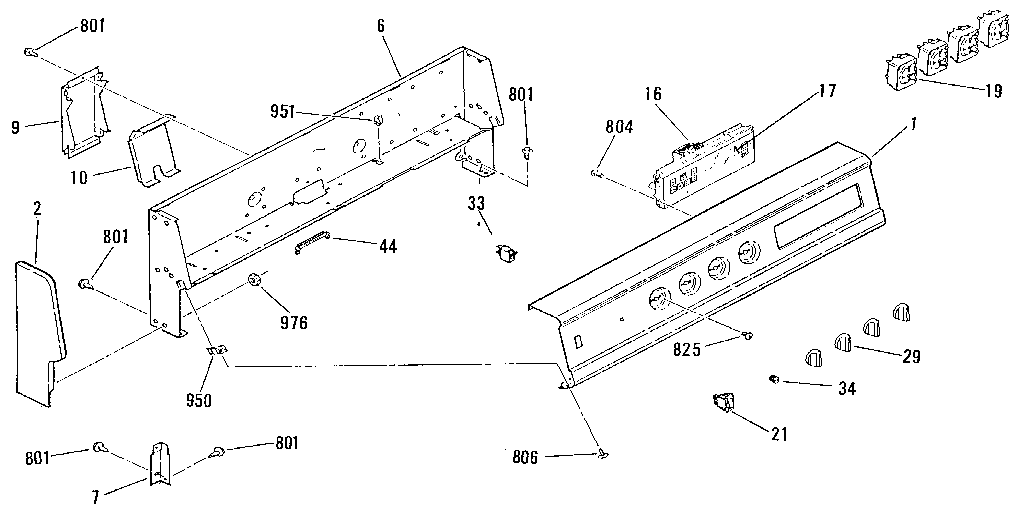

Backguard section diagram
Support Backguard
Part #343724Replaced by #WB6X127
Manufacturer substitutionThis part replaces 343724. Substitute parts can look different from the original.In Stock$30.95
Qty

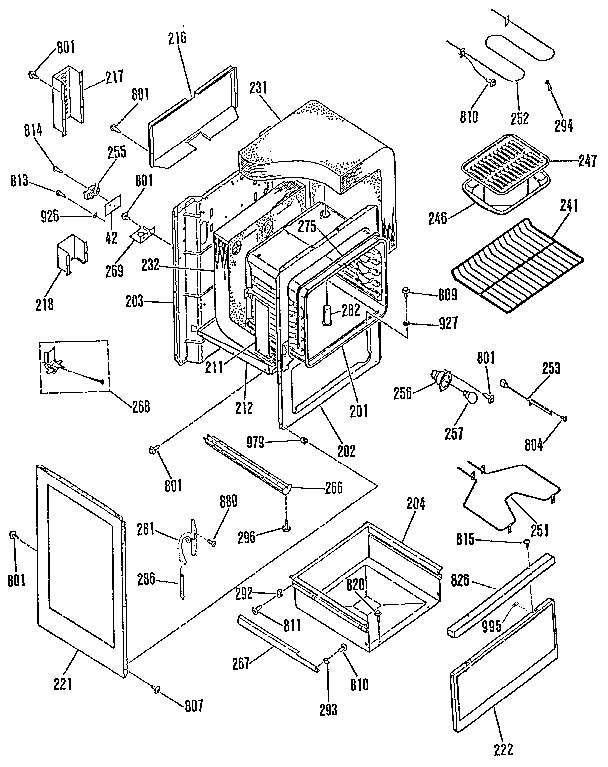

Body section diagram
Screw
Part #313190Replaced by #WB1X1258
Manufacturer substitutionThis part replaces 313190. Substitute parts can look different from the original.In Stock$33.01QtyBody section diagram
Main
Part #345692Replaced by #WB63K5187
Manufacturer substitutionThis part replaces 345692. Substitute parts can look different from the original.In Stock$163.48QtyBody section diagram
Nut
Part #341134Replaced by #WB1M40

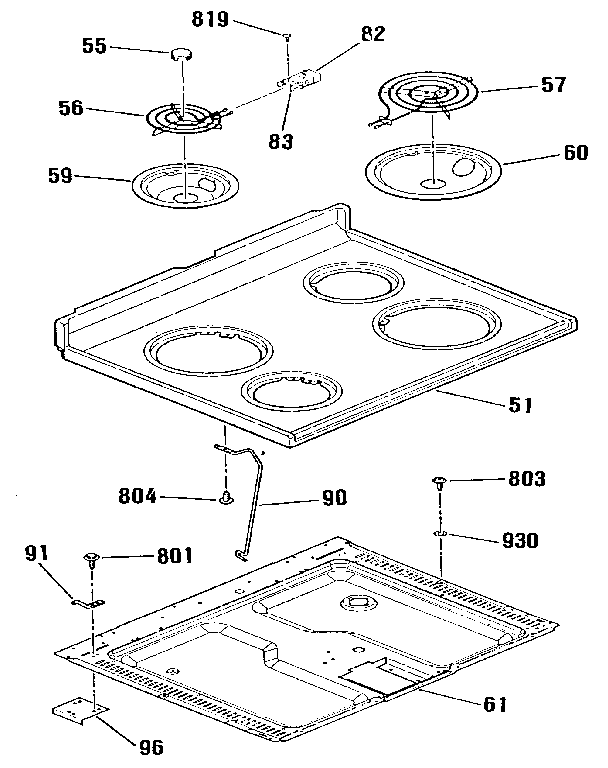

Manufacturer substitutionThis part replaces 341134. Substitute parts can look different from the original.In Stock$28.73QtyMain top section diagram
Screw
Part #337857Replaced by #WB1X1118
Manufacturer substitutionThis part replaces 337857. Substitute parts can look different from the original.In Stock$8.3811% OFF Phone Price : $9.38

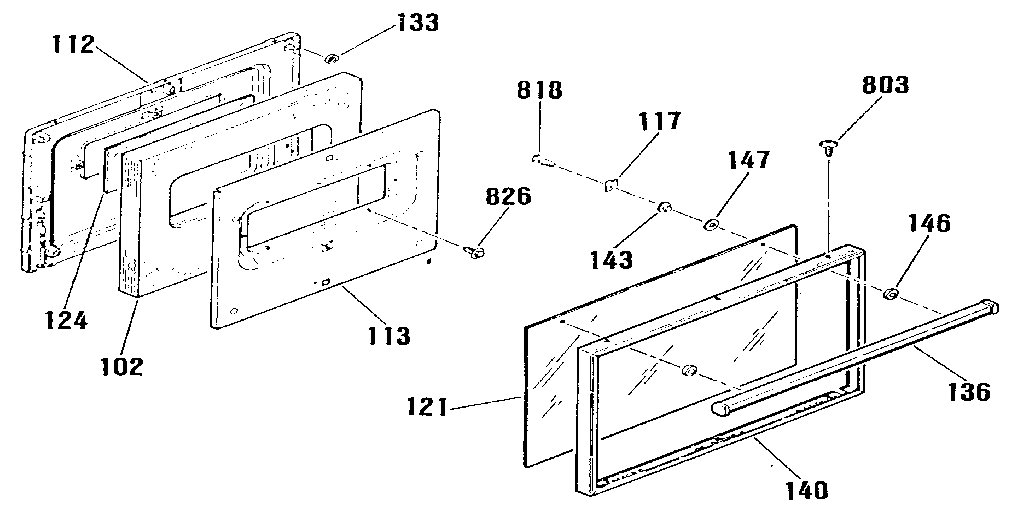

QtyOven door section diagram
Retainer
Part #328622Replaced by #WB56X1910
Manufacturer substitutionThis part replaces 328622. Substitute parts can look different from the original.In Stock$105.23QtyBody section diagram
Spacer
Part #312605Replaced by #WB1X1177
Manufacturer substitutionThis part replaces 312605. Substitute parts can look different from the original.In Stock$49.11QtyMain top section diagram
8 In Tp Unit
Part #325506Replaced by #WB30X255
Manufacturer substitutionThis part replaces 325506. Substitute parts can look different from the original.In Stock$78.937% OFF Phone Price : $84.93QtyBackguard section diagram
Clock W/lens
Part #344482Replaced by #WB19X272
Manufacturer substitutionThis part replaces 344482. Substitute parts can look different from the original.In Stock$484.59QtyOven door section diagram
Door Glass (black)
Part #332067Replaced by #WB56X1902
Manufacturer substitutionThis part replaces 332067. Substitute parts can look different from the original.In Stock$285.71$12.00 OFF Phone Price : $297.71Qty
