Kenmore 66514529N610 dishwasher Parts

Yes. We still carry replacement parts for many Kenmore dishwashers, including model 66514529N610. The key is matching parts by the full model number so you get the correct fit for items like the water inlet valve, drain pump, racks, and door latch; our 66514529N610 owner's manual also helps you identify components.

How to find the right part fast

• Use the complete model number 66514529N610 (from the model and serial label) when searching.
• Match by symptom first (leaking, not draining, poor cleaning), then confirm the part name.
• Compare the part ID on the listing to what you need before ordering.
• For rack issues (wheels, adjusters, stops), inspect both sides so you replace the correct side and style.
• For fill or drain problems, check for clogs and kinks before replacing parts.

Common parts customers replace on 66514529N610

Problem	Common part to check	Example for this model

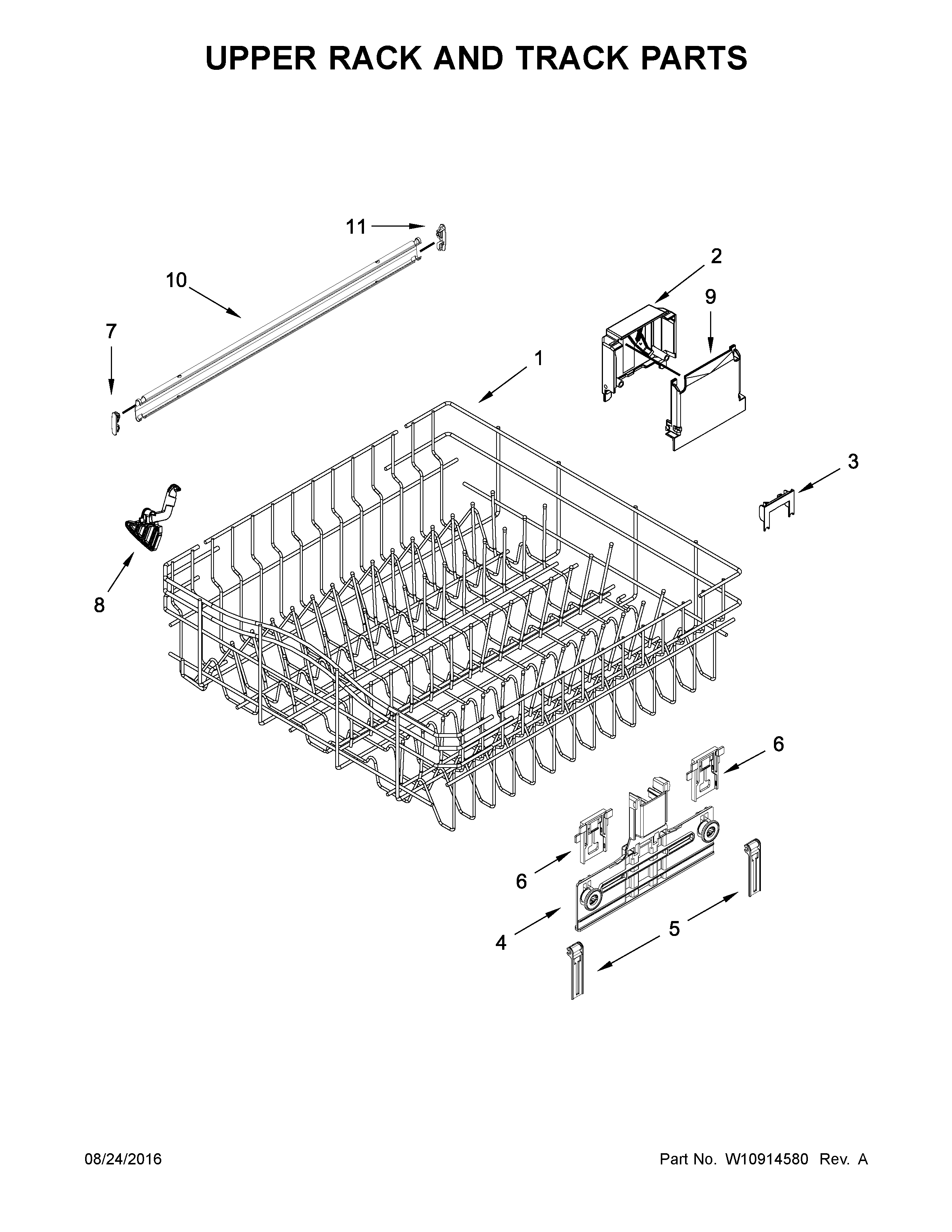

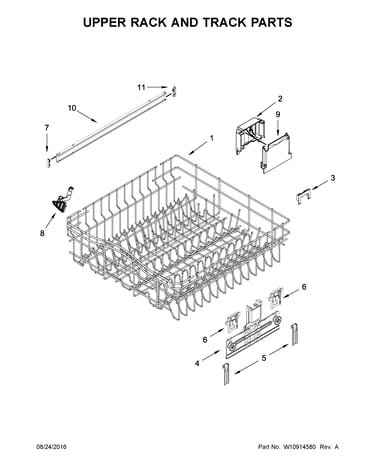

Upper rack won’t adjust or sags	Rack adjuster	Dishwasher rack adjuster W10712395

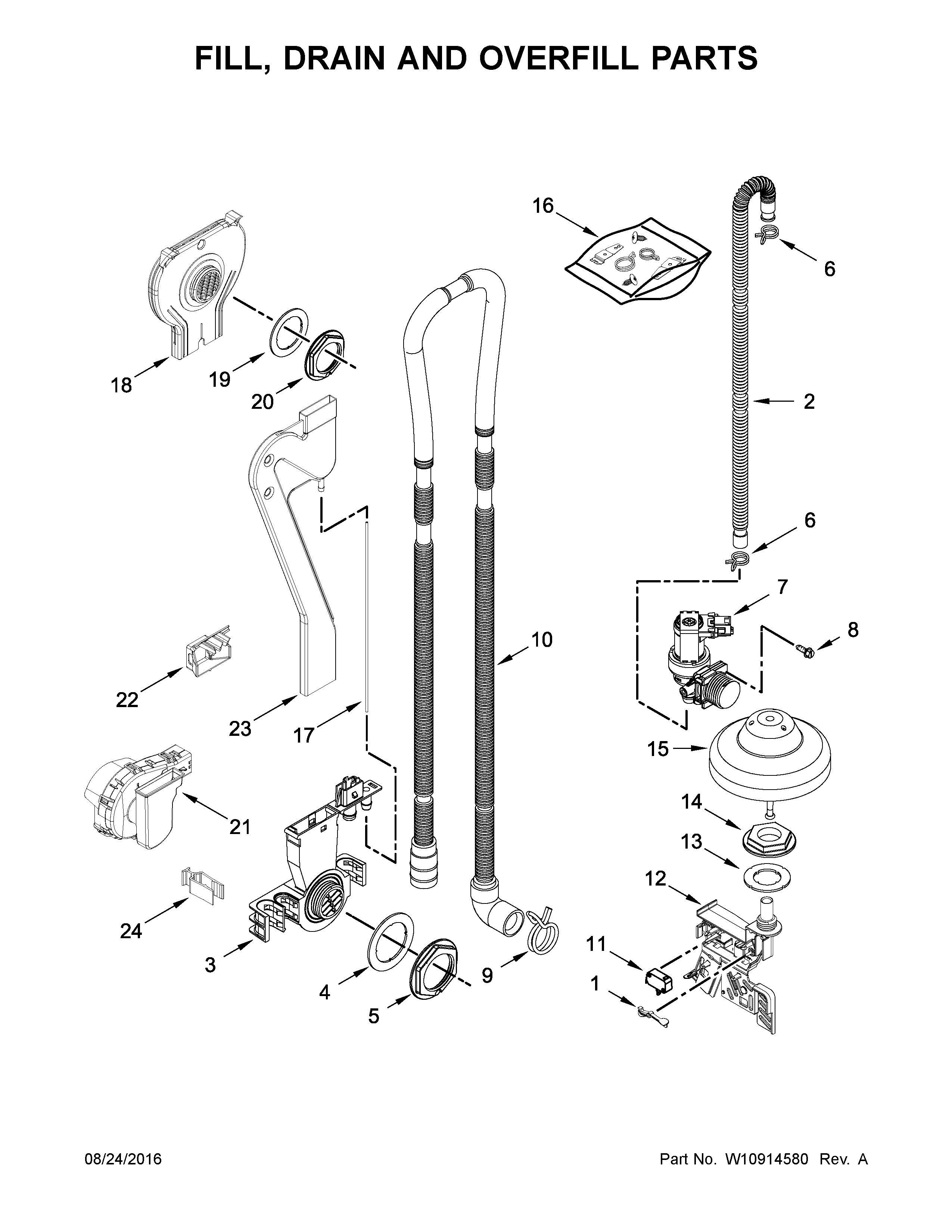

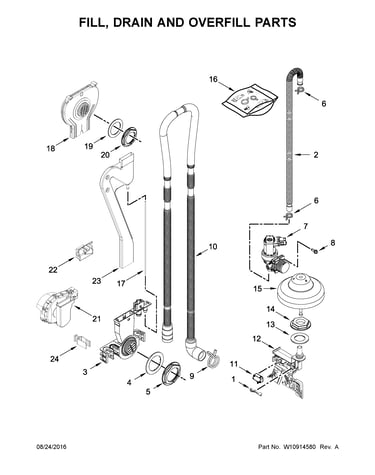

Dishwasher won’t fill or fills slowly	Water inlet valve	Dishwasher water inlet valve (model-matched)
Won’t drain	Drain pump or drain hose	Dishwasher drain pump or drain hose (model-matched)

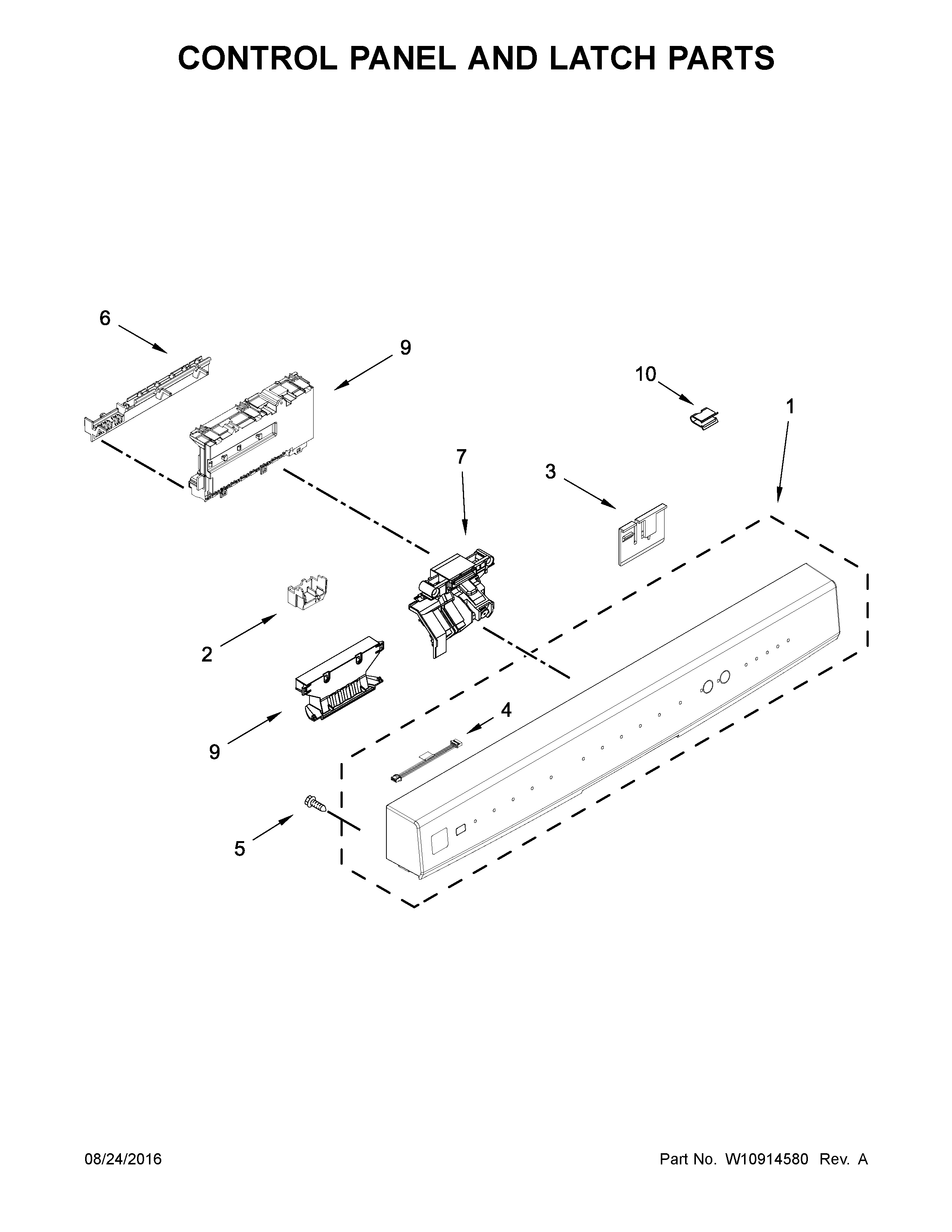

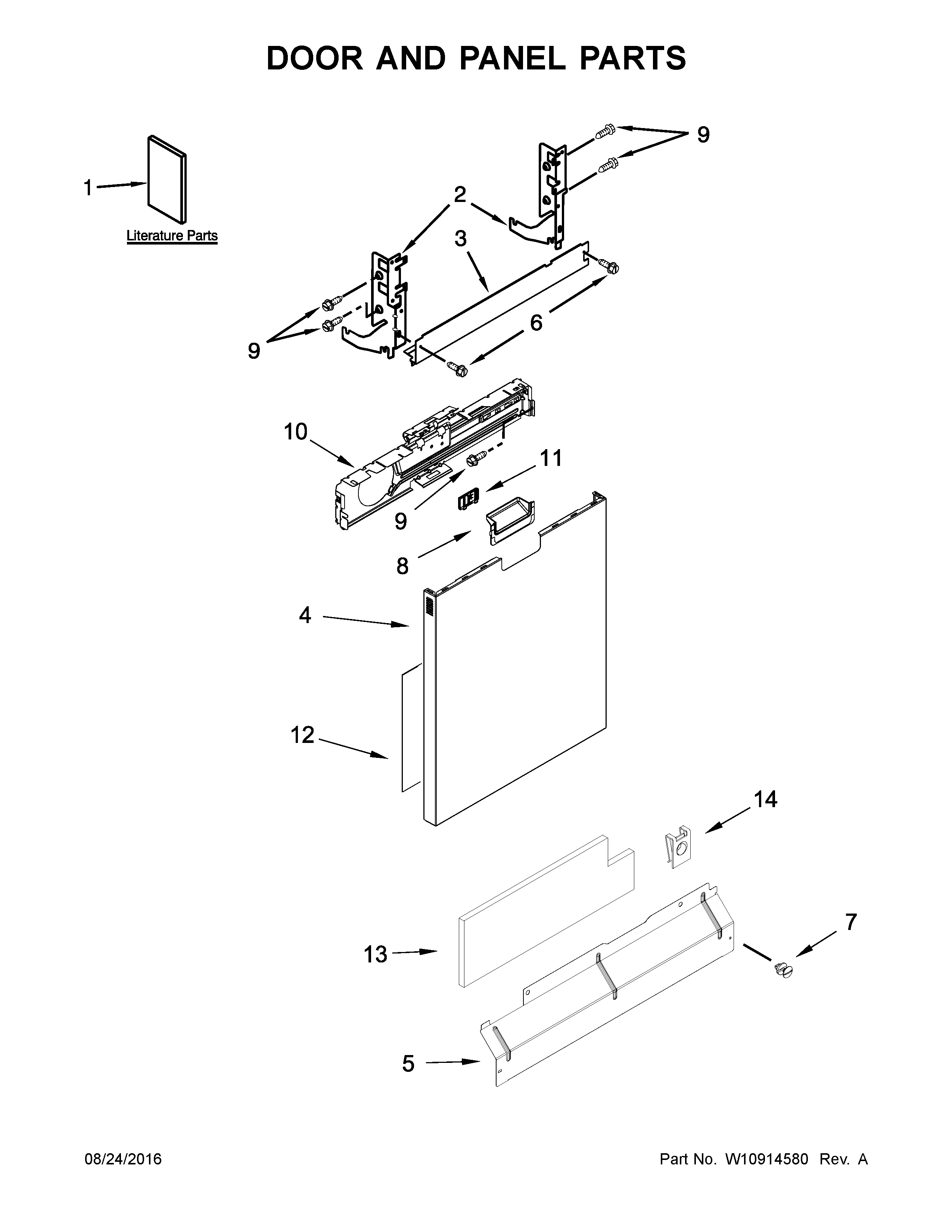

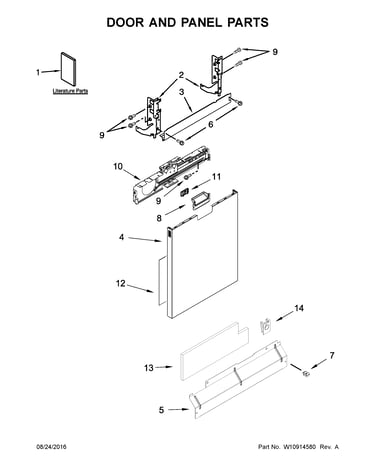

Door won’t latch or starts then stops	Door latch	Dishwasher door latch (model-matched)

Why it matters

Kenmore dishwashers are built with model-specific variations (rack hardware, spray system, electrical connections). Using the exact model number helps prevent ordering a look-alike part that does not mount correctly or connect to your harness.

Helpful references

• Use the parts diagrams and feature callouts in the 66514529N610 owner's manual to identify items like the heating element, spray arms, detergent dispenser, and rack height adjusters.
• For installation-related items and accessory parts, the 66514529N610 installation guide lists common install requirements and optional accessories.

Last updated: February 2026

Your Kenmore dishwasher’s model number is printed on the model and serial number label inside the door area. On Kenmore model 66514529N610, that label is typically on the inner door frame or along the tub opening; match the full number exactly to get the right parts and instructions in the 66514529N610 owner's manual.

Where to look first (fastest checks)

• Open the door and look along the left or right inner door frame
• Check the top edge of the tub opening (around the door seal area)
• Look on the tub wall just inside the door
• Wipe the label with a damp cloth; soap film can hide digits
• Write down both the model and serial numbers for ordering parts

If the label is missing or unreadable

• Check for a second label on the side of the door or near the hinge area
• If the dishwasher is pulled out, look on the side panel of the unit
• Use the model family clue: many Kenmore dishwashers start with 665 (as shown in the manual’s model format)

Why the exact model number matters

Kenmore dishwashers can look identical but use different racks, controls, and wash components. The exact model number ensures you get compatible items like a rack adjuster, door latch, or heating element.

What you’re doing	Why the model number is required	Example part for this model
Ordering rack parts	Rack designs vary by series and revision	Dishwasher rack adjuster W10712395
Troubleshooting a no-start	Control and latch circuits differ	Dishwasher door latch WPW10653840
Checking installation requirements	Cabinet opening and routing rules vary	66514529N610 installation guide

Helpful tip for Kenmore 665-series owners

If you’re working on rack issues after you confirm the model, our DIY video guide on replacing upper dishrack metal height adjuster rollers on Kenmore 665 series and whirlpool dishwashers video is a good next step.

Last updated: February 2026

Yes, repairing a Kenmore dishwasher like model 66514529N610 is usually worth it when the problem is a wear item (rack parts, latch, hoses) or a single failed component; it is less cost-effective when multiple major parts (pump/motor, control) are failing at the same time.

Quick way to decide (cost vs. age)

Use this simple rule of thumb for dishwashers:

• Under 7 years old: repairs are usually a good value.
• 7 to 10 years old: repair is worth it if the fix is straightforward and parts cost is moderate.
• Over 10 years old: repair is worth it mainly for small fixes; major repairs often point toward replacement.

For model-specific operating and care guidance that can prevent repeat problems, use the 66514529N610 owner's manual.

Repairs that are commonly “worth it”

These are typical fixes that restore normal operation without replacing the whole dishwasher:

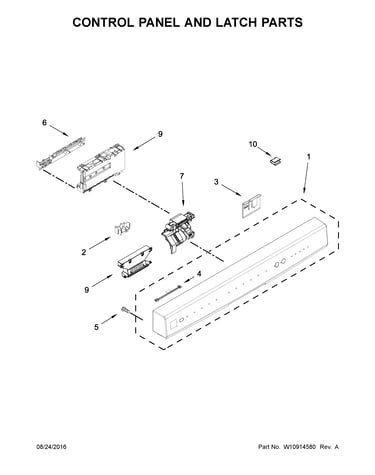

• Door won’t latch or starts then stops: check/replace the dishwasher door latch WPW10653840
• Door drops open or won’t stay up: inspect door balance and hinge hardware
• Upper rack won’t adjust or is falling: replace the dishwasher rack adjuster W10712395
• Not draining due to a weak pump: consider a drain pump replacement
• Leaks from a cracked or loose drain line: replace the drain hose

When replacement makes more sense

Replacement is usually the better value when you see any of these patterns:

• Multiple symptoms at once (poor wash, not draining, and intermittent power)
• Repeated leaks from the tub area or sump seals
• A major repair plus additional worn rack components needed
• Heavy corrosion, persistent odor, or chronic performance issues despite cleaning

Typical repair cost impact (parts-only comparison)

Repair type	Example part	Typical value outcome
Rack/door hardware	Rack adjuster, latch	High value repair
Water handling	Inlet valve, drain hose	Often worth it
Major drive system	Sump and motor assembly	Depends on age and total cost
Electronics	Control board/console	Often not worth it on older units

Why it matters

A targeted repair can extend the life of your 66514529N610 and restore cleaning and drying performance (heating element, spray system, filtration) without the cost and hassle of replacing the dishwasher.

Last updated: February 2026

A small amount of water in the bottom of your Kenmore dishwasher model 66514529N610 is normal because the unit can hold water in the sump area between cycles. Standing water that does not drain after the cycle completes usually points to a drain restriction, a kinked hose, or a drain pump problem; use the steps in the 66514529N610 user manual to confirm proper draining.

What “normal” vs. “not normal” looks like

• Normal: a shallow puddle in the sump area after a wash (helps keep seals from drying out).
• Not normal: water covering the tub bottom, dirty water, bad odor, or water still present long after the cycle ends.
• Not normal: the dishwasher hums but does not drain.

Quick checks we recommend (in order)

1. Confirm the cycle actually finished
   • Look for the “Complete” indicator; if the cycle did not finish, close the door and press Start/Resume.
2. Run Cancel/Drain
   • Press and hold Start/Resume for about 3 seconds to cancel and drain; keep the door closed so draining can begin.
3. Check the drain path for a blockage
   • Clear food debris from the drain area and disposer connection.
   • If connected to a food disposer, make sure the disposer inlet knockout plug was removed.
4. Inspect the drain hose
   • Look for kinks, crushing, or a sag that traps water.
5. Clean the filters
   • Remove and clean the Ultra Wash HE filters and check for buildup underneath.

Parts that commonly fix “won’t drain” symptoms

Symptom	Most likely area	Example part for this model

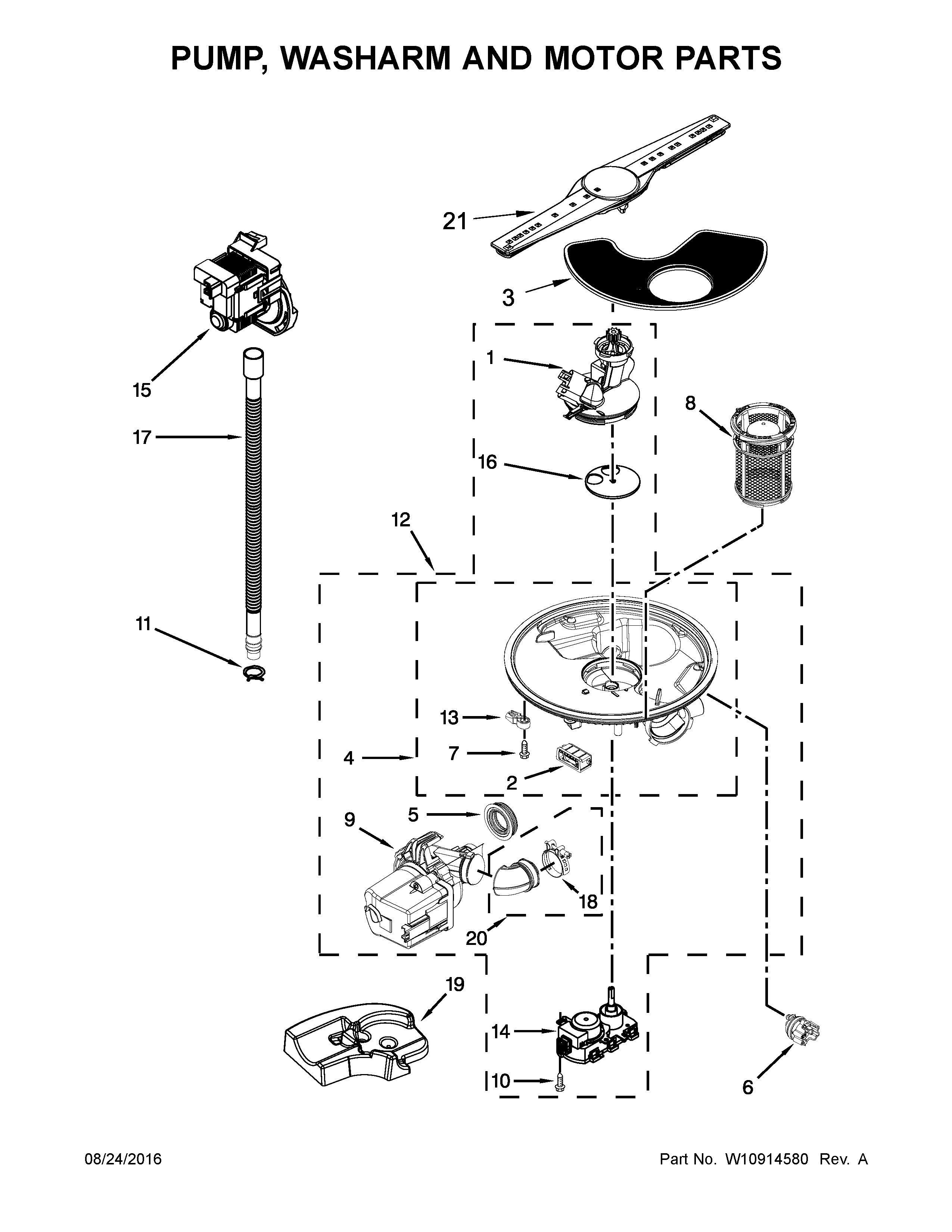

Hums but no drain	Drain pump jammed or failed	Dishwasher drain pump W10876537
Drains slowly, backs up	Drain hose kinked or restricted	Drain hose routing and air gap/high loop
Water left after install	Disposer plug still in place	Disposer inlet connection

Why it matters

Water that remains in the tub can lead to odors, poor cleaning, and repeat drain errors. Fixing the drain path early also helps protect the circulation system and keeps cycles running normally.

Last updated: February 2026
