Model # 1830 Official Skil router

Here are the diagrams and repair parts for Official Skil 1830 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Base Plate 1619X04278
#214

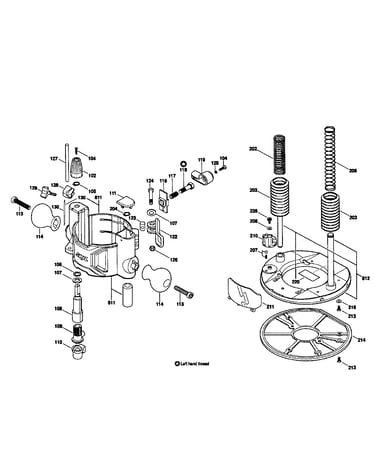

Plunge base diagram

Base plate

Part #1619X04278

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 1619X04661
#9

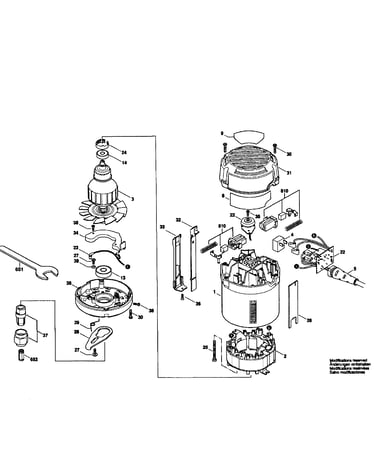

Motor assy diagram

Nameplate

Part #1619X04661

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 1619X01014
#106

Plunge base diagram

Spring washer

Part #1619X01014

The manufacturer no longer makes this part, and there's no substitute part

Clamping L 1619X04190
#323

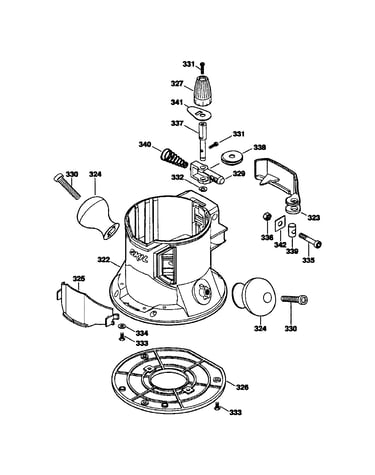

Fix base diagram

Clamping l

Part #1619X04190

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1619X04268
#124

Plunge base diagram

Bolt

Part #1619X04268

The manufacturer no longer makes this part, and there's no substitute part

Field 1619P01569
#2

Motor assy diagram

Field

Part #1619P01569

The manufacturer no longer makes this part, and there's no substitute part

Service Kit 1619X05564
#811

Plunge base diagram

Service kit

Part #1619X05564

The manufacturer no longer makes this part, and there's no substitute part

Indicator 1619X04263
#128

Plunge base diagram

Indicator

Part #1619X04263

The manufacturer no longer makes this part, and there's no substitute part

Straight Nylon Nut 1619X04266
Straight nylon nut

Part #1619X04266

The manufacturer no longer makes this part, and there's no substitute part

Base 1619X04191
#322

Fix base diagram

Base

Part #1619X04191

The manufacturer no longer makes this part, and there's no substitute part
