KitchenAid KTRD18KAWH20 refrigerator

KitchenAid KTRD18KAWH20 refrigerator Parts

Here are the diagrams and repair parts for KitchenAid KTRD18KAWH20 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

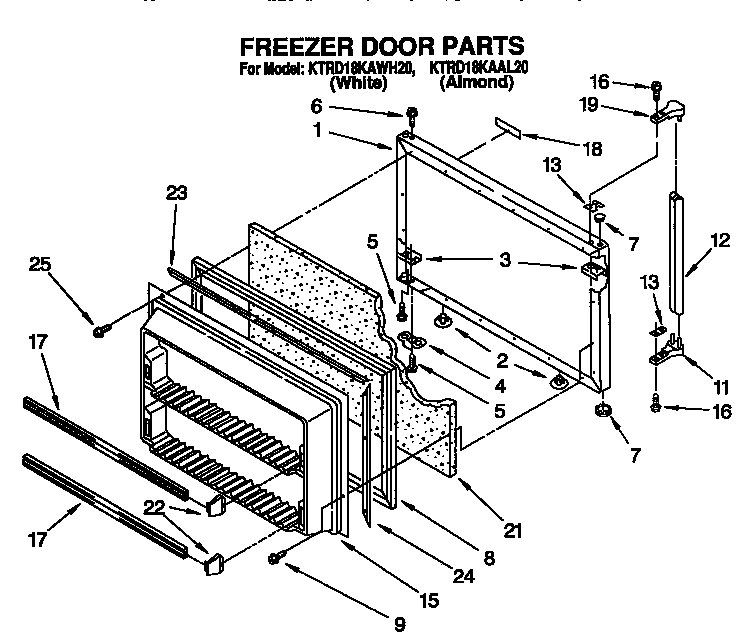

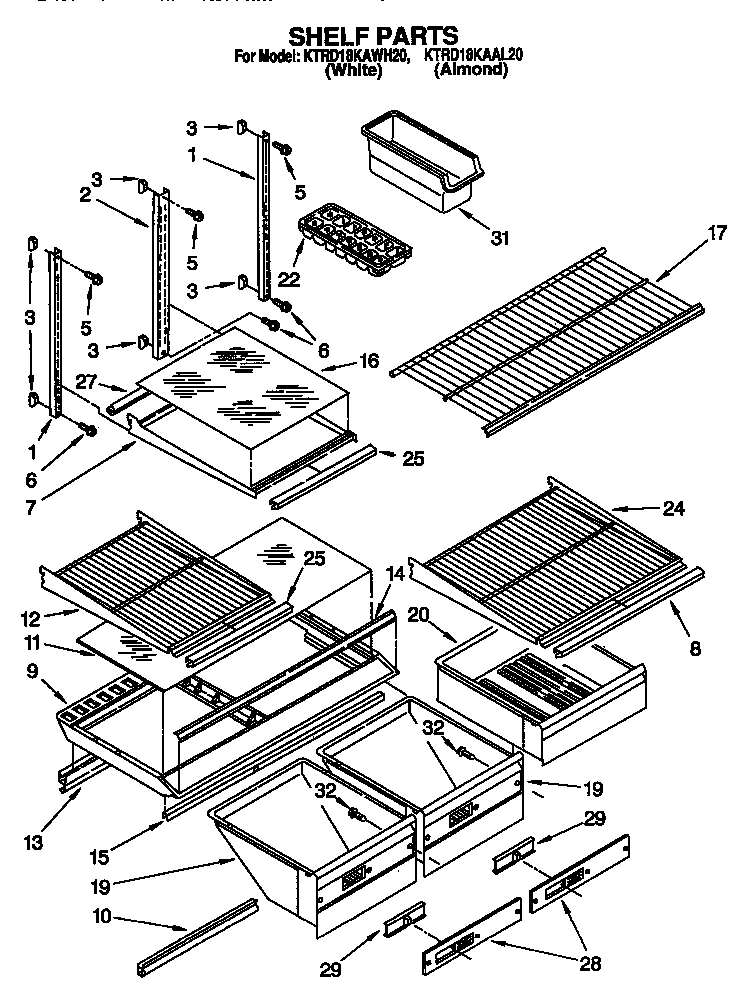

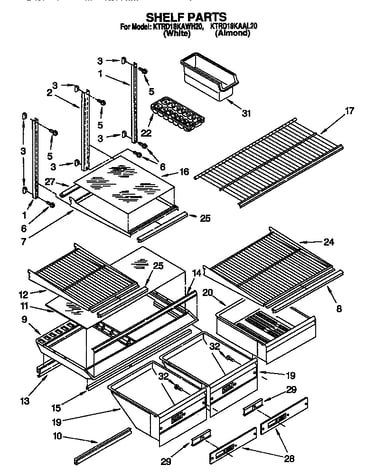

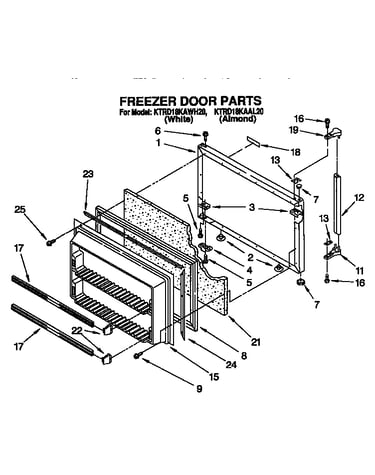

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KTRD18KAWH20 Refrigerator

  • Whirlpool Refrigerator Run Capacitor for KitchenAid KTRD18KAWH20 - Part WPW10662129

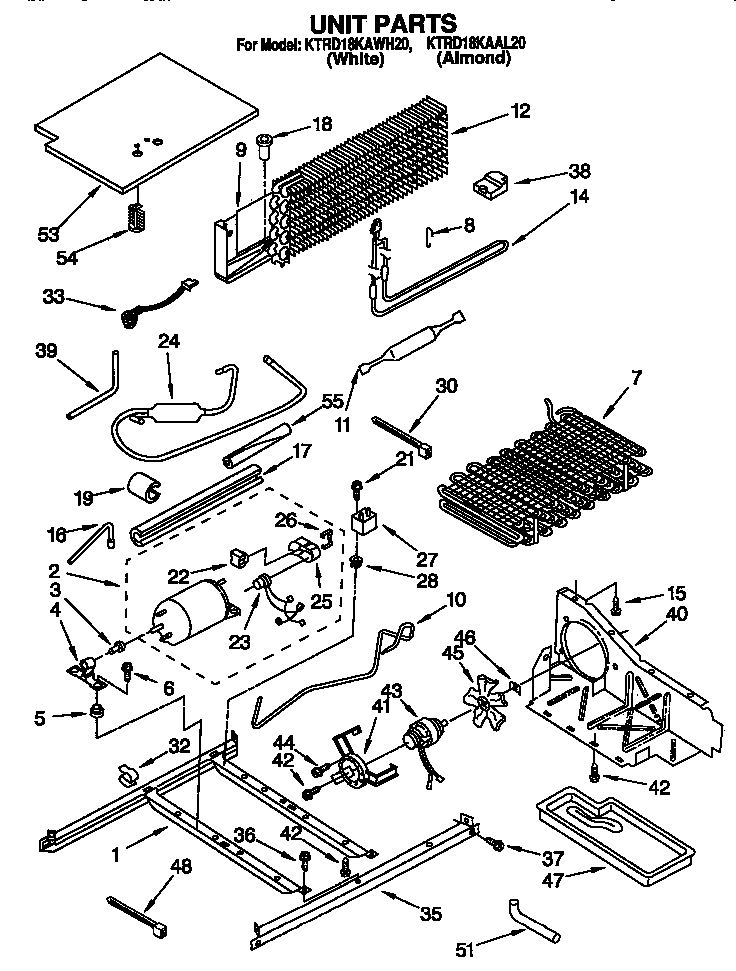

    Unit diagram

    Run Capacitor

    Part #1118576

    Replaced by #WPW10662129

    Info Icon
    Manufacturer substitution
    This part replaces 1118576. Substitute parts can look different from the original.
    In Stock
    $45.09
    12% OFF Phone Price : $51.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Bi-metal Thermostat for KitchenAid KTRD18KAWH20 - Part WP4387503

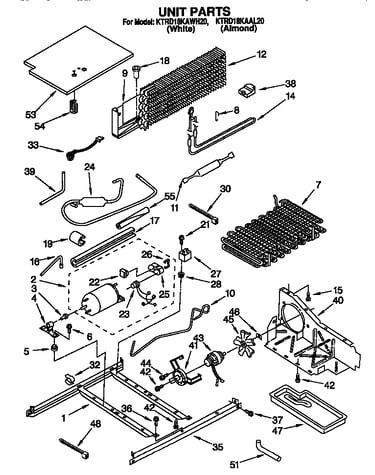

    Unit diagram

    Refrigerator Defrost Bi-metal

    Part #2149643

    Replaced by #WP4387503

    Info Icon
    Manufacturer substitution
    This part replaces 2149643. Substitute parts can look different from the original.
    In Stock
    $42.31
    12% OFF Phone Price : $48.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Condenser Fan Motor for KitchenAid KTRD18KAWH20 - Part 833697

    Unit diagram

    Condenser Motor

    Part #2162431

    Replaced by #833697

    Info Icon
    Manufacturer substitution
    This part replaces 2162431. Substitute parts can look different from the original.
    In Stock
    $64.83
    8% OFF Phone Price : $70.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Light Switch for KitchenAid KTRD18KAWH20 - Part WP2149705

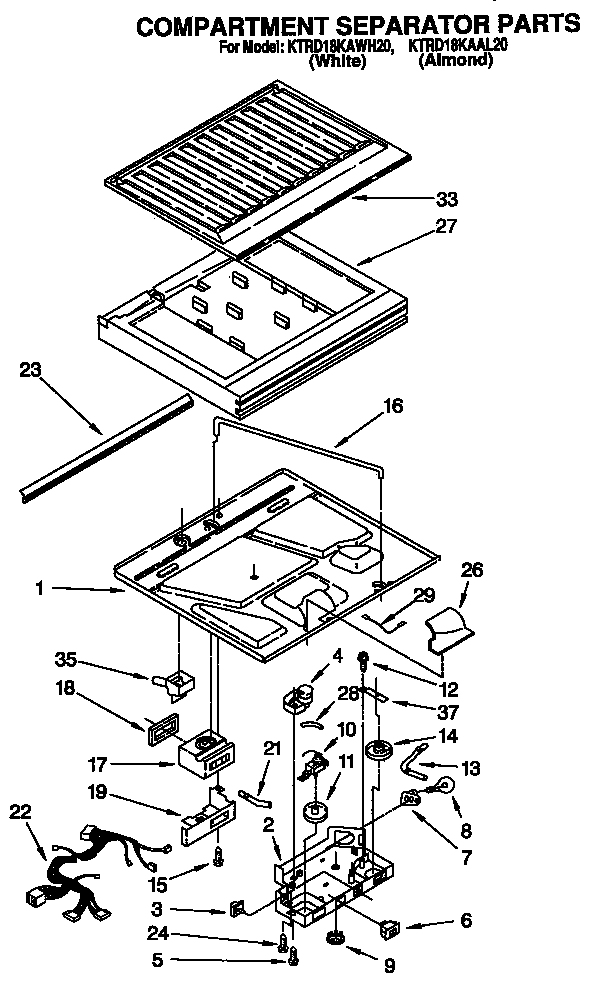

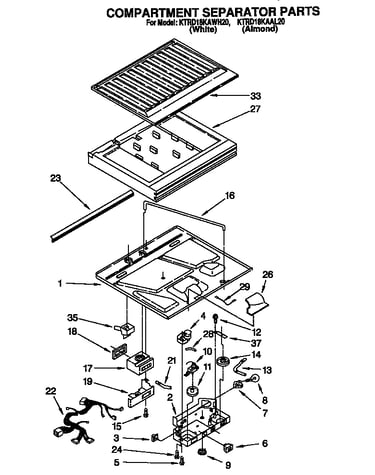

    Compartment separator diagram

    Refrigerator Door Switch

    Part #2149705

    Replaced by #WP2149705

    Info Icon
    Manufacturer substitution
    This part replaces 2149705. Substitute parts can look different from the original.
    In Stock
    $37.38
    14% OFF Phone Price : $43.38Info Icon
    Minus Item
    Qty
    Plus Item
  • 40 Watt Refrigerator Bulb for KitchenAid KTRD18KAWH20 - Part W11679940

    Compartment separator diagram

    Light Bulb

    Part #946059

    Replaced by #W11679940

    Info Icon
    Manufacturer substitution
    This part replaces 946059. Substitute parts can look different from the original.
    In Stock
    $38.28
    14% OFF Phone Price : $44.28Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Fill Tube for KitchenAid KTRD18KAWH20 - Part WP2196157

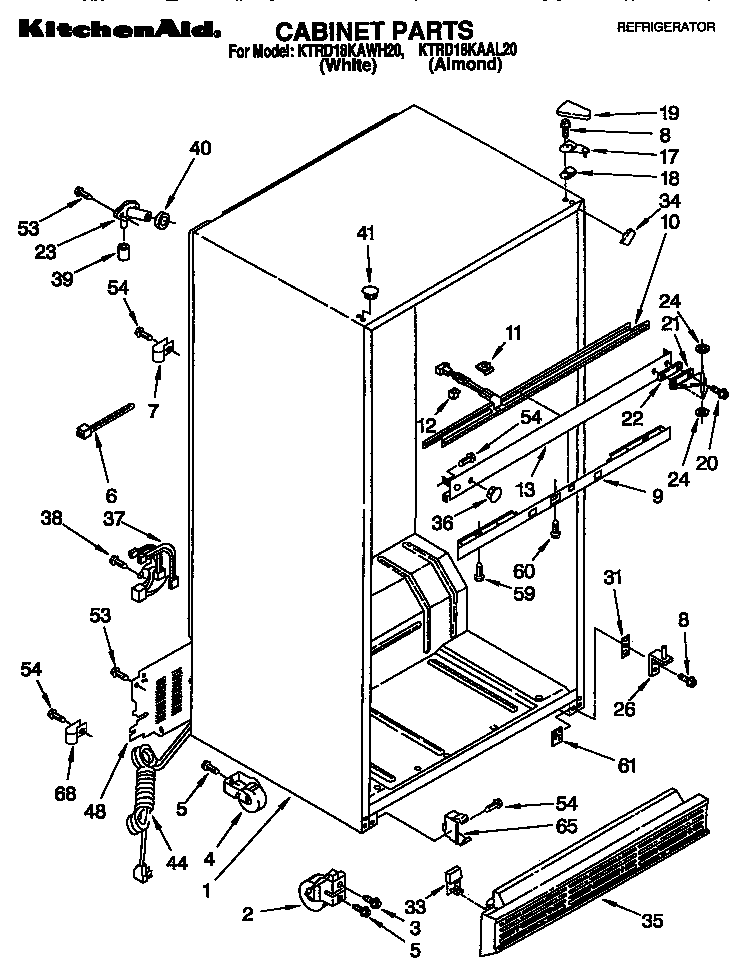

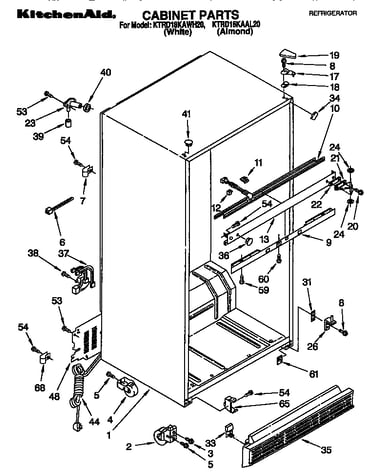

    Cabinet diagram

    Refrigerator Fitting

    Part #2154080

    Replaced by #WP2196157

    Info Icon
    Manufacturer substitution
    This part replaces 2154080. Substitute parts can look different from the original.
    In Stock
    $8.43
    11% OFF Phone Price : $9.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Appliance Screw for KitchenAid KTRD18KAWH20 - Part WP488729

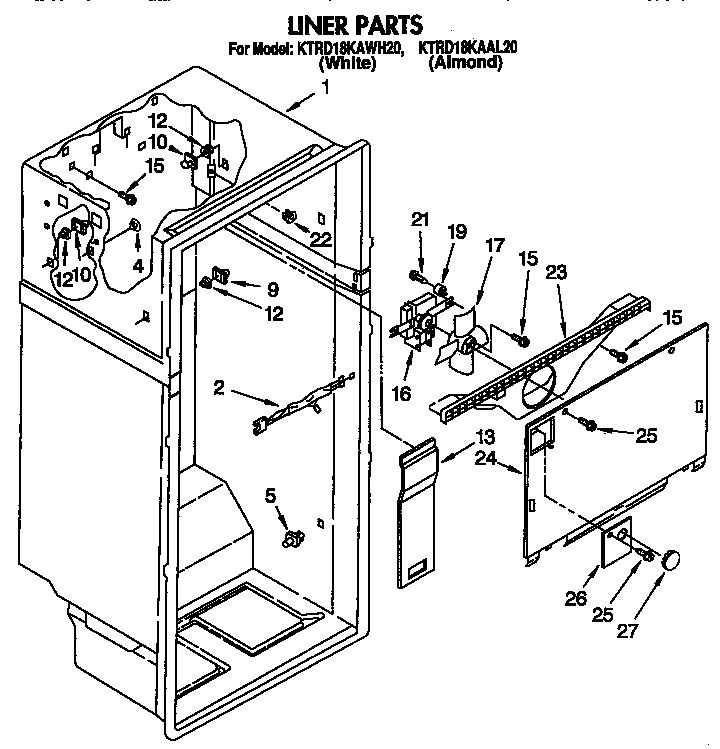

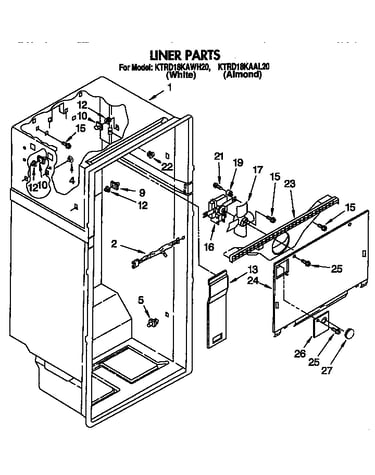

    Liner diagram

    Screw

    Part #489196

    Replaced by #WP488729

    Info Icon
    Manufacturer substitution
    This part replaces 489196. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.93
    17% OFF Phone Price : $5.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Appliance Screw for KitchenAid KTRD18KAWH20 - Part WP488729

    Refrigerator Screw

    Part #489287

    Replaced by #WP488729

    Info Icon
    Manufacturer substitution
    This part replaces 489287. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.93
    17% OFF Phone Price : $5.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Appliance Screw for KitchenAid KTRD18KAWH20 - Part WP488729

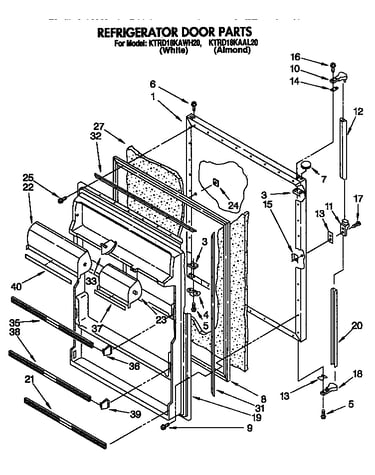

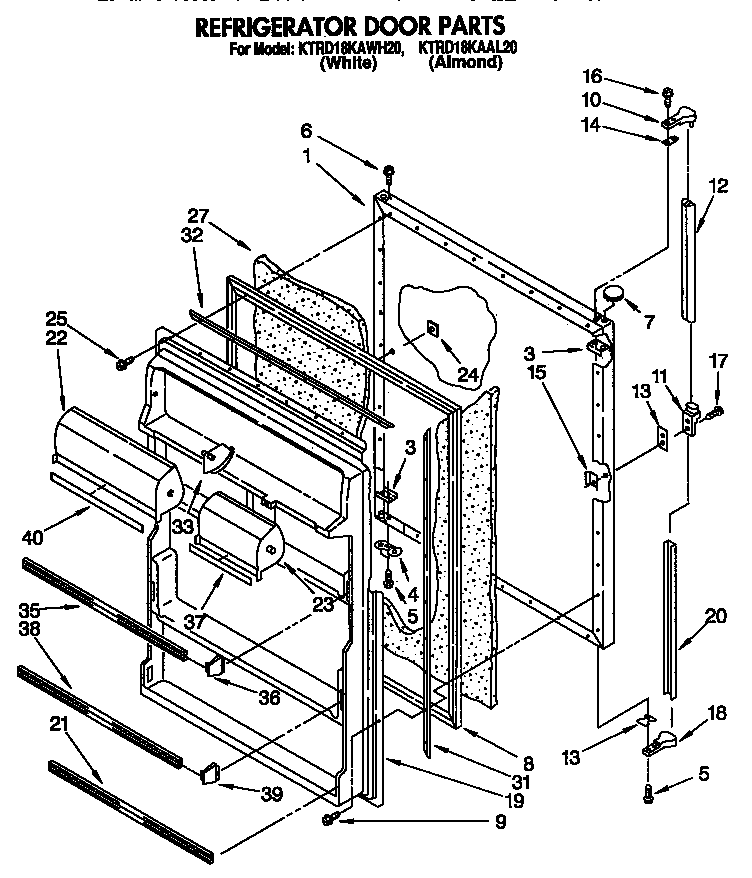

    Refrigerator door diagram

    Screw

    Part #487909

    Replaced by #WP488729

    Info Icon
    Manufacturer substitution
    This part replaces 487909. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.93
    17% OFF Phone Price : $5.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor Kit for KitchenAid KTRD18KAWH20 - Part 482731

    Liner diagram

    Evaporator Motor

    Part #2169116

    Replaced by #482731

    Info Icon
    Manufacturer substitution
    This part replaces 2169116. Substitute parts can look different from the original.
    In Stock
    $64.65
    8% OFF Phone Price : $70.65Info Icon
    Minus Item
    Qty
    Plus Item
