Model # GFW400SCM0WW Official GE washer

Here are the diagrams and repair parts for Official GE GFW400SCM0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |

Washer Drain Pump (replaces Wh23x25461) WH23X25518
#249

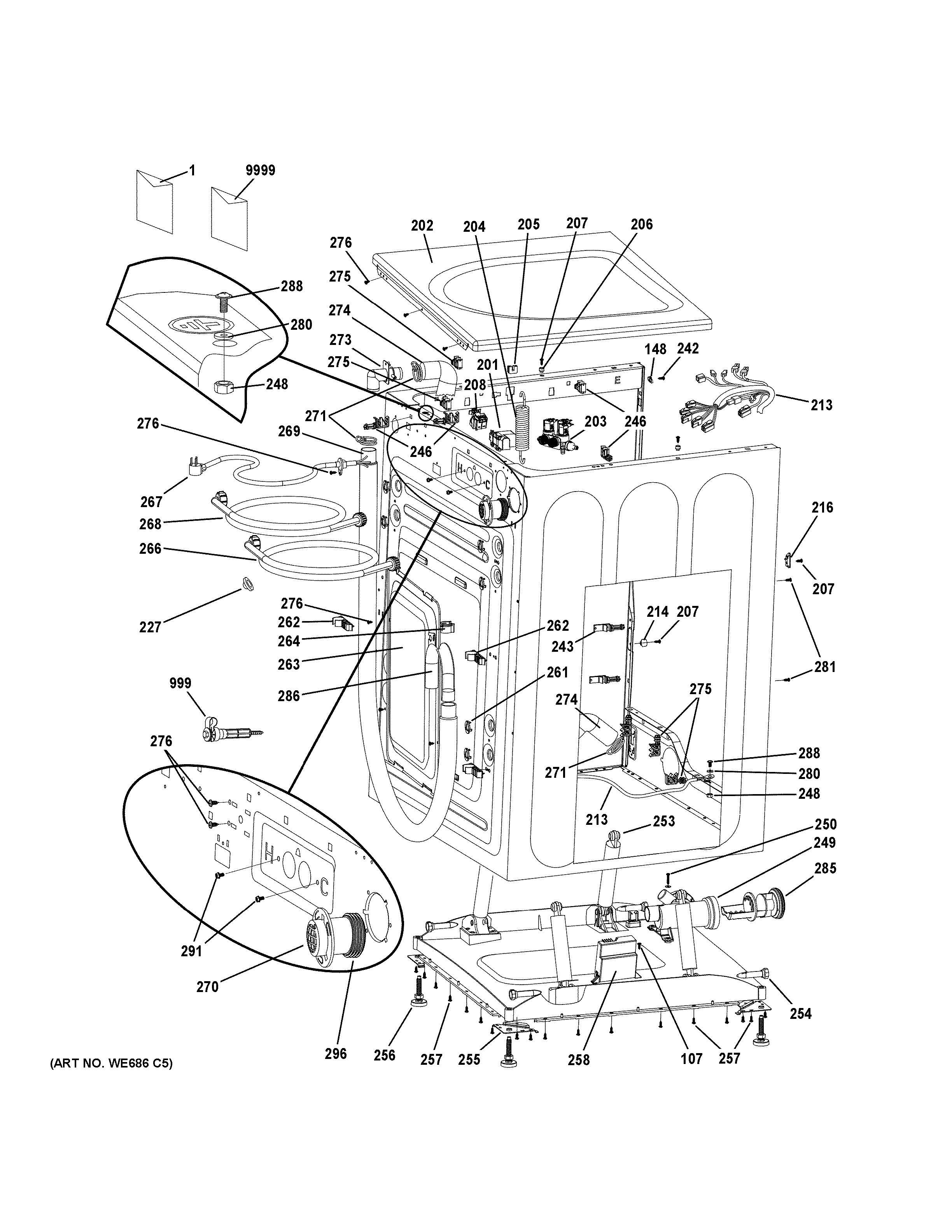

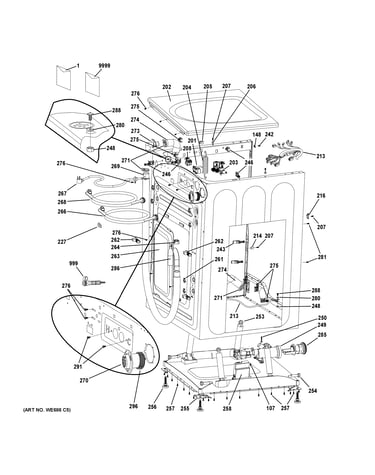

Cabinet & top panel diagram

Washer drain pump (replaces wh23x25461)

Part #WH23X25518

Replaced by #WH11X34740

?
Manufacturer substitution
This part replaces WH23X25518. Substitute parts can look different from the original.
BEST SELLER
In Stock
Washer Water Inlet Valve WH13X10029
#203

Cabinet & top panel diagram

Washer water inlet valve

Part #WH13X10029

$109.33
8% OFF Phone Price : $119.33
In Stock
Washer Suspension Spring WH05X10012
#204

Cabinet & top panel diagram

Washer suspension spring

Part #WH05X10012

$38.64
11% OFF Phone Price : $43.64
In Stock
Washer Drive Belt WH08X10050
#326

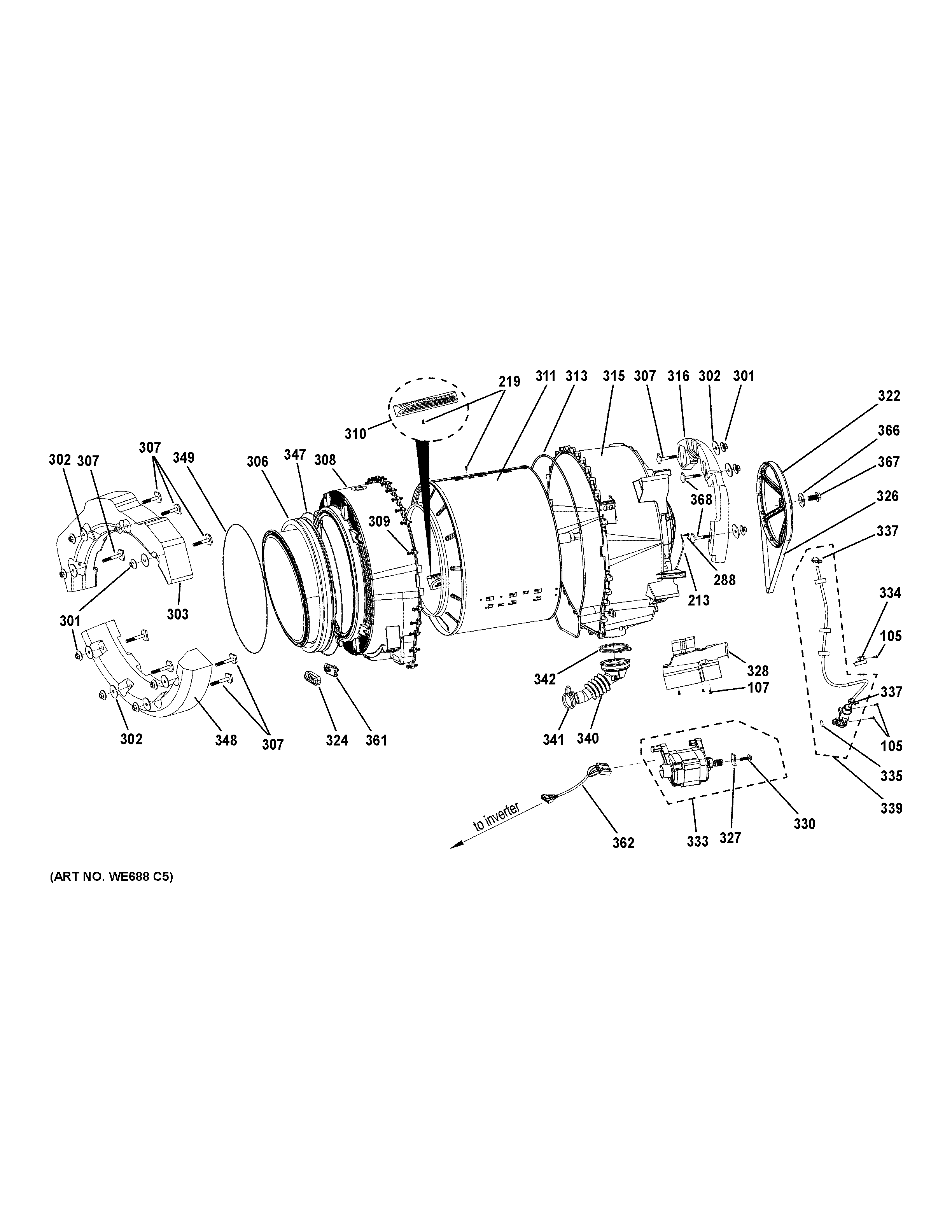

Tub & motor diagram

Washer drive belt

Part #WH08X10050

$112.74
8% OFF Phone Price : $122.74
In Stock
Washer Door Lock Strike WH01X20823
#223

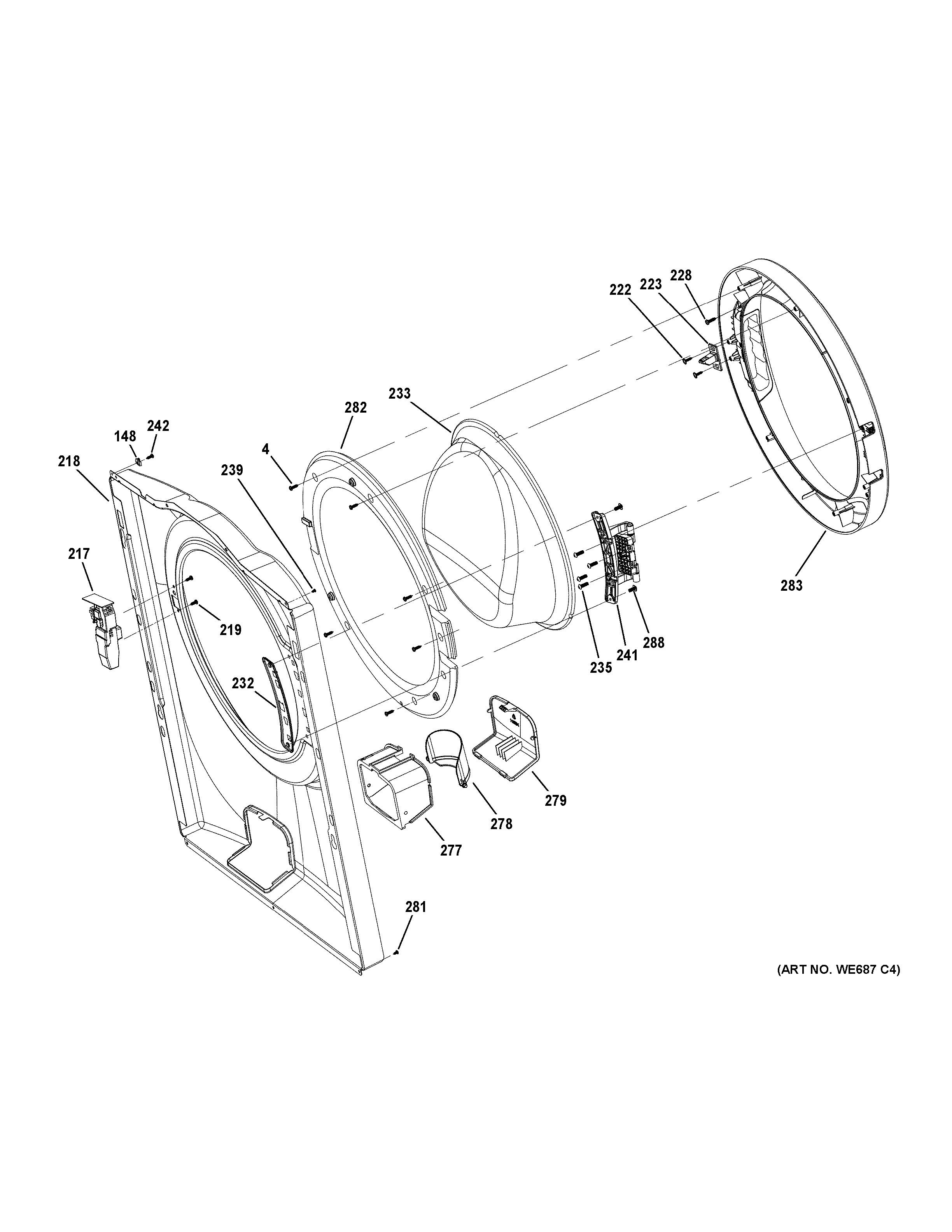

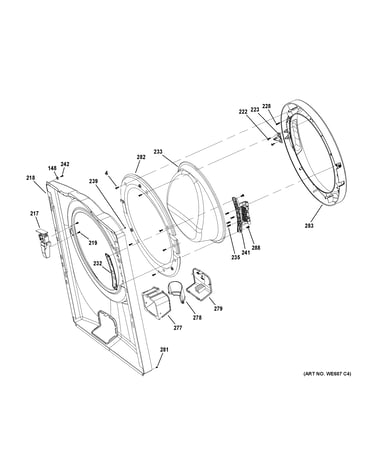

Front panel & door diagram

Washer door lock strike

Part #WH01X20823

This item is not returnable
$16.04
11% OFF Phone Price : $18.04
In Stock
Washer Shock Absorber Mounting Pin WH01X10261
#254

Cabinet & top panel diagram

Washer shock absorber mounting pin

Part #WH01X10261

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Washer Door Boot Spring Clamp, Outer WH01X10279
#349

Tub & motor diagram

Washer door boot spring clamp, outer

Part #WH01X10279

This item is not returnable
$21.30
19% OFF Phone Price : $26.30
In Stock
Washer Door Boot WH08X10064
#306

Tub & motor diagram

Washer door boot

Part #WH08X10064

$252.69
$10.00 OFF Phone Price : $262.69
In Stock
Washer Drain Hose WH41X10127
#274

Cabinet & top panel diagram

Washer drain hose

Part #WH41X10127

$46.93
10% OFF Phone Price : $51.93
In Stock
Washer Cycle Selector Knob WH11X10061
#113

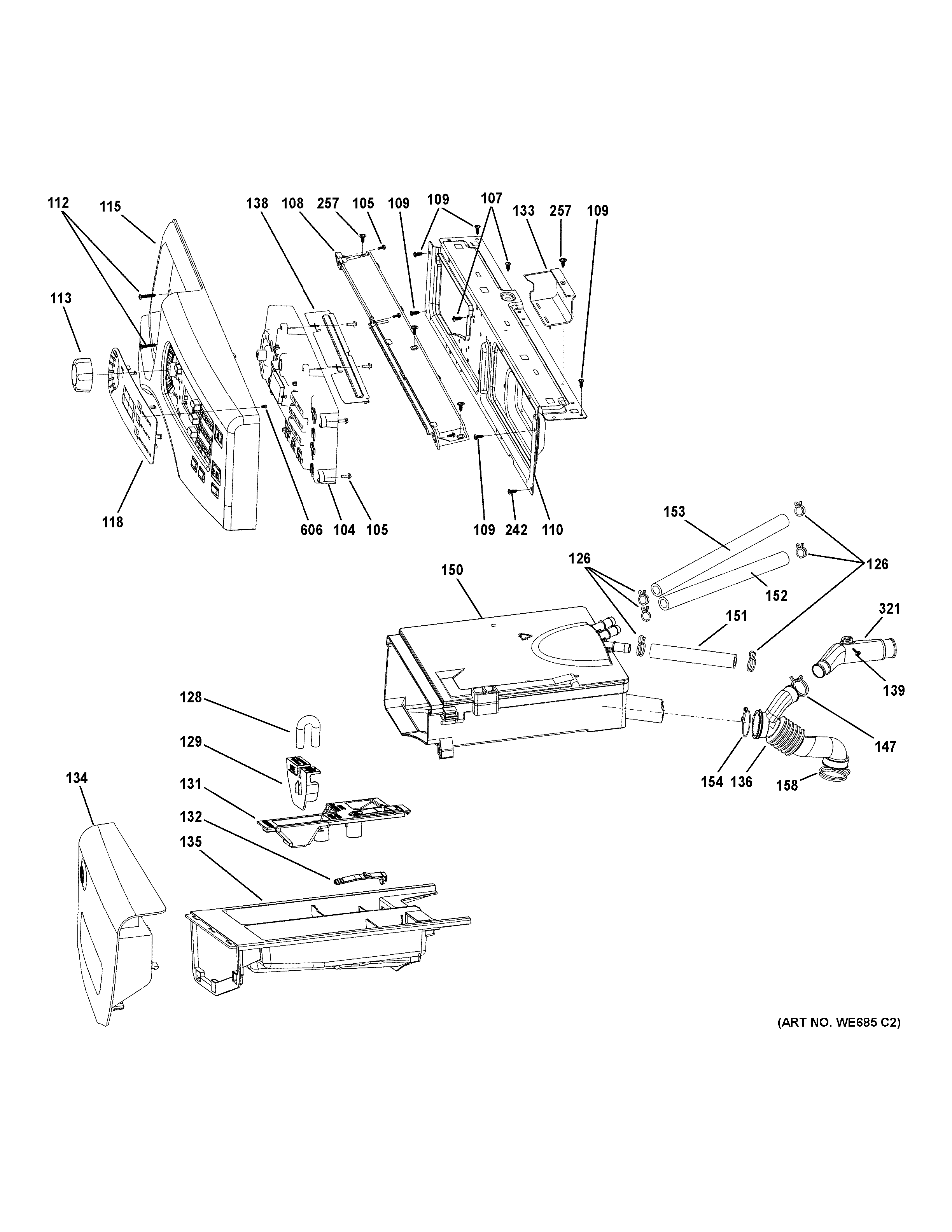

Controls & dispenser diagram

Washer cycle selector knob

Part #WH11X10061

Replaced by #WE04X21014

?
Manufacturer substitution
This part replaces WH11X10061. Substitute parts can look different from the original.
$22.80
17% OFF Phone Price : $27.49
In Stock
