Minn Kota 765MX electric fishing motor

Minn Kota 765MX electric fishing motor Parts

Here are the diagrams and repair parts for Minn Kota 765MX electric fishing motor, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 765MX Electric Fishing Motor

  • Con/mom Lvr for Minn Kota 765MX - Part 230-7200

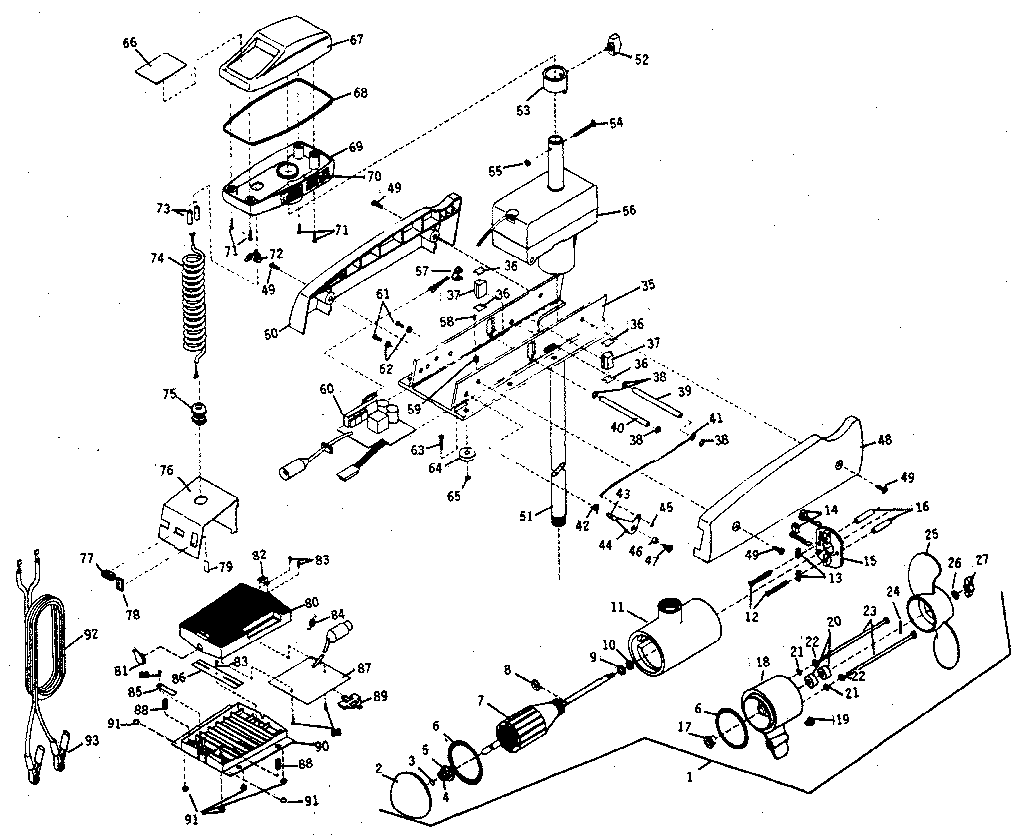

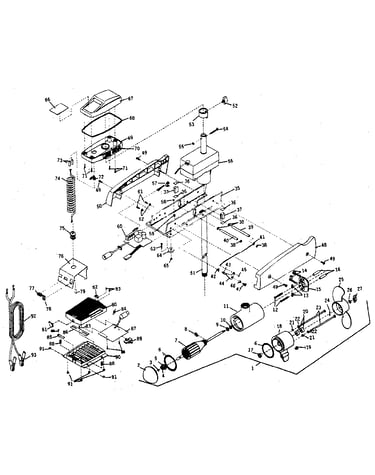

    Unit parts diagram

    Con/mom Lvr

    Part #230-7200

    The manufacturer no longer makes this part, and there's no substitute part

  • Speed Nut for Minn Kota 765MX - Part 201-3100

    Unit parts diagram

    Speed Nut

    Part #201-3100

    The manufacturer no longer makes this part, and there's no substitute part

  • Battery Clip for Minn Kota 765MX - Part 201-0700

    Unit parts diagram

    Battery Clip

    Part #201-0700

    The manufacturer no longer makes this part, and there's no substitute part

  • Cord Clamp for Minn Kota 765MX - Part 230-2950

    Unit parts diagram

    Cord Clamp

    Part #230-2950

    The manufacturer no longer makes this part, and there's no substitute part

  • Push Nut for Minn Kota 765MX - Part 230-3110

    Unit parts diagram

    Push Nut

    Part #230-3110

    The manufacturer no longer makes this part, and there's no substitute part

  • Thrust Disc for Minn Kota 765MX - Part 401-050

    Unit parts diagram

    Thrust Disc

    Part #401-050

    The manufacturer no longer makes this part, and there's no substitute part

  • Leas Wire As for Minn Kota 765MX - Part 205-0600

    Unit parts diagram

    Leas Wire As

    Part #205-0600

    The manufacturer no longer makes this part, and there's no substitute part

  • Actuator for Minn Kota 765MX - Part 230-2800

    Unit parts diagram

    Actuator

    Part #230-2800

    The manufacturer no longer makes this part, and there's no substitute part

  • Collar Nut for Minn Kota 765MX - Part 201-3110

    Unit parts diagram

    Collar Nut

    Part #201-3110

    The manufacturer no longer makes this part, and there's no substitute part

  • Drive Collar for Minn Kota 765MX - Part 230-1501

    Unit parts diagram

    Drive Collar

    Part #230-1501

    The manufacturer no longer makes this part, and there's no substitute part

Minn Kota Electric Fishing Motor 765MX FAQs

A 55 lb thrust trolling motor typically pushes a small, light boat effectively; in real-world use that is usually about a 12 to 17 ft boat when the total loaded weight (boat, people, fuel, gear, batteries) is roughly 1,500 to 2,000 lb. Wind, current, and hull type can reduce performance quickly.

Quick sizing rule we use

A practical starting point is about 2 lb of thrust per 100 lb of fully loaded boat weight.

  • 1,000 lb loaded weight: ~20 lb thrust minimum
  • 1,500 lb loaded weight: ~30 lb thrust minimum
  • 2,000 lb loaded weight: ~40 lb thrust minimum
  • 2,500 lb loaded weight: ~50 lb thrust minimum

What changes the answer most

These factors often matter more than boat length:

  • Total loaded weight (people and gear add up fast)
  • Wind and current (you need extra thrust to hold position)
  • Hull shape (deep-V and heavier fiberglass need more than flat-bottom jon boats)
  • Battery voltage and condition (weak batteries reduce thrust and runtime)
  • Prop condition (nicks, weeds, or fishing line on the shaft reduce efficiency)

Practical expectations for a 55 lb motor

Boat type (typical) Common length range How a 55 lb motor feels
Aluminum jon boat 12 to 16 ft Strong control, good positioning
Small utility / skiff 14 to 17 ft Good in calm water, works harder in wind
Heavier fiberglass fishing boat 16 to 18 ft Often underpowered in wind/current

Why it matters

Choosing enough thrust helps your Minn Kota electric fishing motor maintain steering control, hold on structure, and avoid overheating or excessive battery drain when conditions get rough.

Helpful DIY check before you upgrade

If performance suddenly dropped, confirm the basics first:

  • Fully charge and load-test the battery
  • Inspect wiring and connections for corrosion or loose terminals
  • Check the prop for damage and remove weeds or line
  • Verify the correct fuse/breaker size and that it is not weak

For step-by-step electrical testing, use how to use a multimeter to test electrical parts video.

Last updated: February 2026

You typically do not have to grease a Minn Kota 765MX trolling motor as routine maintenance; most units are designed to run without regular re-greasing. We only recommend lubrication when you have the lower unit apart for service or you’re addressing a specific noise, drag, or water-intrusion issue.

When lubrication makes sense

Use grease only in targeted spots and only after you’ve confirmed the area is clean and dry.

  • After replacing seals, bearings, or a prop shaft component
  • If you hear grinding or squealing from the lower unit (after checking for fishing line on the shaft)
  • If the prop shaft feels rough when turned by hand (power disconnected)
  • After a water intrusion repair and full dry-out
  • When reassembling the lower unit after a teardown

What to use (and what to avoid)

In most trolling motor lower units, a marine-grade lithium grease is the right choice for light coating on moving metal-to-metal contact points.

  • Use: marine-grade lithium grease (light film)
  • Avoid: heavy packing of grease into cavities (can trap debris and heat)
  • Avoid: petroleum products on rubber seals unless the product label states seal-safe
  • Avoid: spraying lubricants into the motor housing (can contaminate brushes/commutator)

Quick check: grease vs. other common fixes

Symptom Most common cause Grease helps?
Prop won’t spin freely Fishing line, bent prop, damaged shaft Sometimes
Clicking or vibration Damaged prop, loose hardware No
Grinding noise Bearing wear, water intrusion Sometimes
Power cuts out Wiring, battery, switch, fuse No

Why it matters

Over-greasing can attract sand and silt, which accelerates wear on the prop shaft and bearings. Using a small amount only during service keeps the lower unit cleaner and helps seals and rotating parts last longer.

Helpful DIY guidance

If you’re troubleshooting power loss or electrical issues before opening the lower unit, use our guides: how to tell if a fuse is blown and how to use a multimeter to test electrical parts video.

Last updated: February 2026

Minn Kota Ulterra issues most often trace to power delivery (battery voltage drop, weak connections) and the stow/deploy system (binding lift parts, sensor or trim/park calibration problems). If you are using model 765MX, note that it is not an Ulterra; it will not have Ulterra auto stow/deploy symptoms.

Common Ulterra problems (Ulterra models)

  • Auto stow/deploy stops mid-cycle or will not complete
  • Repeated beeps or fault behavior during deploy/stow
  • Intermittent power from low voltage under load
  • Steering or i-Pilot response issues caused by unstable power or connection problems
  • Wiring damage where the harness flexes during stow/deploy

Quick checks that solve many Ulterra complaints

  • Charge the battery bank fully; verify the correct 12V/24V/36V setup for your motor
  • Clean and tighten battery terminals, breaker studs, and plug connections
  • Inspect the mount area for debris; confirm the lift mechanism moves freely
  • Check the harness for pinching or chafing during deploy/stow
  • Power-cycle the system; then re-run any available trim/park or heading calibration steps

Ulterra vs. 765MX: what symptoms apply

Symptom Ulterra (auto stow/deploy) 765MX (non-Ulterra)
Stow/deploy faults, trim/park errors Yes No
Voltage drop causing resets or beeps Yes Yes
Plug, breaker, or wiring connection issues Yes Yes
GPS/Spot-Lock inconsistency (i-Pilot) Often Only if equipped

Why it matters

Ulterra’s lift system depends on steady voltage and accurate sensor feedback; small voltage drops or mechanical binding can trigger faults and can damage wiring if the unit keeps cycling.

Getting the right parts for your exact motor

Use the model tag on the motor mount to confirm the exact model line (Ulterra vs. 765MX) before ordering. Our model-number tips in how to find your appliance model number (and what it means for parts) help you match the correct diagrams.

Last updated: February 2026
