Yes. Kenmore washers (including many Kenmore Elite models) use filtering in the drain system to catch lint and small debris; on model 11026632503, the most common “filter-related” issue is a drain restriction at the pump or hoses rather than a removable lint screen. Use the 11026632503 owner's manual for the exact cleaning and care steps.

Where the “filter” usually is on this style of Kenmore washer

On top-load Kenmore designs like 11026632503, filtering is typically handled in the drain path.

• The drain pump can trap coins, hair pins, and lint
• The tub-to-pump hose can collect socks or debris
• The standpipe or household drain can be the real blockage
• Some versions have a small internal screen at the pump inlet (not a user-access door)

If the washer is not draining well, the part most often involved is the washer drain pump WP3363394.

How we recommend checking and cleaning it (safe, practical steps)

1. Unplug the washer.
2. Turn off both water supply valves.
3. Bail out water if the tub is full (a shallow pan and towels help).
4. Inspect the drain hose for kinks or clogs.
5. If symptoms persist, access the pump area and check for debris in the pump inlet and hoses.

Symptoms that point to a clogged drain path

• Water left in the tub at the end of the cycle
• Slow drain, gurgling, or a burning rubber smell during drain/spin
• Washer stops before spin or leaves clothes very wet

Quick diagnosis guide

What you notice	Most likely cause	What to check first
Won’t drain at all	Pump jam or blockage	Pump inlet and hoses
Drains slowly	Partial clog or kinked hose	Drain hose routing
Drains but won’t spin	Lid switch or drain issue	Lid switch operation, then drain path

If the washer will not spin with the lid closed, also check the washer lid switch assembly WP8318084.

Why it matters

A restricted “filter” area forces the pump to work harder, can prevent proper spin, and often leaves loads too wet. Keeping the drain path clear helps protect the pump, motor coupling, and gear case over time.

You can order replacement parts for Kenmore 11026632503 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

For Kenmore washer model 11026632503, a “hard reset” is a power reset: unplug the washer (or switch off the breaker) for 1 minute, then restore power and start a cycle. This clears many temporary control glitches without changing normal cycle settings.

Reset options that work on this style of Kenmore washer

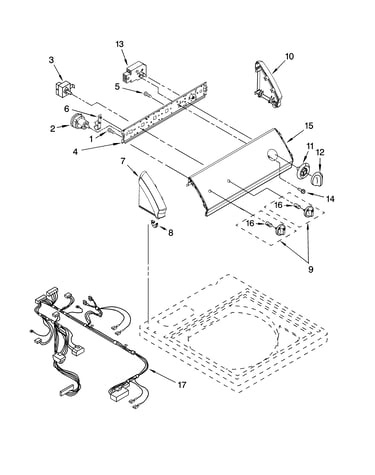

This model uses a mechanical cycle control knob; it does not use the electronic button sequences found on some digital-display washers. Use these reset methods:

• Power reset (recommended): unplug for 1 minute, then plug back in.
• Stop and restart the cycle: push in the Cycle Control knob to stop; close the lid; pull the knob out to restart.
• Cancel a stuck cycle: push the knob in, turn it to OFF, wait 10 seconds, then select a new cycle and pull the knob out.
• Lid reset for a no-start condition: open and firmly close the lid, then try starting again.

If you are resetting because the washer will not spin or drain

A “reset” often helps only if the real issue is a safety or drain problem. Check these common causes first:

• Make sure the lid closes fully; a failed lid switch can stop spin.
• Confirm the drain hose is not kinked and the household drain can handle fast flow.
• Redistribute the load so it is even in the basket.
• Verify the washer is level; loose leveling feet can cause vibration and cycle interruptions.

Parts that commonly relate to no-spin/no-drain symptoms

Symptom	Common suspect	Example part for this model
Won’t spin, acts “dead” with lid closed	Lid switch not sensing closed lid	Washer lid switch assembly WP8318084
Won’t drain or drains slowly	Drain pump jammed or failing	Washer drain pump WP3363394

Why it matters

Resetting clears temporary interruptions, but repeated “needs a reset” behavior usually points to a real mechanical issue (lid switch, drain pump, out-of-balance condition, or installation and leveling). Following the correct stop/restart steps also prevents timer and cycle confusion.

For model-specific operating steps (including stopping and restarting with the Cycle Control knob), use the owner's manual. For leveling and installation checks, use the installation guide. If you need to order replacement parts, start with the parts list for model 11026632503, or search by model on Sears PartsDirect.

Last updated: February 2026

The exact tub capacity (cubic feet) for Kenmore washer model 11026632503 is listed in the product specifications section of the 11026632503 owner's manual. For many Kenmore 110-series top-load washers of this design, capacity commonly falls in the about 3.2 to 3.5 cu. ft. range.

How to confirm the capacity for model 11026632503

We use the manual because Kenmore 110-series washers were produced in multiple tub sizes that look similar from the outside.

• Check the Specifications or Features section in the 11026632503 owner's manual
• Look for wording such as capacity, basket volume, or tub volume
• If the manual lists basket dimensions, use the measurement method below

If you need to calculate it from tub measurements

Measure the inside of the wash basket (not the outer tub):

• Measure radius (center to inside wall) in inches
• Measure depth (bottom to top of basket) in inches
• Convert inches to feet (divide by 12)

What you measure	Use this value	Notes
Basket radius	r (feet)	Inside wall to center
Basket depth	d (feet)	Bottom to top edge
Capacity	π × r² × d	Result is cubic feet

Why it matters

Capacity affects how much laundry you can wash per load, how much water the washer uses, and whether symptoms like off-balance spinning are caused by overloading versus a worn suspension or drive component.

Related parts that affect “usable capacity” and performance

If the washer seems to hold less or struggles with heavy loads, these model-matched parts are common checks:

• Washer suspension spring WP63907 (helps control tub movement)
• Clutch 285785 (helps the basket reach proper spin)
• Washer drive block WP389140 (connects basket to drive system)

For ordering model-specific replacement parts, use the parts list for Kenmore 11026632503 on this page, or search by model number on Sears PartsDirect.

Last updated: February 2026

Kenmore Elite is Kenmore’s premium line, positioned above standard Kenmore models because it typically includes more advanced features and higher-end styling. Your Kenmore washer model 11026632503 is identified by its model number and documentation; use the 11026632503 owner’s manual to confirm the exact features and operating options for your specific washer.

What “Kenmore Elite” means

Kenmore Elite generally refers to higher-feature models within the Kenmore lineup. In practical terms, “high end” usually shows up as more convenience, more cycle control, and upgraded performance features.

• More cycle and temperature combinations
• More convenience features (dispensers, specialty cycles, upgraded controls)
• Higher-capacity designs in many model families
• Quieter operation and smoother spin in many designs
• More premium finishes on some appliances

How to tell whether your washer is an “Elite” model

For Kenmore washers, the most reliable way to classify the unit is by the model identification and the feature set shown in the documentation.

• Check the model tag for the full model number: 11026632503
• Compare the control panel cycle names to the cycle descriptions in the manual
• Review the “Washer use” and “Troubleshooting” sections to see what features your model supports
• Use the parts list for 11026632503 when ordering repair parts to ensure fit

What you check	Where to look	What it tells you
Model number	Model tag on the washer cabinet	Exact product identity
Cycle names and options	Control panel	Feature level of the washer
Feature descriptions	Manual	What the washer is designed to do

Why it matters

“Elite” is a product-line label; repairs and part fit depend on the exact model number and design. For example, if your 11026632503 won’t drain, the washer drain pump WP3363394 is a common wear item on many Kenmore top-load designs.

Ordering parts

Order parts by model number 11026632503 from the parts list for this washer, or search by model on Sears PartsDirect if you are shopping for multiple appliances.
