Thermador
Electric Cooktop

Model # CIT365EM01 Official Thermador cooktop

Here are the diagrams and repair parts for Official Thermador CIT365EM01 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Connector 604945
#241

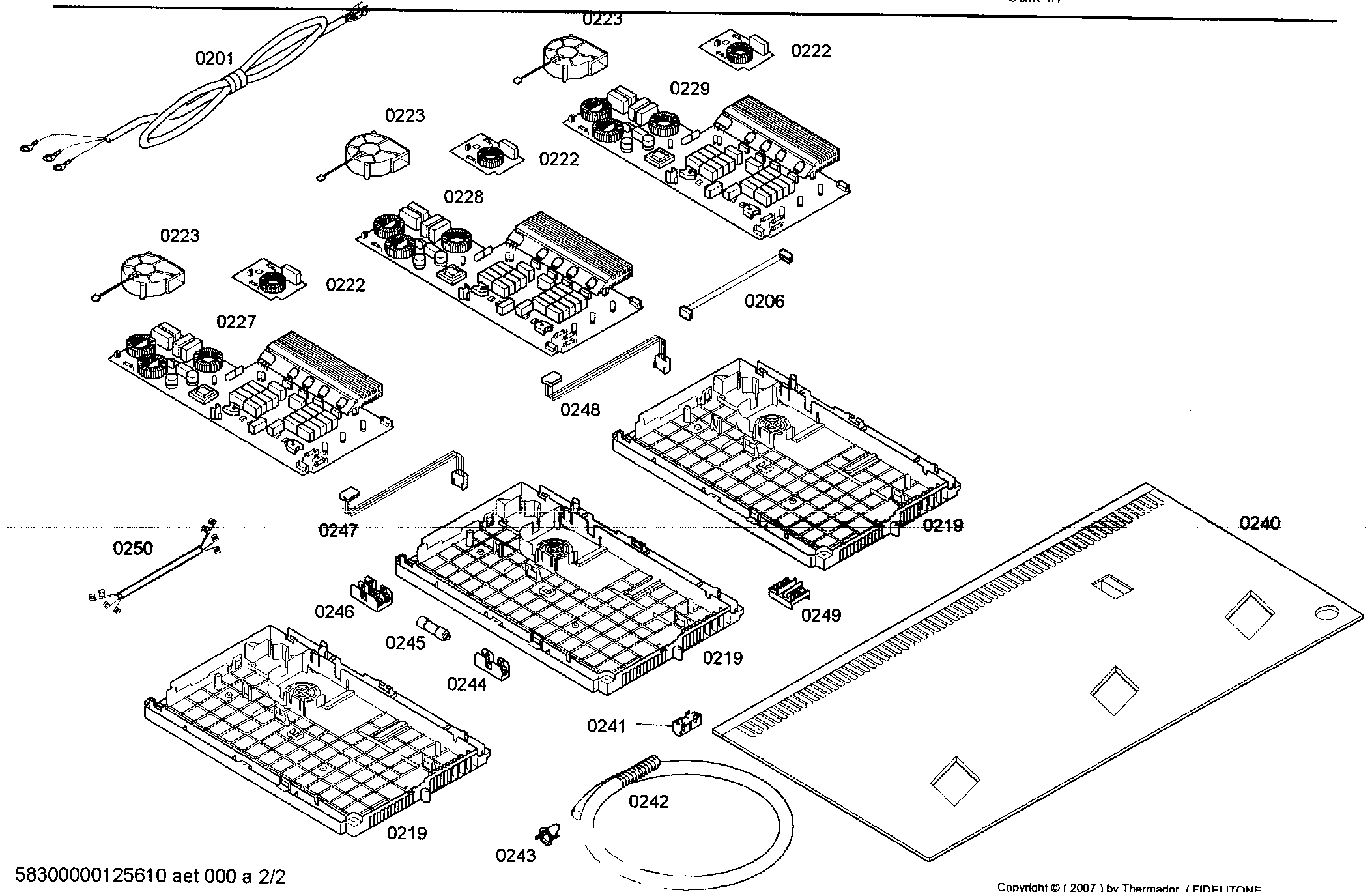

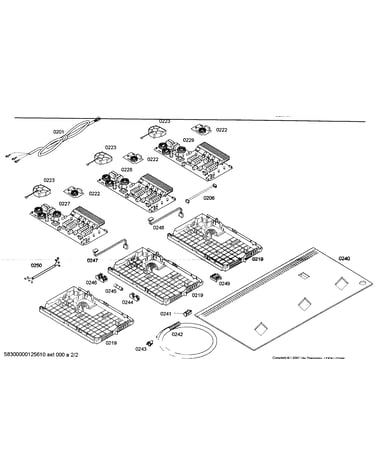

Control assy diagram

Connector

Part #604945

Replaced by #00604945

?
Manufacturer substitution
This part replaces 604945. Substitute parts can look different from the original.
In Stock
Sealing 429487
#118

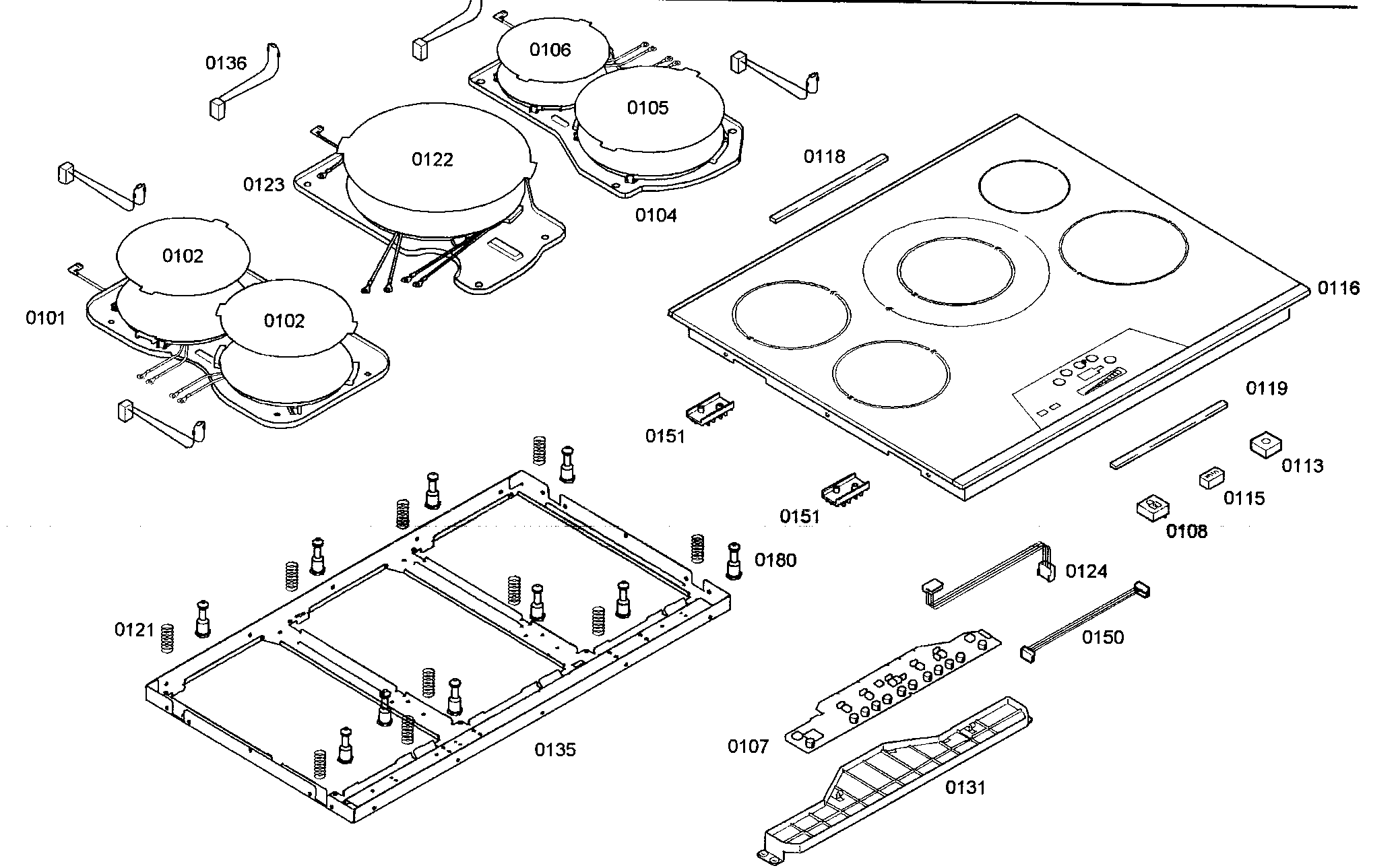

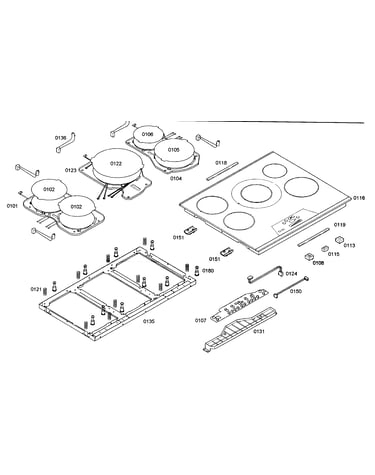

Burner assy diagram

Sealing

Part #429487

Replaced by #00464374

?
Manufacturer substitution
This part replaces 429487. Substitute parts can look different from the original.
In Stock
Bolt 609374
#180

Burner assy diagram

Bolt

Part #609374

Replaced by #00609374

?
Manufacturer substitution
This part replaces 609374. Substitute parts can look different from the original.
This item is not returnable
In Stock
Pcb 660154
#227

Control assy diagram

Pcb

Part #660154

Replaced by #00666285

?
Manufacturer substitution
This part replaces 660154. Substitute parts can look different from the original.
In Stock
Pcb 660153
#228

Control assy diagram

Pcb

Part #660153

Replaced by #00666284

?
Manufacturer substitution
This part replaces 660153. Substitute parts can look different from the original.
In Stock
Cover 604950
#243

Control assy diagram

Cover

Part #604950

Replaced by #00604950

?
Manufacturer substitution
This part replaces 604950. Substitute parts can look different from the original.
This item is not returnable
In Stock
Sealing St 178139
#119

Burner assy diagram

Sealing st

Part #178139

Replaced by #00178139

?
Manufacturer substitution
This part replaces 178139. Substitute parts can look different from the original.
In Stock
Installation Instructions 697494
#NI

Burner assy diagram

Installation instructions

Part #697494

Replaced by #00697494

?
Manufacturer substitution
This part replaces 697494. Substitute parts can look different from the original.
In Stock
Connector 610084
#248

Control assy diagram

Connector

Part #610084

The manufacturer no longer makes this part, and there's no substitute part

Fuse 604948
#244

Control assy diagram

Fuse

Part #604948

The manufacturer no longer makes this part, and there's no substitute part
