Hoover
Upright Vacuum

Model # C1515--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover C1515- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |

Motor 43574192
#13

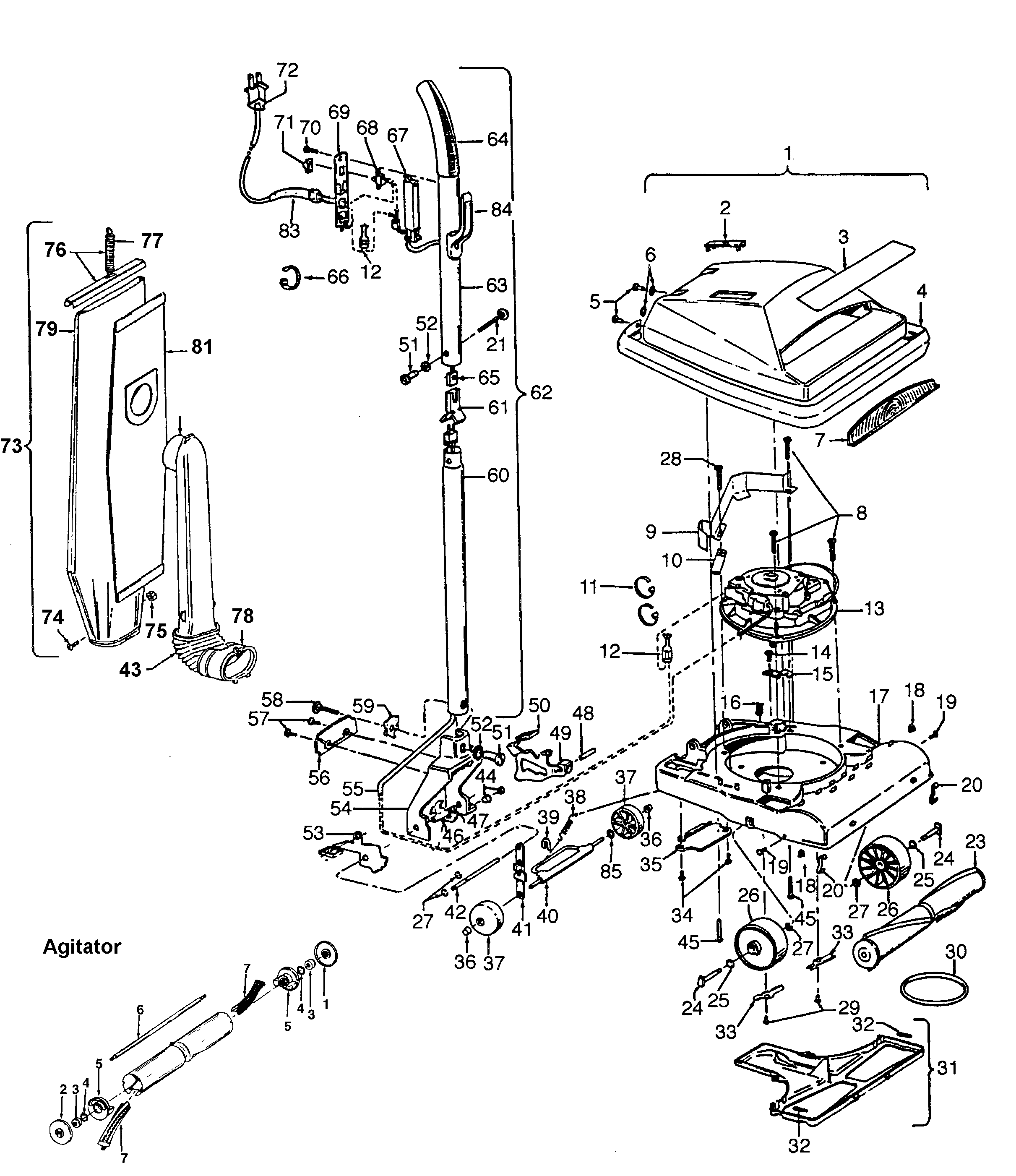

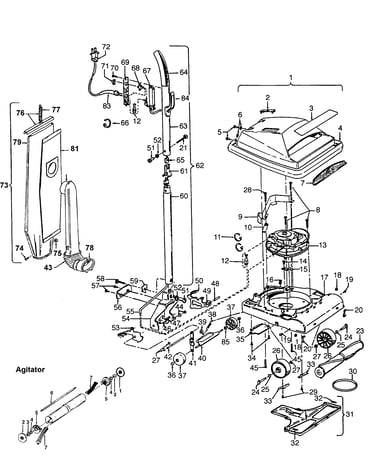

Agitator, handle, mainbody, outerbag diagram

Motor

Part #43574192

The manufacturer no longer makes this part, and there's no substitute part

Bag Flange 41424011
#78

Agitator, handle, mainbody, outerbag diagram

Bag flange

Part #41424011

The manufacturer no longer makes this part, and there's no substitute part

Connector 46321033
#55

Agitator, handle, mainbody, outerbag diagram

Connector

Part #46321033

The manufacturer no longer makes this part, and there's no substitute part

Retaining Flange 35434040
#35

Agitator, handle, mainbody, outerbag diagram

Retaining flange

Part #35434040

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38521019
#37

Agitator, handle, mainbody, outerbag diagram

Vacuum wheel

Part #38521019

The manufacturer no longer makes this part, and there's no substitute part

Handle Bolt 21631302
#58

Agitator, handle, mainbody, outerbag diagram

Handle bolt

Part #21631302

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Brush 48445001
#7A

Agitator, handle, mainbody, outerbag diagram

Vacuum brush

Part #48445001

The manufacturer no longer makes this part, and there's no substitute part

Outer Bag 43674221
#79

Agitator, handle, mainbody, outerbag diagram

Outer bag

Part #43674221

The manufacturer no longer makes this part, and there's no substitute part

Agitr Shaft 32724008
#6A

Agitator, handle, mainbody, outerbag diagram

Agitr shaft

Part #32724008

The manufacturer no longer makes this part, and there's no substitute part

Handle Plate 35463011
#59

Agitator, handle, mainbody, outerbag diagram

Handle plate

Part #35463011

The manufacturer no longer makes this part, and there's no substitute part
