Model # 21759490 Official Craftsman 7.5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 21759490 7.5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

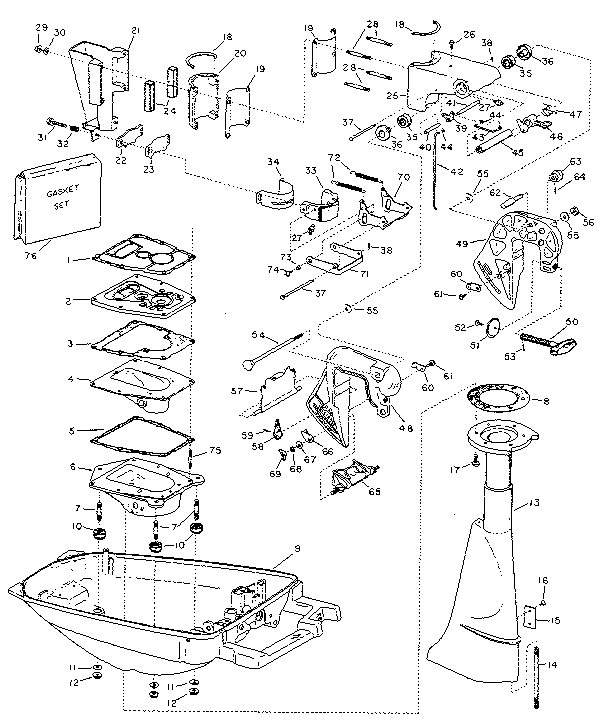

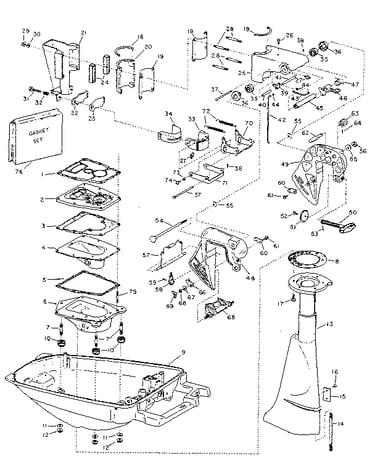

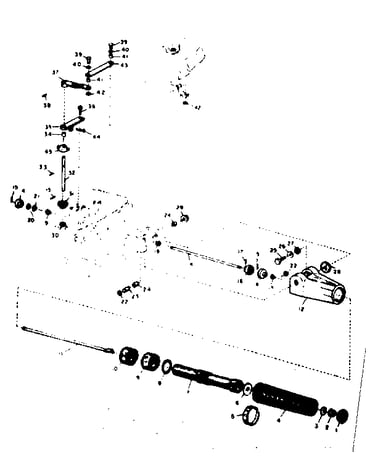

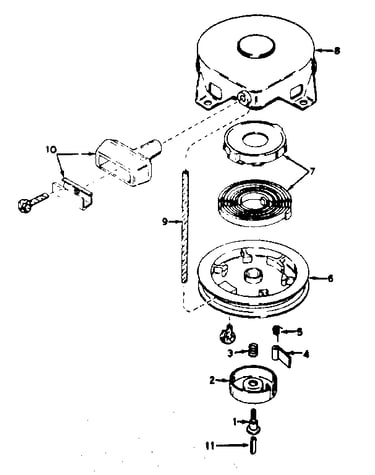

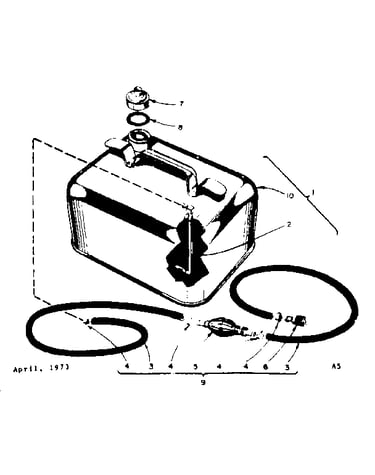

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 371 parts  |
Gasket 631028
#25

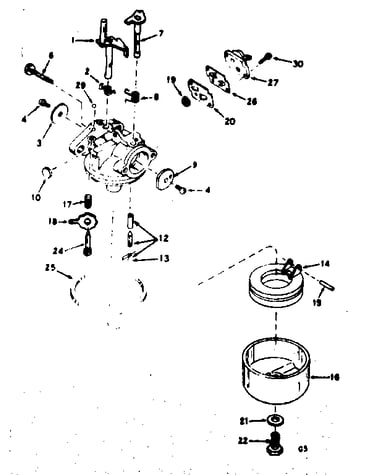

Carburetor assembly no. 631729 diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Fuel Line 29774
#44

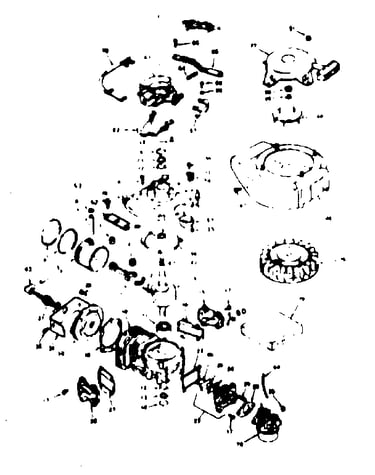

Engine assembly no. 640-04a diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Seal 510105
#12

Engine assembly no. 640-04a diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

Seal 510242
#72

Engine assembly no. 640-04a diagram

Seal

Part #510242

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor assembly no. 631729 diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Spring 510109
#14

Engine assembly no. 640-04a diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part

Retainer 510106
#13

Engine assembly no. 640-04a diagram

Retainer

Part #510106

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Screw 538
#71

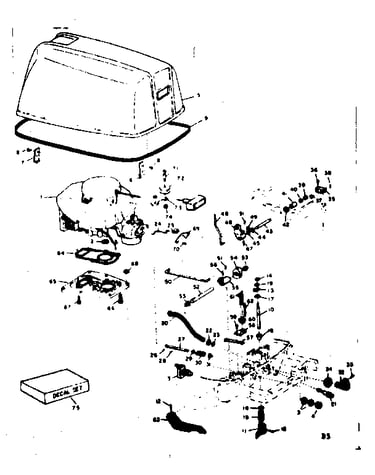

Power head assembly diagram

Boat motor screw

Part #538

The manufacturer no longer makes this part, and there's no substitute part

Pin (silver) 6415
Pin (silver)

Part #6415

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 26290
#44

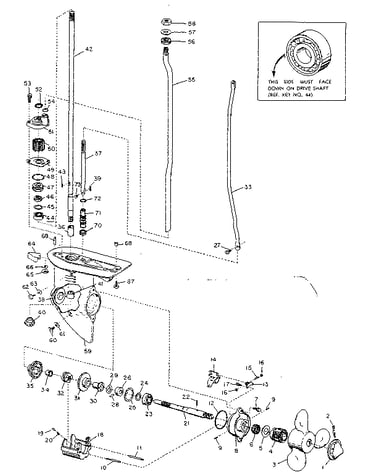

Gear housing assembly diagram

Ball bearing

Part #26290

The manufacturer no longer makes this part, and there's no substitute part
