Craftsman
Gas Walk-Behind Mower

Model #917383111 Craftsman 20" 3.5 reserve power rotary lawn mower

Here are the diagrams and repair parts for Craftsman 917383111 20" 3.5 reserve power rotary lawn mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 62 parts

Hex Lock Nut, 1-pack

#8

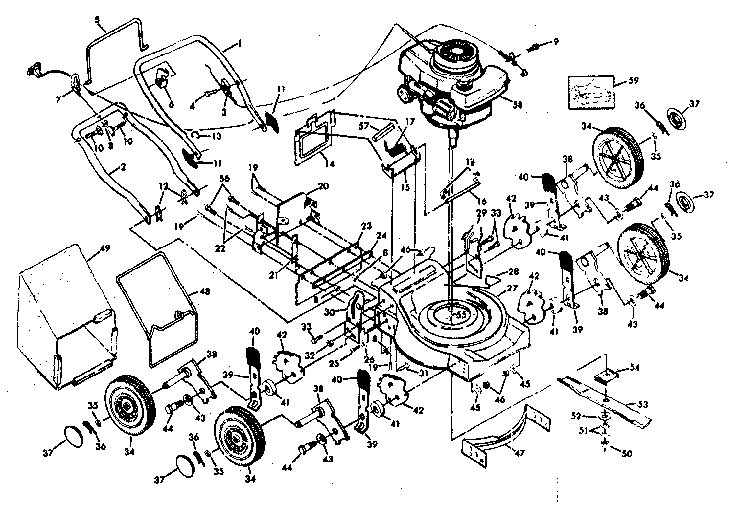

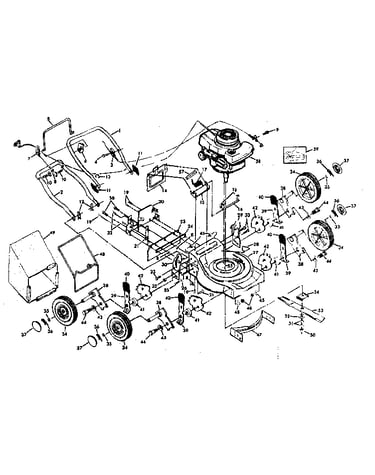

Replacement parts Diagram

Hex lock nut, 1-pack

Part #STD541425
?
Manufacturer substitution
This part replaces 63601. Substitute parts can look different from the original.
This part replaces 63601
This item is not returnable
$2.15

Back Order

Flat Washer, 8-pack

#26

Replacement parts Diagram

Flat washer, 8-pack

Part #STD551025
?
Manufacturer substitution
This part replaces STD551025. Substitute parts can look different from the original.
This part replaces STD551025
This item is not returnable
$2.75

In Stock

Lawn Mower Handle Knob

#10

Replacement parts Diagram

Lawn mower handle knob

Part #532183724
?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This part replaces 58714
$7.76

In Stock

Lawn Mower Washer

#35

Replacement parts Diagram

Lawn mower washer

Part #532052160
?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This part replaces 52160
This item is not returnable
$4.09

In Stock

Lawn Tractor Decal

#28

Replacement parts Diagram

Lawn tractor decal

Part #539913010
?
Manufacturer substitution
This part replaces 85463. Substitute parts can look different from the original.
This part replaces 85463
This item is not returnable
$3.51

In Stock

Screw

#19

Replacement parts Diagram

Screw

Part #STD512505

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Cotter Pin

#12

Replacement parts Diagram

Lawn mower cotter pin

Part #532051793
?
Manufacturer substitution
This part replaces 51793. Substitute parts can look different from the original.
This part replaces 51793
This item is not returnable
$4.88

In Stock

E-Ring

#18

Replacement parts Diagram

E-ring

Part #STD581025

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Handle Knob

#11

Replacement parts Diagram

Lawn mower handle knob

Part #532183724
?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This part replaces 63688
$7.76

In Stock

Lawn Mower Wheel Hub Cap

#37

Replacement parts Diagram

Lawn mower wheel hub cap

Part #532077400
?
Manufacturer substitution
This part replaces 77400. Substitute parts can look different from the original.
This part replaces 77400
This item is not returnable
$4.46

In Stock

Symptoms for gas walk-behind mowers

Choose a symptom to see related walk-behind mower repairs.

Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel
Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade
Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent
Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up
Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key
Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, bad ignition coil
