GE
Countertop Microwave

Model # JE320GA01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE320GA01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

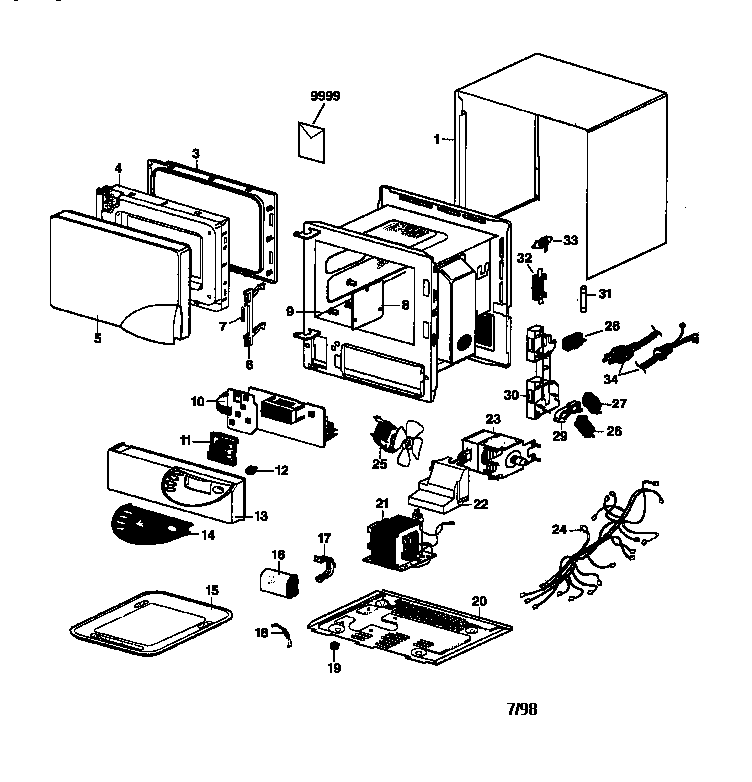

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Switch WB24X0801
#27

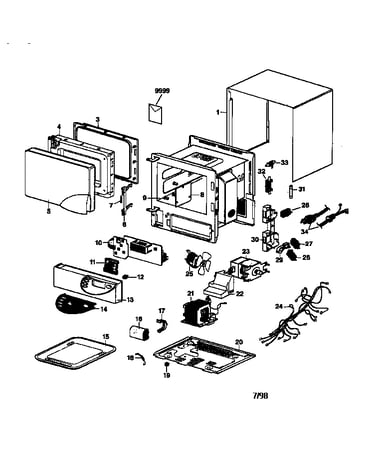

Microwave parts diagram

Switch

Part #WB24X0801

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0801. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Switch WB24X0800
#26

Microwave parts diagram

Switch

Part #WB24X0800

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0800. Substitute parts can look different from the original.
BEST SELLER
$27.94 |
15% OFF Phone Price : $32.94
In Stock
High-voltage Diode WB27X0944
#18

Microwave parts diagram

High-voltage diode

Part #WB27X0944

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X0944. Substitute parts can look different from the original.
BEST SELLER
$84.28 |
6% OFF Phone Price : $89.28
In Stock
Fuse WB27X0619
#31

Microwave parts diagram

Fuse

Part #WB27X0619

Replaced by #WB27X7

?
Manufacturer substitution
This part replaces WB27X0619. Substitute parts can look different from the original.
$7.83 |
11% OFF Phone Price : $8.83
In Stock
Lock Button WB01X10019
#9

Microwave parts diagram

Lock button

Part #WB01X10019

Replaced by #WB06X10126

?
Manufacturer substitution
This part replaces WB01X10019. Substitute parts can look different from the original.
This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Base Plate WB56X10093
#20

Microwave parts diagram

Base plate

Part #WB56X10093

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WB27X10197
#16

Microwave parts diagram

Capacitor

Part #WB27X10197

The manufacturer no longer makes this part, and there's no substitute part

Door Outer Frame WB55X10174
#5

Microwave parts diagram

Door outer frame

Part #WB55X10174

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness WB18X10062
#24

Microwave parts diagram

Wire harness

Part #WB18X10062

The manufacturer no longer makes this part, and there's no substitute part

Door Lever WB06X10156
#29

Microwave parts diagram

Door lever

Part #WB06X10156

The manufacturer no longer makes this part, and there's no substitute part
