Jet
Table Saw

Model # JWTS10JF Official Jet table saw

Here are the diagrams and repair parts for Official Jet JWTS10JF table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

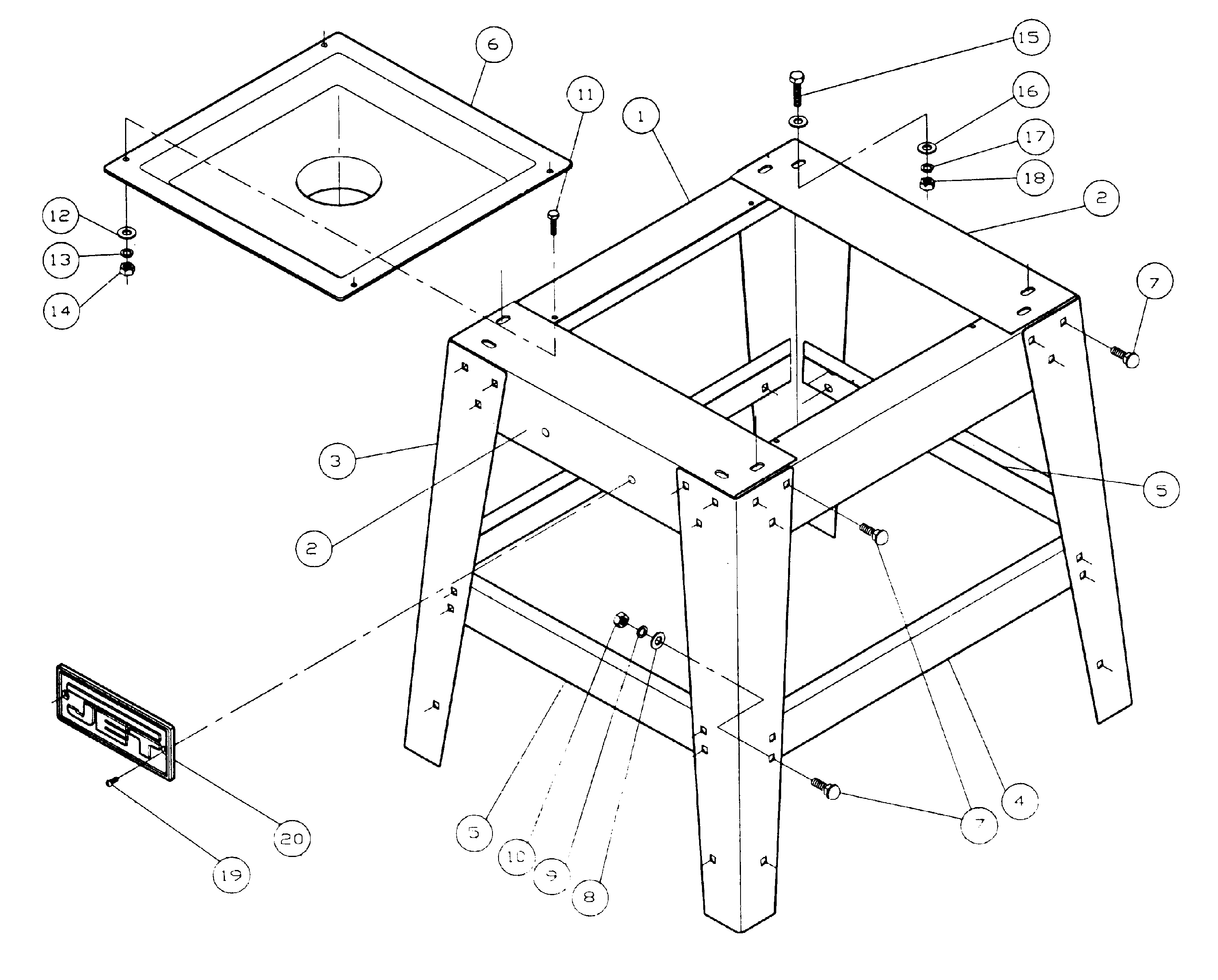

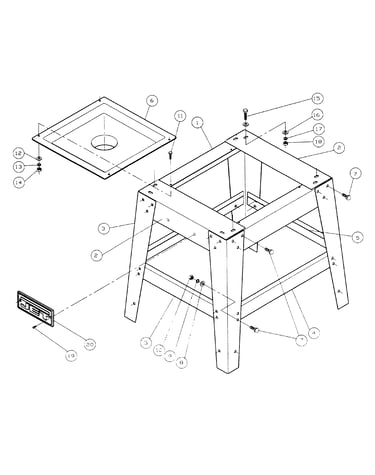

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |

Table Saw Hand Wheel Lock Knob 990551
Table saw hand wheel lock knob

Part #990551

The manufacturer no longer makes this part, and there's no substitute part

Wave Washer 991901
#110

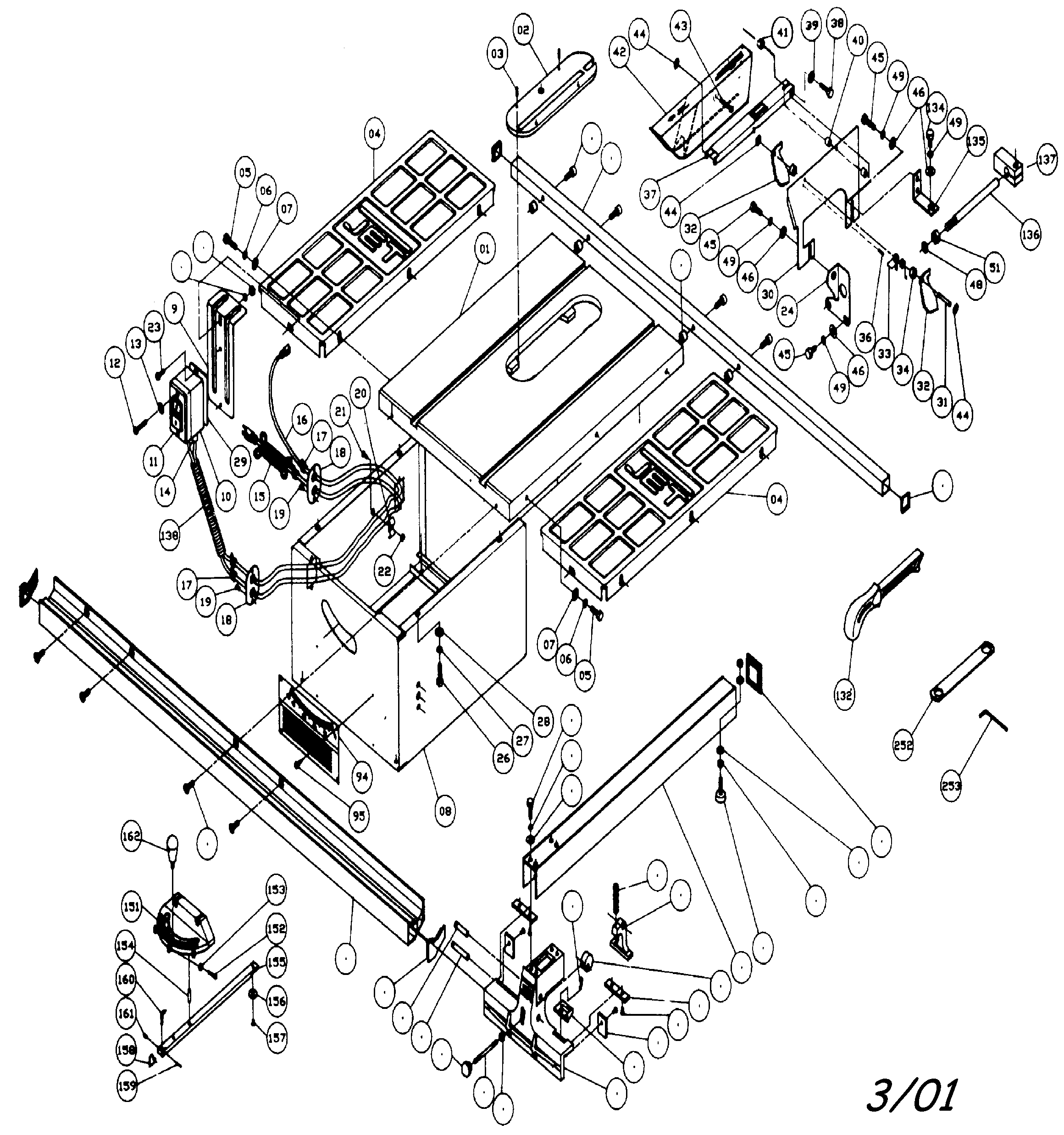

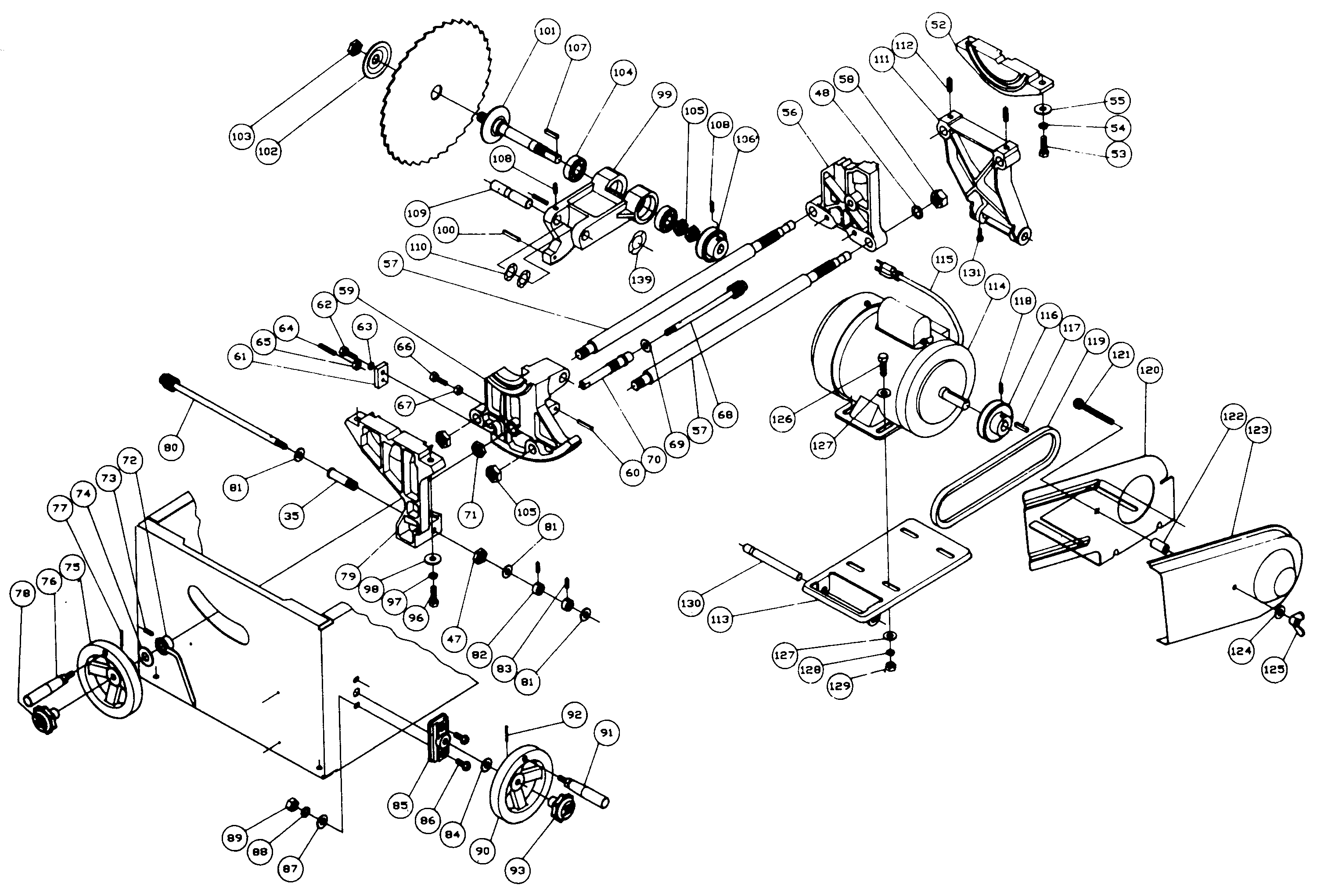

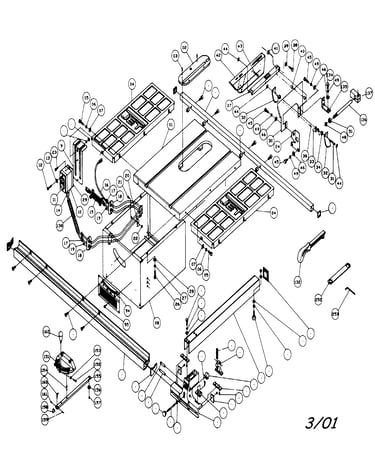

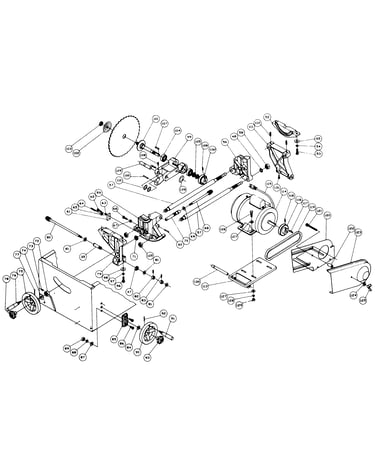

Cabinet parts diagram

Wave washer

Part #991901

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut M14x1.5 TS-2310142
#47

Cabinet parts diagram

Hex nut m14x1.5

Part #TS-2310142

The manufacturer no longer makes this part, and there's no substitute part

Switch 994542
#11

Cabinet parts diagram

Switch

Part #994542

The manufacturer no longer makes this part, and there's no substitute part

Plate 200135
#135

Cabinet parts diagram

Plate

Part #200135

The manufacturer no longer makes this part, and there's no substitute part

Belt Guard 200123W
#123

Cabinet parts diagram

Belt guard

Part #200123W

The manufacturer no longer makes this part, and there's no substitute part

Microglide 708672
#NI

Cabinet parts diagram

Microglide

Part #708672

The manufacturer no longer makes this part, and there's no substitute part

M Cap Scrw TS-148209
#66

Cabinet parts diagram

M cap scrw

Part #TS-148209

The manufacturer no longer makes this part, and there's no substitute part

M Cap Scrw TS-1490031
M cap scrw

Part #TS-1490031

The manufacturer no longer makes this part, and there's no substitute part

Pulley 600013
#116

Cabinet parts diagram

Pulley

Part #600013

The manufacturer no longer makes this part, and there's no substitute part
