Model # DC25 Official Dyson vacuum

Here are the diagrams and repair parts for Official Dyson DC25 vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part

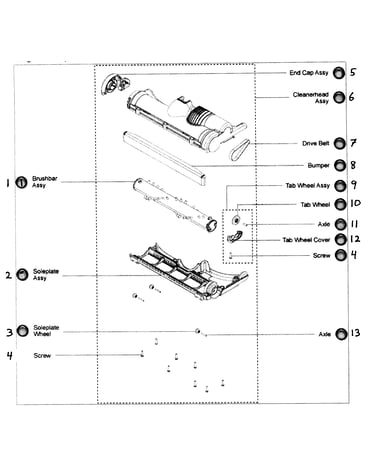

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forDC25 Vacuum Cleaners

  • Dyson Vacuum Dust Valve Door Hub 914109-01
    #18

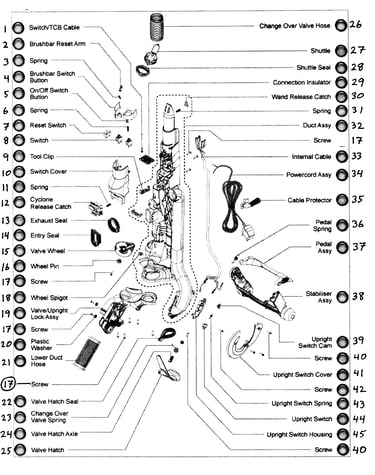

    Main body assy diagram

    Dyson vacuum dust valve door hub

    Part #914109-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Vacuum Yoke Assembly 915456-01
    #21

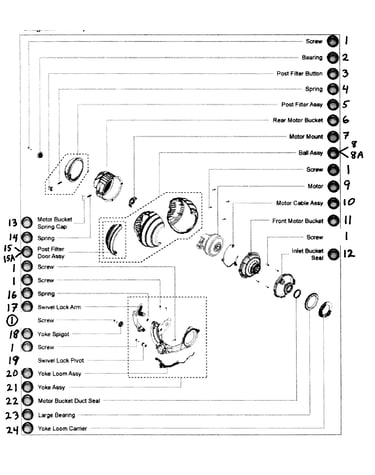

    Ball assy diagram

    Dyson vacuum yoke assembly

    Part #915456-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Motor Bucket 914077-01
    #6

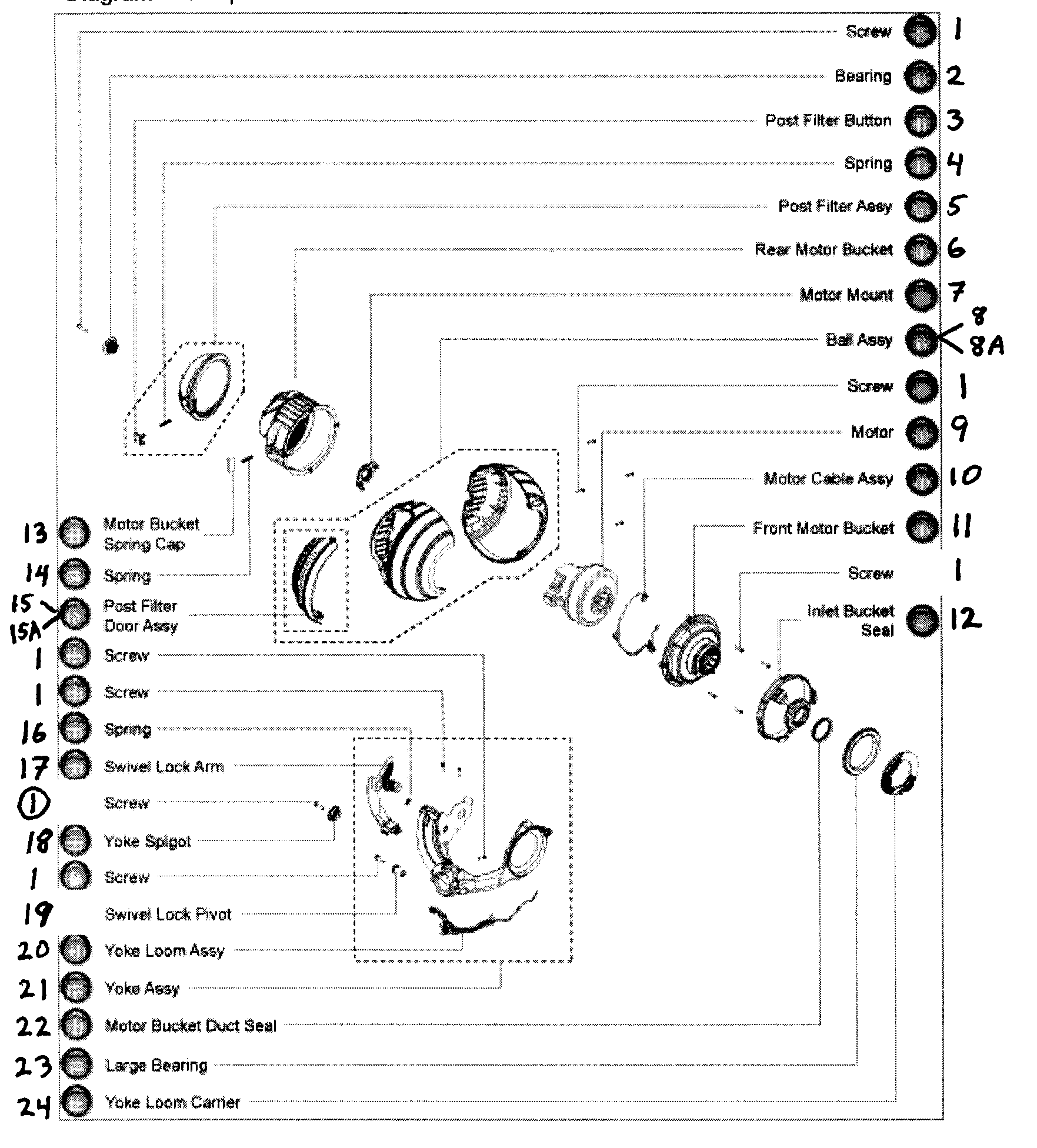

    Ball assy diagram

    Dyson motor bucket

    Part #914077-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Motor Assembly 911666-01
    #9

    Ball assy diagram

    Vacuum motor assembly

    Part #911666-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Vacuum Dust Bin Base Seal 911086-01
    #6

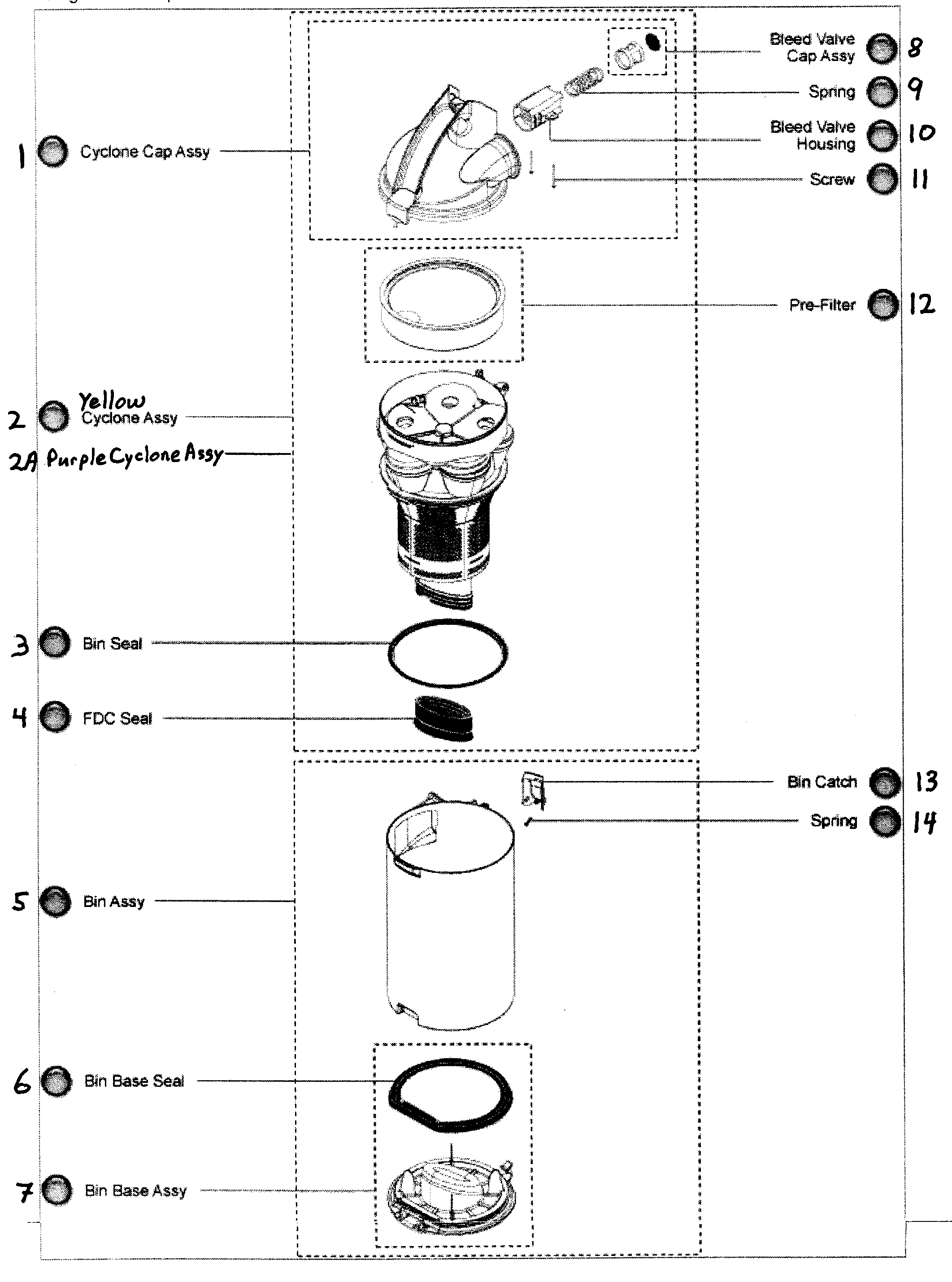

    Cyclone assy diagram

    Dyson vacuum dust bin base seal

    Part #911086-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Vacuum Overload Reset Switch 914592-01
    #7

    Main body assy diagram

    Dyson vacuum overload reset switch

    Part #914592-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Vacuum Airflow Valve 914165-01
    #25

    Main body assy diagram

    Dyson vacuum airflow valve

    Part #914165-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum On/off Switch 910971-01
    #8

    Main body assy diagram

    Vacuum on/off switch

    Part #910971-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Vacuum Upright Lock Assembly 916201-01
    #19

    Main body assy diagram

    Dyson vacuum upright lock assembly

    Part #916201-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Vacuum Wand Assembly 915676-01
    #3

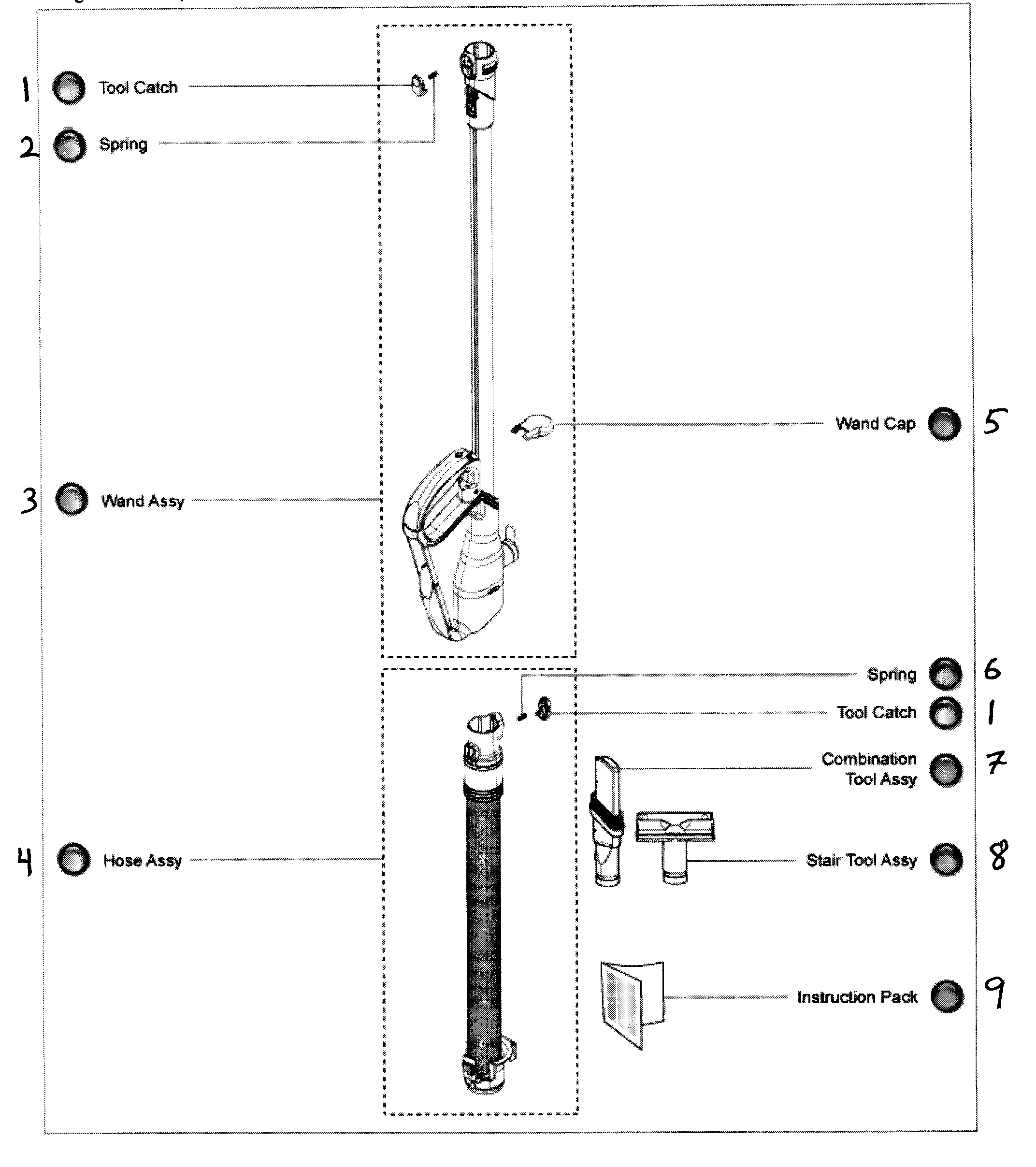

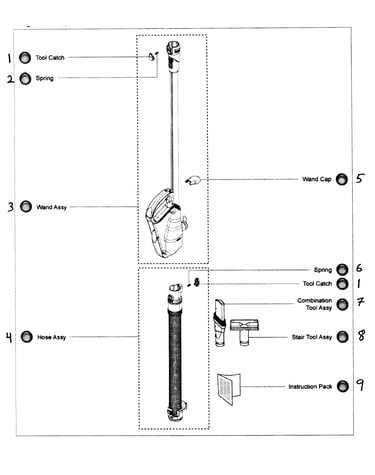

    Accesories diagram

    Dyson vacuum wand assembly

    Part #915676-01

    The manufacturer no longer makes this part, and there's no substitute part
