GE TBX14SYSCRAD top-mount refrigerator - 1993 model Parts

Here are the diagrams and repair parts for GE TBX14SYSCRAD top-mount refrigerator - 1993 model, as well as links to manuals and error code tables, if available.

GE TBX14SYSCRAD top-mount refrigerator - 1993 model
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for TBX14SYSCRAD Refrigerators

  • Refrigerator Filter Dryer for GE TBX14SYSCRAD - Part WR86X25269

    #740

    All parts diagram

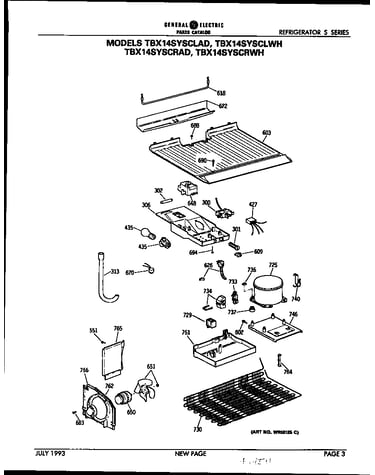

    Dryer Assembly

    Part #WR86X86

    Replaced by #WR86X25269

    Info Icon
    Manufacturer substitution
    This part replaces WR86X86. Substitute parts can look different from the original.
    In Stock
    $81.44
    7% OFF Phone Price : $87.44Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Appliance Light Bulb, 40-watt for GE TBX14SYSCRAD - Part 40A15

    #435

    All parts diagram

    40a15/22

    Part #STD372402

    Replaced by #40A15

    Info Icon
    Manufacturer substitution
    This part replaces STD372402. Substitute parts can look different from the original.
    In Stock
    $15.86
    11% OFF Phone Price : $17.86Info Icon
    Minus Item
    Qty
    Plus Item

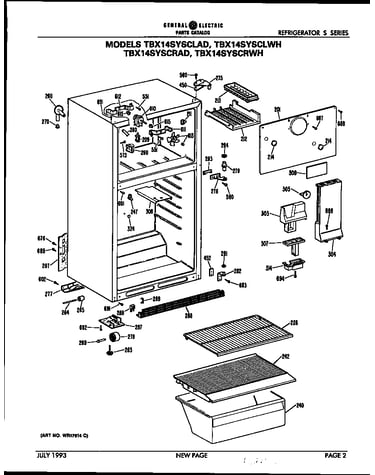

  • G.e. Refrigerator Drawer Cover for GE TBX14SYSCRAD - Part WR32X10398

    #242

    All parts diagram

    Refrigerator Pan Cover

    Part #WR32X1094

    Replaced by #WR32X10398

    Info Icon
    Manufacturer substitution
    This part replaces WR32X1094. Substitute parts can look different from the original.
    In Stock
    $61.26
    20% OFF Was : $76.31Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Refrigerator Condenser Fan Motor for GE TBX14SYSCRAD - Part WR60X187

    #650

    All parts diagram

    G.e. Refrigerator Condenser Fan Motor

    Part #WR60X187
    In Stock
    $242.84
    7% OFF Was : $260.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Technician Refrigerator Light Socket for GE TBX14SYSCRAD - Part WR2X9391

    #435

    All parts diagram

    Terminal Socket

    Part #WR2X8265

    Replaced by #WR2X9391

    Info Icon
    Manufacturer substitution
    This part replaces WR2X8265. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.60
    14% OFF Phone Price : $14.60Info Icon
    Minus Item
    Qty
    Plus Item

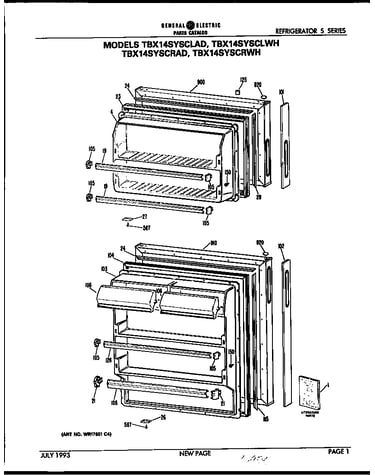

  • Refrigerator Freezer Door Shelf Rail for GE TBX14SYSCRAD - Part WR2X8345

    #21

    All parts diagram

    Refrigerator Freezer Door Shelf Rail

    Part #WR2X8345
    This item is not returnable
    In Stock
    $35.96
    14% OFF Phone Price : $41.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Freezer Door Hinge Spacer for GE TBX14SYSCRAD - Part WR1X1794

    #284

    All parts diagram

    Refrigerator Freezer Door Hinge Spacer

    Part #WR1X1794
    In Stock
    $8.38
    11% OFF Phone Price : $9.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Hole Plug for GE TBX14SYSCRAD - Part WR2X8233

    #920

    All parts diagram

    Refrigerator Door Hole Plug

    Part #WR2X8233
    This item is not returnable
    In Stock
    $8.95
    10% OFF Phone Price : $9.95Info Icon
    Minus Item
    Qty
    Plus Item
  • Technician Refrigerator Freezer Air Duct Mounting Screw for GE TBX14SYSCRAD - Part WR01X10448

    #688

    All parts diagram

    Refrigerator Screw

    Part #WR1X1793

    Replaced by #WR01X10448

    Info Icon
    Manufacturer substitution
    This part replaces WR1X1793. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.89
    9% OFF Phone Price : $10.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Handle Mounting Screw for GE TBX14SYSCRAD - Part WR01X10590

    #566

    All parts diagram

    Screw

    Part #WR1X1728

    Replaced by #WR01X10590

    Info Icon
    Manufacturer substitution
    This part replaces WR1X1728. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.93
    10% OFF Phone Price : $9.93Info Icon
    Minus Item
    Qty
    Plus Item
