Frigidaire
Wall Oven/Microwave Combo

Model # PLEB30M9ECE Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire PLEB30M9ECE wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

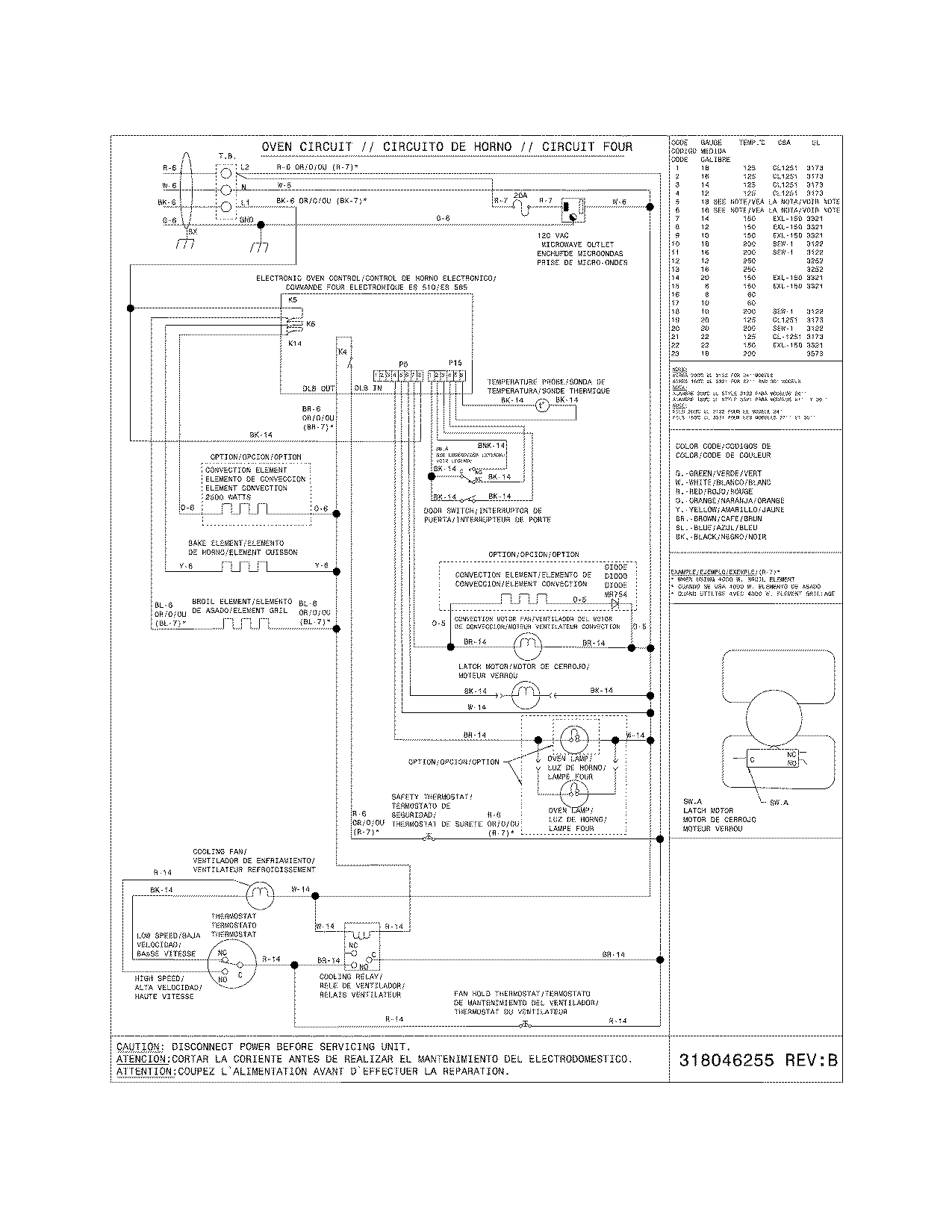

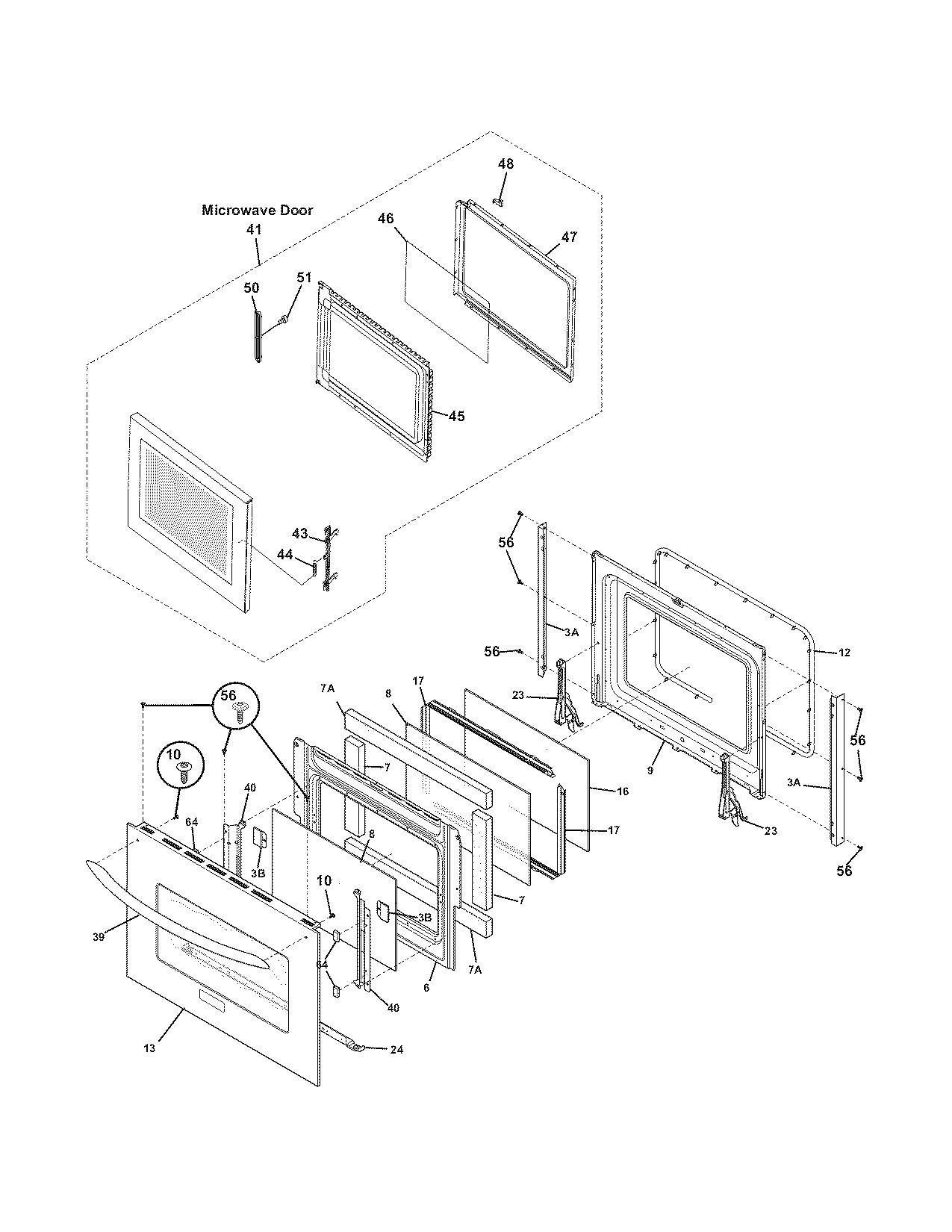

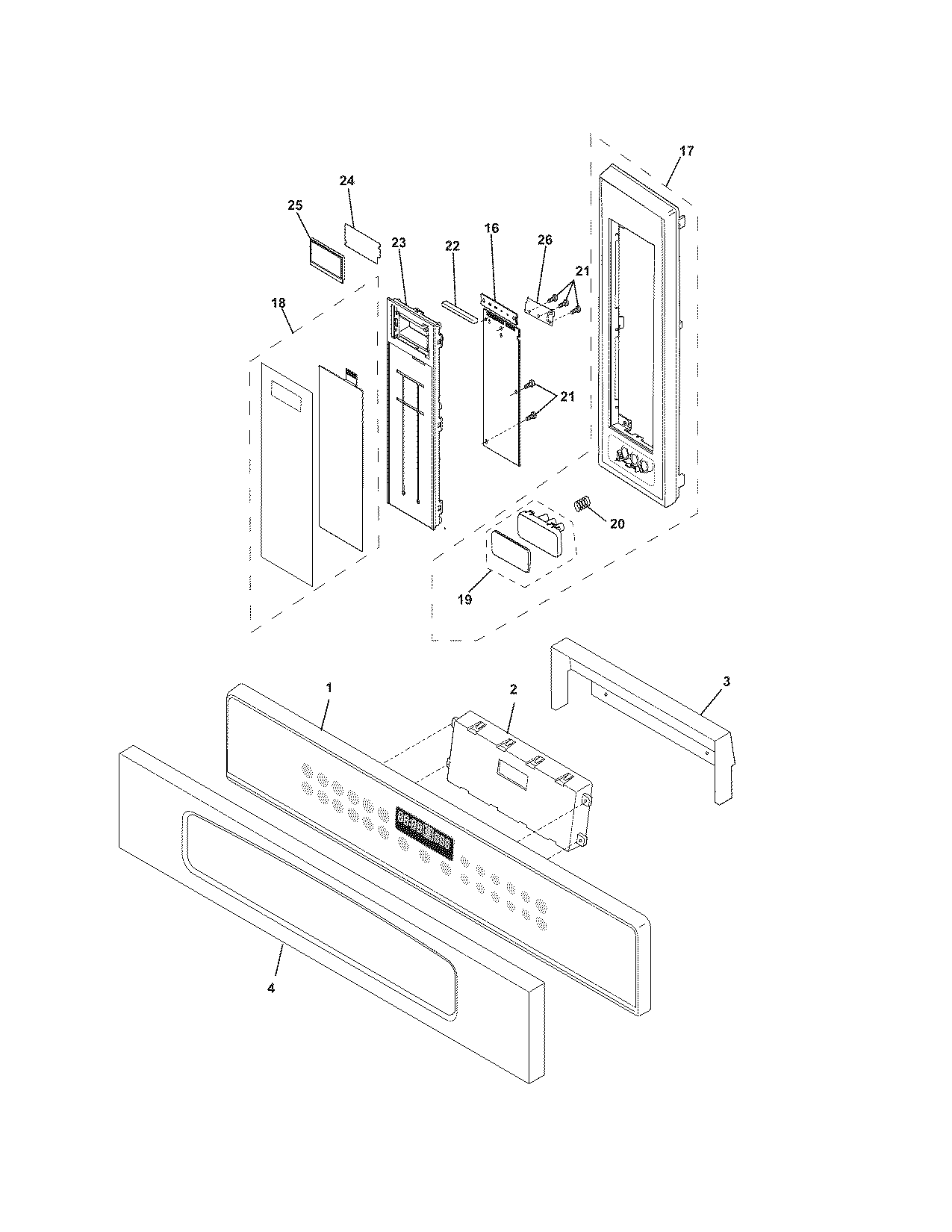

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

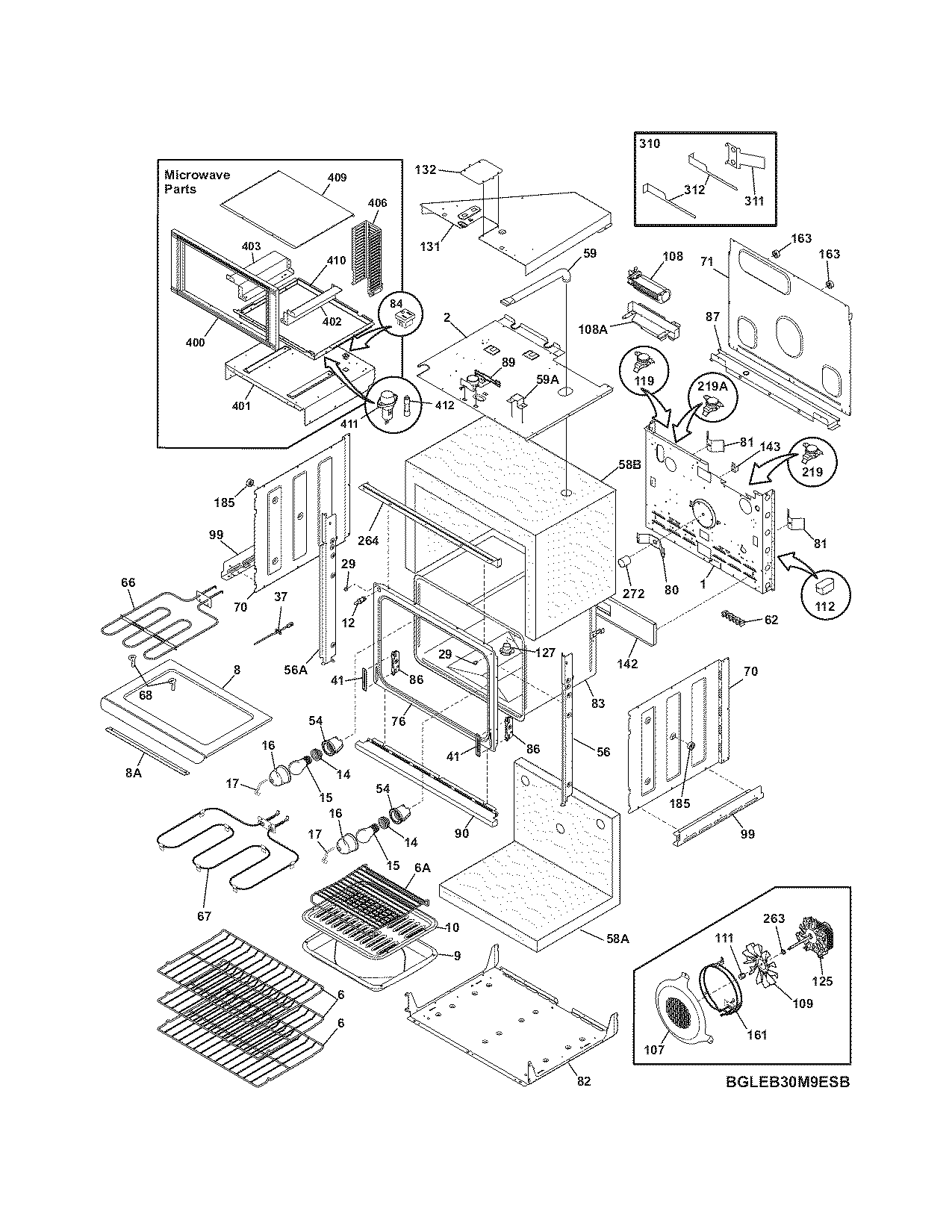

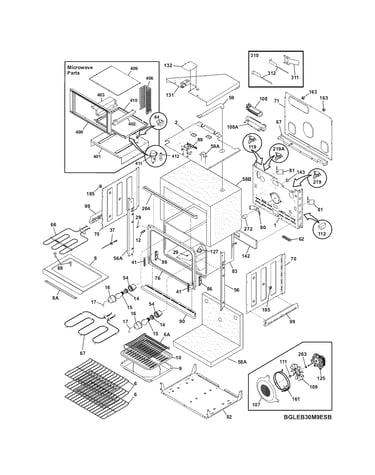

Lower oven diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$45.69 |
10% OFF Phone Price : $50.69
In Stock
Range Oven Light Bulb 5303013071
#15

Lower oven diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Range Bake Element (replaces 318254909) 318254906
#67

Lower oven diagram

Range bake element (replaces 318254909)

Part #318254906

BEST SELLER
$171.67 |
6% OFF Phone Price : $181.67
In Stock
Wall Oven Thermal Fuse 318004900
#119

Lower oven diagram

Wall oven thermal fuse

Part #318004900

BEST SELLER
$41.30 |
11% OFF Phone Price : $46.30
In Stock
Wall Oven Microwave Magnetron 5304440781
#8

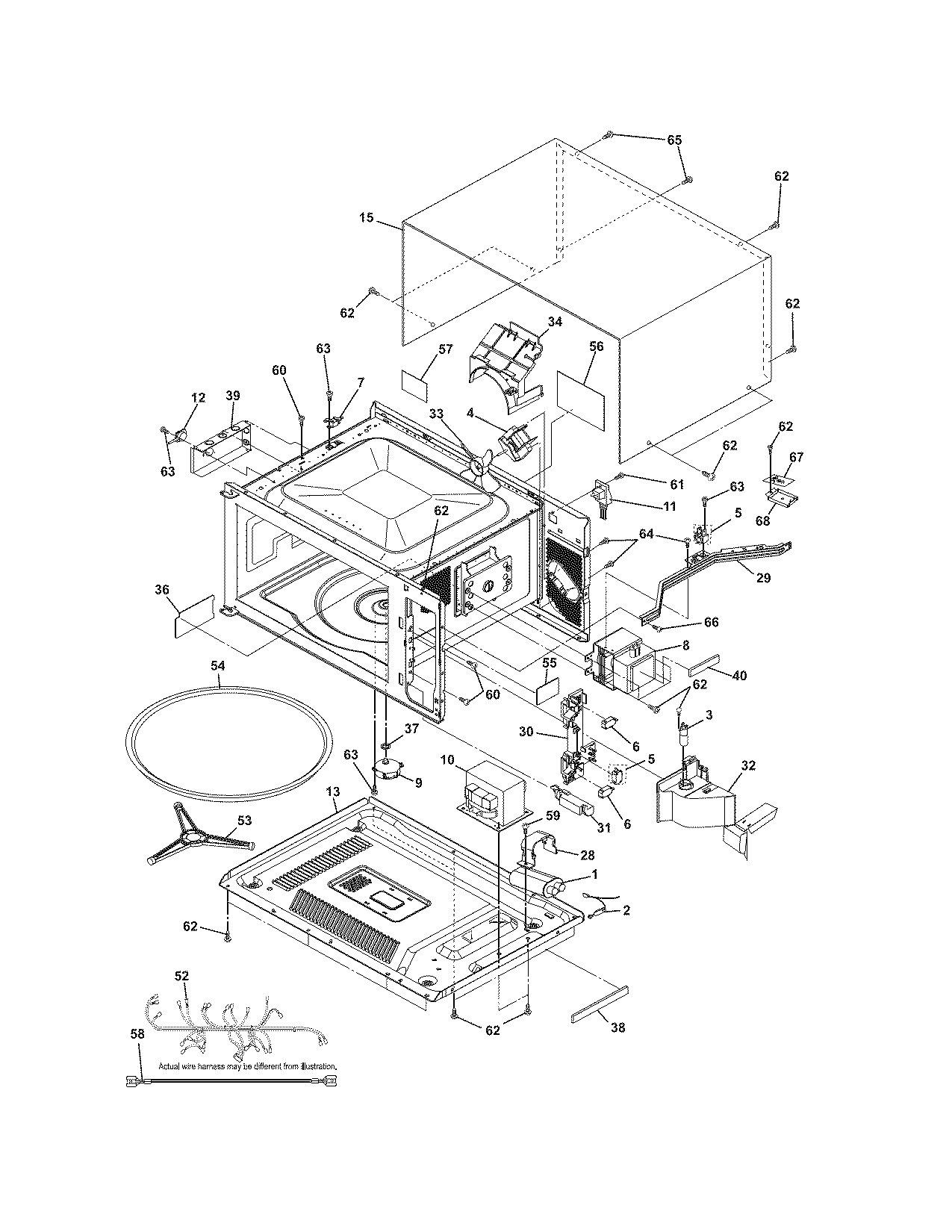

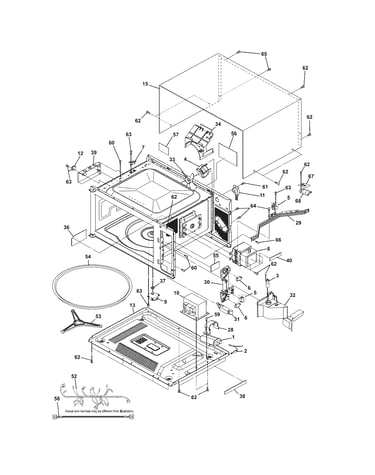

Upper oven diagram

Wall oven microwave magnetron

Part #5304440781

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304440781. Substitute parts can look different from the original.
BEST SELLER
$163.69 |
6% OFF Phone Price : $173.69
In Stock
Range Broil Element 318255600
#66

Lower oven diagram

Range broil element

Part #318255600

Replaced by #318255605

?
Manufacturer substitution
This part replaces 318255600. Substitute parts can look different from the original.
BEST SELLER
$148.55 |
6% OFF Phone Price : $158.55
In Stock
Washer 316136500
#263

Lower oven diagram

Washer

Part #316136500

Replaced by #316008401

?
Manufacturer substitution
This part replaces 316136500. Substitute parts can look different from the original.
BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Wall Oven Removal Tool, Right (replaces 318246700, 7318246702) 318246702
#312

Lower oven diagram

Wall oven removal tool, right (replaces 318246700, 7318246702)

Part #318246702

BEST SELLER
This item is not returnable
$9.60 |
9% OFF Phone Price : $10.60
In Stock
Microwave Door Interlock Switch 5304440026
#6

Upper oven diagram

Microwave door interlock switch

Part #5304440026

BEST SELLER
$39.53 |
11% OFF Phone Price : $44.53
In Stock
Rack 318345208
#6

Lower oven diagram

Rack

Part #318345208

Replaced by #318262516

?
Manufacturer substitution
This part replaces 318345208. Substitute parts can look different from the original.
BEST SELLER
$110.92 |
8% OFF Phone Price : $120.92
In Stock
