Lawn-Boy
Gas Walk-Behind Mower

Model # 10331-8900001 AND UP Official Lawn-Boy silver pro series mower

Here are the diagrams and repair parts for Official Lawn-Boy 10331-8900001-AND-UP silver pro series mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

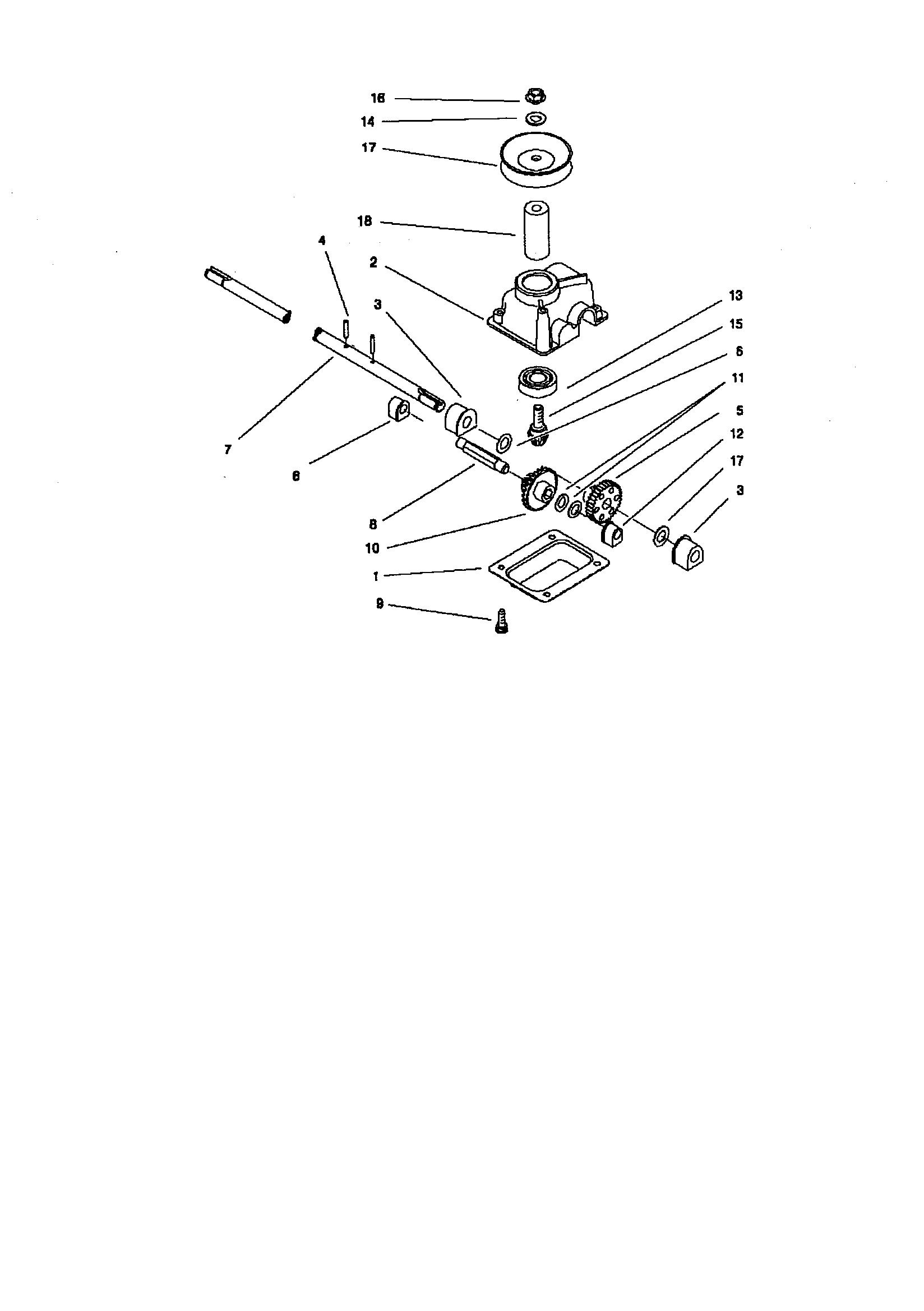

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Rope Guide 93-7383
#16

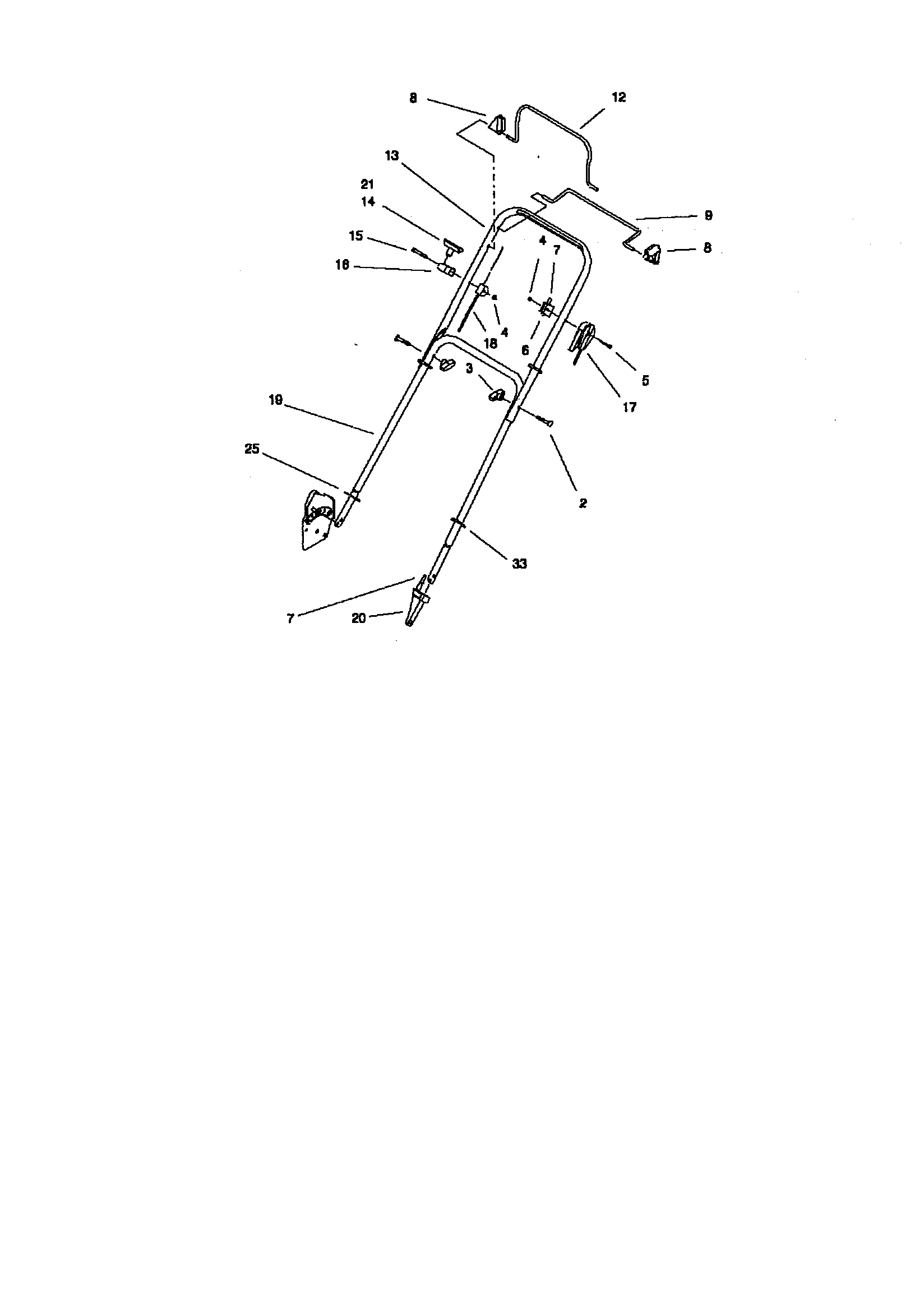

Handle assembly diagram

Rope guide

Part #93-7383

Replaced by #86-9671

?
Manufacturer substitution
This part replaces 93-7383. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Lawn Mower Screw 614697
#2

Handle assembly diagram

Lawn mower screw

Part #614697

This item is not returnable
$3.34
In Stock
Lawn Mower Washer 614426
#19

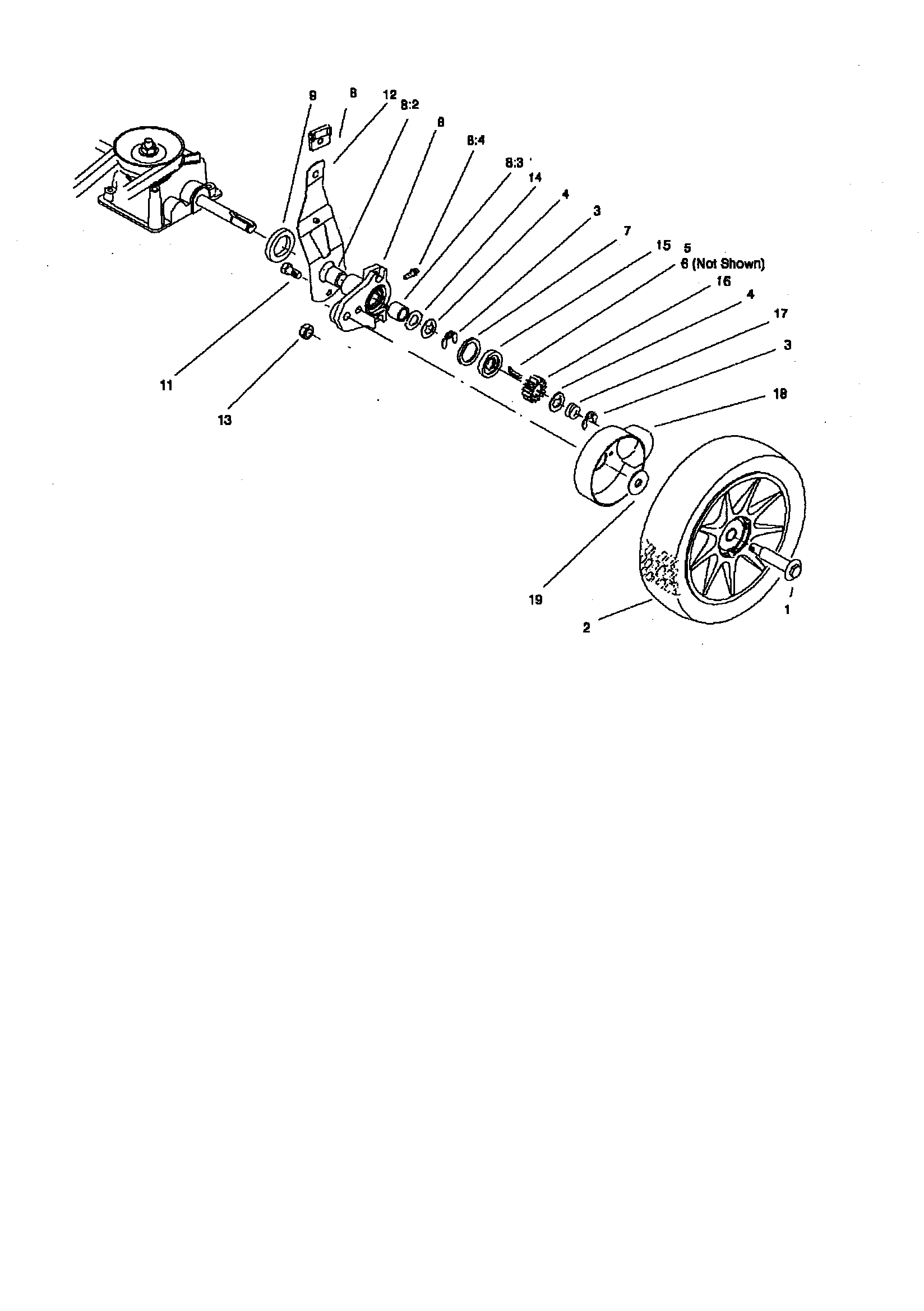

Rear axle assembly diagram

Lawn mower washer

Part #614426

This item is not returnable
$2.40
In Stock
Lawn Mower Wheel Assembly 684776
#19

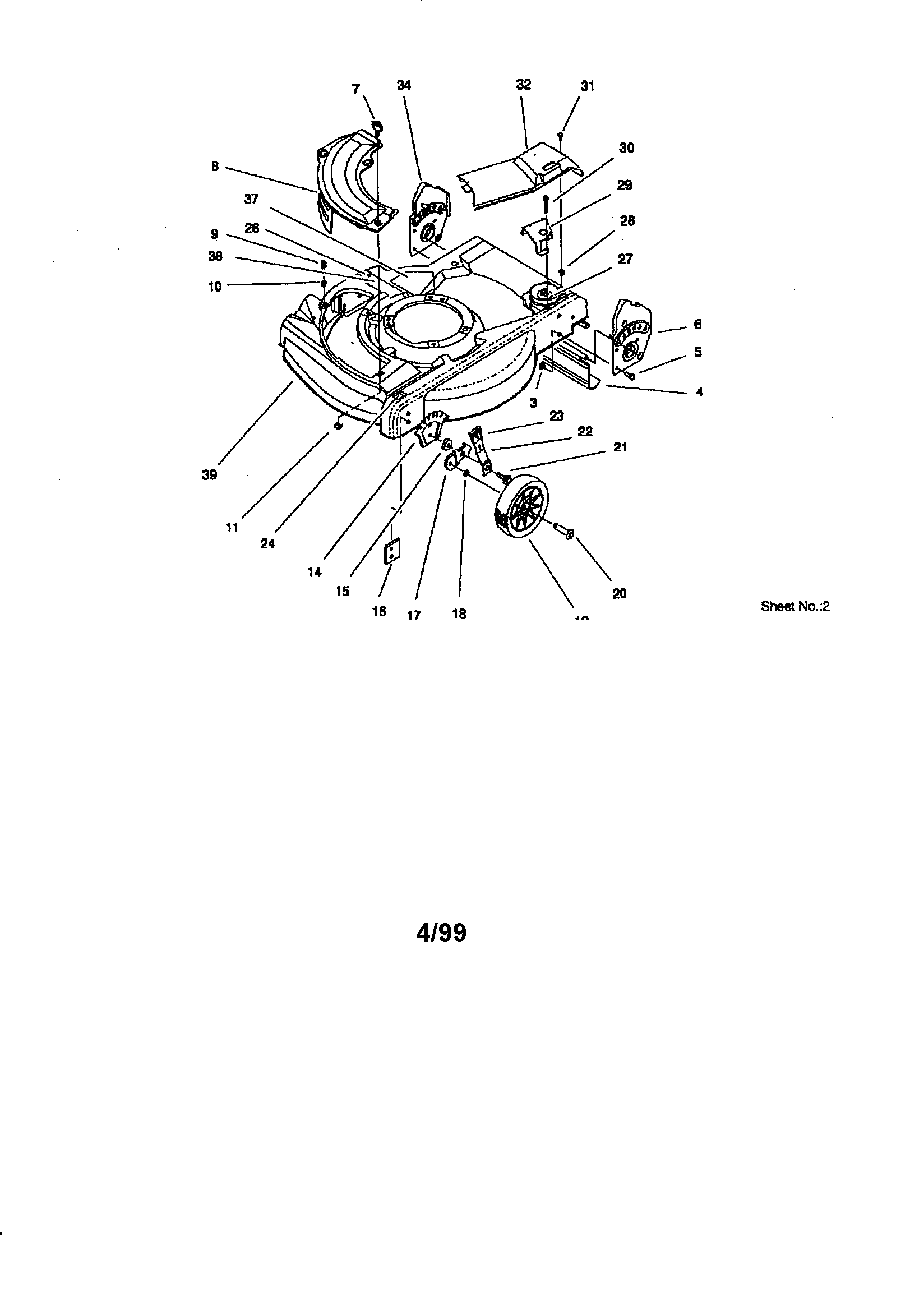

Housing assembly diagram

Lawn mower wheel assembly

Part #684776

This item is not returnable
$41.79 |
13% OFF Was : $48.00
In Stock
Pivot Stop 92-5412
#8

Handle assembly diagram

Pivot stop

Part #92-5412

Replaced by #107-0757

?
Manufacturer substitution
This part replaces 92-5412. Substitute parts can look different from the original.
This item is not returnable
$6.69
In Stock
Belt, 21-in 612543
#18

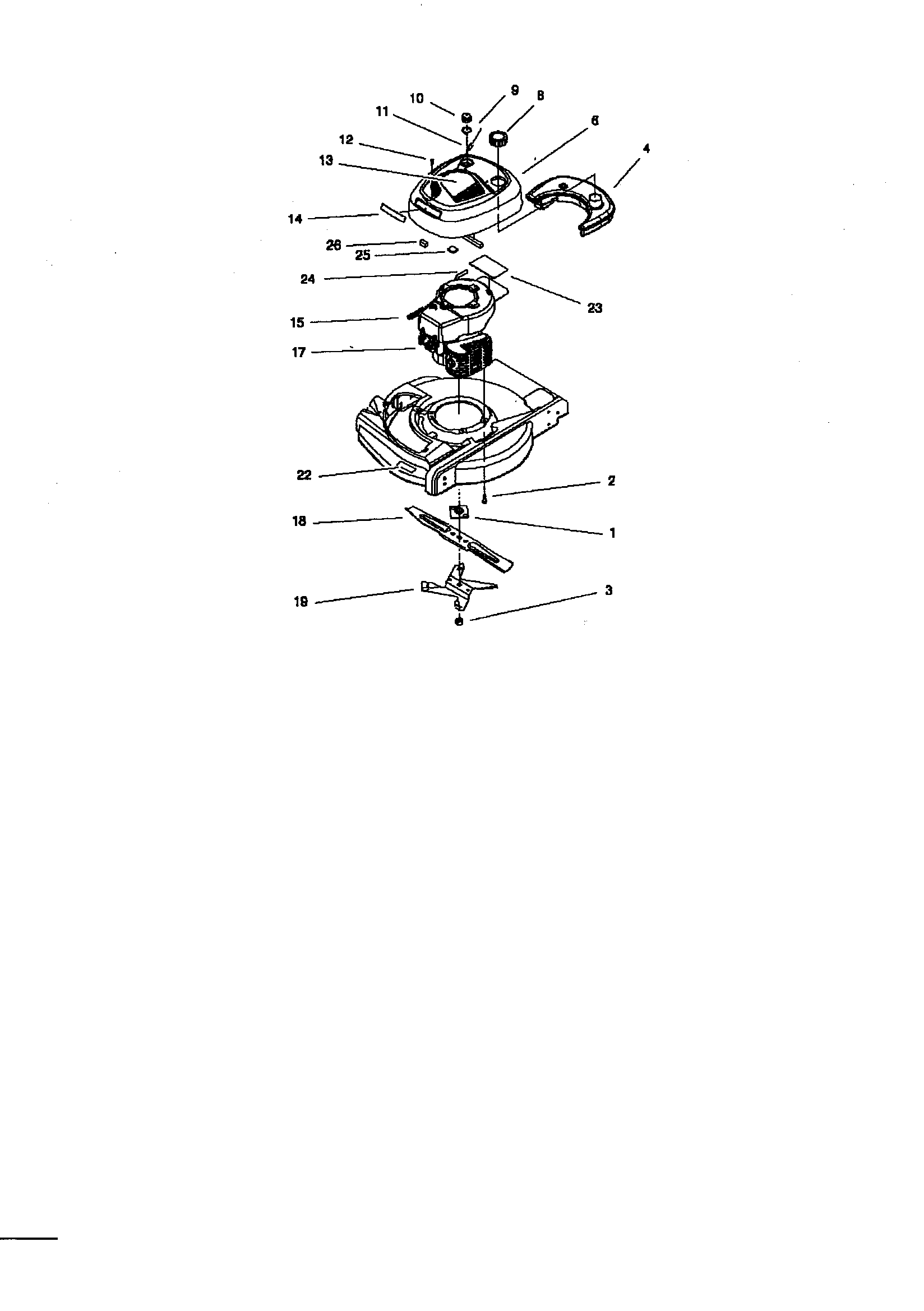

Engine and blade assembly diagram

Belt, 21-in

Part #612543

Replaced by #612543-03

?
Manufacturer substitution
This part replaces 612543. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$38.29 |
20% OFF Was : $48.00
In Stock
Connecting Rod 95-7629
#17

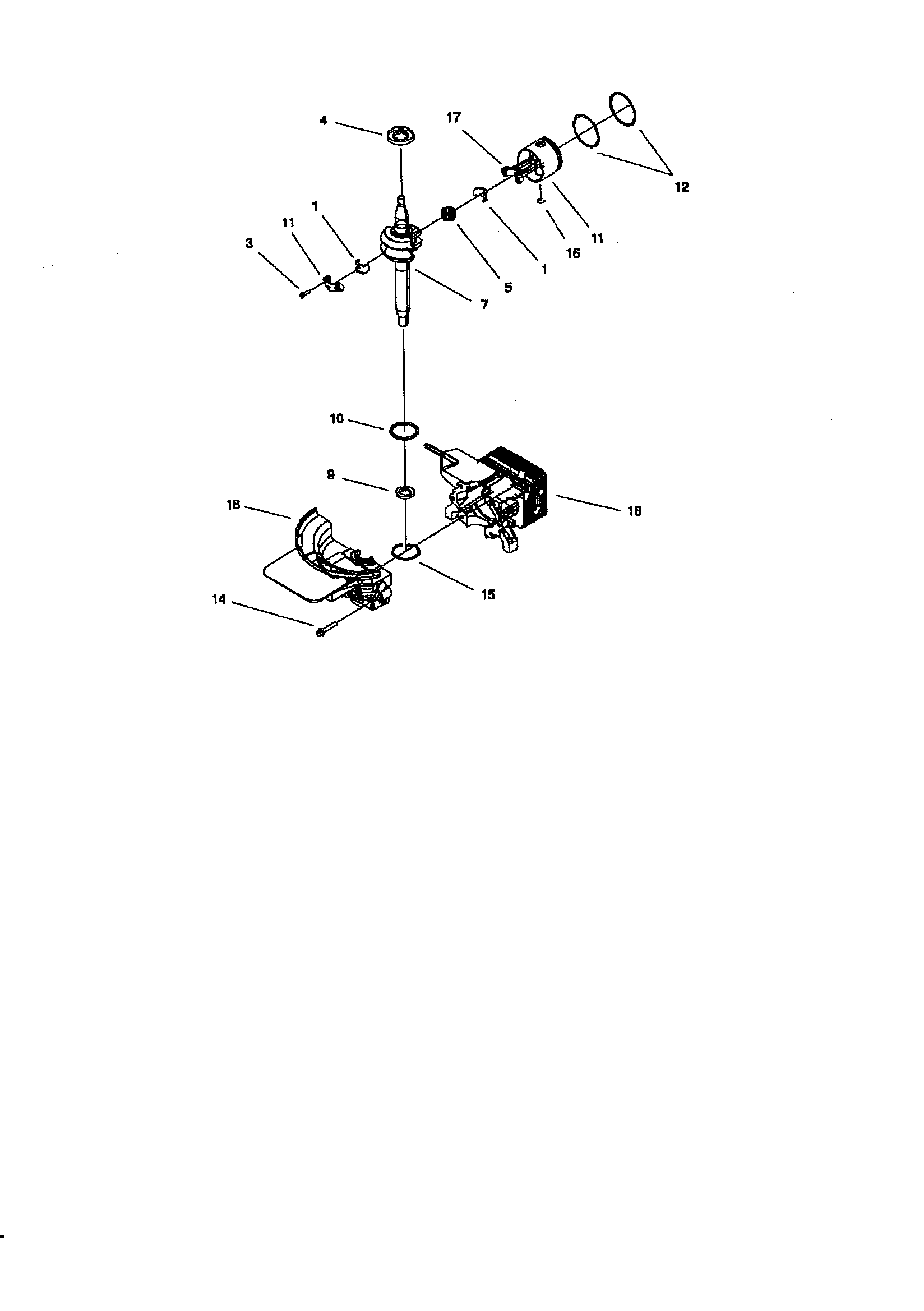

Short block assembly diagram

Connecting rod

Part #95-7629

$166.22
In Stock
Choke 94-5788
#2

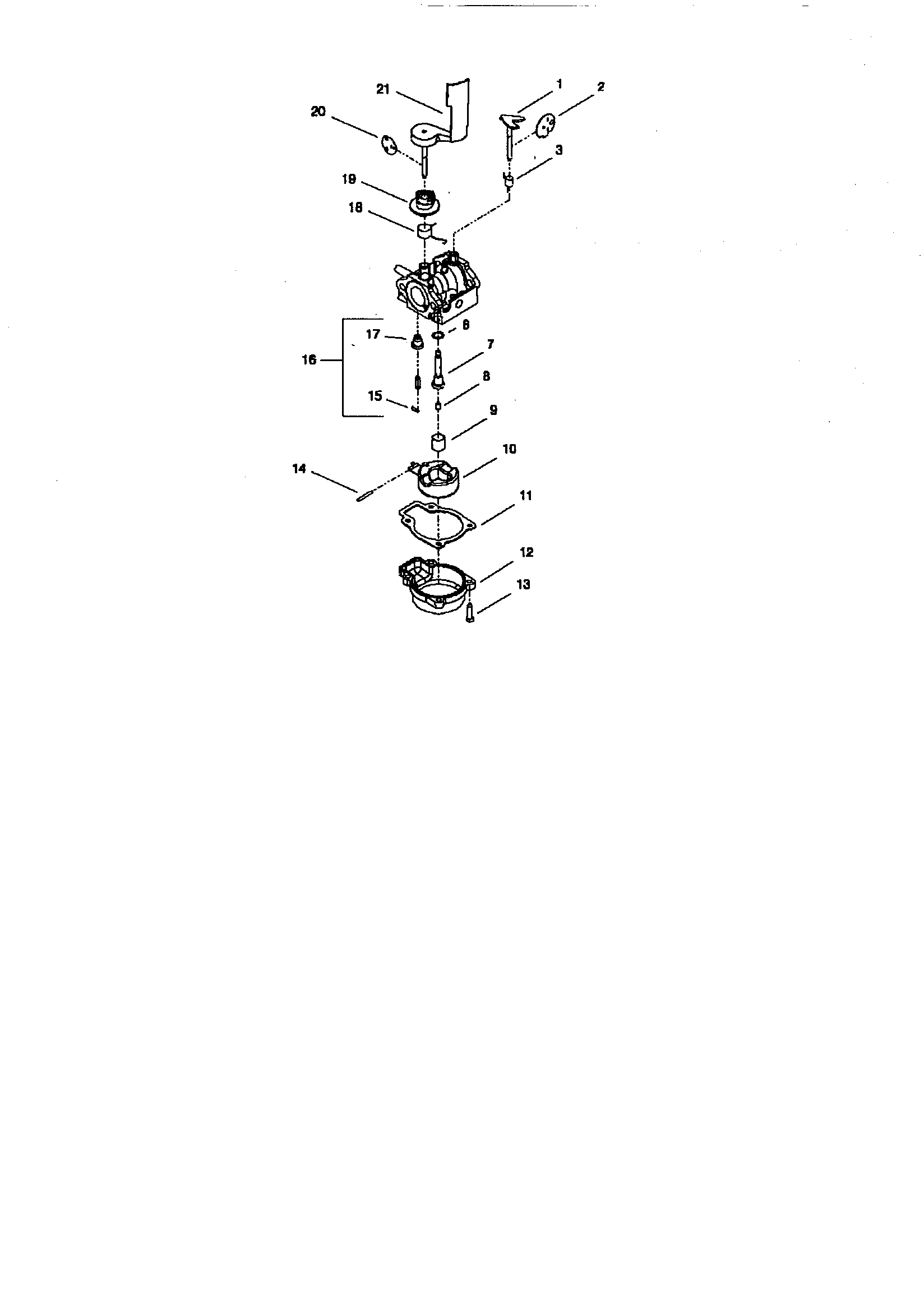

Carburetor assembly diagram

Choke

Part #94-5788

This item is not returnable
$3.20
In Stock
Lock Washer 3254-1
#69

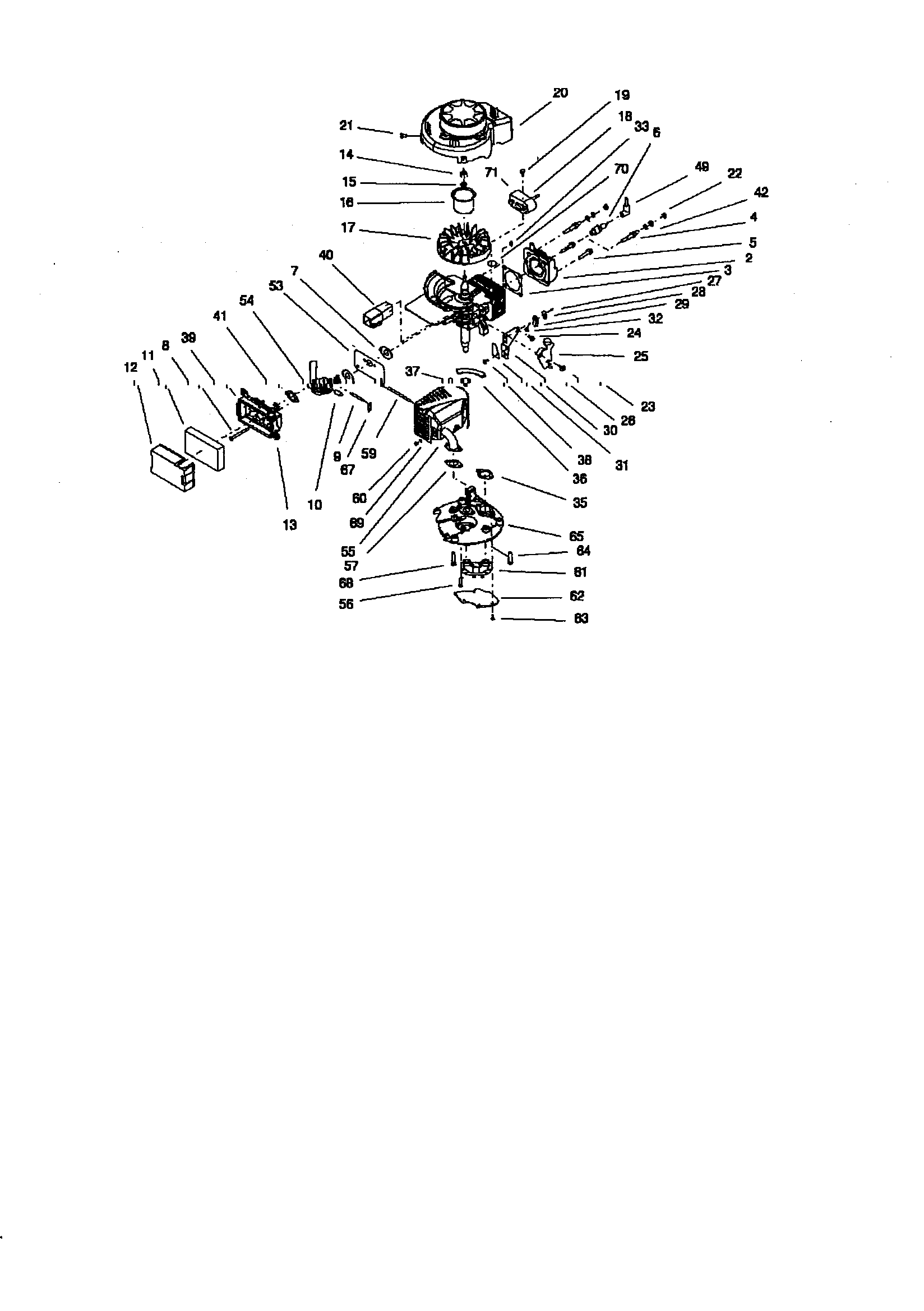

Engine assembly diagram

Lock washer

Part #3254-1

This item is not returnable
$2.16
In Stock
Screw 98-1394
#60

Engine assembly diagram

Screw

Part #98-1394

$8.49
In Stock
