Model #79071014301 Official Kenmore gas range

Here are the diagrams and repair parts for Kenmore 79071014301 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

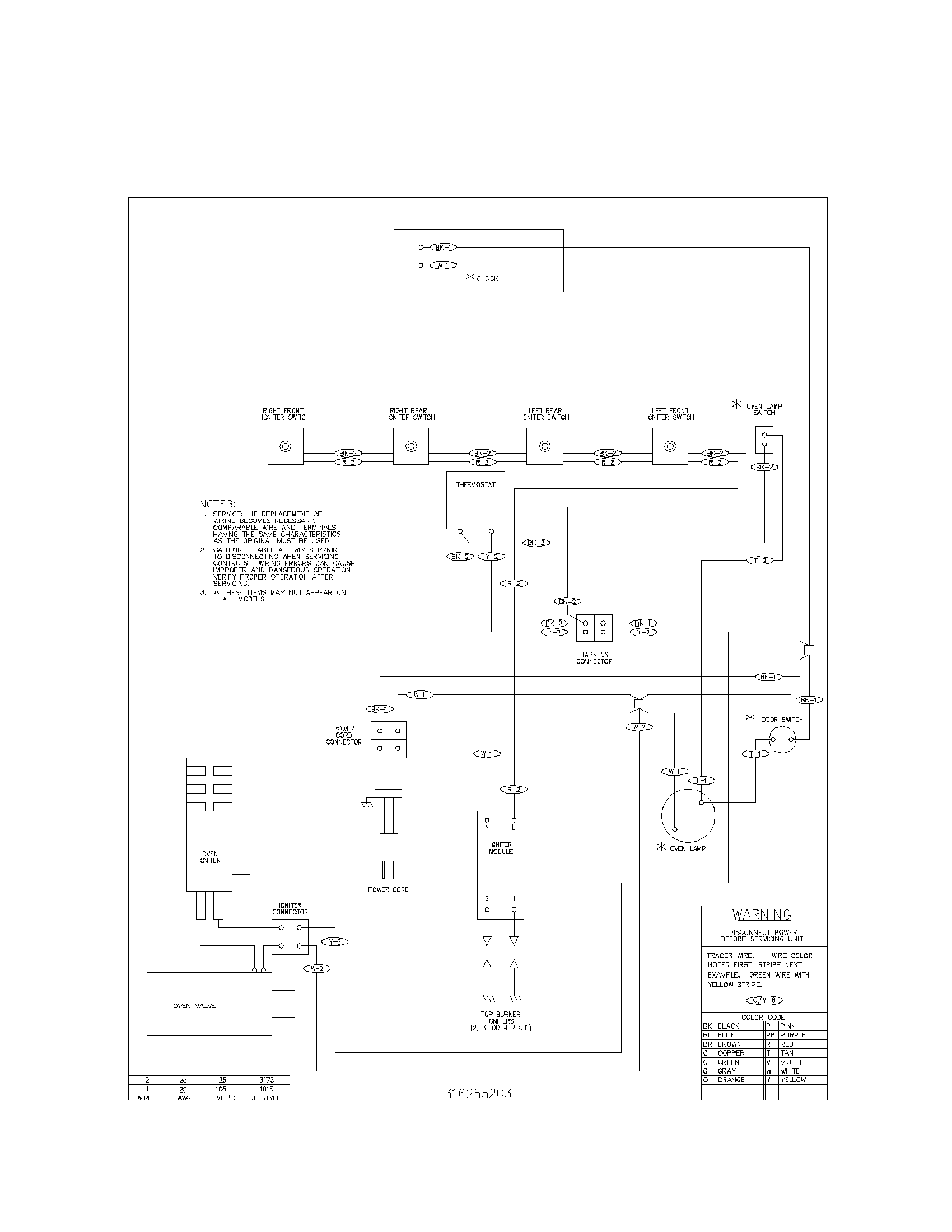

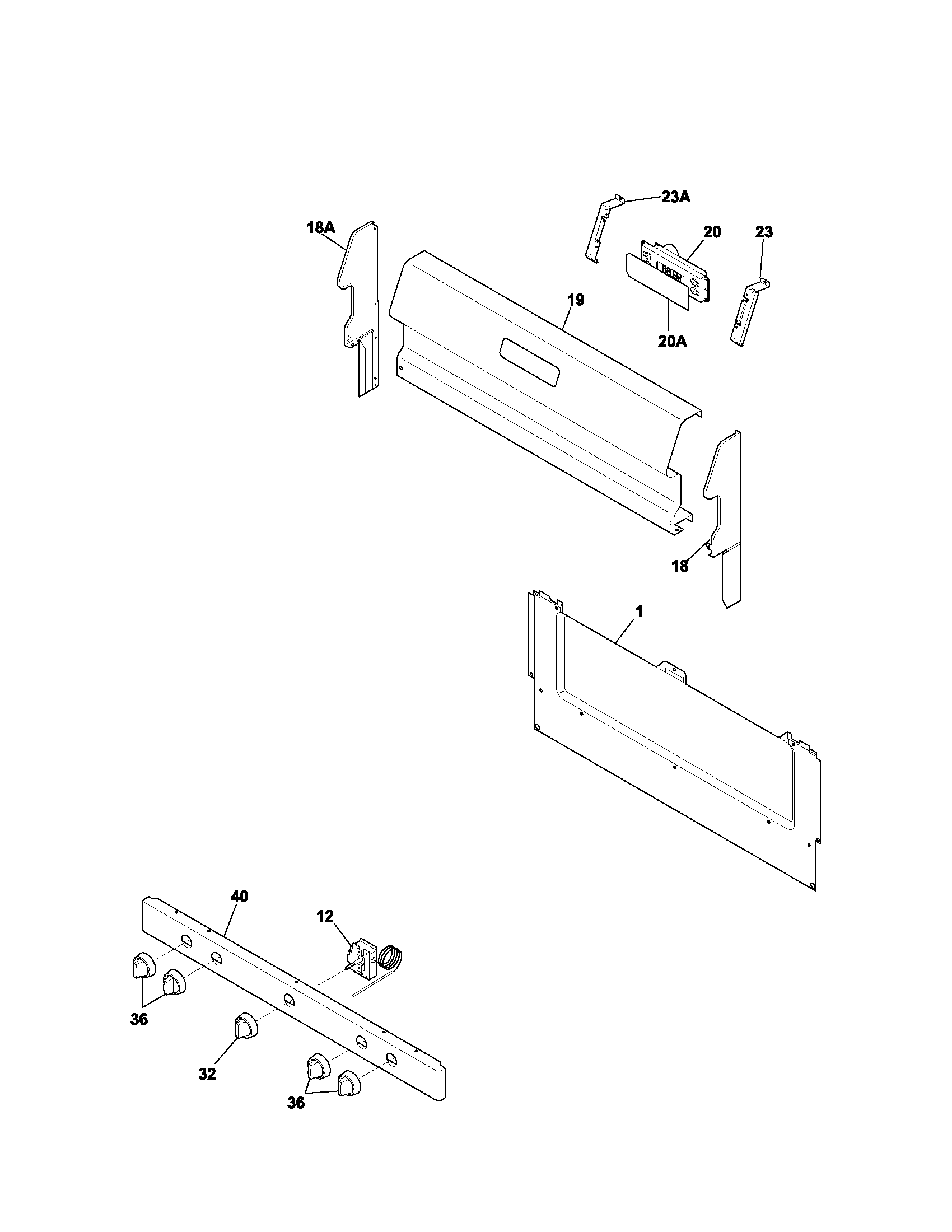

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 128 parts

    Range Oven Burner Igniter#19

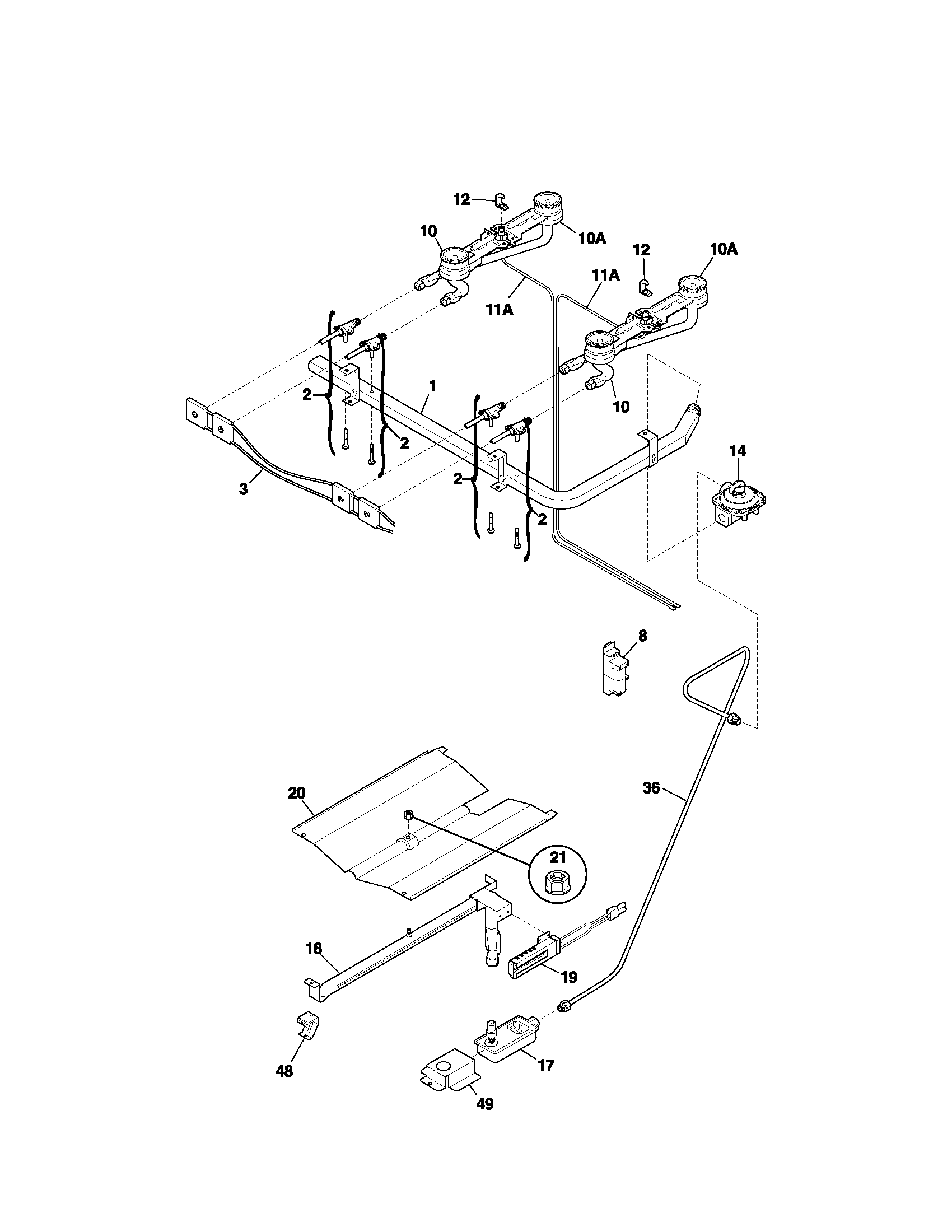

    Burner Diagram

    Range oven burner igniter

    Part #5303935066
    BEST SELLER
    In Stock
    $70.52 |
    12% OFF
    MSRP: $80.00
    Range Oven Rack#6

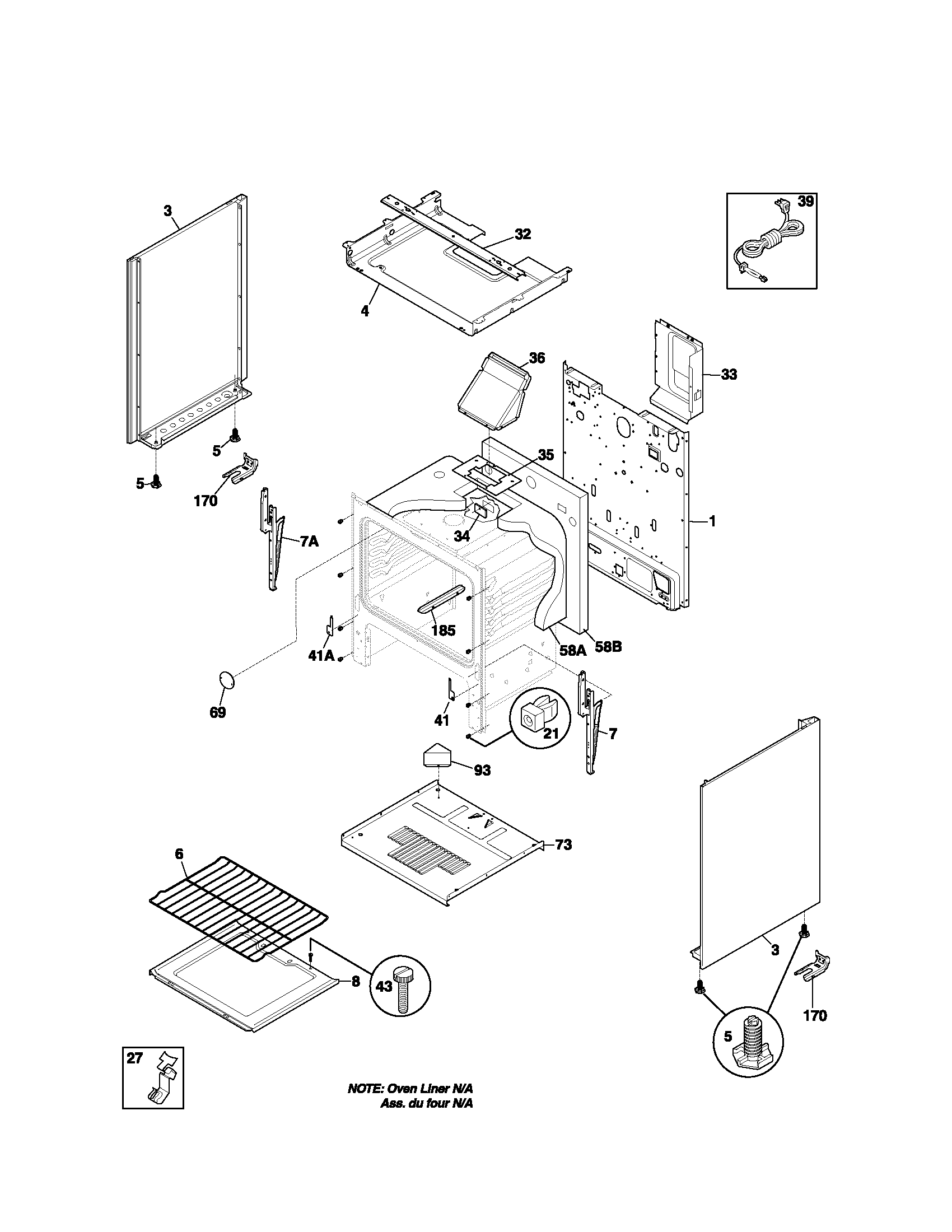

    Body Diagram

    Range oven rack

    Part #316067902
    BEST SELLER
    In Stock
    $51.30 |
    36% OFF
    MSRP: $80.00
    Appliance Touch-Up Paint, 0.6-oz (White)#NI

    Body Diagram

    Paint

    Part #5303305324
    Replaced by #5303321319
    ?
    Manufacturer substitution
    This part replaces 5303305324. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $15.09 |
    12% OFF
    Phone Price: $17.09
    Range Oven Door Seal#12

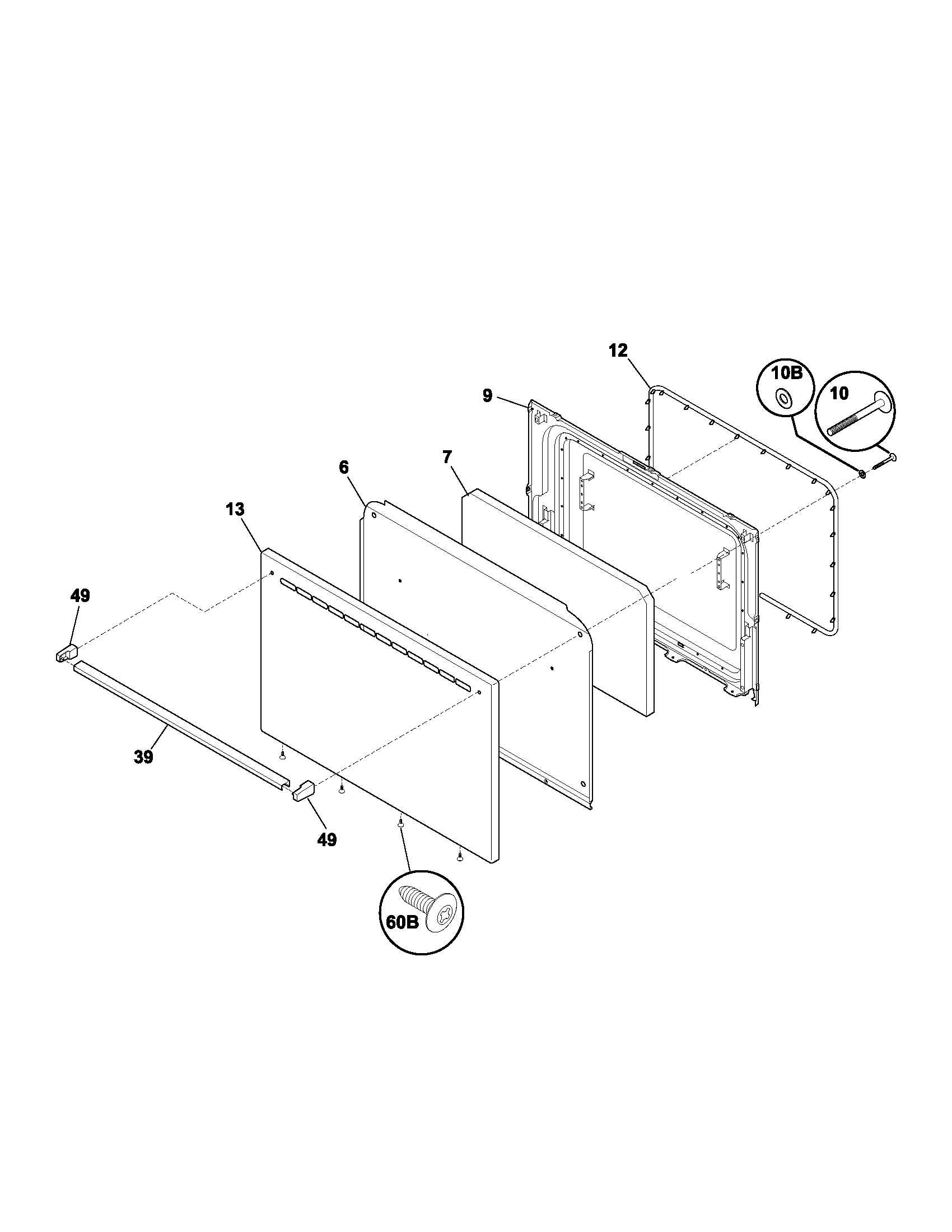

    Door Diagram

    Range oven door seal

    Part #316239700
    BEST SELLER
    In Stock
    $81.09 |
    14% OFF
    MSRP: $94.00
    Range Oven Gas Valve#17

    Burner Diagram

    In Stock
    $234.77 |
    29% OFF
    MSRP: $330.00
    Range Surface Burner, Front#10

    Burner Diagram

    Top f burner

    Part #316103800
    Replaced by #5304506427
    ?
    Manufacturer substitution
    This part replaces 316103800. Substitute parts can look different from the original.
    In Stock
    $60.95 |
    23% OFF
    MSRP: $79.00
    Range Screw#43

    Body Diagram

    Range screw

    Part #3131732
    This item is not returnable
    In Stock
    $11.19 |
    15% OFF
    Phone Price: $13.19
    Range Oven Burner#18

    Burner Diagram

    Range oven burner

    Part #316114300
    In Stock
    $101.60 |
    15% OFF
    MSRP: $120.00
    Range Screw

    See All Related Diagrams

    Range screw

    Part #5308014215
    This item is not returnable
    In Stock
    $2.31
    Range Broil Drawer Rack#85

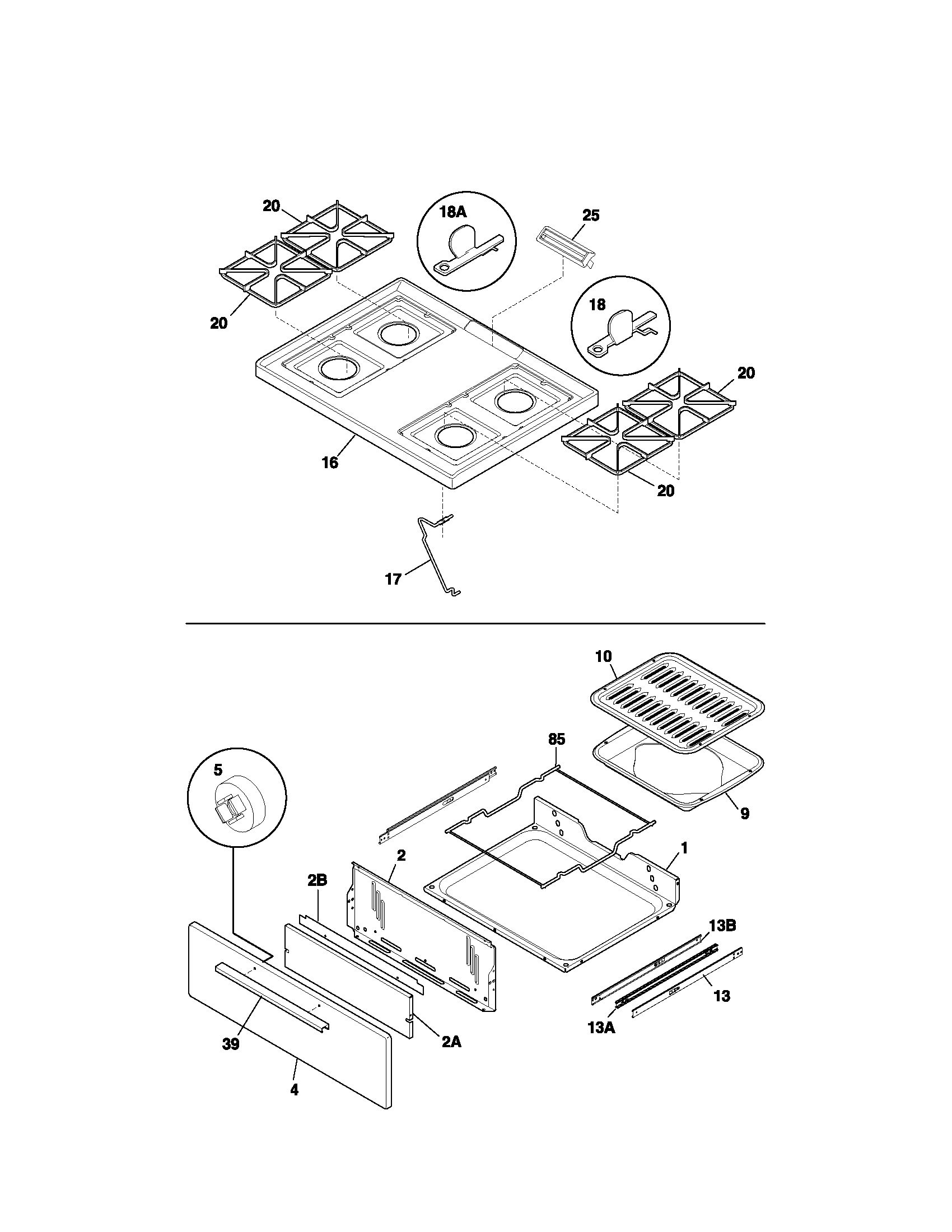

    Top/drawer Diagram

    In Stock
    $73.69 |
    6% OFF
    Phone Price: $78.69
