LG LMXS30776S/04 bottom-mount refrigerator Parts

Most LG refrigerators, including the LG LMXS30776S bottom-mount style, typically last 10 to 15 years with normal household use. Consistent cleaning, correct temperatures, and keeping airflow clear help you reach the high end of that range; major sealed-system failures shorten it.

• Condenser cleanliness: dust buildup makes the compressor run hotter and longer
• Door seal condition: air leaks cause longer run times and frost issues
• Water quality and filter changes: reduces clogs and dispenser/ice maker strain
• Vent clearance and loading: blocked vents create warm spots and overwork fans
• Stable temperatures: frequent warm-ups (door left open) increase wear

• Vacuum dust from the grille and condenser area every 6 to 12 months.
• Keep refrigerator at 37°F and freezer at 0°F (typical targets for food safety and performance).
• Replace the water filter on schedule; see how to replace the water filter in an LG refrigerator.
• Make sure door bins and drawers seat fully so doors close tight.
• Leave space around the cabinet for ventilation; confirm clearances in the LMXS30776S manual.

A refrigerator that runs longer to hold temperature uses more energy and wears out key components faster, especially the compressor and condenser coil. Preventive care is the easiest way to extend service life and avoid cooling problems.

Last updated: February 2026

Yes. On the LG LMXS30776S bottom-mount refrigerator, we recommend DIY replacement for simple, non-sealed-system items (bins, some dispenser parts, water filter, tubing) if you unplug the refrigerator first and follow the steps in the LMXS30776S owner's manual. For sealed-system and refrigerant-related repairs, use a qualified service technician.

Here is a practical way to decide what you can handle yourself.

• Good DIY: door bins, drawers, shelves, water filter changes, basic water line/tube repairs

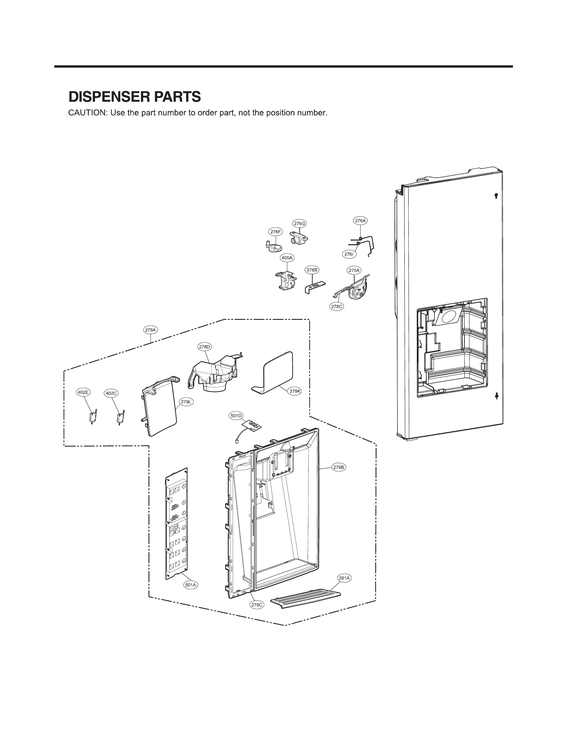

• Sometimes DIY: ice maker/dispenser mechanical parts (if you are comfortable removing panels)
• Pro-only: compressor, evaporator, condenser coil, refrigerant valve, any sealed-system leak or recharge
• Pro-only: control board diagnosis when symptoms are unclear or intermittent
• Stop and reassess: any burning smell, tripped breaker, or damaged wiring

If your issue matches one of these, DIY is usually realistic with basic hand tools.

• Unplug the refrigerator (or switch off the breaker).

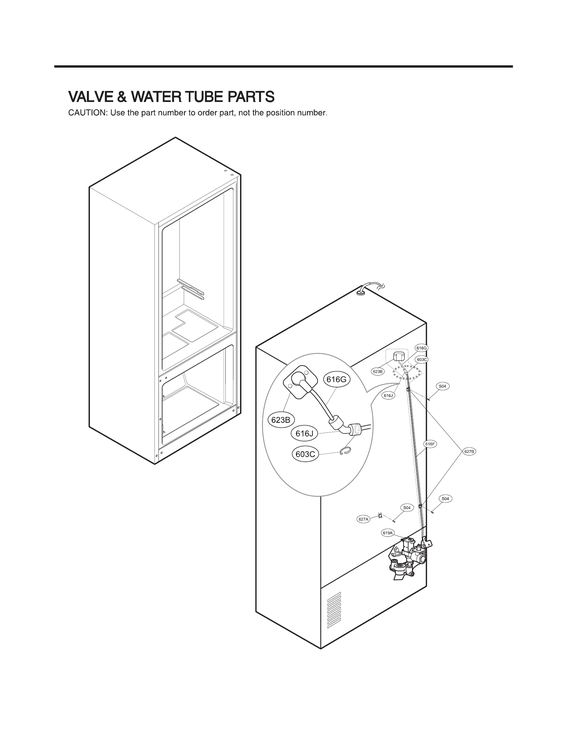

• Shut off the household water supply if you are working on the dispenser/ice maker water line.
• Protect floors; pull the unit out carefully to avoid kinking the water line.
• Take photos of wire connectors and tube routing before disconnecting anything.
• Confirm the model number is LMXS30776S and match the part by part ID.

DIY repairs can save time and money, but sealed-system work (compressor, evaporator, condenser, refrigerant valve) requires specialized tools and refrigerant handling. Choosing the right repair level helps prevent repeat failures and protects the refrigerator’s cooling performance.

Last updated: February 2026

For an LG LMXS30776S refrigerator, repair is worth it when the unit is under warranty, the cabinet and doors are in good shape, and the fix is a moderate-cost part (like a water filter or fan-related issue). It is usually not worth it when the sealed system or compressor repair cost approaches replacement value.

• Age and condition: If shelves, door seals, and drawers are solid, repair makes more sense.
• Problem type: Cooling failures and sealed-system issues are typically the most expensive.
• Repair cost vs. replacement: If the repair is 50% or more of a comparable new refrigerator, replacement is usually the better value.
• Downtime: If you need reliable cooling immediately, long-lead repairs can be a deal-breaker.
• Energy and features: Newer models can reduce energy use, but only justify replacement if repair is costly.

These are examples of higher-impact parts for LG LMXS30776S that can raise the “repair vs replace” decision:

• Refrigerator compressor TCA38091801 (major cooling component)
• Refrigerator evaporator assembly ADL74221802 (sealed-system related cooling hardware)
• Refrigerator condenser coil ACG73645004 (heat rejection; access and labor can vary)

A refrigerator’s value is mostly in its sealed cooling system and cabinet integrity. If the cabinet is sound and the repair restores stable temperatures, repairing your LG bottom-mount refrigerator can extend service life for years. If the repair targets the sealed system, costs and risk rise quickly.

Use the LMXS30776S owner's manual to confirm error indicators, temperature settings, and basic diagnostics; then compare your estimate to replacement cost.

If the issue is water or ice related, our DIY guides can help you avoid unnecessary parts:

• How to replace the water filter in an LG refrigerator
• LG bottom freezer refrigerator error codes

Last updated: February 2026

For the LG LMXS30776S refrigerator, the most common issue we see is a cooling problem: the fresh food section or freezer warms up, temperatures swing, or the unit stops cooling altogether. The next most common complaints are ice maker and water dispenser problems.

• Refrigerator compartment is warm but the lights still work
• Freezer temperature rises or ice cream gets soft
• Clicking, buzzing, or unusual running noises during cooling

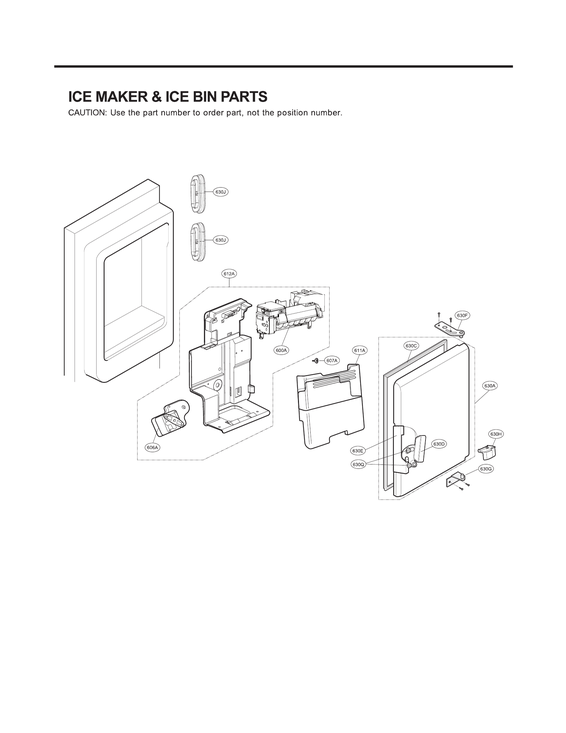

• Ice maker stops producing ice or makes small/hollow cubes
• Water dispenser flow is slow or stops

1. Confirm settings: Set refrigerator to about 37°F and freezer to about 0°F (typical targets).
2. Check airflow: Make sure vents inside the compartments are not blocked by food packages.
3. Clean the condenser area: Dust buildup can reduce heat transfer and cause poor cooling.
4. Look for frost buildup: Heavy frost can point to a defrost or airflow problem.
5. Check the water supply (for ice/water issues): Verify the shutoff valve is fully open and the supply line is not kinked.

Cooling problems can lead to food spoilage quickly, and water/ice issues often trace back to restricted flow (filter, tubing, or fittings). Starting with airflow, cleaning, and filter checks helps avoid unnecessary part replacement.

• Use the LMXS30776S owner's manual for temperature recommendations, control panel functions, and basic troubleshooting.
• For filter-related issues and replacement steps, follow how to replace the water filter in an LG refrigerator.
• If the display shows an error, use LG bottom freezer refrigerator error codes to narrow down the system involved.

Last updated: February 2026
