GE
Gas Cooktop

Model # JGP989KK1CC Official GE gas cooktop

Here are the diagrams and repair parts for Official GE JGP989KK1CC gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Grate Rubber Foot WB02T10101
#50

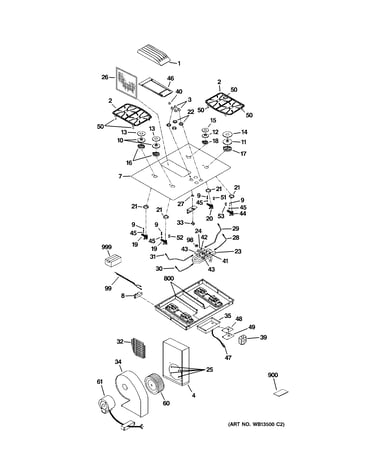

Control panel & cooktop diagram

Grate rubber foot

Part #WB02T10101

Replaced by #WB02T10461

?
Manufacturer substitution
This part replaces WB02T10101. Substitute parts can look different from the original.
BEST SELLER
$7.64
12% OFF Phone Price : $8.64
In Stock
Range Surface Burner Head WB16T10028
#10

Control panel & cooktop diagram

Range surface burner head

Part #WB16T10028

$66.92
7% OFF Phone Price : $71.92
In Stock
Range Surface Burner Orifice WB28T10014
#52

Control panel & cooktop diagram

Range surface burner orifice

Part #WB28T10014

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Cooking Appliance Fan Blade WB26X10130
#60

Control panel & cooktop diagram

Cooking appliance fan blade

Part #WB26X10130

$44.39
10% OFF Phone Price : $49.39
In Stock
Cooktop Orifice Spud WB28X10030
#31

Control panel & cooktop diagram

Cooktop orifice spud

Part #WB28X10030

In Stock
Grommet Valve WB32X10019
#22

Control panel & cooktop diagram

Grommet valve

Part #WB32X10019

In Stock
Gasket Manif WB06X10276
#48

Control panel & cooktop diagram

Gasket manif

Part #WB06X10276

In Stock
Reflective T WB06X10694
#999

Control panel & cooktop diagram

Reflective t

Part #WB06X10694

In Stock
Cooktop Orifice Spud WB28T10013
#51

Control panel & cooktop diagram

Cooktop orifice spud

Part #WB28T10013

In Stock
Guard Wire WB02X10652
#32

Control panel & cooktop diagram

Guard wire

Part #WB02X10652

$30.65
14% OFF Phone Price : $35.65
In Stock
