KitchenAid KDPM604KPS3 dishwasher Parts

KitchenAid dishwashers such as model KDPM604KPS3 do not come with a lifetime warranty as standard coverage; typical coverage is a limited warranty with a defined time period (commonly one year for parts and labor). For warranty terms that apply to your unit, use your purchase date and warranty paperwork.

What warranty coverage usually means

Most dishwasher warranties are written to cover defects in materials or workmanship for a set time window. Coverage details can vary by seller, installation situation, and what part fails.

Common warranty details to confirm:

• Coverage length for parts and labor
• What is considered a defect vs. normal wear
• Whether service must be performed by an authorized servicer
• Exclusions (filters, seals, clogs, cosmetic issues)
• Proof of purchase requirements

If you are troubleshooting a failure during the warranty period

Even when a repair is covered, it helps to identify the failing system so you can describe symptoms clearly.

Typical dishwasher problem areas:

• No fill or slow fill (water inlet valve, float switch)
• Not draining (drain hose, drain path restrictions)
• Leaks at the door (tub gasket, door bottom seal)
• Poor cleaning (spray arm/manifold, filter, sump and motor)

Helpful parts for common symptoms on KDPM604KPS3:

• Fill valve assembly W11434044
• Float switch W11545764
• Dishwasher filter W11568785

Quick symptom-to-part map

Symptom	Most likely area	Example part on this model
Won’t fill	Water inlet system	Fill valve assembly
Overfills or won’t stop filling	Float/overfill protection	Float switch
Dishes gritty or food left behind	Filtration/wash action	Dishwasher filter

Why it matters

Warranty coverage is time-based; confirming the exact term helps you decide whether to pursue a warranty repair or move straight to diagnosing and replacing a failed part.

Last updated: February 2026

The most common issue we see with KitchenAid dishwashers, including model KDPM604KPS3, is poor cleaning (dishes come out with food residue). In most cases, the cause is restricted water flow or circulation from a dirty filter, clogged spray system, or a wash pump that is not moving enough water.

Quick checks that fix most “not cleaning” complaints

• Clean the filter and remove any debris (seeds, labels, glass) that can block flow; if the filter is damaged, replace the dishwasher filter W11568785.
• Spin and rinse the spray arms and manifold; clear any plugged jet holes (toothpick works well) and check for cracks; replace if needed with the dishwasher manifold and spray arm assembly W11545334.
• Confirm hot water supply to the dishwasher (most homes target about 120°F at the sink) and run hot water at the faucet before starting a cycle.
• Load correctly so tall items do not block spray rotation; keep plates from nesting.
• Use fresh detergent and avoid overfilling; make sure the dispenser door can open freely.
• Choose a cycle that matches soil level; heavier soil needs a heavier cycle.

What to suspect if cleaning is still poor

Symptom	Most likely area	Common part to inspect on KDPM604KPS3
Weak spray, gritty residue	Filtration or spray system	Dishwasher filter W11568785, dishwasher manifold and spray arm assembly W11545334
Detergent not dissolving well	Water temperature or circulation	Wash system (pump/sump)
Dishes look “rinsed” but not washed	Low wash pressure	Sump and motor assembly

Why it matters

Poor cleaning is usually a water movement problem. When the filter or spray system is restricted, the dishwasher cannot maintain the pressure and coverage needed to remove soil, so performance drops even if the unit fills and drains normally.

Helpful DIY reference

If you are also seeing blinking lights or a fault code, use the KitchenAid microclean he dishwasher error codes guide to match the code to the most likely cause before replacing parts.

Last updated: February 2026

For a KitchenAid KDPM604KPS3 dishwasher, the most commonly replaced parts are the ones tied to filling, draining, washing, and sealing. When symptoms show up (won’t fill, won’t drain, leaks, poor cleaning), these parts are the first places we check and replace.

Commonly replaced dishwasher parts (and what they affect)

• Water fill parts: a failed inlet valve or inlet can cause no fill, slow fill, or overfilling.
• Drain parts: a clogged or split drain hose can cause standing water or leaks.

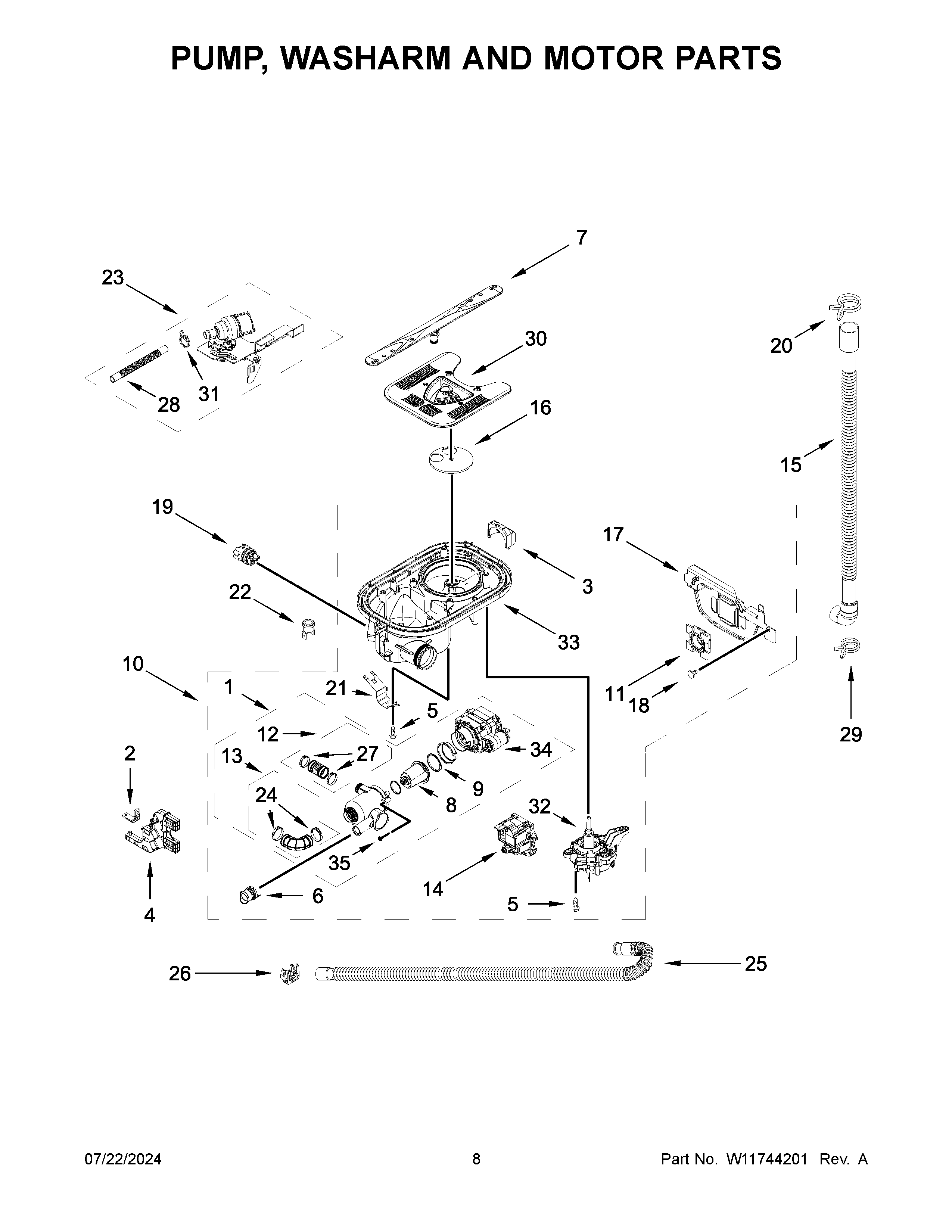

• Wash system parts: spray arm and manifold issues can cause poor cleaning or low spray pressure.
• Filtration: a dirty or damaged filter can lead to debris redepositing on dishes.
• Door sealing and leak points: worn gaskets and door seals can cause water on the floor.
• Safety and start components: a bad latch or float switch can prevent filling or starting.

KDPM604KPS3 parts we often see replaced

Symptom	Likely part to check	Example part for this model
Won’t fill or fills slowly	Fill valve / water inlet	Fill valve assembly W11434044, water inlet W11535094
Won’t drain or leaks at drain line	Drain hose	Dishwasher drain hose W11551233
Poor cleaning, weak spray	Spray arm/manifold	Dishwasher manifold and spray arm assembly W11545334
Grity dishes, debris in tub	Filter	Dishwasher filter W11568785
Leaks at door	Door seals and gaskets	Gasket-tub,d W11483553, seal, door bottom W11664713
Won’t start or stops mid-cycle	Door latch/switch	Latch assembly (includes switch) W11412299

Why these parts fail most often

These components handle water flow, heat, detergent, and constant movement every cycle. Mineral buildup, food debris, and normal wear on rubber seals and switches make them the most frequent replacement items in most dishwashers.

Quick checks before you order a part

• Clean the filter and check for broken mesh or cracks.
• Inspect the spray arm holes for clogs and the arm for splits.
• Look for kinks, pinholes, or loose connections on the drain hose.
• Check the door seal area for tears, flattening, or debris preventing a tight seal.
• Make sure the float moves freely (no debris holding it up).

Last updated: February 2026
