Gas Walk-Behind Mower

Model # 917387581 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917387581 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Lock Nut 83923
#46

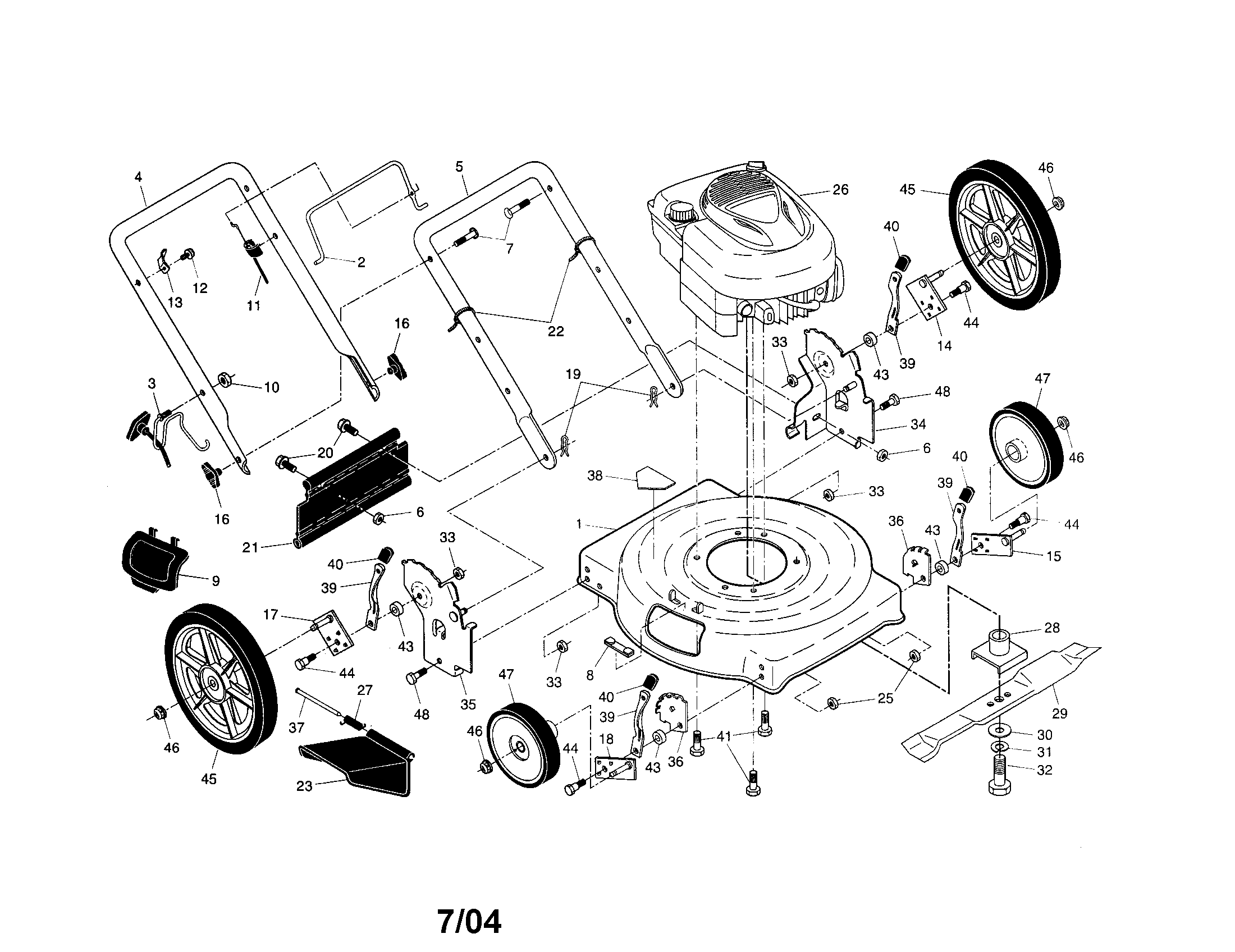

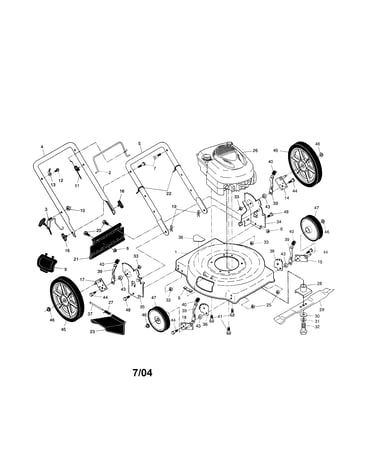

Engine/housing/handle/wheels diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.47 |
13% OFF Phone Price : $6.31
In Stock
Lawn Mower Blade 141114
#29

Engine/housing/handle/wheels diagram

Lawn mower blade

Part #141114

Replaced by #532406713

?
Manufacturer substitution
This part replaces 141114. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Skirt 189008
#21

Engine/housing/handle/wheels diagram

Skirt

Part #189008

Replaced by #413160

?
Manufacturer substitution
This part replaces 189008. Substitute parts can look different from the original.
BEST SELLER
$9.13 |
7% OFF Phone Price : $9.86
In Stock
Hndl.knob.bl 189713X428
#16

Engine/housing/handle/wheels diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn & Garden Equipment Screw 851084
#32

Engine/housing/handle/wheels diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532435345

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
Back Order
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#30

Engine/housing/handle/wheels diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

BEST SELLER
This item is not returnable
$2.79 |
26% OFF Phone Price : $3.79
In Stock
Lawn Mower Wheel 188808
#45

Engine/housing/handle/wheels diagram

Lawn mower wheel

Part #188808

Replaced by #532189159

?
Manufacturer substitution
This part replaces 188808. Substitute parts can look different from the original.
BEST SELLER
$42.23 |
15% OFF Phone Price : $49.54
In Stock
Lawn & Garden Equipment Lock Nut 73800400
#6

Engine/housing/handle/wheels diagram

Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Nut 132004
#10

Engine/housing/handle/wheels diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn Mower Cable Bracket 86899X004
#13

Engine/housing/handle/wheels diagram

Lawn mower cable bracket

Part #86899X004

Replaced by #429930X004

?
Manufacturer substitution
This part replaces 86899X004. Substitute parts can look different from the original.
This item is not returnable
$3.59 |
22% OFF Phone Price : $4.59
In Stock
