Kenmore Elite 79078303014 gas range Parts

For Kenmore Elite gas ranges like model 79078303014, the model number is on the appliance identification plate. On this style of range, we find it on the right-hand surface of the oven front frame, and you access it by opening the storage drawer, warmer drawer, or broiler drawer; confirm the number in the 79078303014 installation guide.

Where to look on the range

Check these common spots first (in order):

• Open the storage drawer (or warmer/broiler drawer) and look up at the oven front frame
• Look on the right-hand side of the oven front frame (identification plate area)
• Check the back panel of the range if the label is not visible from the front
• If the label is dirty or faded, wipe it gently and re-check the characters

What the model number looks like

The model number is usually printed near “Model” or “Model No.” on the identification plate. For Kenmore ranges, the first three digits often indicate the manufacturing source.

What you see	What it means	Why it helps
Model number (example: 79078303014)	Exact appliance identity	Ensures correct parts and diagrams
Serial number	Unique unit identifier	Helps match production details
Burner ratings and fuel info	Factory setup details	Confirms gas type and pressure

Why it matters

Using the exact model number prevents ordering the wrong igniter, temperature sensor, control board, or burner parts. It also helps you match the correct wiring diagram and installation requirements for your specific Kenmore Elite range.

Tips when ordering parts

• Copy the model number exactly, including all digits
• Record the serial number too
• Use the identification plate info to confirm fuel type (natural gas vs LP conversion)
• If you are replacing an oven ignition part, match it to the correct circuit and burner location

Last updated: February 2026

To reset your Kenmore Elite gas range model 79078303014, turn the range controls to OFF, then reset power at the breaker (or unplug if accessible) for about 1 minute and restore power. This clears many control glitches and restores normal operation.

Safe reset steps (recommended)

• Turn all surface burner knobs to OFF.
• If the oven is running, press Cancel/Off (if your control panel has it), then confirm the display is off.
• Switch the range circuit OFF at the home breaker (or unplug the cord if you can reach it safely).
• Wait 60 seconds.
• Restore power, then set Bake 300°F and confirm the oven burner ignites within about 60 seconds.

If the oven still will not heat after a reset

A reset will not fix an ignition or temperature-sensing failure. For this model, these checks narrow it down fast:

• No glow from igniter during Bake: the igniter circuit is likely the issue.
• Igniter glows but no flame: gas flow or valve control can be the issue.
• Heats but temperature is erratic: the sensor or control can be the issue.

Symptom after reset	Most common cause	Part to consider for 79078303014
No heat, no igniter glow	Failed igniter or wiring	Tappan range oven burner igniter 316489403
Oven heats but runs too hot/cold	Temperature sensing problem	Frigidaire range oven temperature sensor 316490000

Why it matters

Resetting power is a quick way to clear a stuck control state, but gas-range heating depends on reliable ignition and accurate temperature feedback. Verifying ignition at Bake 300°F helps separate a simple control reset from a part failure.

Where to find model-specific operating details

For exact button sequences, display messages, and normal burner ignition behavior for model 79078303014, follow the steps in the 79078303014 owner's manual.

Last updated: February 2026

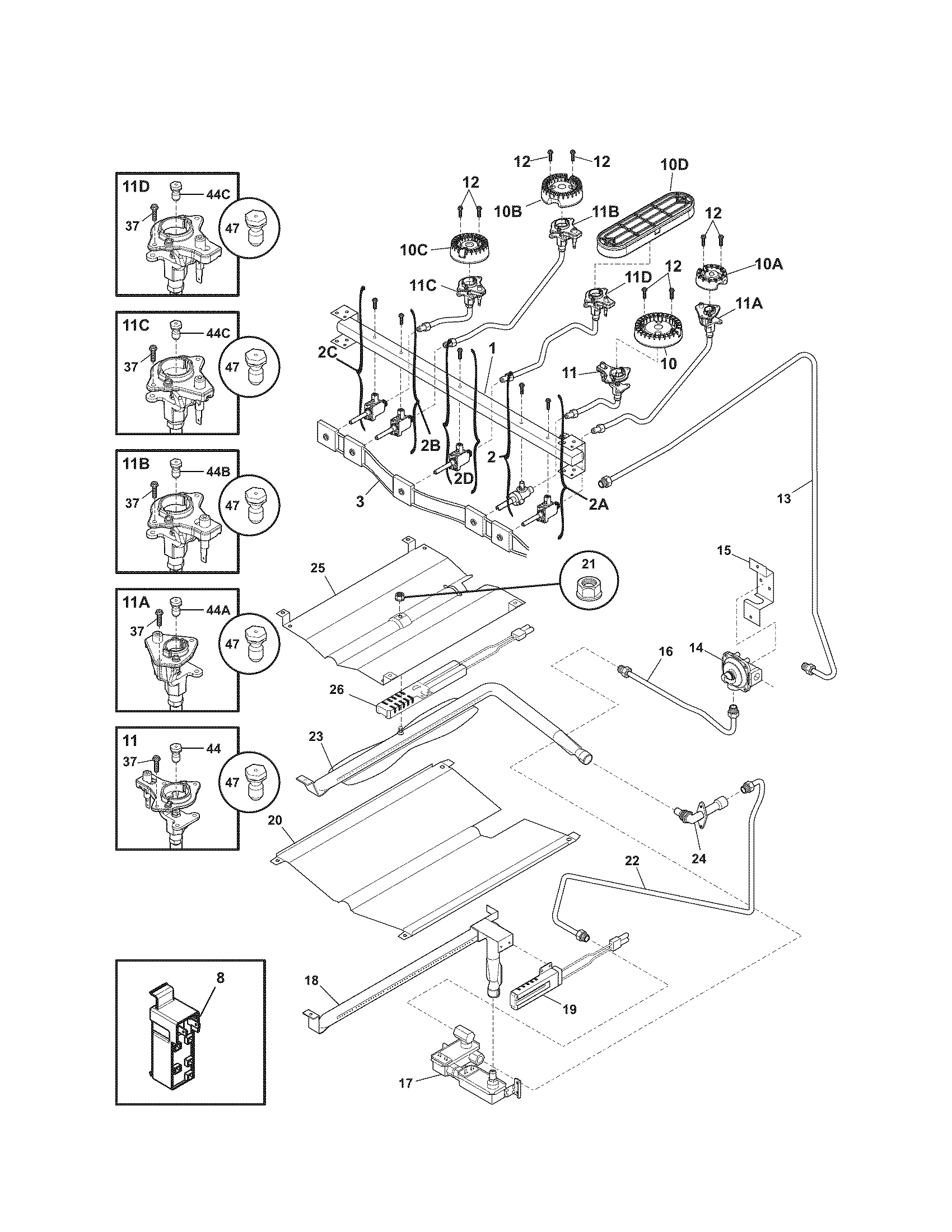

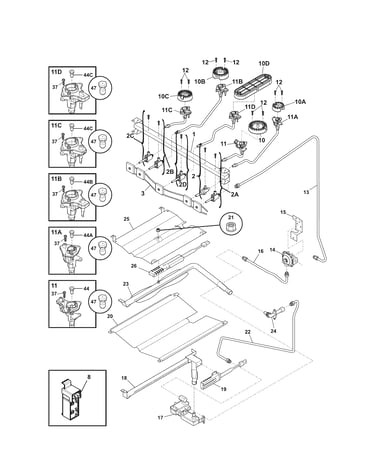

On Kenmore Elite gas range model 79078303014, replacing a surface-burner spark electrode (igniter) means removing the burner parts, swapping the electrode at the igniter wire connection, then reassembling the burner so the cap is centered and the burner lights within about 4 seconds when turned to LITE. See the 79078303014 installation guide for burner-cap seating and ignition checks.

Before you start (safety and access)

• Turn all burner knobs to OFF.
• Shut off the gas supply to the range.
• Unplug the range or switch OFF the circuit breaker (spark ignition needs power).
• Let the cooktop cool completely.
• Work on one burner at a time so parts do not get mixed.

Replacement steps (surface burner electrode)

1. Remove the burner grate.
2. Lift off the burner cap and burner head.
3. Remove the screw holding the electrode to the orifice holder (keep the screw).
4. Disconnect the igniter wire from the old electrode.
5. Connect the wire to the new electrode; push the connector on firmly (crimp only if your connector style requires it).
6. Reinstall the electrode and secure it with the screw.
7. Reinstall the burner head and cap.

Reassembly checks that prevent misfires

Correct burner-cap seating is critical for reliable ignition.

• Center the cap on the burner head.
• Press down so it is firmly seated; you may hear a light “click” when the cap lip seats.
• The cap should not slide off-center when nudged side to side.

Quick ignition test (what “normal” looks like)

After restoring power and gas:

• Turn the knob to LITE; you should hear sparking.
• The burner should ignite when gas is available.
• After air is purged from the line, each burner typically lights within 4 seconds.
• Once lit, turn the knob out of LITE and confirm a steady flame.

Symptom after replacement	Most common cause	What to check
Clicking but no flame	Gas not reaching burner	Gas shutoff open; burner head/cap seated correctly
Delayed ignition	Cap/head misaligned	Re-seat cap until centered and stable
Weak or unstable low flame	Low setting needs adjustment	Follow the low-flame adjustment procedure in the guide

Why it matters

A properly installed electrode and correctly seated burner cap help the burner ignite quickly and evenly, reducing delayed ignition, uneven flames, and nuisance clicking.

Last updated: February 2026

A Kenmore gas range like model 79078303014 typically lasts 15 years with normal household use. Keeping burners clean, confirming proper ignition, and maintaining safe clearances during installation all help the range heat consistently and reduce wear on ignition and gas components.

Typical lifespan and what affects it

Most ranges reach their full life when heat, airflow, and ignition stay stable.

• Heavy daily cooking shortens lifespan; light use extends it
• Frequent self-clean cycles can accelerate wear on door lock and electronics
• Poor flame quality (yellow, lifting, or weak flame) increases stress on the oven system
• Grease and spills around burner heads can cause hard lighting and uneven flames
• Power issues (outlet, wiring, loose connections) can lead to intermittent ignition

Maintenance that helps you reach 15 years

Use these habits to reduce common failures on a gas stove.

• Keep burner caps and burner heads seated correctly after cleaning
• Wipe spills promptly so ports do not clog
• Verify each surface burner lights quickly; normal ignition is within about 4 seconds after air is purged
• For oven bake, expect a 30 to 60 second delay before the burner lights; that is normal for glow-bar ignition
• Replace weak igniters early to prevent long preheat times and temperature swings

Quick symptom-to-part guide (common wear items)

Symptom	Most likely area	Example part for this model
Oven will not ignite or takes too long to light	Oven igniter	Tappan range oven burner igniter 316489403
Oven temperature seems off	Temperature sensing	Frigidaire range oven temperature sensor 316490000
Surface burners click but do not light reliably	Spark/ignition circuit	Range spark module 5304508269

Why it matters

A gas range can appear “worn out” when the real issue is a slow igniter, dirty burner ports, or an ignition component that is no longer delivering consistent spark or heat. Fixing those items restores normal lighting and steadier baking, which helps the range reach its expected service life.

For model-specific operating and care details, follow the 79078303014 owner's manual.

Last updated: February 2026

On the Kenmore Elite gas range model 79078303014, the model and serial number label is on the right-hand surface of the oven front frame. You access it by opening the storage drawer, warmer drawer, or broiler drawer (depending on your configuration); see the 79078303014 installation guide.

How to find it (quick steps)

• Turn the range off and let it cool.
• Pull open the bottom drawer (storage, warmer, or broiler drawer).
• Look at the right side of the oven front frame for the identification plate.
• Write down the model number and serial number exactly as shown.
• Keep the numbers handy when ordering parts or scheduling service.

Common label locations (what to check first)

Even on Kenmore ranges, the most reliable spot for 79078303014 is the oven front frame behind the lower drawer. If you are checking other appliances or older ranges, these are also common:

Appliance area	Typical label spot	When it applies
Oven front frame	Right-hand side behind lower drawer	Most common for this model
Door jamb	Around the oven door opening	Some ranges
Back panel	Near the power cord or gas connection area	Some installations

Why it matters

The identification plate lists more than the model number. It also helps confirm burner ratings and fuel setup, which prevents ordering the wrong igniter, gas valve, or control board for your Kenmore Elite range.

Last updated: February 2026
