Model # 38QRR018300 Official Carrier heat pump

Here are the diagrams and repair parts for Official Carrier 38QRR018300 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Contactor HN51KB024
#41

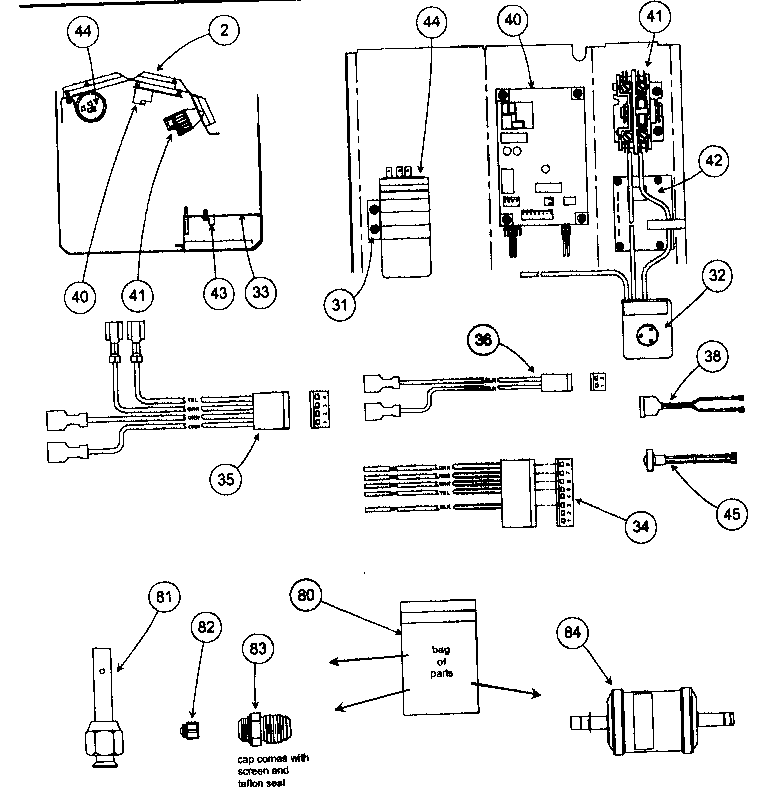

Control assy diagram

Contactor

Part #HN51KB024

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Filter Dryer KH43LG072
#84

Control assy diagram

Central air conditioner filter dryer

Part #KH43LG072

$127.84
In Stock
Plug Assembly 324091-406
#32

Control assy diagram

Plug assembly

Part #324091-406

Replaced by #P298-001

?
Manufacturer substitution
This part replaces 324091-406. Substitute parts can look different from the original.
$45.89
In Stock
Switch HK02ZA404
#71

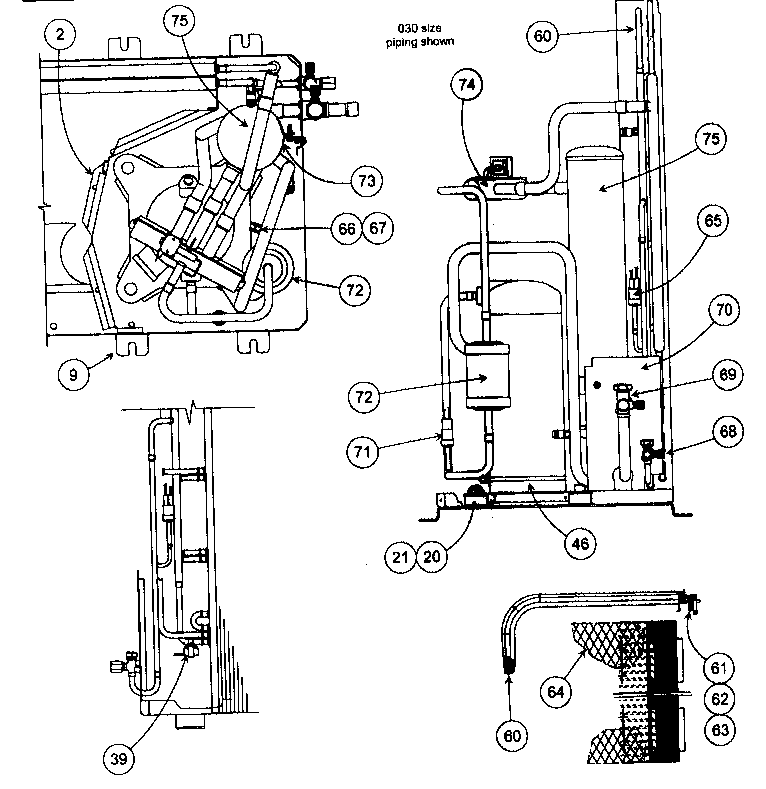

Inside cabinet parts diagram

Switch

Part #HK02ZA404

$92.49
In Stock
Propeller LA01LA042
#54

Outside cabinet parts diagram

Propeller

Part #LA01LA042

$187.70
In Stock
Harness,wi 38QR401031
#36

Control assy diagram

Harness,wi

Part #38QR401031

$339.37
In Stock
Cap EA52PL001
#83

Control assy diagram

Cap

Part #EA52PL001

$35.58
In Stock
Valve EF17BZ113
#74

Inside cabinet parts diagram

Valve

Part #EF17BZ113

$338.00
In Stock
Muffler LM10KH017
#72

Inside cabinet parts diagram

Muffler

Part #LM10KH017

$85.84
In Stock
Harness,wi 38QR401029
#34

Control assy diagram

Harness,wi

Part #38QR401029

$30.38
In Stock
