Model # JGP970TEK6WW Official GE gas cooktop

Here are the diagrams and repair parts for Official GE JGP970TEK6WW gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Screw WH02X0930
#875

Gas & burner parts diagram

Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Screw WB01K5150
#699

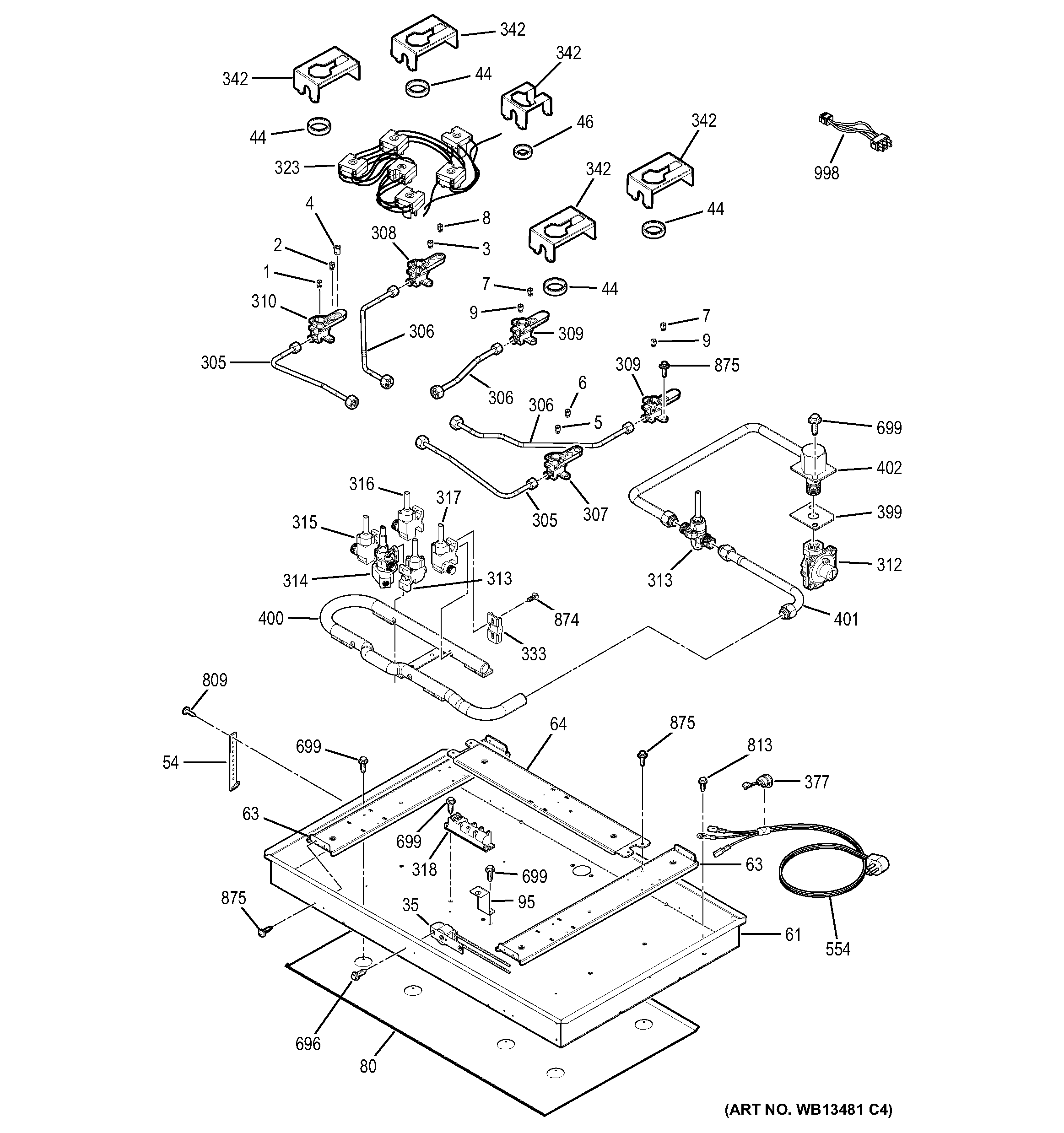

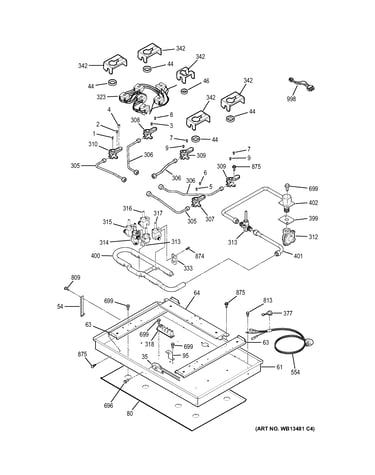

Gas & burner parts diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Range Surface Burner Head WB16T10037
#150

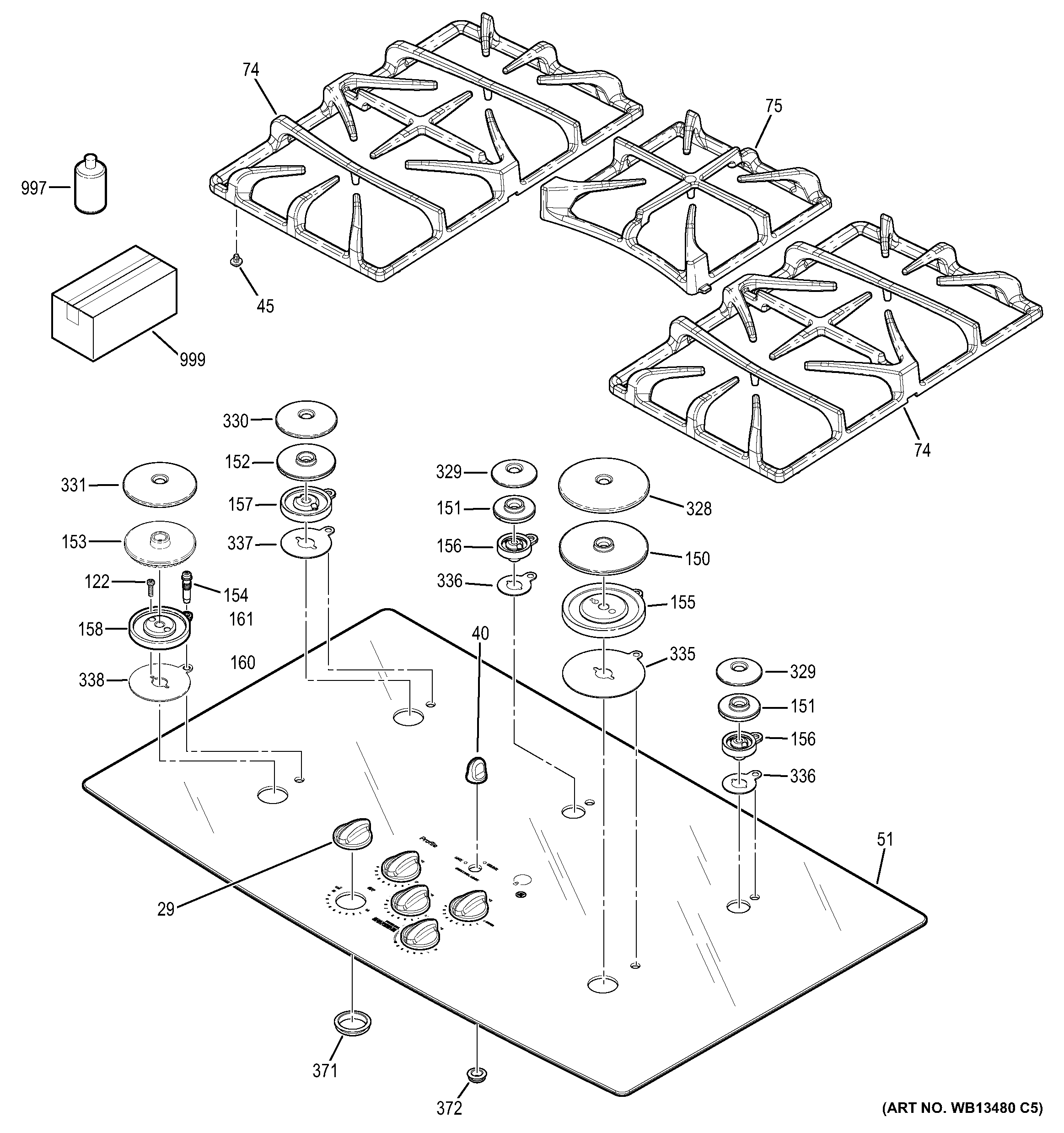

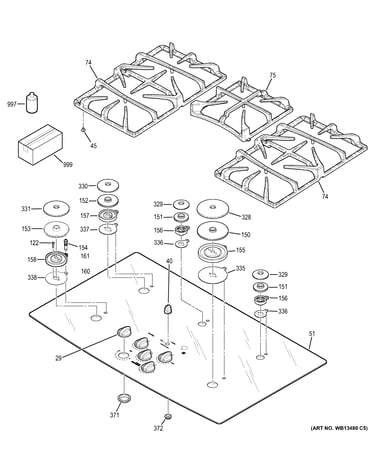

Control panel & cooktop diagram

Range surface burner head

Part #WB16T10037

$87.63
5% OFF Phone Price : $92.63
In Stock
Range Nut WB01K10037
#4

Gas & burner parts diagram

Range nut

Part #WB01K10037

$7.88
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Gasket, Large WB04T10012
#338

Control panel & cooktop diagram

Range surface burner gasket, large

Part #WB04T10012

In Stock
Range Surface Burner Igniter (replaces Wb13x10015) WB13T10073
#154

Control panel & cooktop diagram

Range surface burner igniter (replaces wb13x10015)

Part #WB13T10073

$50.64
9% OFF Phone Price : $55.64
In Stock
Cooktop Burner Base WB16T10032
#155

Control panel & cooktop diagram

Cooktop burner base

Part #WB16T10032

$46.42
10% OFF Phone Price : $51.42
In Stock
Cooktop Burner Grate WB31T10084
#74

Control panel & cooktop diagram

Cooktop burner grate

Part #WB31T10084

$173.60
5% OFF Phone Price : $183.60
In Stock
Cooktop Spark Module WB13T10047
#318

Gas & burner parts diagram

Cooktop spark module

Part #WB13T10047

In Stock
Brkt Hold Dn WB02K5328
#54

Gas & burner parts diagram

Brkt hold dn

Part #WB02K5328

Replaced by #WB2K5328

?
Manufacturer substitution
This part replaces WB02K5328. Substitute parts can look different from the original.
$6.51
13% OFF Phone Price : $7.51
In Stock
