Kenmore 9113542090 gas drop-in range Parts
Here are the diagrams and repair parts for Kenmore 9113542090 gas drop-in range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 9113542090 Ranges
Main top section diagram
Raceway
In Stock$40.83
Qty
#NI
All parts diagram
Kenmore Installation Instructions
In Stock$30.06Qty#NI
All parts diagram
Kenmore Owner's Manual

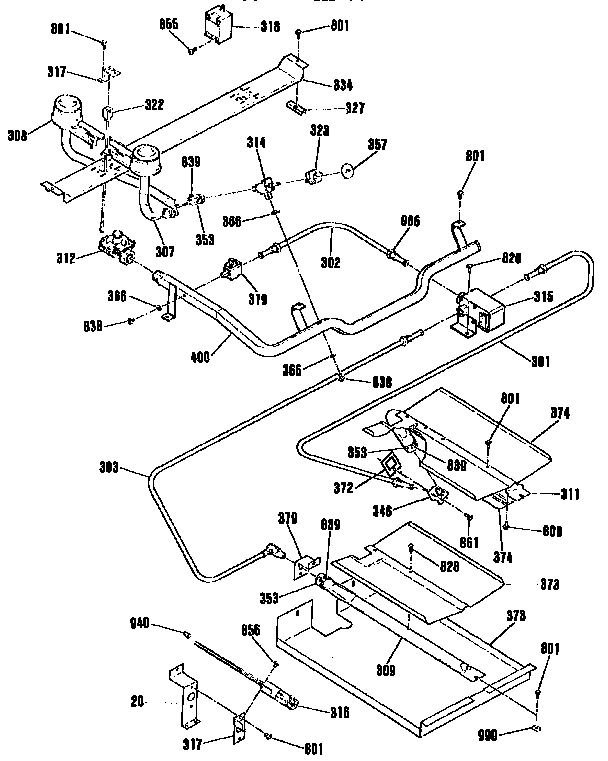

In Stock$28.73QtyBurner section diagram
Broil Baf Lo
Part #WB34K5155Replaced by #WB34K5155
Manufacturer substitutionThis part replaces WB34K5155. Substitute parts can look different from the original.In Stock$33.46QtyBurner section diagram
Bracket
Part #WB02X9162Replaced by #311689
Manufacturer substitutionThis part replaces WB02X9162. Substitute parts can look different from the original.In Stock$37.03QtyBurner section diagram
Adjustment Screw
Part #WB01X1124Replaced by #WB1X1118
Manufacturer substitutionThis part replaces WB01X1124. Substitute parts can look different from the original.In Stock$8.3811% OFF Phone Price : $9.38
QtyBurner section diagram
Orifice Fitting Bracket
Part #WB02K5246Replaced by #WB2K5246

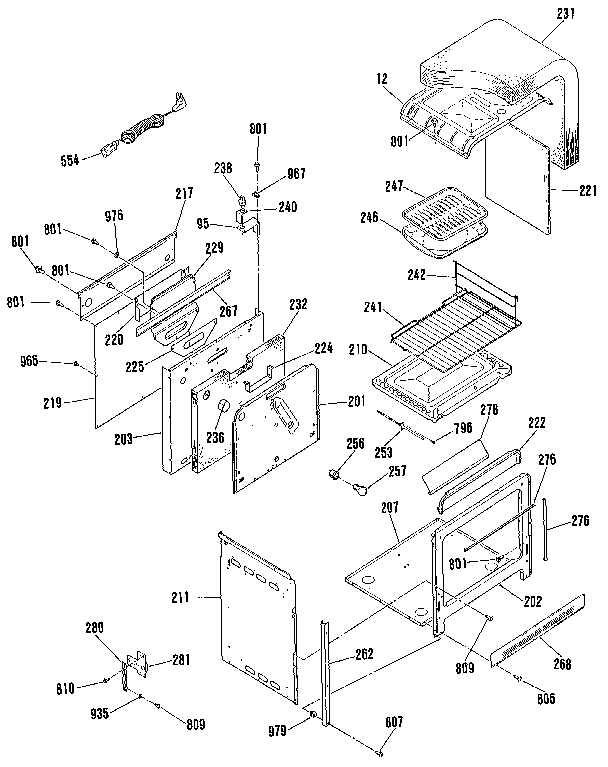

Manufacturer substitutionThis part replaces WB02K5246. Substitute parts can look different from the original.In Stock$28.22QtyBody section diagram
Spacer
Part #WB01X1177Replaced by #WB1X1177
Manufacturer substitutionThis part replaces WB01X1177. Substitute parts can look different from the original.In Stock$47.64QtyBurner section diagram
Screw
Part #WB01X1350Replaced by #WB1X1425
Manufacturer substitutionThis part replaces WB01X1350. Substitute parts can look different from the original.In Stock$8.3811% OFF Phone Price : $9.38QtyBurner section diagram
Igniter Mounting Bracket
Part #WB02K5243Replaced by #WB2K5243
Manufacturer substitutionThis part replaces WB02K5243. Substitute parts can look different from the original.In Stock$29.79Qty
