Model # EBU2X30BA1 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP EBU2X30BA1 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Valve Txv 1174451
#4A

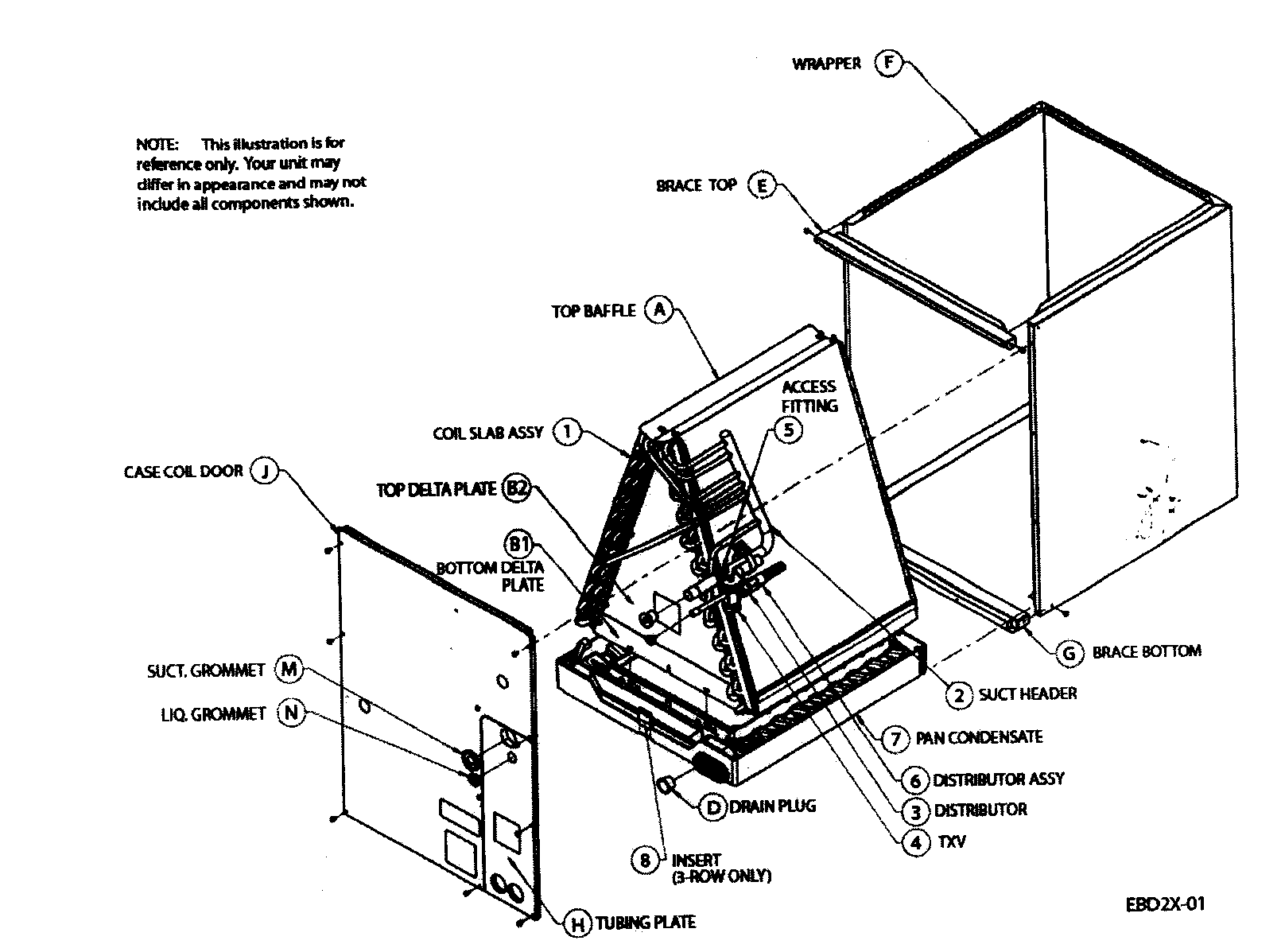

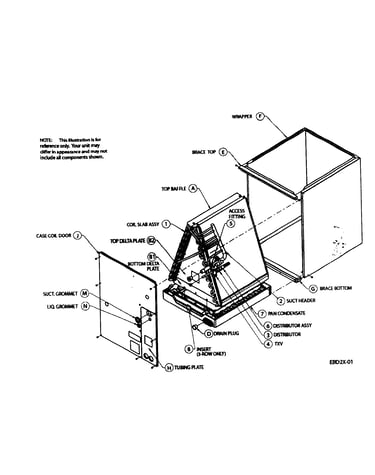

Cabinet parts diagram

Valve txv

Part #1174451

$201.24
In Stock
Pan Conden 1173096
#7

Cabinet parts diagram

Pan conden

Part #1173096

$185.78
In Stock
Washer 1174012
#NI

Cabinet parts diagram

Washer

Part #1174012

The manufacturer no longer makes this part, and there's no substitute part

Plate Tubing 1173223
#H

Cabinet parts diagram

Plate tubing

Part #1173223

The manufacturer no longer makes this part, and there's no substitute part

Wrapper 1173212
#F

Cabinet parts diagram

Wrapper

Part #1173212

The manufacturer no longer makes this part, and there's no substitute part

Yuct Hdr Asy 1173145
#2

Cabinet parts diagram

Yuct hdr asy

Part #1173145

The manufacturer no longer makes this part, and there's no substitute part

Distributor 1173139
#6

Cabinet parts diagram

Distributor

Part #1173139

The manufacturer no longer makes this part, and there's no substitute part

Door Coil 1173226
#J

Cabinet parts diagram

Door coil

Part #1173226

The manufacturer no longer makes this part, and there's no substitute part

Grommet 1173159
#M

Cabinet parts diagram

Grommet

Part #1173159

The manufacturer no longer makes this part, and there's no substitute part

Fitting 1171507
#5

Cabinet parts diagram

Fitting

Part #1171507

The manufacturer no longer makes this part, and there's no substitute part
