Kenmore Pro 25355333604 refrigerator Parts

For Kenmore Pro side-by-side refrigerator model 25355333604, the most accurate way to confirm cubic-foot capacity is to use the model’s specification information in the Owner's manual or on the serial plate inside the fresh food compartment; that plate is also where we recommend verifying the exact model number.

Where to find the capacity for model 25355333604

Use these quick checks (in order):

• Owner’s manual specs: Look for “capacity” or “cubic feet” in the specifications section of the Owner's manual.
• Serial plate inside the refrigerator compartment: The manual notes the serial plate is located inside the refrigerator compartment; it lists the model and serial number, and it is the best reference point for matching the correct spec sheet.
• Installation planning info: If you are confirming fit and clearances, the Installation guide is often the fastest place to verify overall size and setup requirements (capacity is sometimes listed alongside key specs).
• Compare to typical side-by-side sizes: Most side-by-side refrigerators fall in the 22 to 26 cu. ft. range; use this only as a rough expectation until you confirm the exact spec for your model.

Quick reference: what each source tells you

Source	What you get	Best for
Serial plate (inside fresh food section)	Exact model/serial identification	Making sure you are looking up the right unit
Owner’s manual	Model-specific operating info and specifications	Confirming capacity and features
Installation guide	Setup, leveling, door removal, clearances	Fit checks and install planning

Why it matters

Cubic-foot capacity affects how much food you can store, but it also helps when you are comparing replacement items and accessories (for example, matching the correct refrigerator water filter style and ensuring shelves and bins are the right fit for your exact model).

Last updated: February 2026

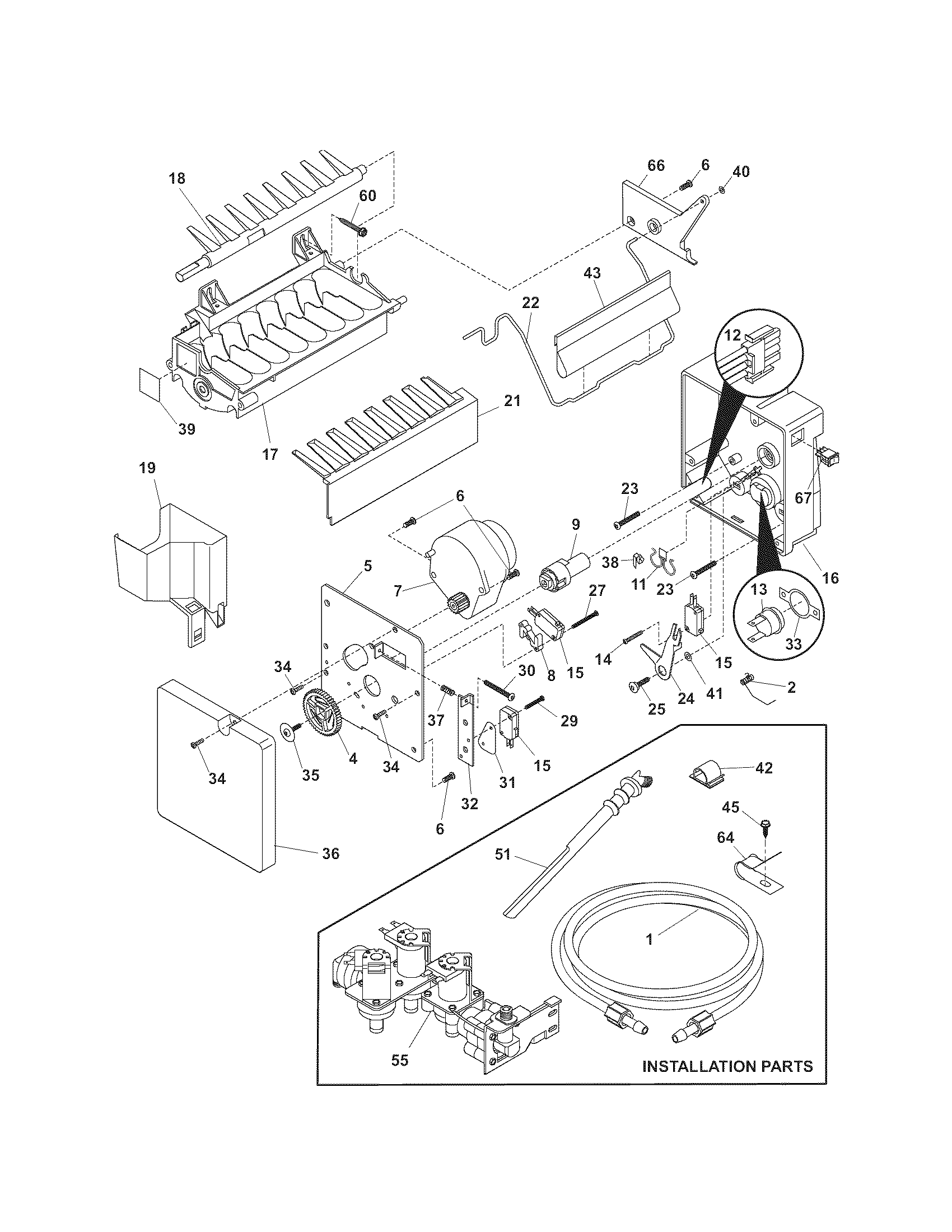

To replace the ice maker in your Kenmore Pro side-by-side refrigerator model 25355333604, we shut off power, turn the ice maker OFF, remove the ice bin, disconnect the wiring, remove the mounting screws, then install the replacement and restore power. Follow the diagrams in the 25355333604 owner's manual for exact screw and connector locations.

Before you start

• Unplug the refrigerator or switch off the circuit breaker.
• Turn ice production OFF (wire signal arm up, or On/Off switch to O on rear-mounted styles).
• Remove the ice storage bin by lifting up and out; do not use the ice chute as a handle (surfaces can be sharp).
• Keep the ice maker OFF until the refrigerator is connected to the water supply.
• Gather basic tools (Phillips screwdriver, nut driver).

Replacement steps (typical side-by-side)

1. Remove the ice bin.
2. Remove the ice maker cover (if present).
3. Unplug the ice maker wire harness.
4. Support the ice maker and remove the mounting screws.
5. Transfer any bracket/stripper parts from the old unit if your replacement requires it.
6. Mount the new ice maker, tighten screws, and reconnect the harness.
7. Reinstall the ice bin.
8. Restore power; turn the ice maker ON.

Checks after installation

• Water supply valve is open; water pressure should be 30 to 100 psi.
• Freezer temperature is set cold enough for ice production.
• No cubes are jammed between the ice maker and the back of the bin.

If you see	Likely cause	What to do
No ice after 24 hours	Ice maker still OFF	Turn switch/arm ON; confirm door closes fully
Small or hollow cubes	Restricted water flow	Replace the genuine Kenmore refrigerator water filter WF2CB
Dispenser jams	Clumped ice	Empty and dry bin; shake to separate cubes

Why it matters

Correct mounting and a solid water supply prevent slow ice production, hollow cubes, and dispenser jams.

Last updated: February 2026

The most common issues we see on Kenmore refrigerators like model 25355333604 are cooling problems (often airflow, dirty condenser coils, or defrost trouble), water leaks, ice maker or dispenser problems, and unusual noises. Many fixes start with cleaning, checking door seals, and verifying temperature control settings in the owner's manual.

Most common symptoms and what usually causes them

• Not cooling or warm temperatures: dirty condenser coils, evaporator fan issues, defrost cycle problems, or doors being opened too often.
• Runs too long: hot room conditions, frequent door openings, dirty condenser, or a worn door gasket.
• Water leaking: a clogged defrost drain, loose water line connections, or a door not sealing.
• Ice maker not making ice: ice maker turned off, water supply issue, or ice maker component failure.
• Noisy operation: fan blade rubbing ice, failing fan motor, or items vibrating against the cabinet.

Quick checks we recommend first (fast, no parts)

• Confirm the unit is plugged in and the controls are not set to OFF.
• Allow 8 to 12 hours for full cool-down after the refrigerator has been unplugged or moved.
• Clean the condenser coils; a dirty condenser can cause long run times and warm temps.
• Check that doors close fully and food packages are not blocking the door.
• Inspect gaskets for gaps, tears, or grime; clean and reseat as needed.

Parts that commonly solve these problems on 25355333604

If troubleshooting points to a failed component, these are common replacements for this model:

Problem area	Common part to check	What it affects
Poor airflow, warm fridge	Refrigerator evaporator fan blade 5308000010	Circulates cold air through compartments
Frost buildup, warm temps	Refrigerator defrost bi-metal thermostat 5303918214	Helps control defrost operation
Door not sealing, sweating	Refrigerator freezer door gasket 241786014	Prevents warm air leaks and moisture
Bad taste/slow water flow	Genuine Kenmore refrigerator water filter WF2CB	Improves water quality and flow

Why it matters

Most “Kenmore refrigerator problems” trace back to airflow and sealing. When coils are dirty or a gasket leaks, the refrigerator runs longer, temperatures drift, and ice maker performance drops.

Last updated: February 2026

On Kenmore Pro side-by-side refrigerator model 25355333604, the model number is printed on the serial plate located inside the refrigerator compartment. Open the fresh food door and look along the interior walls for the rating label.

Where to look first (fast checks)

• Inside the fresh food (refrigerator) compartment on the serial plate
• On an interior side wall near the front opening
• Near the top section of the fresh food liner (common placement)
• Behind or beside crisper drawers (less common, but possible)
• Not on the exterior cabinet; it is typically inside for protection

What the label usually shows

The serial plate typically includes both the model and serial information. For this Kenmore Pro platform, the model number format commonly starts with 253 (as shown in the documentation).

Item on label	What it’s used for	Example for this unit
Model number	Matching parts and diagrams	25355333604 (often shown as 253...)
Serial number	Production identification	Varies by unit
Purchase date (you record it)	Service and records	Your date

Why it matters

We use the exact model number to match the correct parts list, diagrams, and compatible replacements (for example, the correct water filter style and door gasket design). Using the serial plate information prevents ordering the wrong Kenmore or Frigidaire-built variant.

Tip for recording it correctly

• Write the model number exactly as printed (all digits)
• Take a clear photo of the serial plate before it gets worn or smudged
• Keep it with your owner's manual for quick reference

Last updated: February 2026
