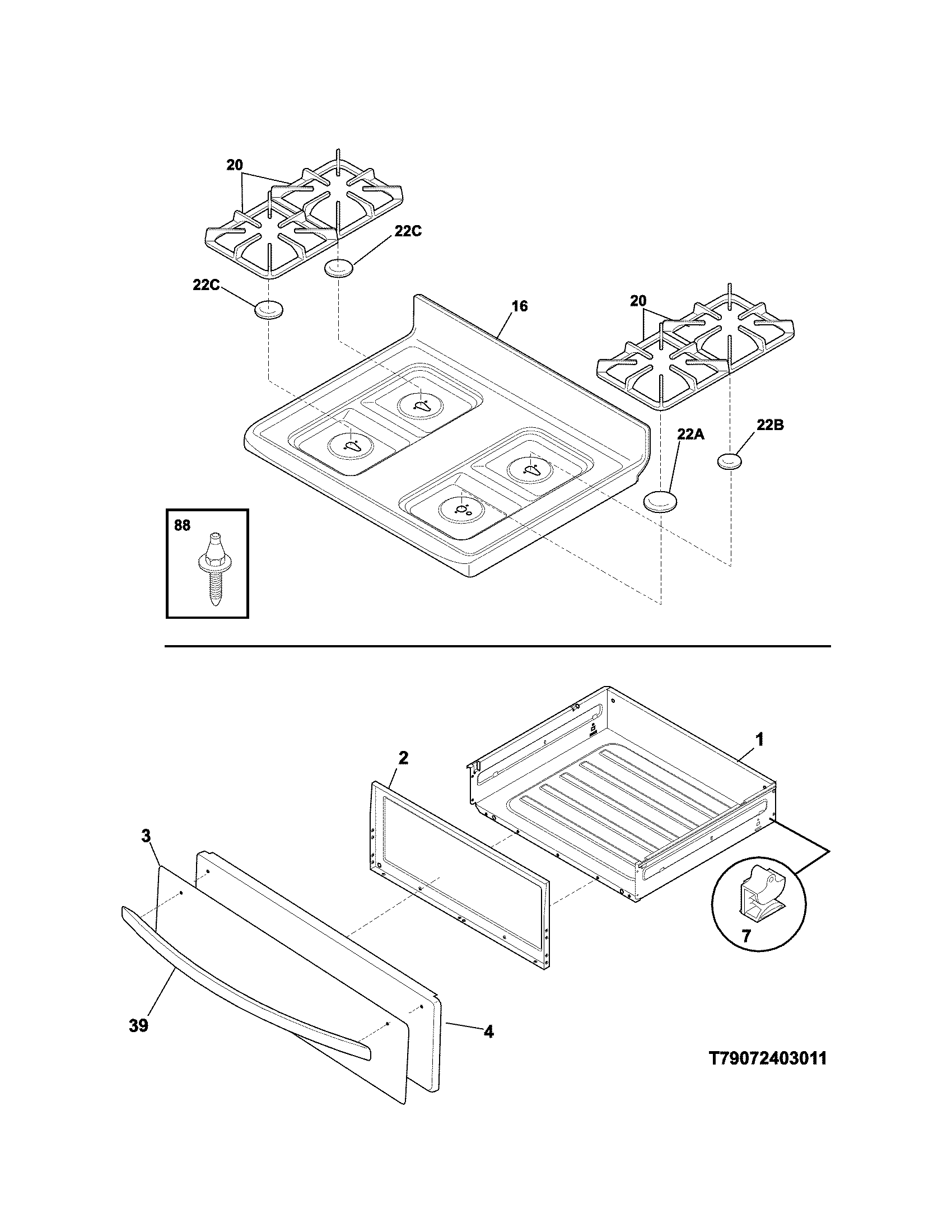

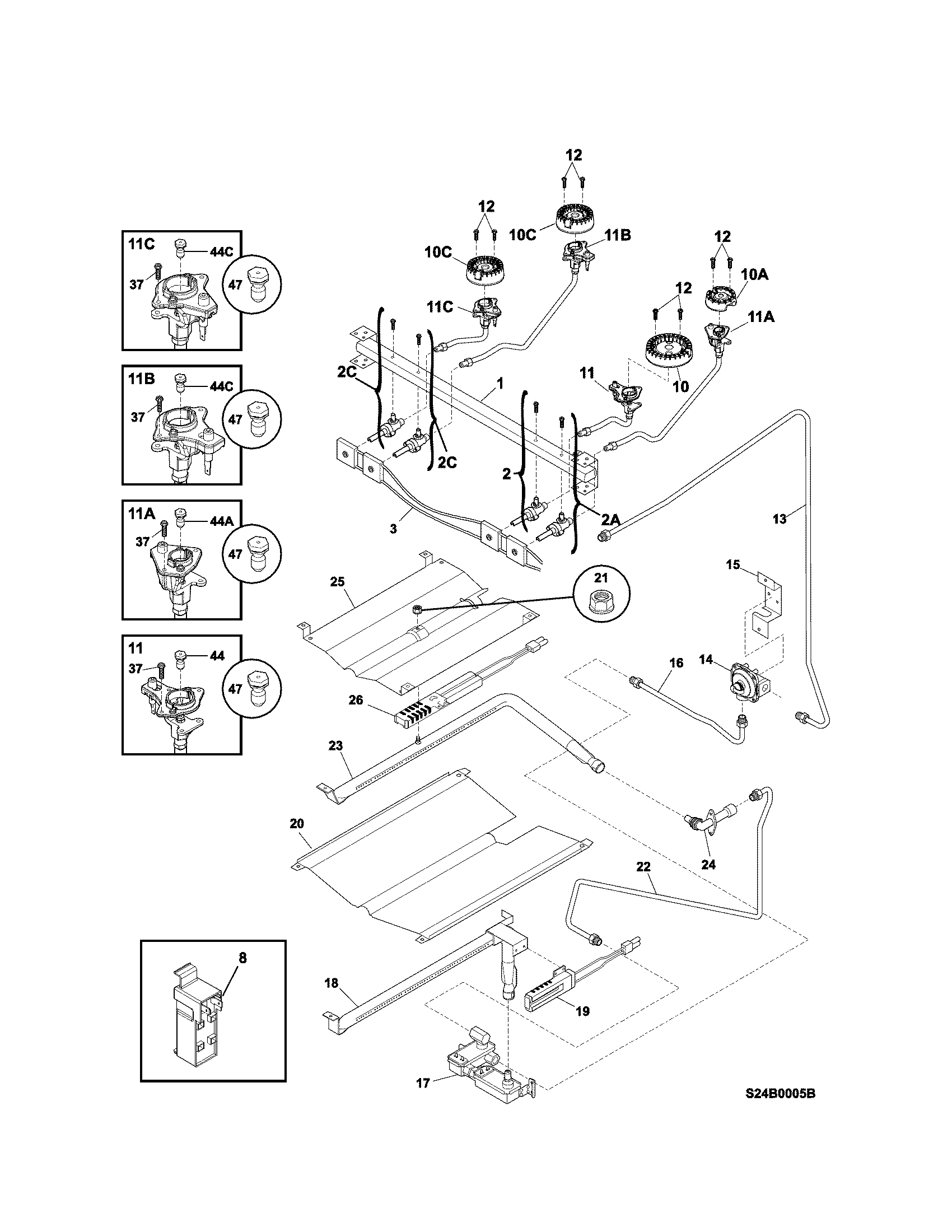

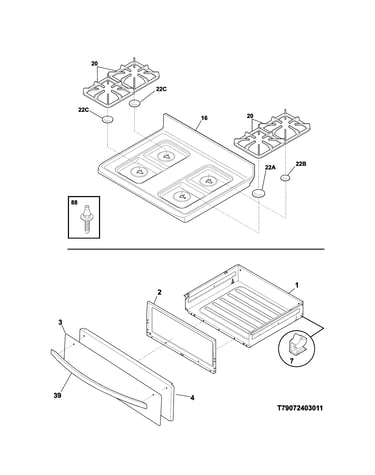

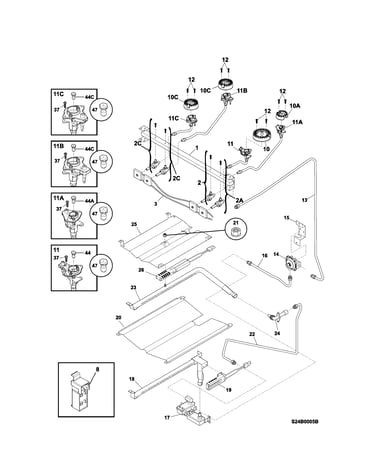

On the Kenmore 79074033311 gas range, the cooktop is not removable, so we do not remove the “top” as a service step. For access, we typically remove surface components (grates, burner caps, and burner heads) and, when needed, lift the range out for rear or internal service per the 79074033311 installation guide.

• Turn all burner knobs to OFF and let everything cool completely.
• Remove the burner grates.
• Lift off the burner caps.
• Lift off the burner heads (on many designs they sit on locating pins).
• If you are cleaning, wipe spills from the main top and around the igniters.
• Reinstall parts in the same positions so flames stay even.

If you are trying to reach wiring, switches, or gas components, access is usually from the back or by removing specific panels, not by removing the cooktop.

• Shut off the gas supply at the manual shut-off valve.
• Unplug the range (or switch off the breaker).
• Pull the range forward carefully (lift slightly at the front if needed).
• Remove the rear access panel as required for the repair.

Trying to remove a non-removable cooktop can bend the main top, damage igniters, or create a gas leak risk. Following the approved access method keeps the Kenmore 79074033311 safe to service and helps the burners light and burn correctly.

Last updated: February 2026

Yes. Kenmore makes gas ranges, including model 79074033311, which uses gas burners for cooktop cooking and an electric ignition system for the oven. For safe setup and operation details (gas type, ventilation, and anti-tip requirements), follow the 79074033311 installation guide.

A Kenmore gas range like 79074033311 typically includes a gas cooktop and a gas oven burner that lights using an electric igniter.

Common characteristics you can expect:

• Gas surface burners with adjustable flame control
• Electric ignition (no standing pilot)
• Fresh air needed for proper burner combustion (keep vents clear)
• Anti-tip bracket required for safe installation
• Natural gas setup from the factory; LP conversion requires the correct kit and qualified help

If you ever smell gas, treat it as an emergency and follow the steps in the installation instructions.

Key reminders:

• Do not try to light any appliance
• Do not touch electrical switches
• Call your gas supplier from a neighbor’s phone
• If you cannot reach the gas supplier, call the fire department

Knowing Kenmore makes gas ranges is helpful, but the bigger win is installing and operating your Kenmore 79074033311 safely. Gas supply, airflow, and anti-tip installation directly affect burner performance and household safety.

Last updated: February 2026

On Kenmore gas range model 79074033311, the model and serial number plate is on the right-hand surface of the oven front frame. Open the storage drawer, warmer drawer, or broiler drawer to see the identification plate; record the model and serial numbers exactly as shown (plus any lot number/letter). See the 79074033311 installation guide for the exact location description.

Check these spots in this order:

• Open the bottom drawer (storage, warmer, or broiler drawer depending on your range)
• Look on the right-hand side of the oven front frame for the identification plate
• Wipe the plate clean and use a flashlight to read it
• Write down the model number, serial number, and any lot number/letter
• Take a photo for parts ordering and service calls

Kenmore ranges often use different igniters, sensors, and control parts across similar-looking models. Using the exact model number helps us match the correct gas range parts, including items like an oven igniter or temperature sensor.

• Clean gently with a damp cloth; avoid abrasive pads
• Use your phone camera zoom and good lighting
• If the drawer is stuck, check the drawer rails for obstructions and remove the drawer per the 79074033311 installation guide

Last updated: February 2026

To reset a Kenmore gas oven like model 79074033311, we reset the electronic control by turning the range off at the breaker (or unplugging it) for about 1 minute, then restoring power and confirming all oven controls are set to OFF. Use the 79074033311 installation guide safety steps after any power interruption.

• Turn all oven and surface burner knobs to OFF.
• Switch the range OFF at the circuit breaker (or unplug the power cord).
• Wait 60 seconds.
• Restore power.
• Set Bake 300°F and confirm the burner ignites within 60 seconds, then turn OFF.

The installation instructions for this gas range are clear: do not attempt to operate the electric ignition oven during an electrical power failure; when power fails, reset all oven controls to OFF so the oven does not automatically re-ignite when power returns. Review the exact wording in the 79074033311 installation guide.

A reset helps when the control is confused after a power glitch. If the oven still will not heat, these are the most common causes:

• Weak or failed oven igniter (no glow, or glow but no flame)
• Temperature sensor out of range (baking temps inaccurate)
• Gas valve not opening
• Loose or damaged wiring at the igniter or control

Resetting correctly prevents unintended burner ignition when power returns and helps you quickly separate a simple control glitch from a failed igniter, sensor, or gas valve.
