Maytag GFU2046GRW upright freezer Parts
Here are the diagrams and repair parts for Maytag GFU2046GRW upright freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

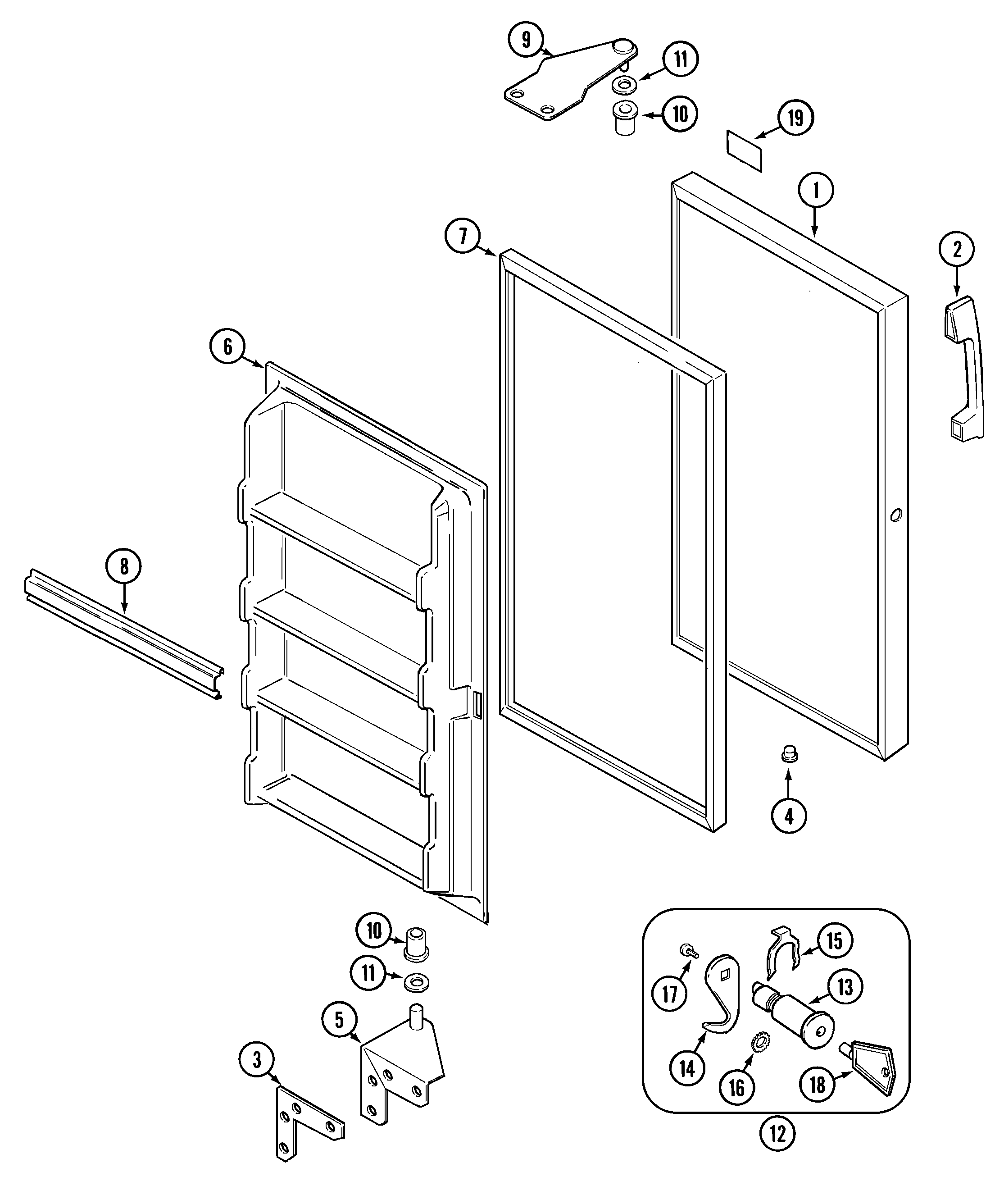

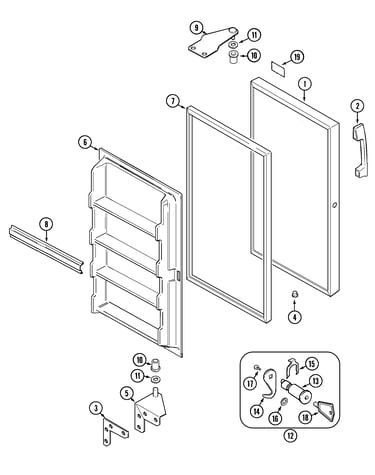

SELECT DIAGRAM
Browse Parts for GFU2046GRW Freestanding Freezers

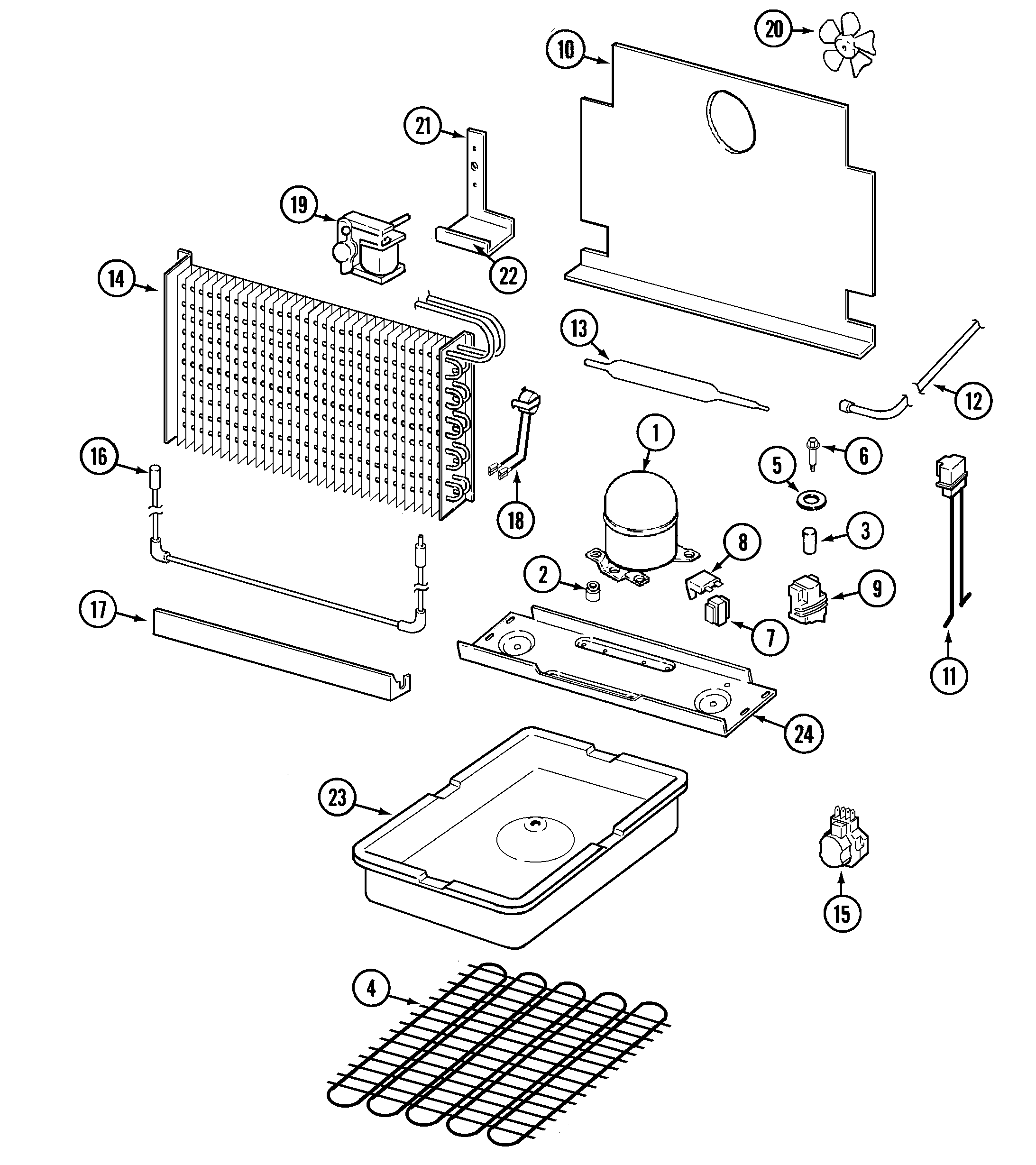

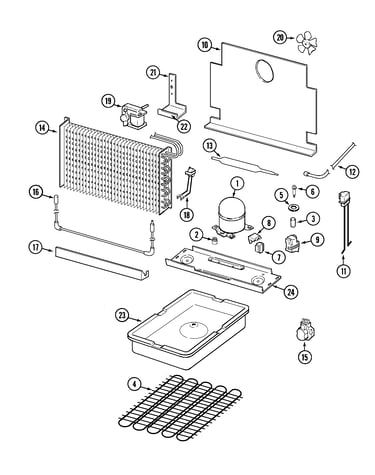

Unit compartment & system diagram
Refrigerator Uv Dye Dryer
Part #13900-1Replaced by #WPW10143759
Manufacturer substitutionThis part replaces 13900-1. Substitute parts can look different from the original.In Stock$22.1621% OFF Phone Price : $28.16
Qty

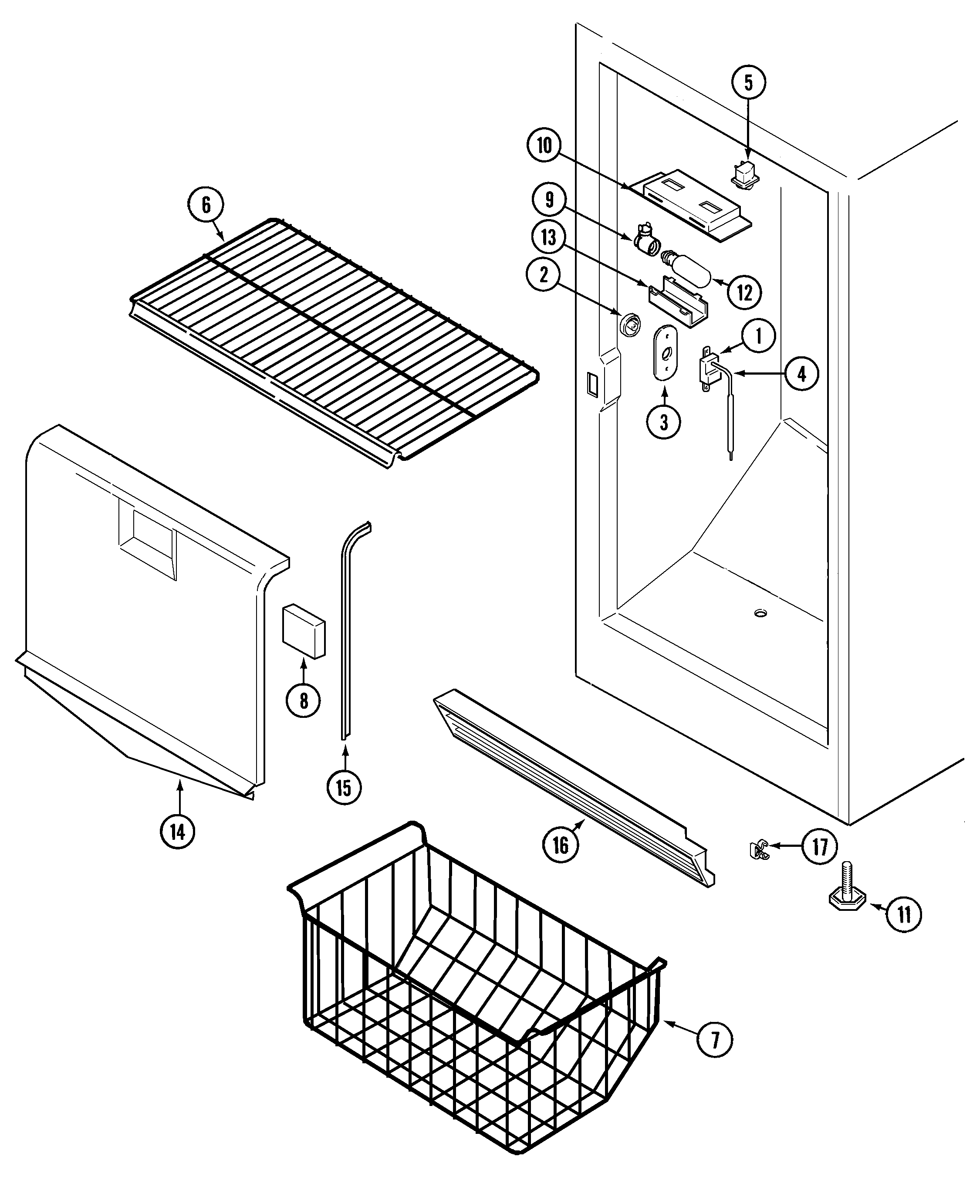

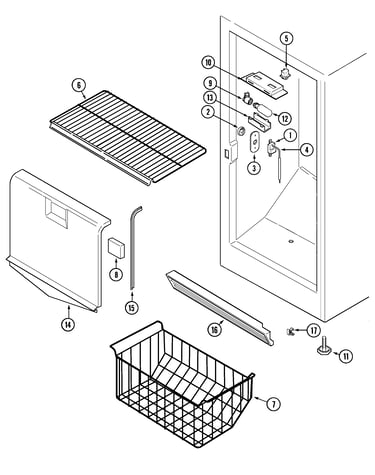

Freezer compartment diagram
Light Switch
Part #68001324Replaced by #W11384469
Manufacturer substitutionThis part replaces 68001324. Substitute parts can look different from the original.In Stock$25.1319% OFF Phone Price : $31.13QtyUnit compartment & system diagram
Compressor
Part #68001494Replaced by #W10309994
Manufacturer substitutionThis part replaces 68001494. Substitute parts can look different from the original.In Stock$501.34$12.00 OFF Phone Price : $513.34QtyFreezer compartment diagram
Light Bulb
Part #68001557Replaced by #W11679940
Manufacturer substitutionThis part replaces 68001557. Substitute parts can look different from the original.In Stock$39.4313% OFF Phone Price : $45.43QtyUnit compartment & system diagram
Defrost Timer
Part #68001115Replaced by #WP3-81329
Manufacturer substitutionThis part replaces 68001115. Substitute parts can look different from the original.In Stock$112.3910% OFF Phone Price : $124.39QtyUnit compartment & system diagram
Defrost Heater
Part #Y04532901Replaced by #W11175809
Manufacturer substitutionThis part replaces Y04532901. Substitute parts can look different from the original.In Stock$105.6710% OFF Phone Price : $117.67QtyFreezer compartment diagram
Evaporator Screw
Part #68001121Replaced by #WP3-24004-109
Manufacturer substitutionThis part replaces 68001121. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyFreezer compartment diagram
Screw
Part #68001474Replaced by #WP489464
Manufacturer substitutionThis part replaces 68001474. Substitute parts can look different from the original.This item is not returnableIn Stock$7.6712% OFF Phone Price : $8.67QtyFreezer compartment diagram
Temperature Control
Part #68001384Replaced by #WP4-83053-003
Manufacturer substitutionThis part replaces 68001384. Substitute parts can look different from the original.In Stock$127.279% OFF Phone Price : $139.27QtyUnit compartment & system diagram
Wire Harness
In Stock$98.30Qty
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Repair guides for upright freezers
How to replace a freezer evaporator fan
Air won’t circulate to cool the freezer properly when the evaporator fan fails. Follow these step-by-step instructions t…
Repair time and Difficulty
45 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair time and Difficulty
15 minutes or less
How to replace a freezer LED light board
The LED lights illuminate the interior of the freezer when you open the door. It takes just a few minutes to replace the…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
