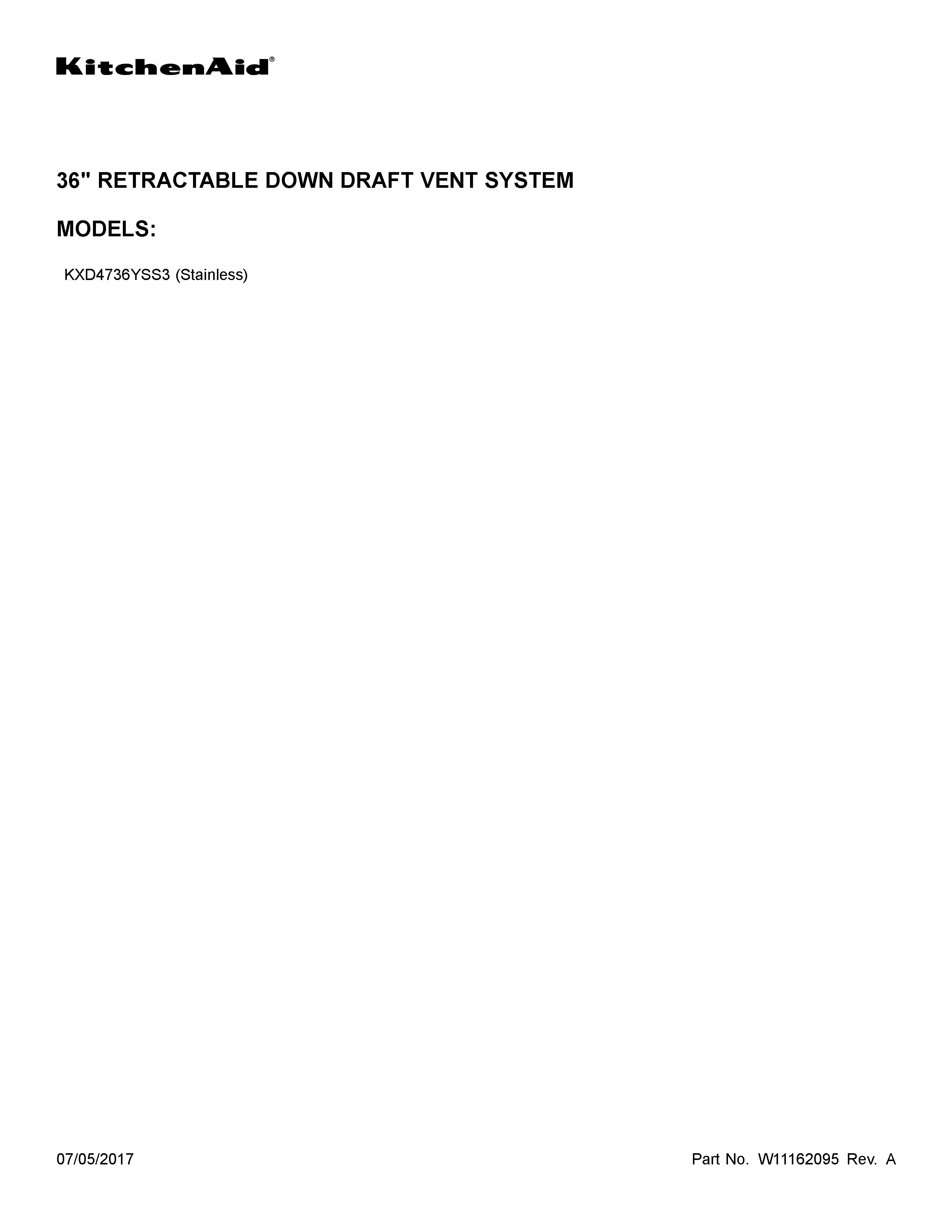

KitchenAid KXD4736YSS3 downdraft vent system Parts
Here are the diagrams and repair parts for KitchenAid KXD4736YSS3 downdraft vent system, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for KXD4736YSS3 Downdraft Vent System

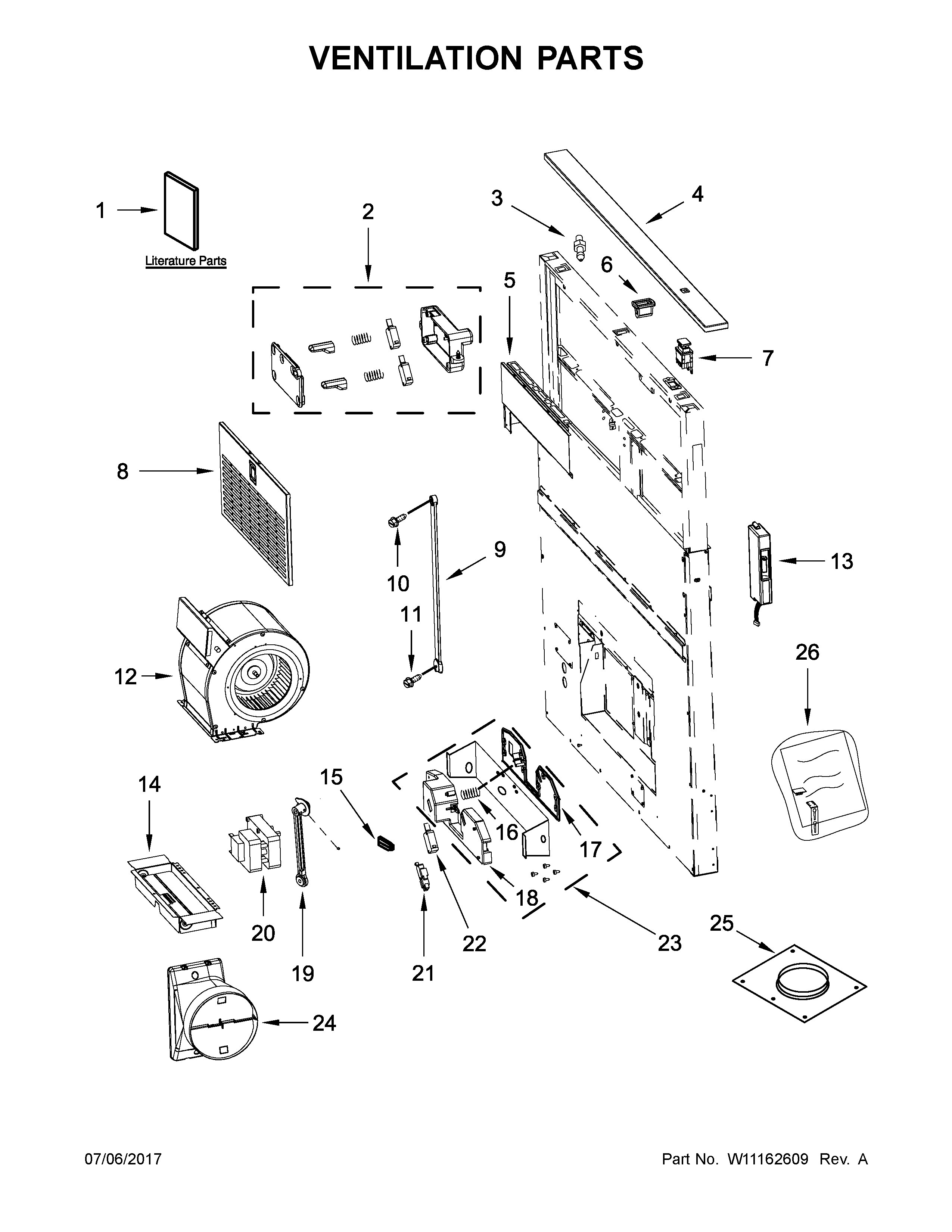

Ventilation parts diagram
Arm Motor
Part #W10421280Replaced by #WPW10421280
Manufacturer substitutionThis part replaces W10421280. Substitute parts can look different from the original.In Stock$138.28
Qty

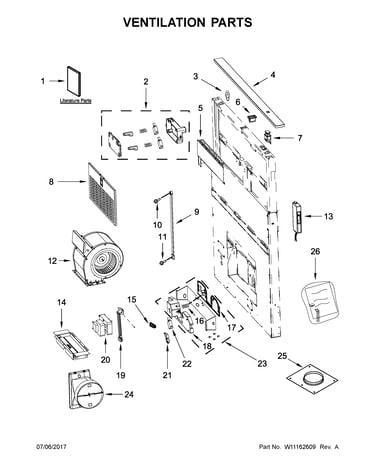

Ventilation parts diagram
Switch Cover
Part #W10801493Replaced by #W10833182
Manufacturer substitutionThis part replaces W10801493. Substitute parts can look different from the original.In Stock$132.908% OFF Phone Price : $144.90
QtyVentilation parts diagram
Screw
Part #W10422764Replaced by #WPW10422764
Manufacturer substitutionThis part replaces W10422764. Substitute parts can look different from the original.In Stock$25.2019% OFF Phone Price : $31.20QtyVentilation parts diagram
Oven Switch
Part #W10398341Replaced by #WPW10398341
Manufacturer substitutionThis part replaces W10398341. Substitute parts can look different from the original.In Stock$47.4811% OFF Phone Price : $53.48QtyVentilation parts diagram
Whirlpool Downdraft Vent 36-inch Grease Filter
In Stock$95.9337% OFF Was : $152.16QtyVentilation parts diagram
Clip
In Stock$33.39QtyVentilation parts diagram
Covr-swtch
In Stock$110.98QtyVentilation parts diagram
Downdraft Vent Top Trim
In Stock$191.986% OFF Phone Price : $203.98QtyVentilation parts diagram
Hardware
Part #W10798404Replaced by #W11174413
Manufacturer substitutionThis part replaces W10798404. Substitute parts can look different from the original.In Stock$141.24QtyVentilation parts diagram
Range Hood Damper
Part #W10313841Replaced by #WPW10313841
Manufacturer substitutionThis part replaces W10313841. Substitute parts can look different from the original.In Stock$109.2510% OFF Phone Price : $121.25Qty
Most common symptoms to help you fix your downdraft ventilation systems
Choose a symptom to see related downdraft vent repairs.
Main causes: lack of electrical power, up/down activation switch failure, bad vent gear motor…
Main causes: clogged grease filters, air duct problems, fan motor failure, broken blower wheel…
Main causes: electrical power failure, up/down activation switch problems, vent gear motor failure…
Main causes: fan control switch failure, bad blower fan motor, broken blower wheel, wiring failure…
Main causes: problems with the vent limit switches, up/down activation switch failure…
