Kenmore Elite 79075232310 gas range Parts

The Kenmore Elite gas range model 79075232310 uses electric ignition, so there is no standing pilot light to relight. If the oven will not ignite, focus on power, gas supply, and the igniter system; follow the lighting and safety steps in the 79075232310 installation guide.

• Make sure the range has electrical power (the oven igniter needs power to glow and open the gas valve).
• Confirm the gas supply is on and the regulator shutoff valve is in the ON position.
• Set the clock/time of day; some ranges will not run the oven until time is set.
• Try Bake again and listen for ignition; a weak igniter can prevent the burner from lighting.
• If you smell gas, turn the oven control OFF and ventilate the area before continuing.

During an electrical power failure, we do not attempt to operate the electric ignition oven. Surface burners can be lit manually with a match using the safe method described in the 79075232310 installation guide.

If the oven burner does not light or takes a long time to light, these parts are common suspects for this model:

• Tappan range oven burner igniter 316489403 (bake igniter style)
• Range oven igniter 5304506545 (broil igniter style)
• Frigidaire range oven temperature sensor 316490000 (helps regulate temperature; can affect heating behavior)

Electric-ignition ovens rely on the igniter drawing enough current to open the gas valve. When the igniter is weak, the oven may click, glow dimly, or never light, even though the cooktop burners work.

Last updated: February 2026

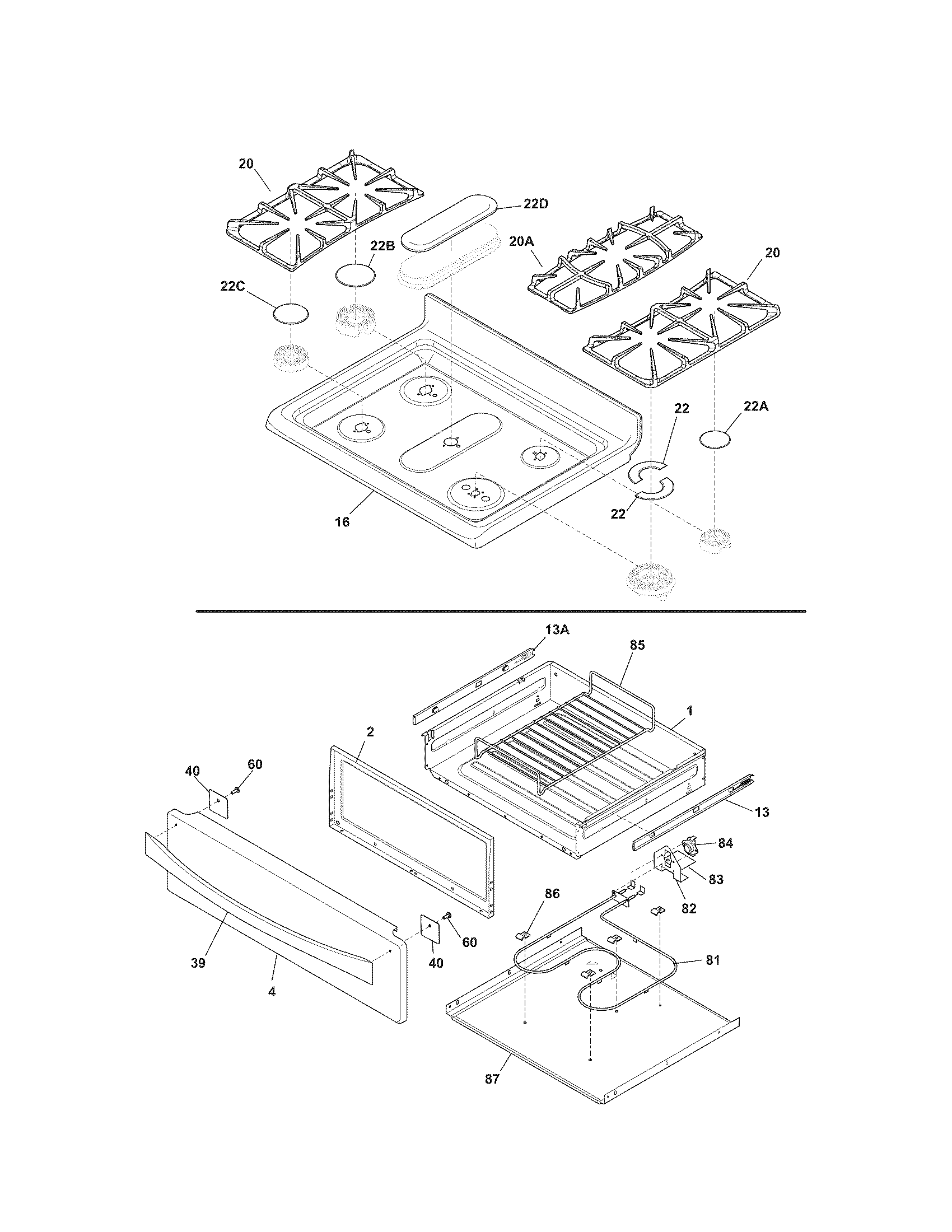

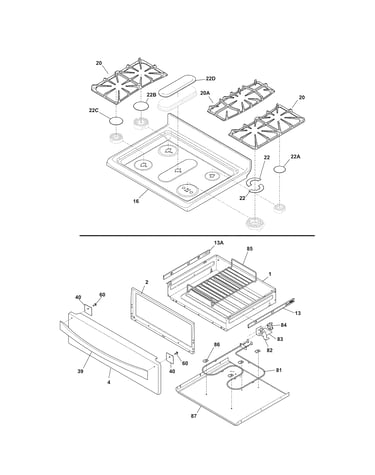

On Kenmore Elite gas range model 79075232310, the model and serial number are printed on an identification plate on the oven frame. In most cases, you can see it by opening the storage drawer or warmer drawer and looking at the lower right oven frame; confirm the exact location in the 79075232310 owner's manual.

• Open the storage drawer (if your range has one) and look along the lower right oven frame.
• If your range has a warmer drawer, open it and check the lower right oven frame.
• Look for a label that lists Model and Serial (often near a barcode).
• Write the model number exactly as shown; for this series it may look like 790.7523*.

1. Turn the oven off and let it cool.
2. Pull the storage or warmer drawer open fully.
3. Use a flashlight and look at the lower right side of the oven frame.
4. Record both numbers.

The ID plate typically includes these fields:

Using the exact model number helps us match the correct Kenmore Elite range parts (like an igniter, temperature sensor, or control overlay) to your specific configuration so you avoid ordering a similar-looking part that does not fit.

Last updated: February 2026

A Kenmore gas range like model 79075232310 typically lasts about 15 years with normal household use. Regular cleaning, correct burner flame adjustment, and prompt repair of ignition or temperature issues help you reach that lifespan.

Most ranges wear out from heat stress, spills, and heavy daily cooking. These factors make the biggest difference:

• How often you bake/broil and use self-clean
• Keeping burner heads, caps, and ports clean for steady flame
• Avoiding boilovers that soak igniters and switches
• Using the right cookware size so flames do not lick up the sides
• Fixing weak ignition or uneven heating early

We recommend these habits for the Kenmore Elite 790.7523* platform (covered in your 79075232310 use & care guide):

• Wipe spills after the range cools; keep grease from building up
• Clean burner caps and heads so gas flow stays even
• Verify flame size is correct (not too high or yellow)
• Keep the oven interior reasonably clean; avoid harsh scraping on coatings
• Replace failed wear items quickly (igniters, sensors, light bulbs)

A range can feel “worn out” when a few key parts stop working. Here are common symptoms and likely culprits:

Knowing the expected 15-year lifespan helps you decide whether to repair or replace. If your 79075232310 is under that range and the issue is isolated (ignition, temperature sensing, lighting), replacing the right part often restores reliable cooking for years.

Last updated: February 2026

To reset a Kenmore Elite gas range model 79075232310, we recommend doing a power reset first (breaker off, then back on). If you need a true control reset, this model also supports restoring the oven control to factory default settings using the keypad method in the 79075232310 owner's manual.

Use this when the display is frozen, the oven will not start, or the controls act erratically.

• Turn the range off.
• Switch the range circuit breaker OFF (or unplug the cord if accessible).
• Wait 60 seconds.
• Restore power.
• Set the clock, then test Bake and Broil.

This resets user options like 12/24-hour display, audible tones, Fahrenheit/Celsius, and any oven temperature offset.

Steps (model 79075232310):

• Press and hold 7 on the numeric keypad until you hear an acceptance tone (about 6 seconds).
• Press START to confirm the reset.

A reset clears temporary control glitches and restores default settings, which helps when the oven will not respond or temperatures seem off after settings were changed.

These are common next checks for this Kenmore Elite range:

• Confirm the range has power (display and oven light work).
• If the burner will not ignite, a weak igniter is a frequent cause; see tappan range oven burner igniter 316489403.
• If temperatures are inaccurate, the sensor can be involved; see frigidaire range oven temperature sensor 316490000.
• If you smell gas or suspect a gas supply problem, shut off the gas and have a qualified technician check the range.

Last updated: February 2026

If your Kenmore Elite gas range model 79075232310 oven is not working, the most common causes are a power supply issue, the gas regulator valve being OFF, the clock not being set, or oven controls not being set correctly. We recommend following the checks in the 79075232310 use and care manual first.

• Confirm the range is plugged in firmly and the outlet has power (check house lights or the breaker).
• If there was a power outage, restore power and try again.
• Set the time of day; this model requires the clock to be set before the oven will operate.
• Verify the oven function and temperature are selected correctly (Bake, Broil, etc.).
• Make sure the regulator gas valve is turned to ON (gas supply must be open).
• If the surface burners work but the oven does not, focus on oven-specific parts like the igniter.

A gas oven that will not heat often has an igniter problem. If the igniter is weak, the burner may not light reliably.

• Turn off the oven and let it cool completely before inspecting anything.
• If you smell gas, do not operate the range; shut off the gas supply and ventilate the area.
• For control settings and clock setup, follow the steps in the 79075232310 use and care manual.
• For gas supply and regulator valve position, follow the 79075232310 installation guide.

On model 79075232310, the oven depends on both electrical power (controls and ignition) and gas flow (regulator valve ON). A simple clock or power issue can stop operation, while a failing igniter can prevent the burner from lighting even when the cooktop still works.

Last updated: February 2026

On Kenmore Elite gas range model 79075232310, clicking without ignition usually means the igniter is getting power but the burner is not getting a reliable gas ignition. A weak oven igniter can glow and click yet still fail to open the oven gas valve, so the burner never lights.

When you set Bake, current flows to the oven igniter; it should glow and then the oven valve opens and the burner lights after a short delay (typically 30 to 60 seconds). Use the installation guide to compare what you see and hear during a normal ignition check.

• Wait a full 60 seconds after starting Bake; some delay is normal.
• Confirm the range has electrical power (the igniter needs electricity to heat).
• Make sure the gas supply is ON, including the regulator gas valve.
• If the igniter glows but the burner never lights, suspect a weak igniter.
• If the burner lights sometimes but not others, check for dirty burner ports or a poor flame path.
• If the oven is in a locked state (door lock icon), follow the operating notes in the 79075232310 owner’s manual.

If the symptoms match, these are the most common repair paths for this model:

A gas oven that clicks but does not light is usually an ignition system problem, not a “gas-only” problem. The igniter must heat enough to open the safety valve; when it cannot, the oven will keep trying to ignite without producing a stable flame.

Last updated: February 2026

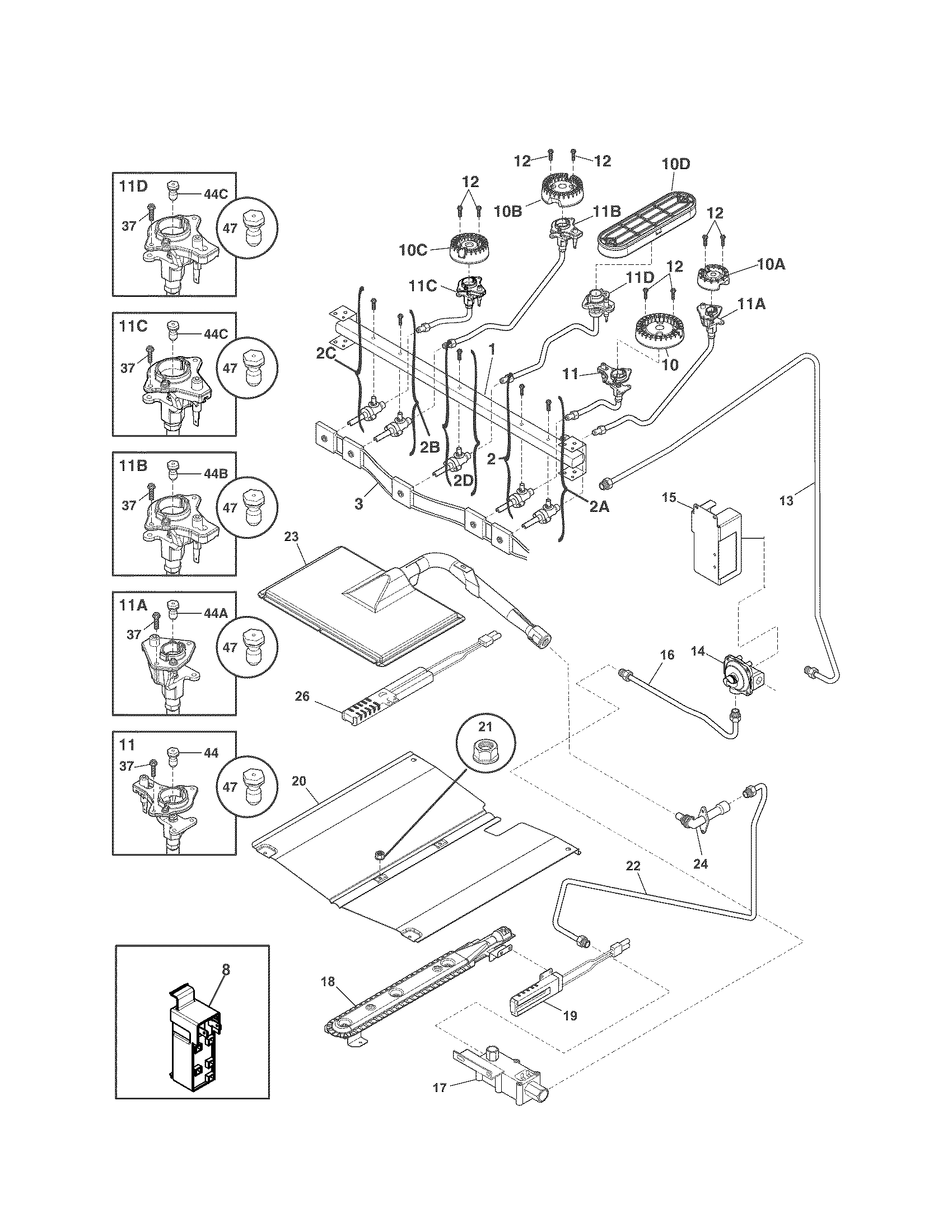

To change a surface burner spark electrode on your Kenmore Elite gas range model 79075232310, we shut off power and gas, remove the grate, cap, and burner head, swap the electrode wire to the new electrode, then reassemble and test ignition at LITE. Use the 79075232310 installation guide for burner-cap placement and ignition checks.

• Turn off power at the breaker (spark ignition is electrical).
• Shut off the gas supply valve.
• Let the cooktop cool completely.
• Work in good light; protect the cooktop surface.
• Stop immediately if you smell gas.

1. Remove the burner grate.
2. Lift off the burner cap and burner head.
3. Locate the electrode at that burner (each burner has its own electrode).
4. Remove the electrode mounting screw.
5. Pull the wire connector straight off the old electrode.
6. Push the connector fully onto the new electrode.
7. Reinstall the electrode and tighten the screw.
8. Reinstall burner head and cap; confirm the cap is seated flat.
9. Reinstall the grate.

• Turn the knob to LITE; you should hear sparking.
• The burner should light within about 4 seconds after air is purged from the gas line.
• Once lit, turn the knob out of LITE (do not leave it sparking).

Correct electrode mounting and proper burner-cap placement help the burner ignite quickly and prevent extended sparking at LITE, which reduces wear on ignition parts.

Last updated: February 2026
