Amana LWC05AW-PLWC05AW top-loading washer Parts
Here are the diagrams and repair parts for Amana LWC05AW-PLWC05AW top-loading washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

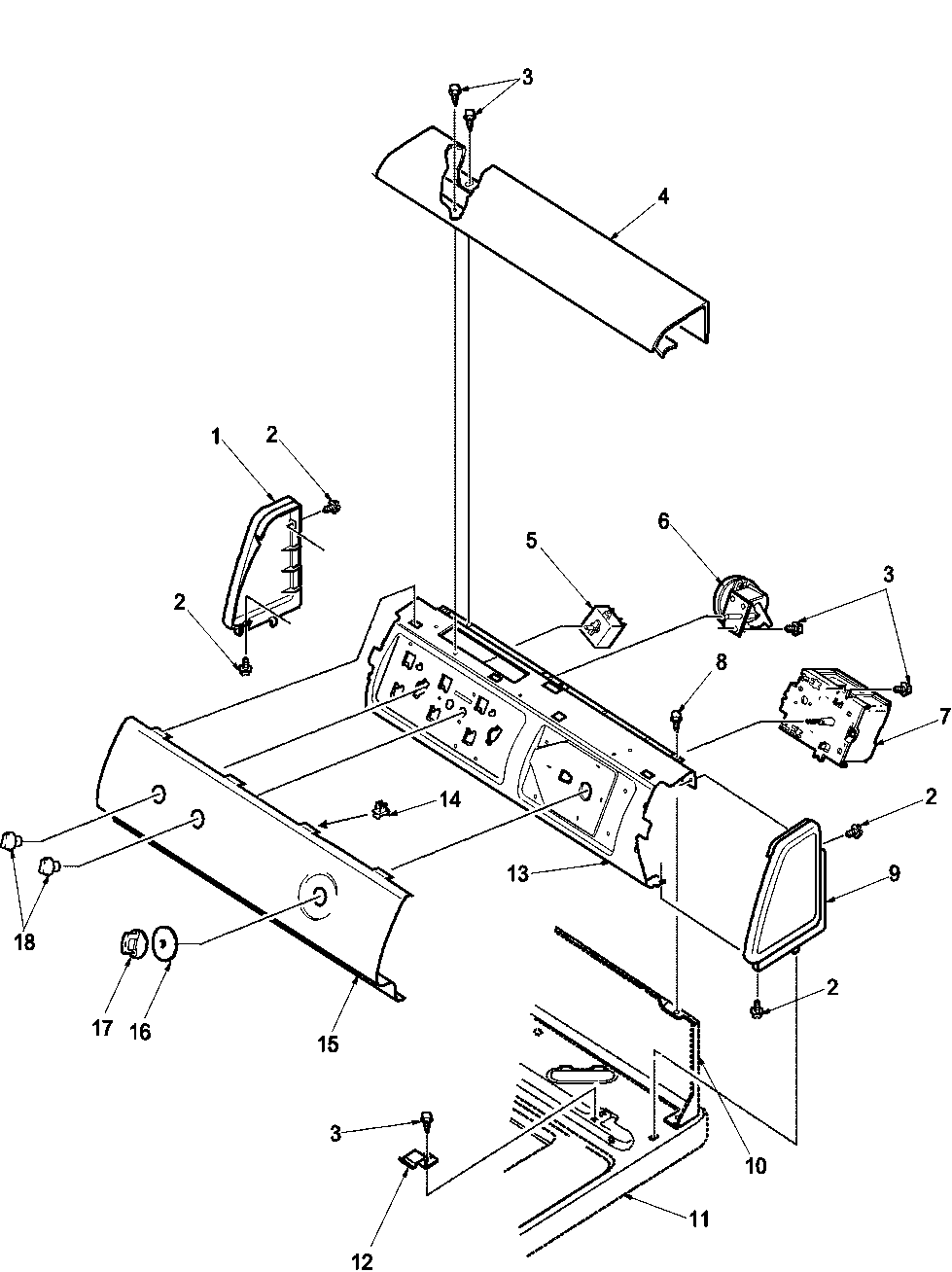

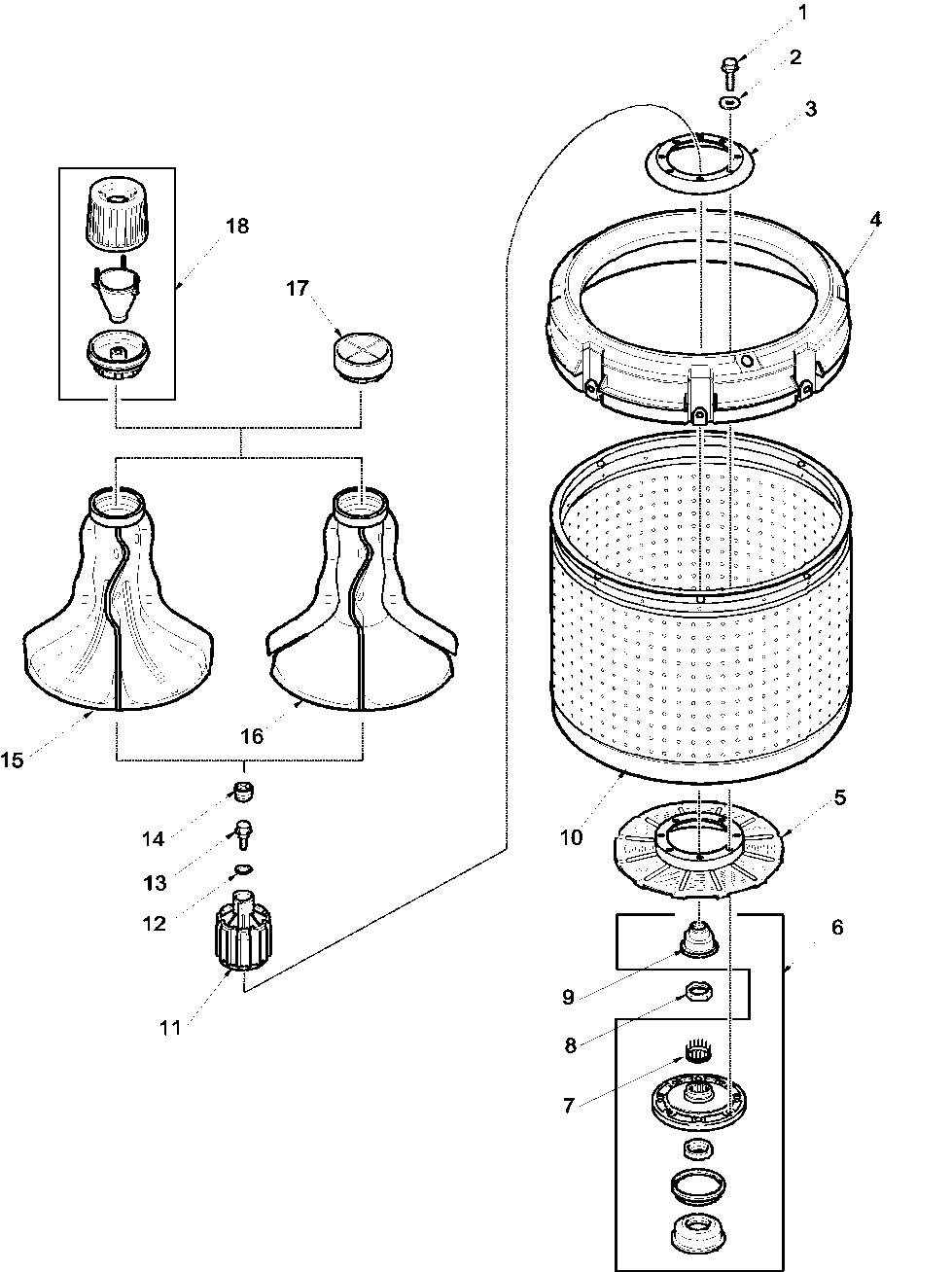

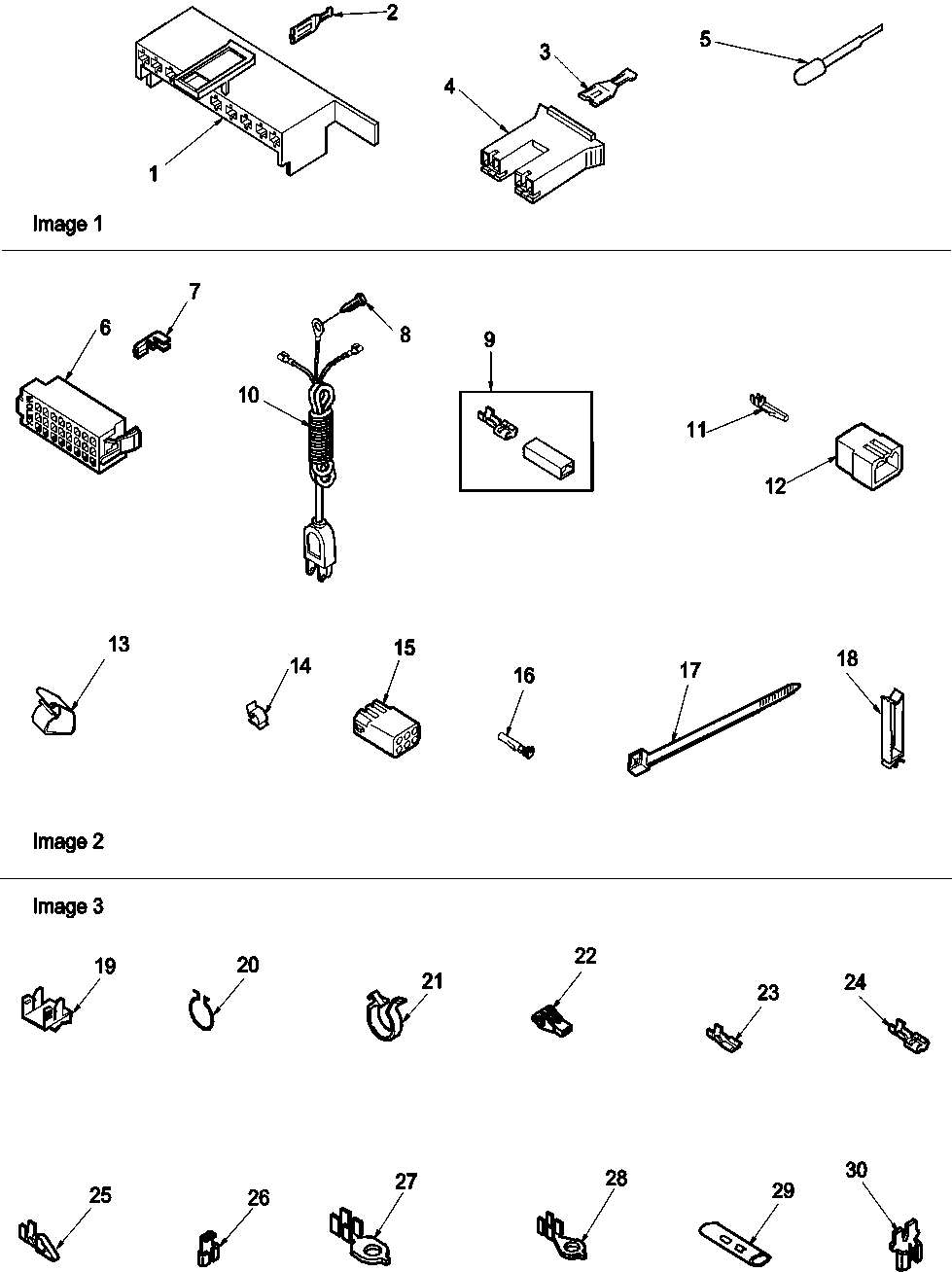

Browse Parts for LWC05AW-PLWC05AW Top-Loading Washer

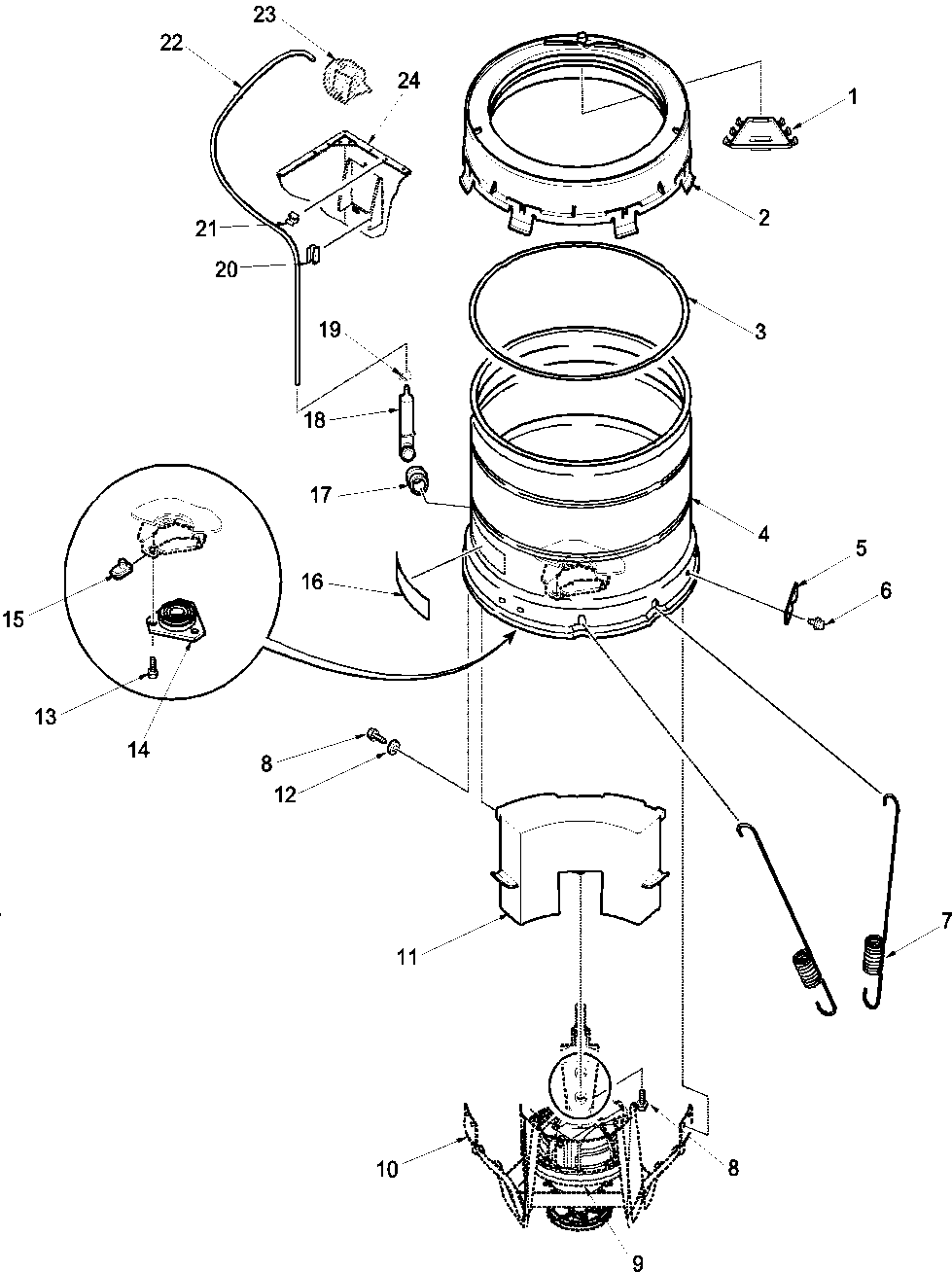

Outer tub, cover, pressure tube diagram
Hose Clamp
Part #22294Replaced by #WP596669
Manufacturer substitutionThis part replaces 22294. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7317% OFF Phone Price : $5.73
Qty

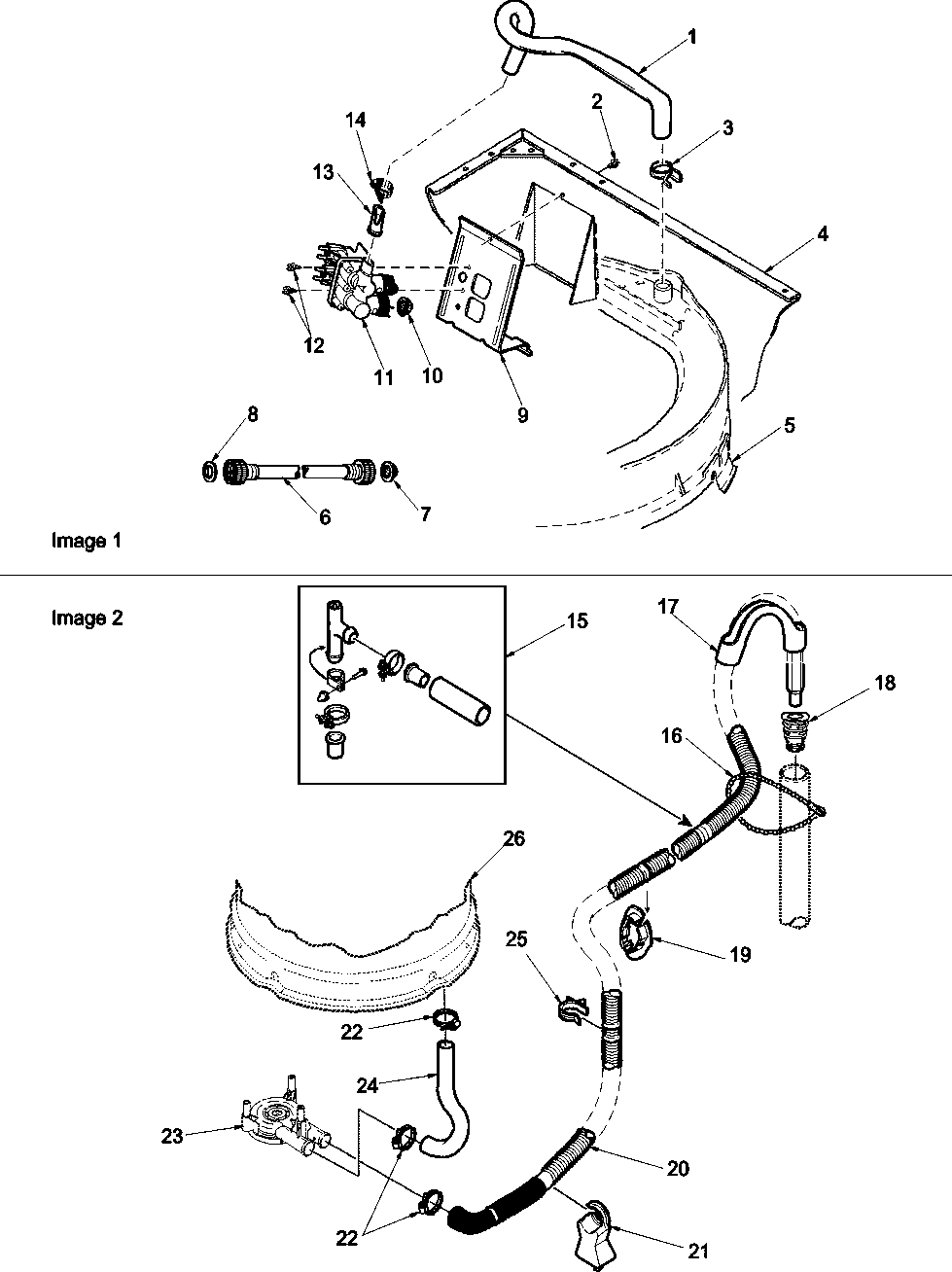

Mixing valve and hose diagram
Hose Clamp
Part #36801Replaced by #WP596669
Manufacturer substitutionThis part replaces 36801. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7317% OFF Phone Price : $5.73QtyCabinet top, door, and door switch diagram
Screw
Part #34337Replaced by #WPW10119828

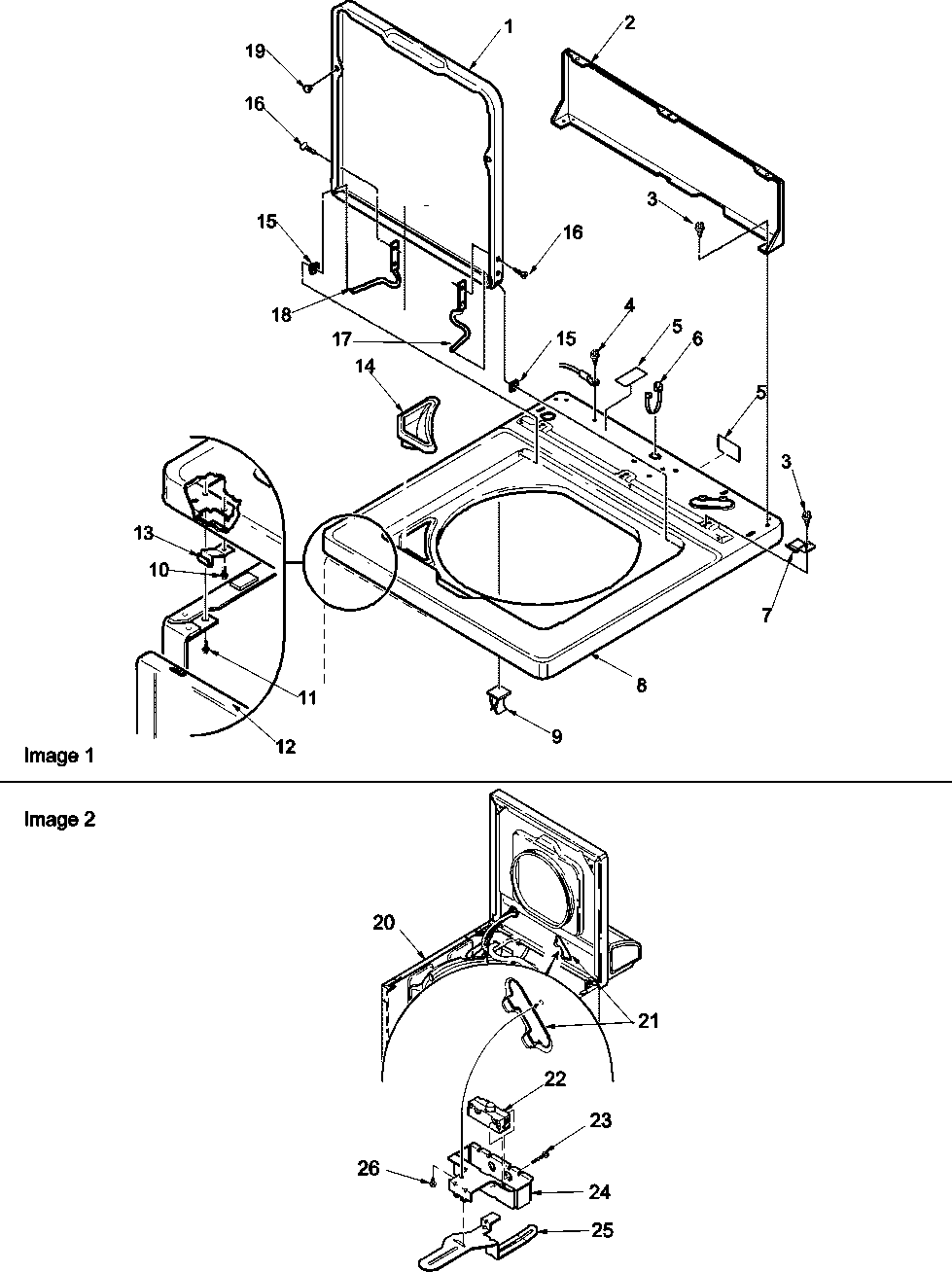

Manufacturer substitutionThis part replaces 34337. Substitute parts can look different from the original.This item is not returnableIn Stock$4.1319% OFF Phone Price : $5.13QtyMotor, belt, pump, and idler assy diagram
Retainer Ring
Part #23748Replaced by #WP23748

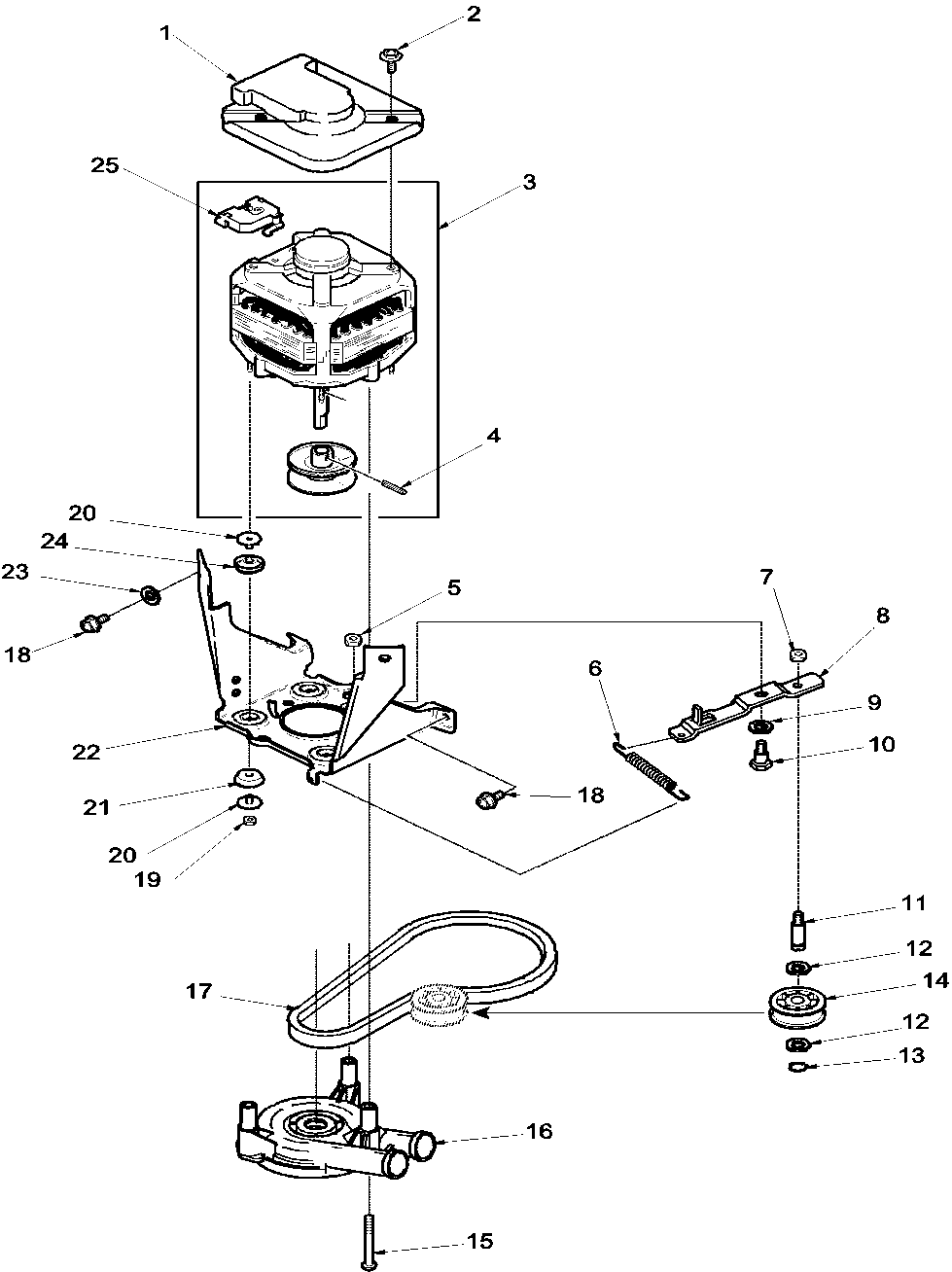

Manufacturer substitutionThis part replaces 23748. Substitute parts can look different from the original.This item is not returnableIn Stock$9.939% OFF Phone Price : $10.93QtyMotor, belt, pump, and idler assy diagram
Nut
Part #35423Replaced by #WP3400029
Manufacturer substitutionThis part replaces 35423. Substitute parts can look different from the original.In Stock$7.2112% OFF Phone Price : $8.21QtyMotor, belt, pump, and idler assy diagram
Idler Pulley
Part #38225
The manufacturer no longer makes this part, and there's no substitute part
Motor, belt, pump, and idler assy diagram
Belt
Part #37820
The manufacturer no longer makes this part, and there's no substitute part

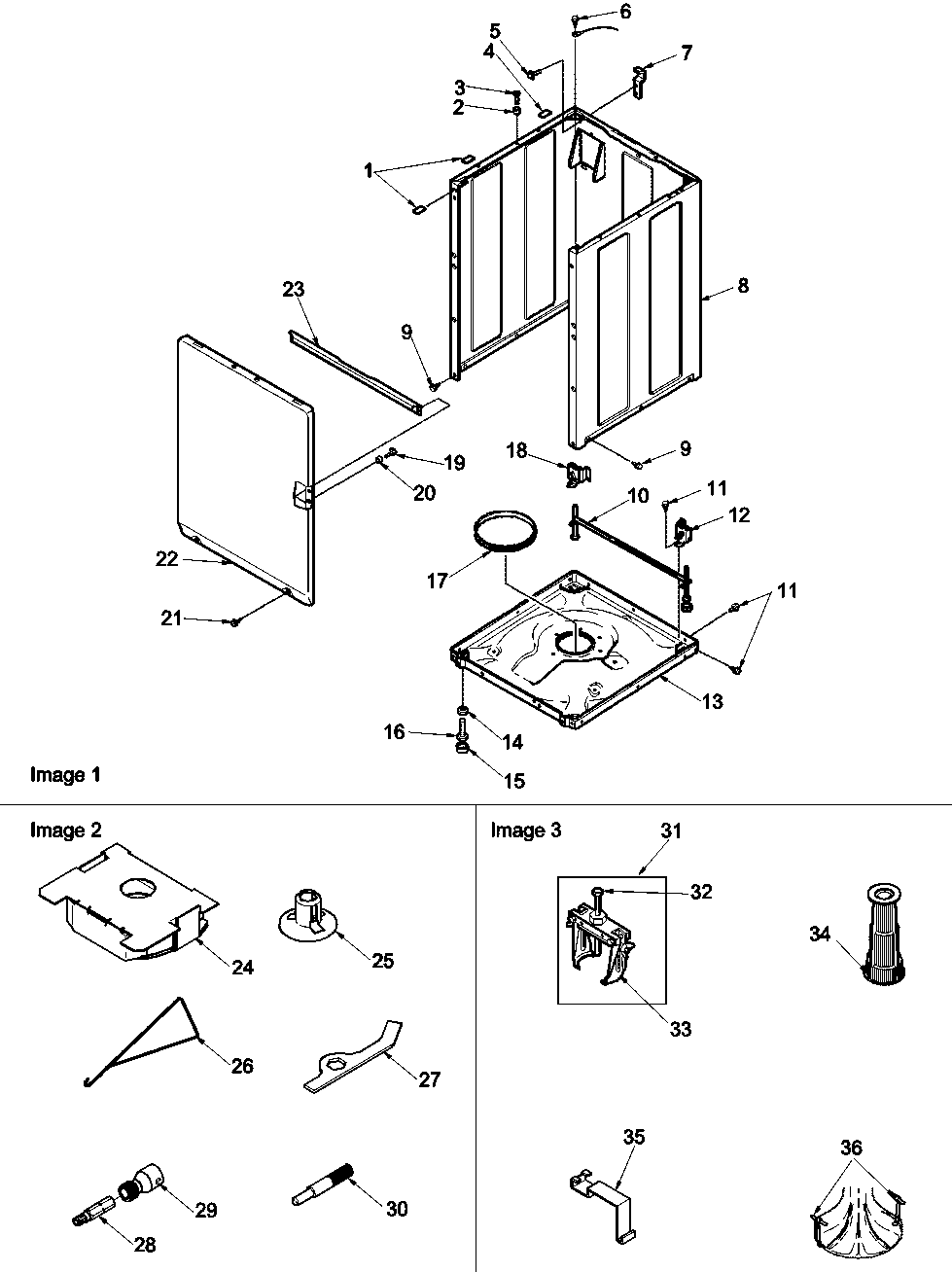

Front panel, base, and special tools diagram
Leveling L
Part #34319Replaced by #22003428
Manufacturer substitutionThis part replaces 34319. Substitute parts can look different from the original.This item is not returnableIn Stock$13.6413% OFF Phone Price : $15.64QtyOuter tub, cover, pressure tube diagram
Cap Screw
Part #36991Replaced by #3400500

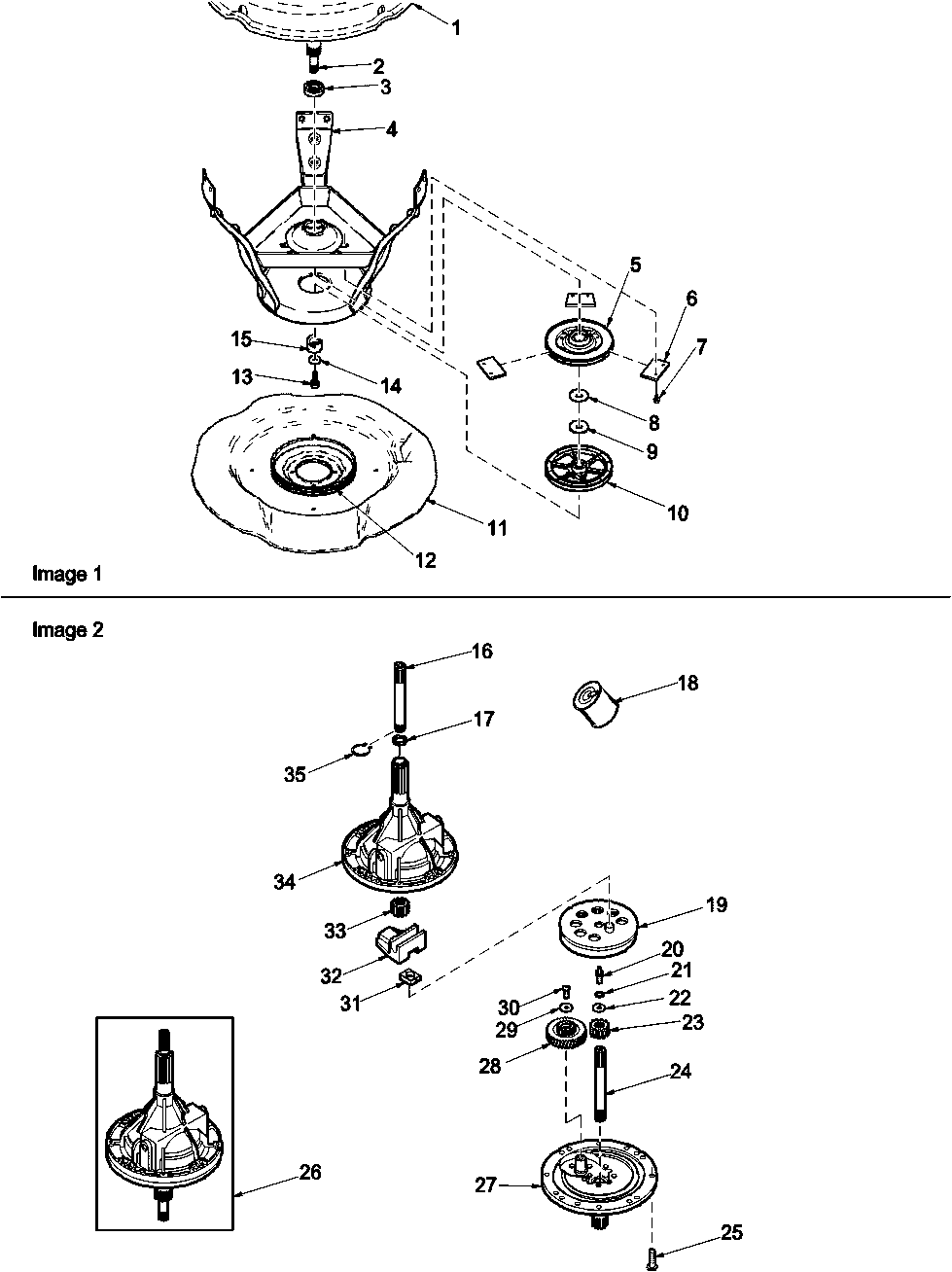

Manufacturer substitutionThis part replaces 36991. Substitute parts can look different from the original.In Stock$18.6110% OFF Phone Price : $20.61QtyBearing assy and transmission assy diagram
Helix
Part #38008Replaced by #8530072
Manufacturer substitutionThis part replaces 38008. Substitute parts can look different from the original.In Stock$29.9317% OFF Phone Price : $35.93Qty
