Model # 217585810 Official Craftsman 7.5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217585810 7.5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

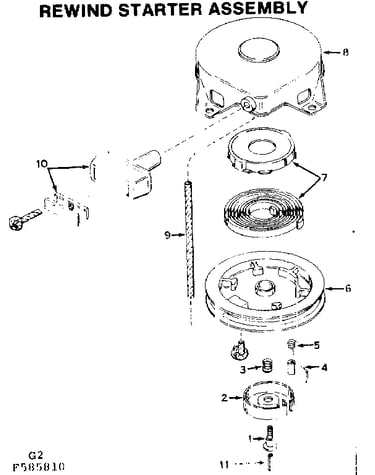

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 235 parts  |

Gasket 631028
#25

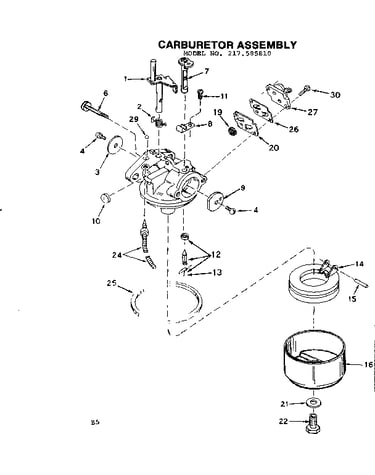

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Cover 610118
#43

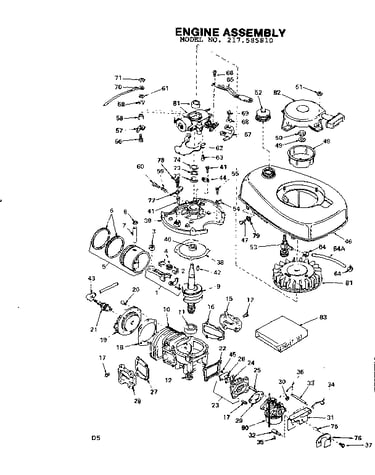

Engine assembly diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

Coil Assembly 30560A
#11

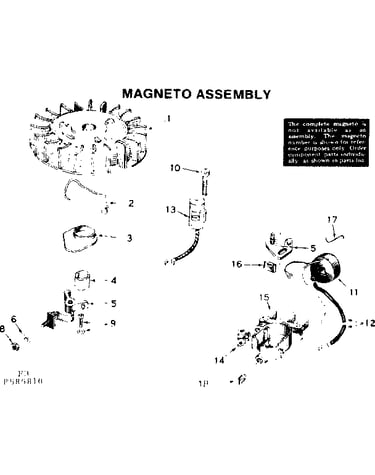

Magneto assembly diagram

Coil assembly

Part #30560A

The manufacturer no longer makes this part, and there's no substitute part

Seal 510242
#72

Engine assembly diagram

Seal

Part #510242

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Oil Seal 96009
#10

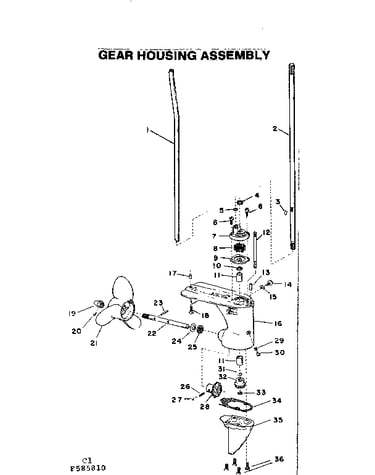

Gear housing assembly diagram

Boat motor oil seal

Part #96009

The manufacturer no longer makes this part, and there's no substitute part

Washer 4432
#21

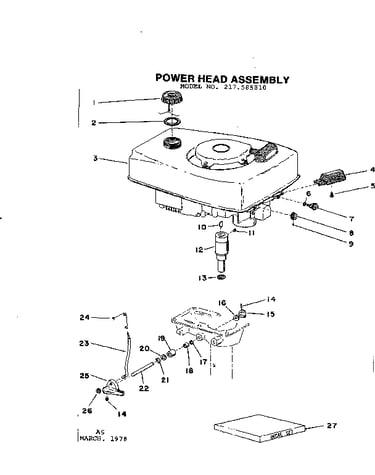

Power head assembly diagram

Washer

Part #4432

The manufacturer no longer makes this part, and there's no substitute part

Gasket (gray) 26945
#1

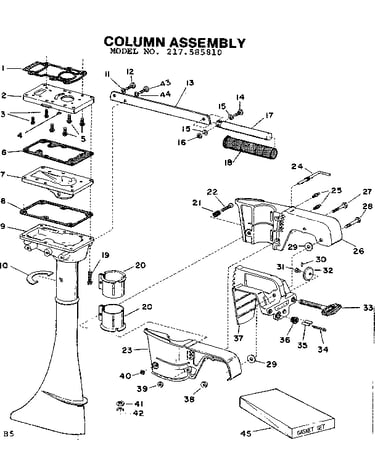

Column assembly diagram

Gasket (gray)

Part #26945

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Propeller Shaft Oil Seal 96014
#25

Gear housing assembly diagram

Boat motor propeller shaft oil seal

Part #96014

The manufacturer no longer makes this part, and there's no substitute part

Screw 579
#19

Column assembly diagram

Screw

Part #579

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Cotter Pin, 3/32 X 1-in 6405
Boat motor cotter pin, 3/32 x 1-in

Part #6405

The manufacturer no longer makes this part, and there's no substitute part
