What are the dimensions of a Kenmore refrigerator model 25370822001?
For Kenmore top-mount refrigerator model 25370822001, the cabinet dimensions are 32 in. wide, 65-3/4 in. high, and 26-5/8 in. deep. For the most accurate fit (including door swing and clearance), confirm details in the 25370822001 owner's manual.
Dimensions and what they mean
These measurements are typically the exterior cabinet size:
- Width: 32 in. (side-to-side)
- Height: 65-3/4 in. (floor to top of cabinet)
- Depth: 26-5/8 in. (front-to-back of cabinet, not including extra clearance)
Clearance planning (recommended)
Even with the correct cabinet size, we plan for airflow and door opening so the refrigerator cools properly and shelves can slide out.
- Leave space behind and above for ventilation
- Allow room on the hinge side for the door to open fully
- Confirm the depth you need if the unit sits in a tight alcove
- Check that the floor is level so doors seal correctly
Quick fit checklist
| What you are measuring | What to include | Why it matters |
|---|---|---|
| Width opening | Cabinet width plus side clearance | Prevents rubbing and improves airflow |
| Height opening | Cabinet height plus top clearance | Helps ventilation and easier install |
| Depth opening | Cabinet depth plus door/handle swing | Avoids blocking walkways and cabinets |
Why it matters
Correct dimensions and clearance help prevent warm temperatures, condensation around the doors, and premature wear on door gaskets and hinges.
Last updated: January 2026
What is the top part of a refrigerator called?
On the Kenmore 25370822001 top-mount refrigerator, the top compartment is the freezer compartment (often just called the freezer). It’s the section designed to keep foods frozen and, on many models, it also supports an ice maker.
Common names you’ll hear
- Freezer
- Freezer compartment
- Top freezer
- Freezer section
- Freezer cabinet (less common)
What the top (freezer) section does
The freezer’s job is to maintain freezing temperatures and circulate cold air. In a top-mount design, it also helps cool the fresh food section below through airflow and controls.
| Compartment | Typical purpose | What you’ll store there |
|---|---|---|
| Freezer (top) | Freezing and long-term storage | Frozen foods, ice, ice cream |
| Refrigerator (bottom) | Chilled storage | Produce, dairy, leftovers |
Parts commonly associated with the top freezer area
If you’re troubleshooting ice production or freezer performance on model 25370822001, these parts are often involved:

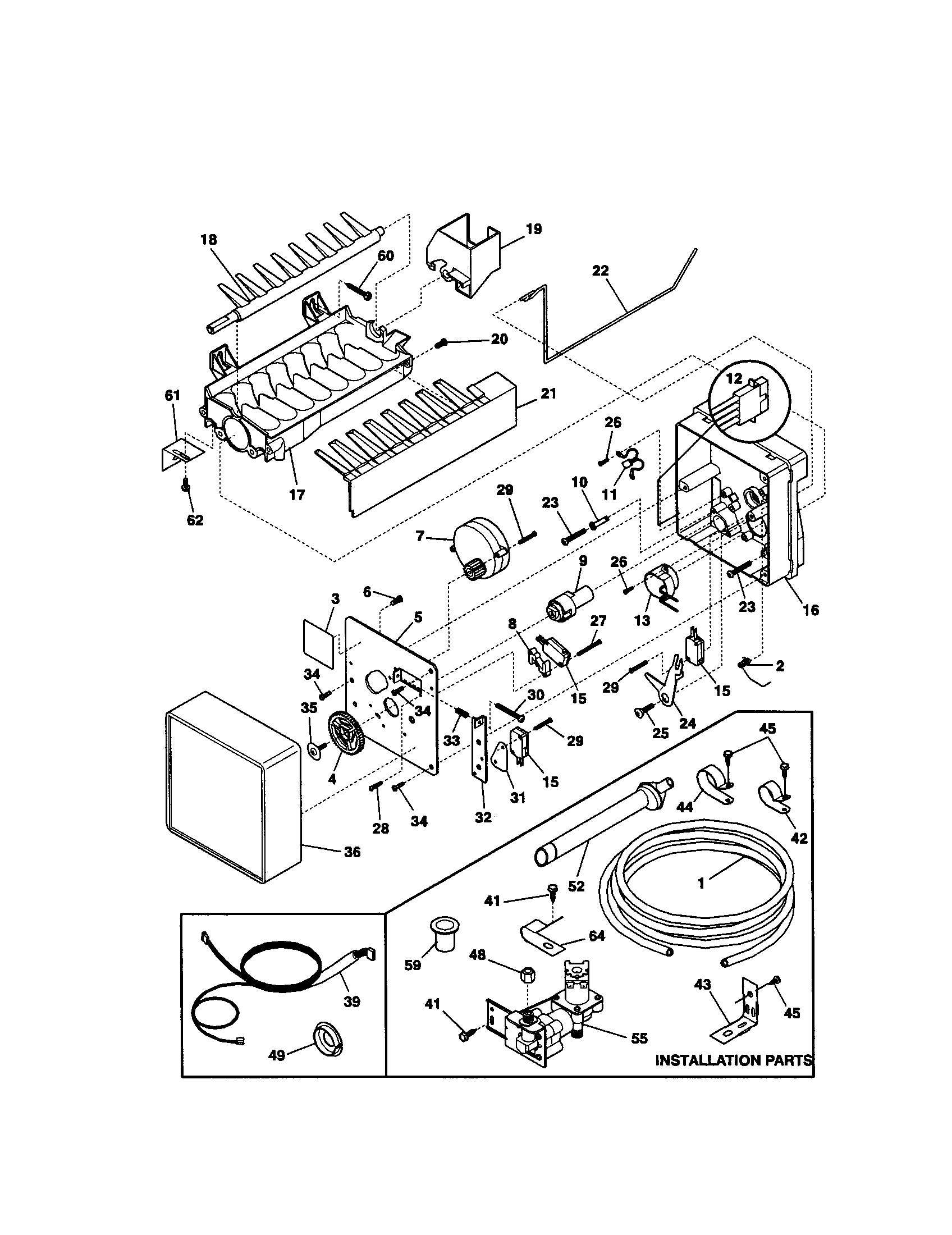

- Ice maker mold 241798231 (forms the ice cubes)
- Refrigerator fan blade 5308000010 (moves cold air through the freezer and into the refrigerator section)
- Thermostat 297216600 (helps regulate temperatures)
Why it matters
Knowing the correct compartment name helps you match symptoms to the right system. For example, “freezer not cold” points you toward airflow, defrost, or temperature control checks, while “refrigerator warm” can be caused by a freezer airflow issue.
Where to confirm model-specific terminology and controls
For the exact control locations, temperature recommendations, and feature descriptions for your unit, use the 25370822001 owner’s manual.
Last updated: January 2026
What are the common problems with Kenmore Elite refrigerators?
Common Kenmore Elite refrigerator problems include warm temperatures, frost buildup, water leaks, and unusual noises. On Kenmore model 25370822001, these symptoms usually trace back to airflow issues, a defrost-system fault, a door-seal leak, or an ice maker or compressor starting problem; use the 25370822001 owner's manual for model-specific checks.
Most common symptoms and what they usually mean
- Not cooling or weak cooling: dirty condenser area, failed evaporator fan, or sealed-system/compressor issue
- Freezer frosting up: defrost heater, defrost thermostat, or door gasket not sealing
- Water under the fridge or in the fresh-food section: clogged/iced drain path or drain tube issue
- Buzzing/clicking: compressor start components, ice maker cycling, or fan blade hitting ice
- Light not working: bulb or door/light switch problem
Quick checks we recommend (before buying parts)
- Set temps to typical targets: 0°F freezer, 37°F fresh food.
- Listen for the evaporator fan running when the compressor is on.
- Inspect door gaskets for gaps, rips, or areas that do not “grab” paper.
- Look for frost on the freezer back panel (often points to a defrost or airflow problem).
- Check for water trails and ice buildup near the drain area.
Parts that commonly solve these issues on this model
| Symptom | Common part to inspect/replace | Example from available parts |
|---|---|---|
| Frost buildup, warm fridge | Defrost thermostat | Thermostat 297216600 |
| Fan noise or poor airflow | Fan blade | Refrigerator fan blade 5308000010 |

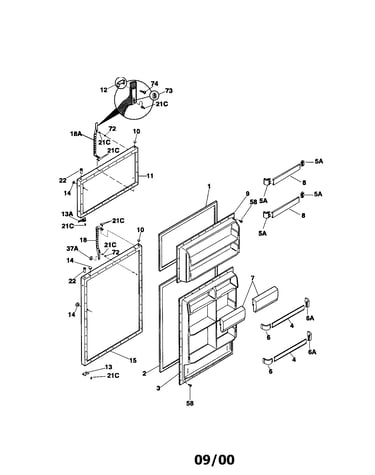

| Door not sealing, sweating | Door gasket | Refrigerator door gasket (white) 5303207345 |
| No interior light | Light switch or bulb | Refrigerator light switch 5309918806 |
Why it matters
Refrigerators depend on steady airflow and a working defrost system. When airflow is blocked (ice, failed fan) or warm air leaks in (bad gasket), temperatures swing, food spoils faster, and the compressor can run longer than normal.
Last updated: January 2026
