Craftsman
Wet/Dry Vacuum

Model # 113177895 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113177895 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Nut (white) 16938
#10

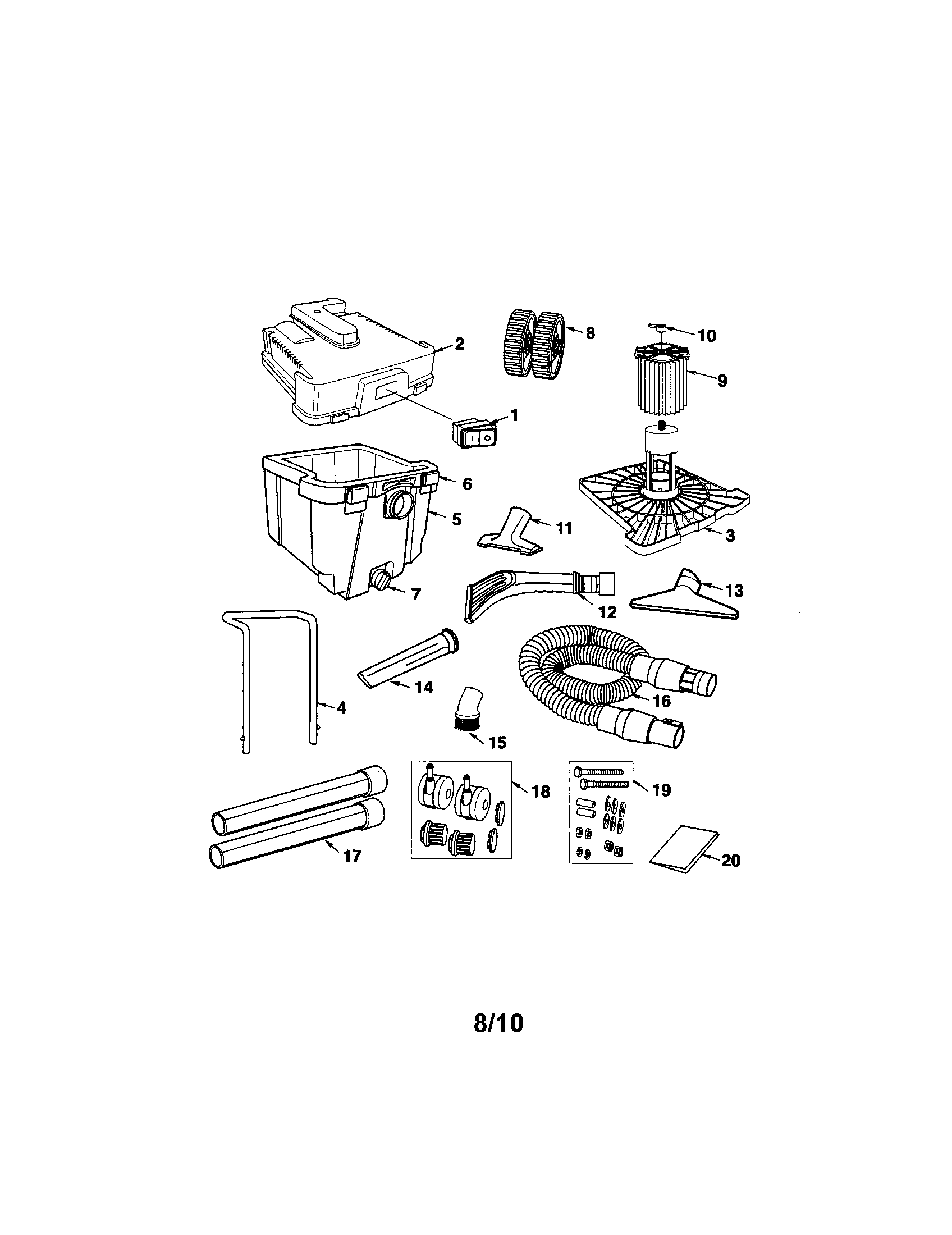

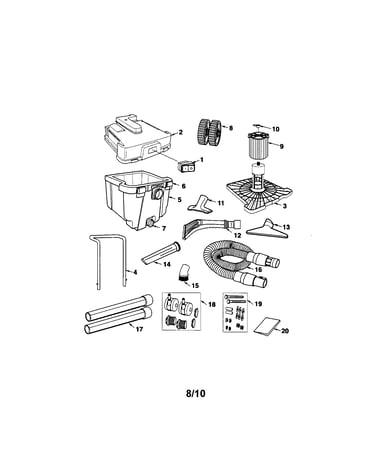

Wet/dry vac diagram

Nut (white)

Part #16938

Replaced by #551006115

?
Manufacturer substitution
This part replaces 16938. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.69 |
27% OFF Phone Price : $3.69
In Stock
Wet/dry Vacuum Extension Wand 17854
#17

Wet/dry vac diagram

Wet/dry vacuum extension wand

Part #17854

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 16922
#11

Wet/dry vac diagram

Nozzle

Part #16922

$9.99
In Stock
Filter Support 832119-1
#3

Wet/dry vac diagram

Filter support

Part #832119-1

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 832120
#4

Wet/dry vac diagram

Handle assembly

Part #832120

The manufacturer no longer makes this part, and there's no substitute part

Actuator Assembly 510013-1
#1

Wet/dry vac diagram

Actuator assembly

Part #510013-1

The manufacturer no longer makes this part, and there's no substitute part

Wheel Hardwa 509949
#19

Wet/dry vac diagram

Wheel hardwa

Part #509949

The manufacturer no longer makes this part, and there's no substitute part

Power Head 832790
#2

Wet/dry vac diagram

Power head

Part #832790

The manufacturer no longer makes this part, and there's no substitute part

Hose Assembly 831337-9
#16

Wet/dry vac diagram

Hose assembly

Part #831337-9

The manufacturer no longer makes this part, and there's no substitute part

Wheel Assembly, 8-in 830598
#8

Wet/dry vac diagram

Wheel assembly, 8-in

Part #830598

The manufacturer no longer makes this part, and there's no substitute part
