Whirlpool RB1000XVW2 electric built-in oven Parts

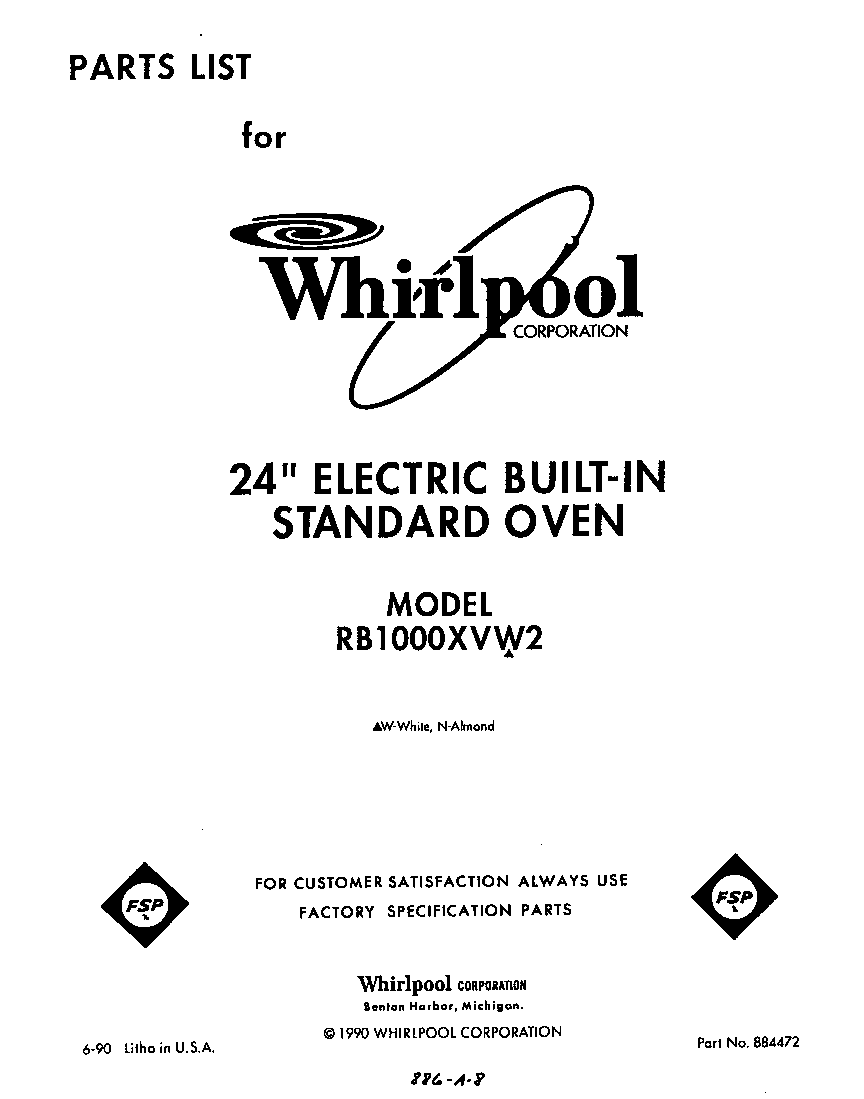

Here are the diagrams and repair parts for Whirlpool RB1000XVW2 electric built-in oven, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

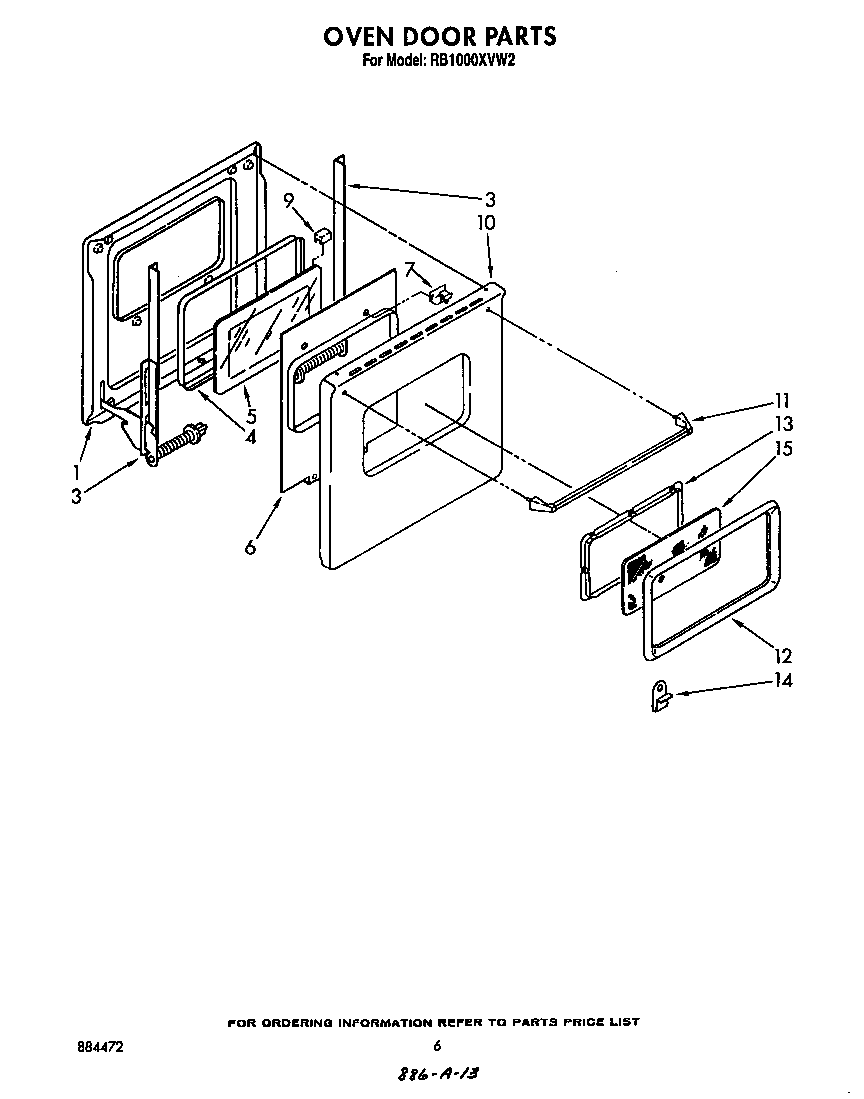

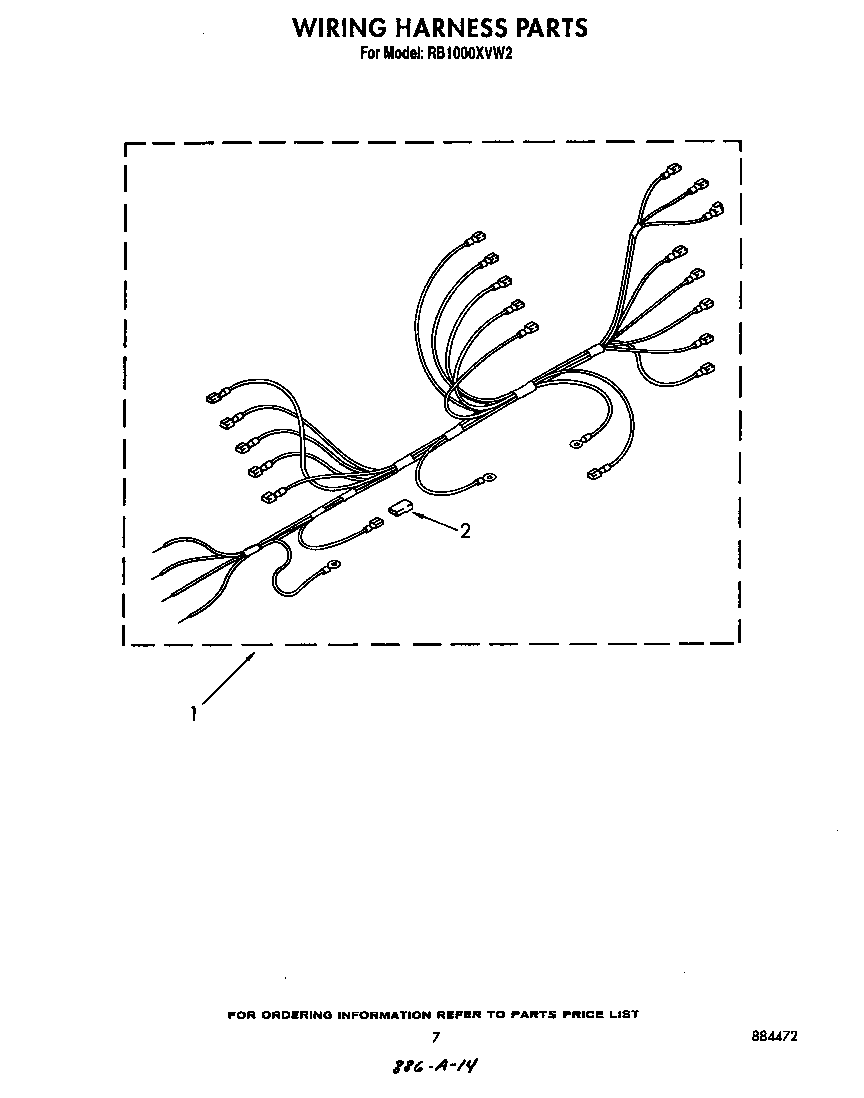

SELECT DIAGRAM
Browse Parts for RB1000XVW2 Wall Ovens

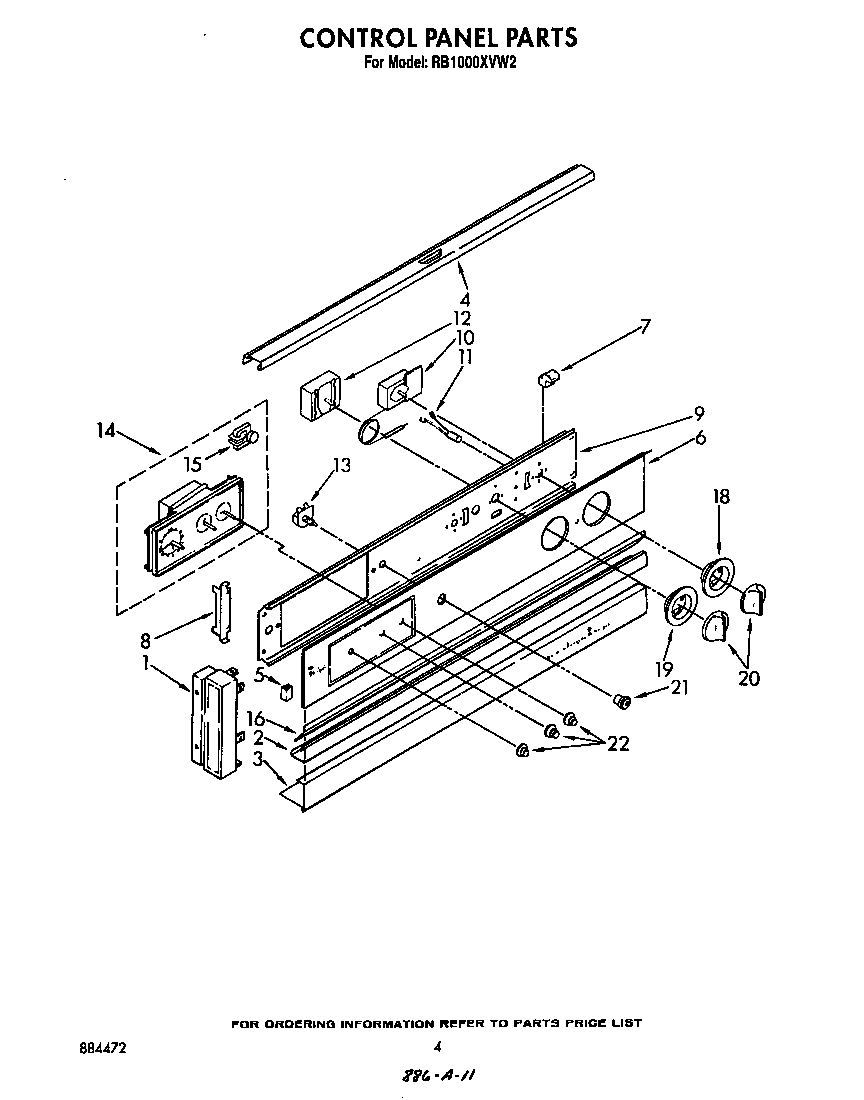

Control panel parts diagram
Trim Panel
Part #312002
The manufacturer no longer makes this part, and there's no substitute part
Control panel parts diagram
Control Panel
Part #3148657
The manufacturer no longer makes this part, and there's no substitute part
Control panel parts diagram
Control Bracket
Part #313317
The manufacturer no longer makes this part, and there's no substitute part
Oven parts diagram
Button
Part #257314
The manufacturer no longer makes this part, and there's no substitute part
Control panel parts diagram
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red)
Part #242831
The manufacturer no longer makes this part, and there's no substitute part
Oven parts diagram
Oven Plate
Part #312004
The manufacturer no longer makes this part, and there's no substitute part
Control panel parts diagram
Foam Seal
Part #313316
The manufacturer no longer makes this part, and there's no substitute part
Oven parts diagram
Rear Cover
Part #257975
The manufacturer no longer makes this part, and there's no substitute part
Oven parts diagram
Plate
Part #257807
The manufacturer no longer makes this part, and there's no substitute part
Control panel parts diagram
Motor
Part #309822
The manufacturer no longer makes this part, and there's no substitute part
