Model # CWE450 Official Maytag electric range

Here are the diagrams and repair parts for Official Maytag CWE450 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Pan For Broi 560626
#4

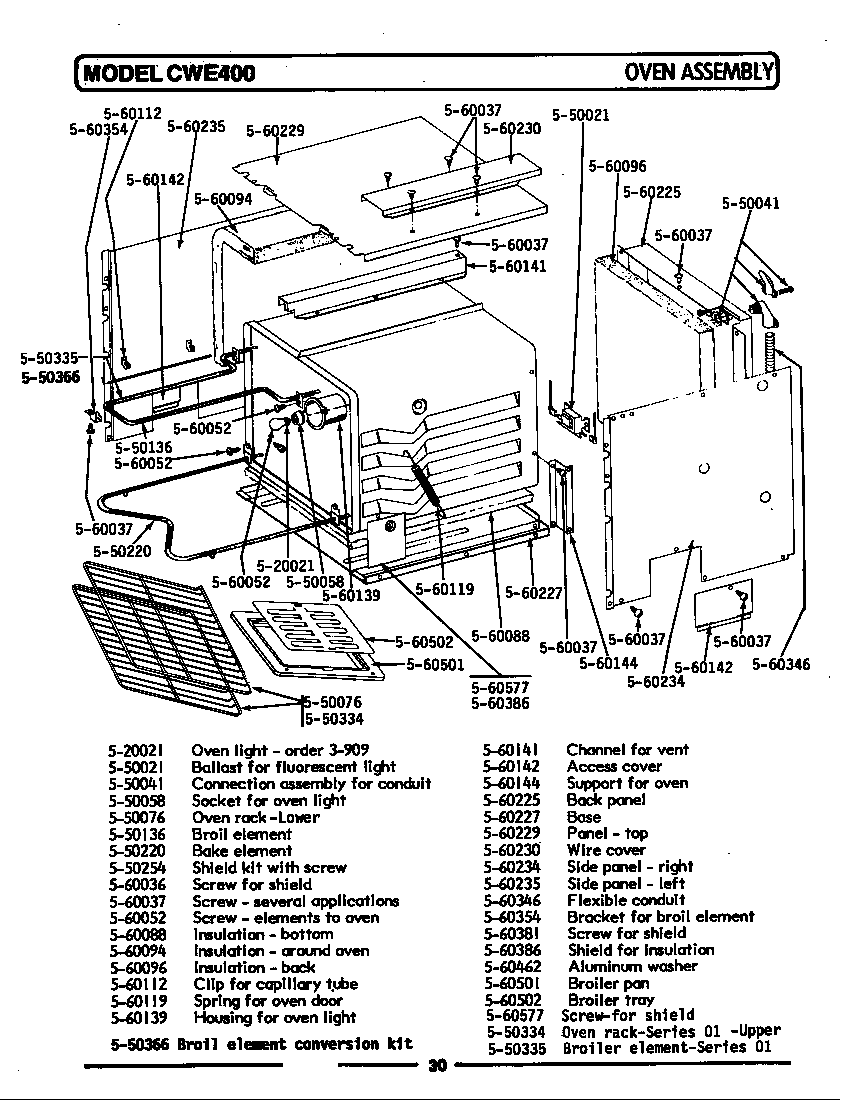

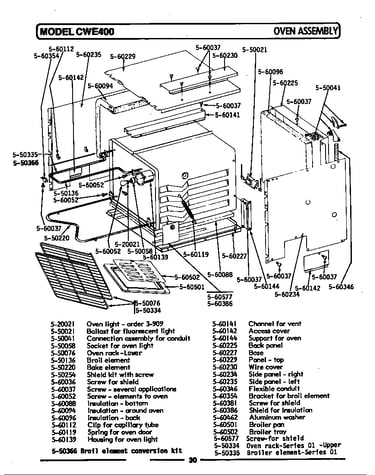

Oven assembly diagram

Pan for broi

Part #560626

Replaced by #4396923

?
Manufacturer substitution
This part replaces 560626. Substitute parts can look different from the original.
$29.55 |
24% OFF MSRP : $39.00
In Stock
Seal For Ove 550048
#2

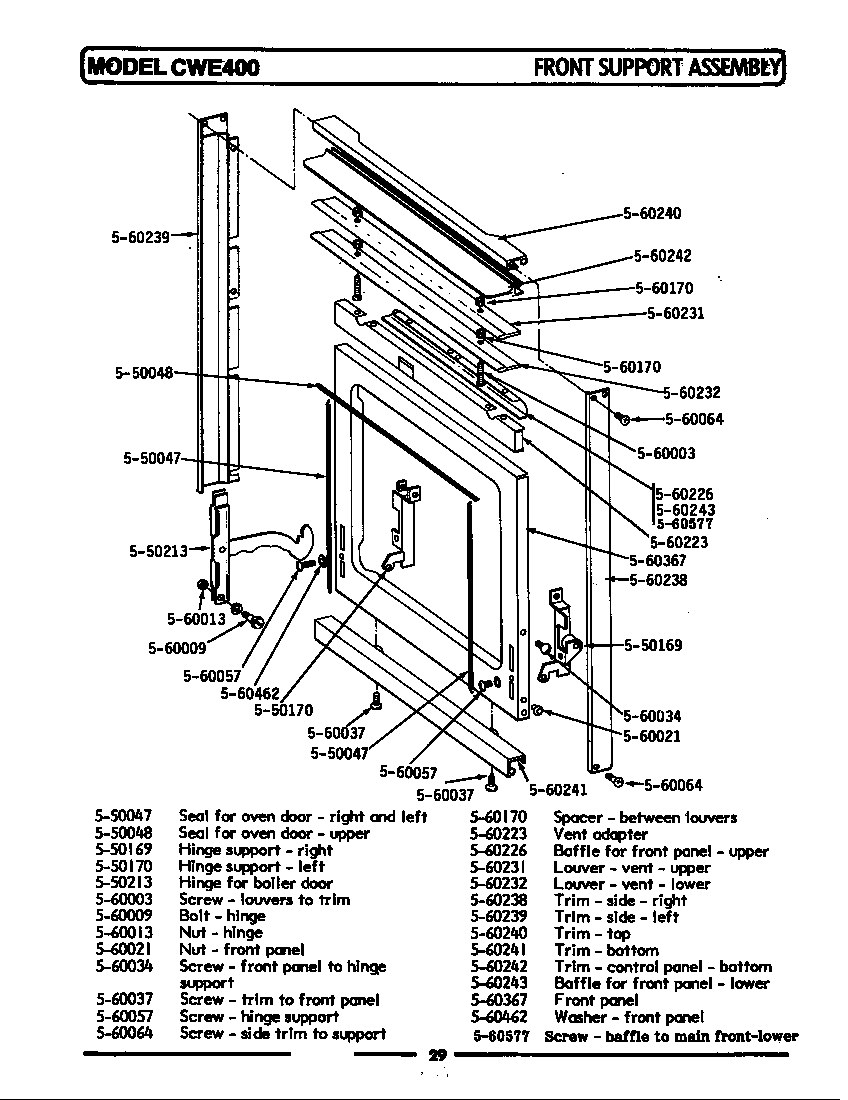

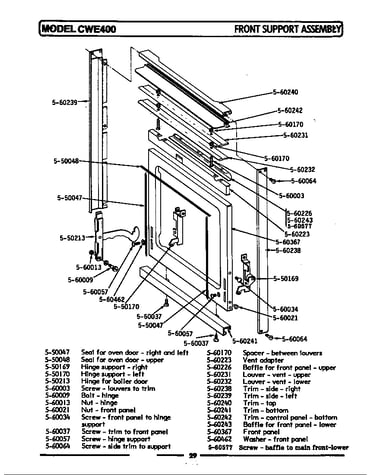

Front diagram

Seal for ove

Part #550048

Replaced by #WP7212P006-60

?
Manufacturer substitution
This part replaces 550048. Substitute parts can look different from the original.
$46.04 |
10% OFF MSRP : $51.00
In Stock
Screw 560037
Screw

Part #560037

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 560037. Substitute parts can look different from the original.
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Terminal Block 550044
#6

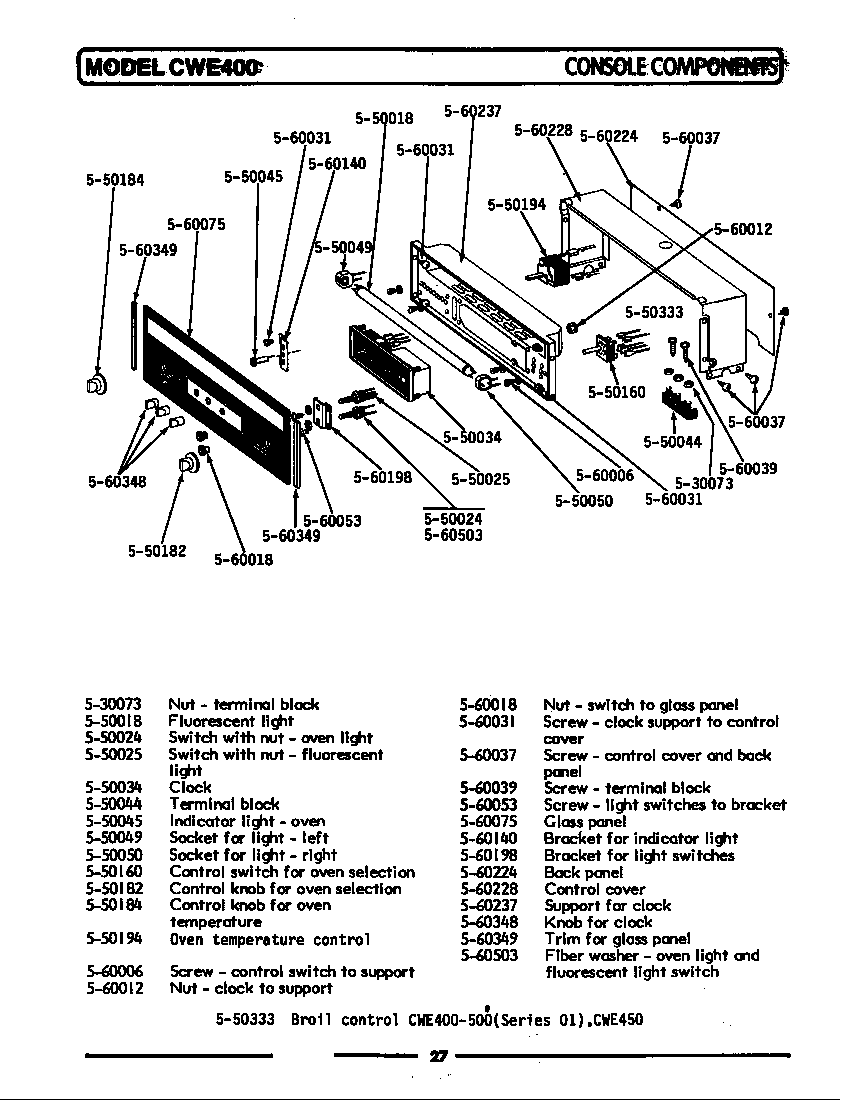

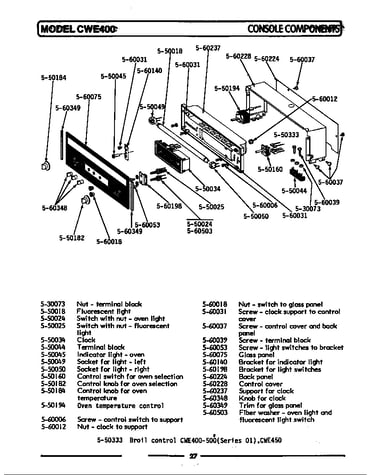

Control panel diagram

Terminal block

Part #550044

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 550044. Substitute parts can look different from the original.
$34.10 |
13% OFF Phone Price : $39.10
In Stock
Nut-handle T 560026
#5

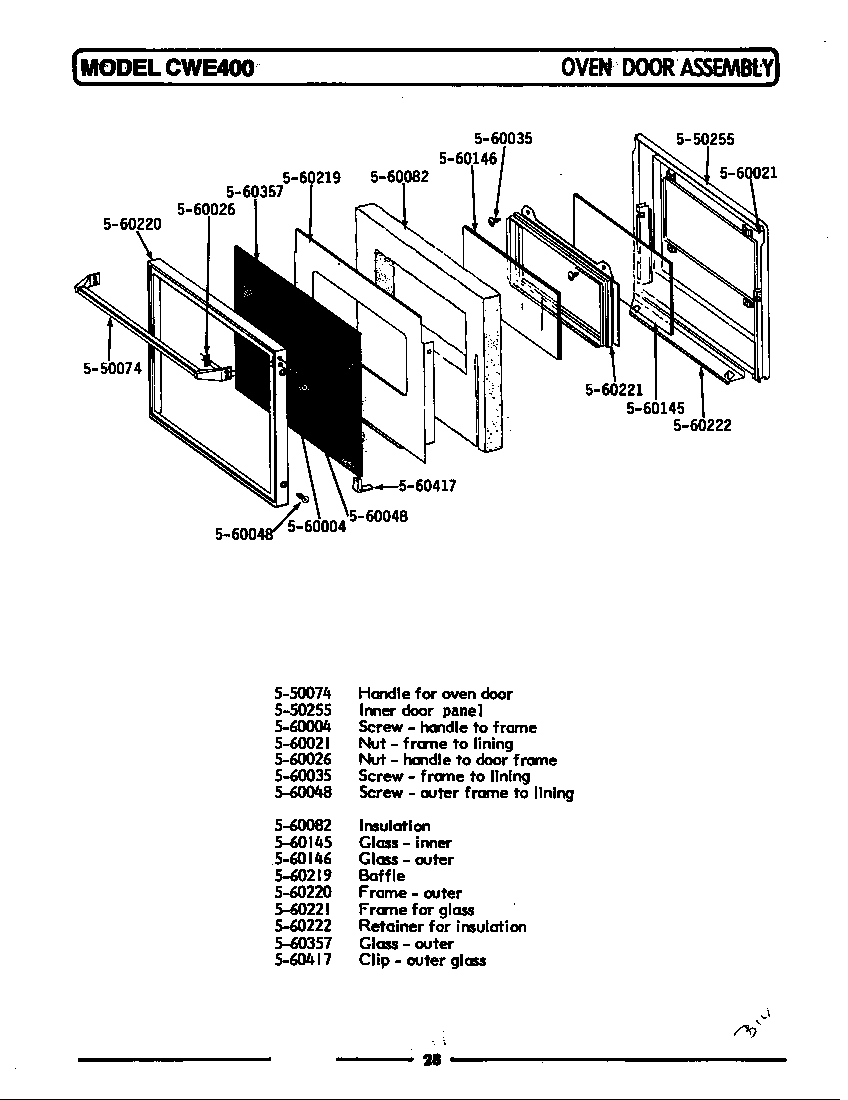

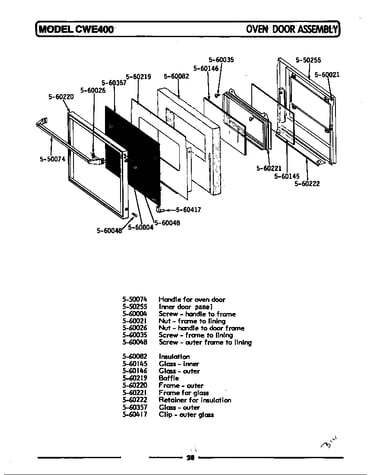

Door assembly diagram

Nut-handle t

Part #560026

Replaced by #M0282005

?
Manufacturer substitution
This part replaces 560026. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw 560034
#10

Front diagram

Screw

Part #560034

Replaced by #WPY310759

?
Manufacturer substitution
This part replaces 560034. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Seal For Ove 550047
#1

Front diagram

Seal for ove

Part #550047

The manufacturer no longer makes this part, and there's no substitute part

Screw 560053
#20

Control panel diagram

Screw

Part #560053

The manufacturer no longer makes this part, and there's no substitute part

Screw 560064
#12

Front diagram

Screw

Part #560064

The manufacturer no longer makes this part, and there's no substitute part

Hinge Support 550170
#4

Front diagram

Hinge support

Part #550170

The manufacturer no longer makes this part, and there's no substitute part
