Model # HS50-67106A Official Tecumseh 4-cycle engine

Here are the diagrams and repair parts for Official Tecumseh HS50-67106A 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

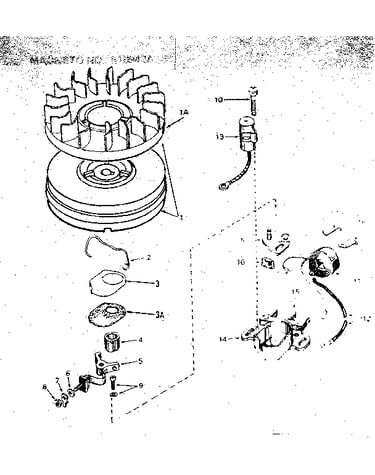

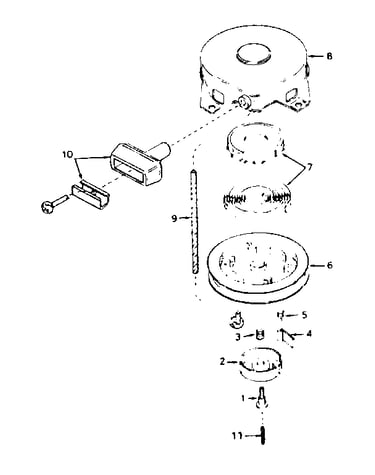

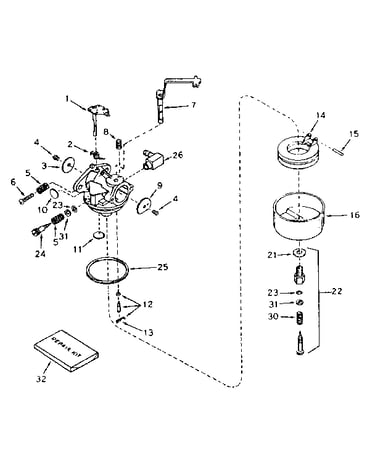

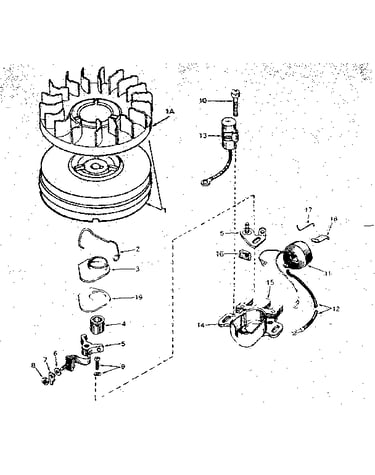

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |

Gasket 27110
Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 631023
#14

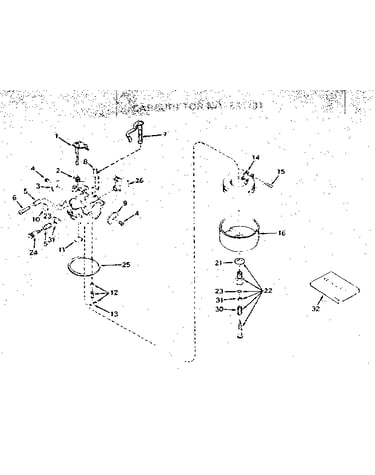

Carburetor no. 631701 diagram

/carb float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

Fuel Tank 34156
#114A

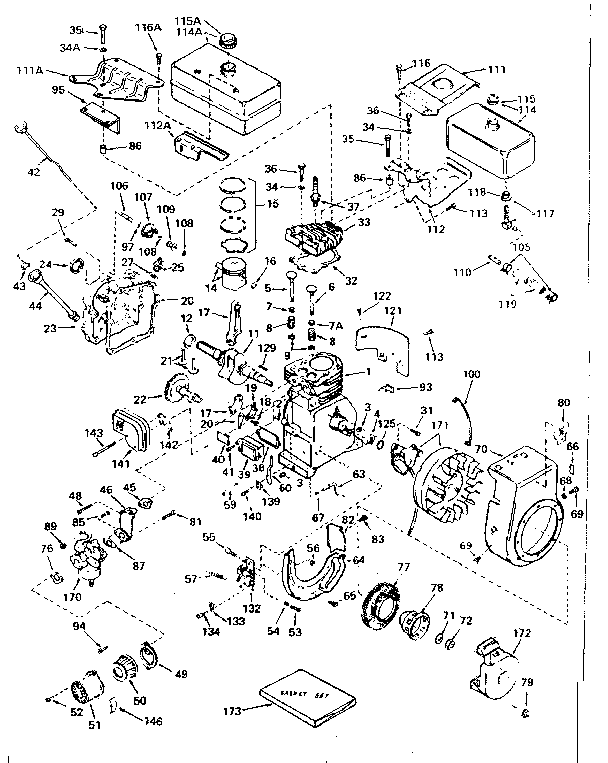

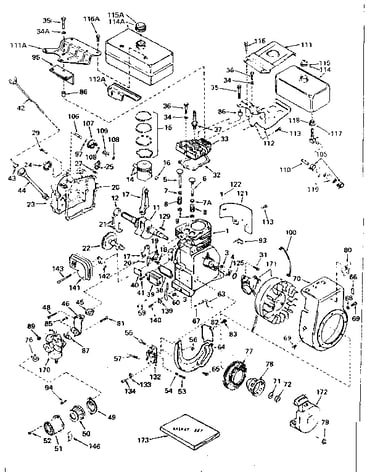

Basic engine diagram

Fuel tank

Part #34156

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#139

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Element 31410
#40

Basic engine diagram

Element

Part #31410

The manufacturer no longer makes this part, and there's no substitute part

Thrtle Sprng 631279
Thrtle sprng

Part #631279

The manufacturer no longer makes this part, and there's no substitute part

Plug 27625
#25

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Spool 30588A
#109

Basic engine diagram

Spool

Part #30588A

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27677
#28

Basic engine diagram

Gasket

Part #27677

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part
